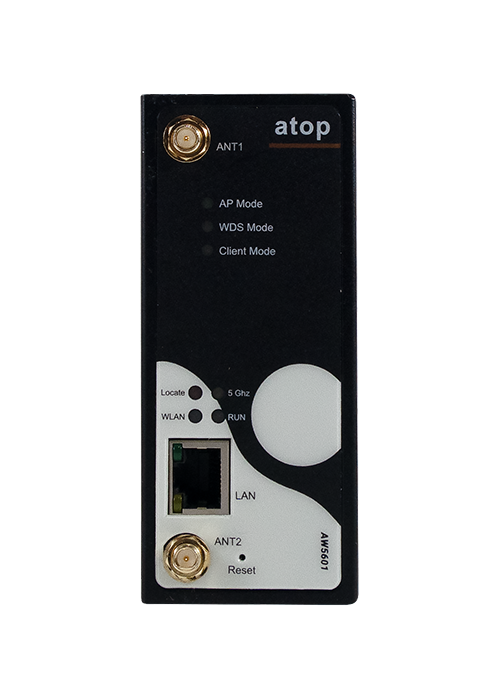

AW5601 Series - ATOP
In Stock (100 items)
57 views
€0,00
VAT Included
Product Summary
Industrial Wireless Access Point
Industrial Communication mode combines advanced features such as Flash Roaming, PROFINET Transparent, and VLAN Tagging Engineered for Extreme Condition(-30°C to 70C) w...
Product Description
Industrial Wireless Access Point
- Industrial Communication mode combines advanced features such as Flash Roaming, PROFINET Transparent, and VLAN Tagging
- Engineered for Extreme Condition(-30°C to 70C) with Advanced EMC Design
- Versatile Operating Modes for Tailored Connectivity (WDS Bridge and AP Client)
- Seamless Wi-Fi Connectivity with Sub-30ms Flash Roaming
- Standard Wi-Fi Roaming(802.11r) with Sub-100ms Roaming Time*
- PROFINET Transparent Mode for Addressing NAT & PROFINET Deployment
- Streamline Device Management with NIMBL Centralized Software
- Security Compliance with IEC 62443-4-2 Standards* *In Development Plan
The ATOP AW5601 Series is an excellent solution for businesses seeking industrial durability and reliability. With an extensive operating temperature range of -40°C to +75°C, it functions flawlessly in challenging environmental conditions. The IP30 protection rating enhances the device's resistance to dust and water, ensuring long-lasting performance. Additionally, the DIN-Rail mounting option simplifies installation processes, while the redundant power input enhances reliability, allowing the system to operate without interruptions. Ideal for industrial applications in Turkey, the AW5601 stands out with innovative features like Flash Roaming, providing seamless connectivity and high data rates to boost the performance of industrial automation systems.
Technical Specifications
| EMC | EN55032: 2015/A11:2020, EN61000-6-4:2007+A1:2011 (Level) EN55035:2017/A11:2020, EN61000-6-2:2005+AC:2005 (Level) CNS15936 |
| EMF | EN 62311: 2008 |
| Gain | 2.4GHz(3dBi), 5G(5dBi) |
| HT20 | Data Rate |
| HT40 | MCS 0 |
| RoHS | Yes |
| v1.0 | AW5601 Hardware Installation Guide |
| v1.2 | Datasheet EN |
| 6Mbps | 20dBm |
| 9Mbps | 20dBm |
| MCS 0 | 19dBm |
| MCS 1 | 18dBm |
| MCS 2 | 18dBm |
| MCS 3 | 17dBm |
| MCS 4 | 17dBm |
| MCS 5 | 16dBm |
| MCS 6 | 15dBm |
| MCS 7 | 14dBm |
| MCS 8 | 13dBm |
| MCS 9 | 13dBm |
| Radio | FCC 15 15.247, FCC 15E 15.407, EN 301893, EN 300328, NCC LP0002, Japan: MIC Radio law (Telec) |
| Shock | IEC 60068-2-27 |
| VHT20 | Data Rate |
| VHT40 | MCS 0 |
| VHT80 | MCS 0 |
| 12Mbps | 20dBm |
| 18Mbps | 20dBm |
| 24Mbps | 20dBm |
| 36Mbps | 18dBm |
| 48Mbps | 16dBm |
| 54Mbps | 15dBm |
| AW5601 | 1P1AW560100001G |
| Others | Flash roaming, PROFINET transparent |
| Safety | IEC/EN 62368-1, CNS15598-1 |
| 802.11n | 300Mbps |
| Tx / Rx | 2T2R MIMO |
| v1.4.12 | AW5601 Firmware |
| 1~11Mbps | 20dBm |
| 802.11ac | 867Mbps |
| AW5601-P | 1P1AW560100002G |
| Freefall | IEC 60068-2-32 |
| Warranty | 5 years |
| Watchdog | Yes |
| 802.11a/g | 54Mbps |
| AW5601-IC | 1P1AW560100003G |
| Connector | 2x RP-SMA(M) connectors |
| Data Rate | Tx +/- 2dB (1TX) |
| Vibration | IEC 60068-2-6 |
| Connection | 3-pin Lockable Terminal Block |
| Dimensions | 47x110x90 mm |
| Model name | Part number |
| AW5601-P-IC | 1P1AW560100004G |
| EN61000-4-2 | ESD |
| EN61000-4-3 | RS |
| EN61000-4-4 | EFT |
| EN61000-4-5 | Surge |
| EN61000-4-6 | CS |
| EN61000-4-8 | PFMF |
| Alert Events | E-mail, SNMP Trap |
| Installation | DIN-Rail, wall mount (optional kit) |
| Reset Button | Yes |
| Configuration | ATOP Management Utility, Web UI |
| Ethernet Port | 1x 10/100/1000Mbps (802.3at PoE PD; optional) |
| Input Voltage | 12-48 VDC |
| WMK-454-Black | 70100000000043G |
| Antenna (5GHz) | 2x RP-SMA(M) connectors, 5dBi |
| Operation Modes | AP, Client, WDS, WDS Hybrid (Repeater), Industrial Communication |
| UN315-2465 (US) | 50500161240002G |
| Wi-Fi Parameter | 802.11a (5.0GHz), 802.11g (2.4GHz) 802.11n (2.4GHz/5.0GHz), 802.11ac (5.0GHz) |
| Network Security | Client isolation, firewall/filtering |
| Support Protocol | ICMP, TCP, UDP, DHCP Server/Client, DNS, SNMP, NTP, SMTP, HTTP, IPv4, SNMP v1/v2, NTP, SNTP, SMTP/Syslog, HTTP/HTTPS, IPv4, TFTP, ICMP, NAT/NAPT/Static NAT, ARP, STP/RSTP(forwarding) |
| UNE315-2465 (EU) | 50500161240012G |
| Power Consumption | Approximately 6.72W (Max) |
| UN315-1212 (US-Y) | 50500151120003G |
| Wireless Security | WPA/WPA2/WPA3 PSK/Enterprise |
| UNE315-1212 (EU-Y) | 50500151120013G |
| Storage Temperature | -40°C to +85°C |
| Diagnostic Functions | System status |
| Standard Conformance | 802.11a/g/n/ac |
| Input Current (12VDC) | 0.56 A @ 12 VDC |
| Operating Temperature | -30°C to +70°C |
| Ambient Relative Humidity | 5% to 95%, 55°C (Non-condensing) |
| Ingress Protection Rating | IP30 Protection |
| Reverse Polarity Protection | Yes |
| Brand | ATOP |
| Model | AW5601 Series - ATOP |
| Main Category | Atop |
