Pro-Face
Industrial Operator Panels and Touch Displays
About Pro-face
With over 40 years of experience, Pro-face is a global leader in HMI (Human Machine Interface). It offers high-performance touch displays, operator panels and industrial PC solutions.
As part of Schneider Electric, Pro-face provides ideal solutions to increase production efficiency with its wide product range and reliable technologies.

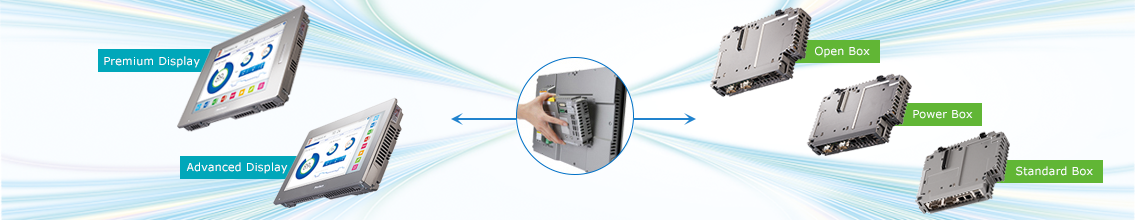

Premium Displays
High‑Performance Industrial Touch Displays
The Premium series, with high display quality and versatile functions, delivers reliable performance in harsh industrial environments. Multi‑touch technology and high‑resolution panels provide an excellent user experience.
- SP-5800WC - 15" Wide Multi-touch Display
- SP-5700WC - 12.1" Wide Capacitive Touch
- SP-5700TP - 12.1" TFT Color Display
- SP-5660TP - 10.4" TFT Color Display
- SP-5600TP - 7.5" Wide TFT Display
- SP-5500TP - 5.7" Compact Display
All models have IP65/IP66 protection and can operate between −20°C and +60°C.
Advanced Displays
High‑Quality Industrial Display Solutions
The Advanced series offers cost‑effective solutions while maintaining high performance and reliability. It stands out with rich connectivity options and a user‑friendly interface.
- SP-5600TA - 12.1" TFT Advanced Display
- SP-5600WA - 12.1" Wide Advanced Display
- SP-5500WA - 10.4" Wide Display
- SP-5400WA - 7" Wide Compact Display
- Ethernet, RS‑232/485 communication ports
- USB Host and Device connections
Box Modules
Modular and Flexible HMI Solutions
Open Box (SP-5B41)
Run Windows applications together with your HMI on the same screen. Open platform architecture for maximum flexibility.
- • Windows Embedded OS
- • Intel Atom Processor
- • Multi‑application support
Power Box (SP-5B10)
High performance with extended HMI features. I/O modules can be connected directly.
- • Built‑in I/O slots
- • Powerful processor
- • Extended memory
Standard Box (SP-5B00)
High performance and extended HMI features. Ideal for basic automation needs.
- • Standard HMI features
- • Compact design
- • Uygun maliyet
Software Solutions
GP‑Pro EX Development Environment
GP‑Pro EX is a powerful and user‑friendly development environment for Pro‑face HMIs, enabling rapid development and easy maintenance.
- Drag & Drop screen design
- 800+ PLC driver support
- Rich graphics & animation library
- Remote access and control features
- Alarm and recipe management
- Trend and data logging
- Multi‑language support
Technical Specifications
Display Module Comparison
| Model | Screen Size | Resolution | Touch | Memory |
|---|---|---|---|---|
| SP-5800WC | 15" Wide | 1366 x 768 | Multi-touch Capacitive | 32GB |
| SP-5700WC | 12.1" Wide | 1280 x 800 | Capacitive | 16GB |
| SP-5600TP | 7.5" Wide | 800 x 480 | Resistive | 8GB |
| SP-5500TP | 5.7" | 640 x 480 | Resistive | 8GB |
Discover Pro-face Products
Explore Pro-face HMI and SCADA systems in our stock and find the right solution for your needs.
