Product Summary
The EF24L Series is a lite Industrial Gigabit Ethernet to Fiber Converter providing media conversion between 10/100/1000 BASE-T(X)and 100/1000 BASE-(F)X.
Supports Auto MDI/MDI-X and Auto NegotiationAv...
Product Description

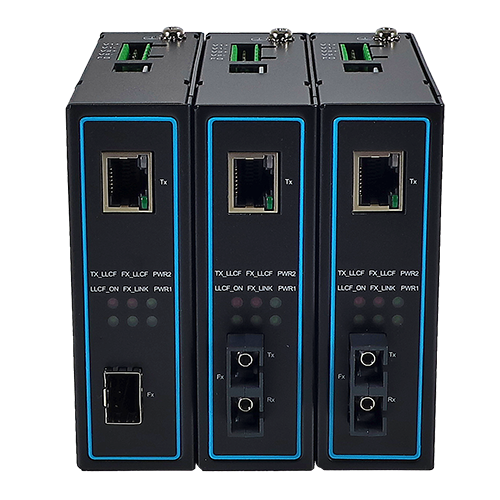

The EF24L Series is a lite Industrial Gigabit Ethernet to Fiber Converter providing media conversion between 10/100/1000 BASE-T(X)and 100/1000 BASE-(F)X.
- Supports Auto MDI/MDI-X and Auto Negotiation
- Available in both SC and SFP Fiber Connectors
- Redundant Power Input
- Jumbo packets up to 10K bytes
- Link Fault Pass-Through (LFP)
- Operating Temperature : -10°C to +70°C, -40°C to +70°C for -T models
The ATOP EF24L Series offers industrial durability and reliability, performing exceptionally well in challenging working conditions. With an extensive temperature range of -40°C to +75°C, it can be seamlessly integrated into various industrial applications. The IP30 protection class ensures defense against external factors, while the DIN-Rail mounting option provides installation flexibility. Additionally, the redundant power input feature enhances the system's continuous operation and reliability. This solution is well-suited for integration into Turkey's industrial infrastructure, delivering high efficiency and reliability in sectors such as automation, energy, and telecommunications.
Technical Specifications
| EMC | FCC Part 15, Subpart B, Class A EN55032 EN61000-6-4 EN61000-3-2 EN61000-3-3 EN55035 EN61000-6-2 |
| Drop | MIL-STD-810F Method 516.7 |
| MTBF | 415,681.88 hrs / 47.45 years (25°C) |
| Mode | Multi-mode |
| RoHS | Yes |
| v1.0 | FCC Statement of Compliance |
| v1.1 | EF24L Hardware Installation guide |
| v1.6 | Datasheet EN |
| Shock | MIL-STD-810F Method 516.7 |
| Remark | EF24L-1G-1Fm-SC-550M |
| Safety | EN62368-1 |
| Weight | EF24L-1G-1Fm-SC-550M / EF24L-1G-1Fs-SC-10 : 320g EF24L-1G-1SFP : 330g |
| Housing | Metal, IP30 protection |
| Bit Rate | 1250Mbps |
| Distance | 550M |
| Warranty | 5 Years |
| Connector | Removable 5-pin Terminal Block |
| Standards | IEEE 802.3 for 10BASE T IEEE 802.3u for 100BASE-T(X) and 100BASE-FX IEEE 802.3ab for 1000BASE-T(X) IEEE 802.3z for 1000BASE-X |
| Vibration | MIL-STD-810F Method 514.7 |
| AD1120-48F | 50501201480001G |
| AD1240-48C | 50502401550001G |
| DIP Switch | Speed mode, Link Transparency, Fiber Auto Negotiation, Jumbo Frame |
| RJ45 ports | 10/100/1000Base-T(X) Full-Duplex / Half-Duplex auto negotiation |
| Application | 1000Base-SX |
| Fiber Ports | 100/1000BASE-(F)X or SFP Slot |
| Installation | DIN-Rail , Wall mount (optional kit) |
| IEC 61000-4-2 | ESD |
| IEC 61000-4-3 | RS |
| IEC 61000-4-4 | EFT |
| IEC 61000-4-5 | Surge |
| IEC 61000-4-6 | CS |
| IEC 61000-4-8 | PFMF |
| Input Current | 0.3A max, 9VDC |
| Input Voltage | 9~48 VDC |
| WMK-450-Black | 70100000000052G |
| AXFD-1314-0523 | 522AXFD1314001G |
| AXFD-1314-0553 | 522AXFD1314011G |
| AXGD-1354-0523 | 522AXGD1354001G |
| AXGD-1354-0533 | 522AXGD1354011G |
| AXGD-3354-0593 | 522AXGD3354001G |
| AXGD-5854-0513 | 522AXGD5854001G |
| AXXE-5886-05B3 | 522AXXE5886001G |
| IEC 61000-4-11 | DIP |
| LED Indicators | PWR1, PWR2, F_Mode, Fx_Link, LLCF_ON, Tx_LLCF, Fx_LLCF |
| TX Power (dBm) | -9.5 to -4 |
| Wavelength (nm) | 1310 |
| EF24L-1G-1Fs-SC-10 | 1P1EF24L000002G |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| EF24L-1G-1Fm-SC-550M | 1P1EF24L000001G |
| EF24L-1G-1Fs-SC-10-T | 1P1EF24LT00002G |
| Dimension (W x H x D) | 32 mm x 101 mm x 101mm (1.26 x 3.98 x 3.98 in) |
| Operating Temperature | -10°C to +70°C (14°F to +158°F) -40°C to +70°C (-40°F to +158°F) for -T models |
| EF24L-1G-1Fm-SC-550M-T | 1P1EF24LT00001G |
| Ambient Relative Humidity | 5 to 95%, 55°C (non-condensing) |
| Reverse Polarity Protection | Yes |
| EF24L-1G-1SFP (EOL, use EF24S-1G-1SFP) | 1P1EF24L000003G |
| EF24L-1G-1SFP-T (EOL, use EF24S-1G-1SFP) | 1P1EF24LT00003G |
| Brand | ATOP |
| Model | EF24L Series - ATOP |
| Main Category | Atop |
