EH2008 - ATOP
In Stock (100 items)
51 views
€0,00
VAT Included
Product Summary

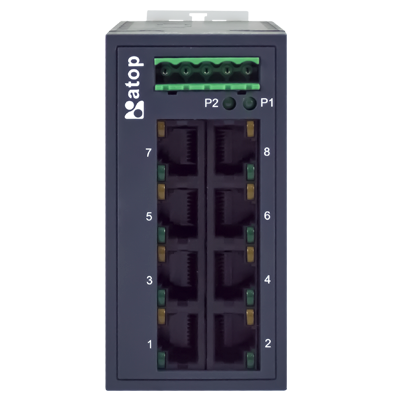

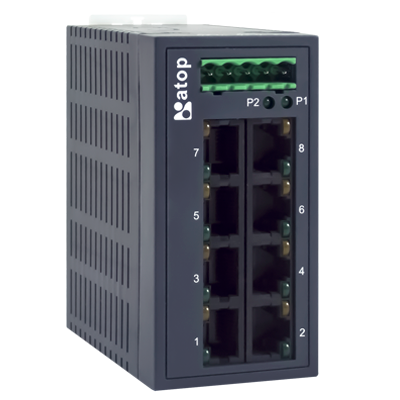

Industrial 8-Port Unmanaged Fast Ethernet Switch - Plastic Housing
10/100BaseT(X) (RJ45)Broadcast storm protectionSupport IEEE 802.3/ 802.3u/ 802.3x10/100M, Full/Half-Duplex, MDI/MDI-X auto-detectionS...
Product Description
Industrial 8-Port Unmanaged Fast Ethernet Switch - Plastic Housing
- 10/100BaseT(X) (RJ45)
- Broadcast storm protection
- Support IEEE 802.3/ 802.3u/ 802.3x
- 10/100M, Full/Half-Duplex, MDI/MDI-X auto-detection
- Support 802.1Q/p QoS, prioritizing critical packets such as PROFINET packets
- Redundant dual DC power inputs
- Operating temperature ranges from 0~60˚C
- Rugged plastic housing
- DIN-Rail or wall mounting ability
The ATOP EH2008 model offers an excellent choice for industrial network solutions, showcasing top-tier performance in terms of durability and reliability. With a wide operating temperature range (-40°C to +75°C), it ensures uninterrupted service even in harsh environmental conditions. Its IP30 protection class enhances resilience against dust and water, while the flexibility of DIN-Rail and wall mounting options caters to diverse installation needs. Additionally, the redundant power inputs maintain system continuity, and the automatic MDI/MDI-X connection along with IEEE 802.1Q/p QoS support make it an ideal solution for industrial applications in Turkey. These features reinforce the ATOP EH2008's capability to provide a reliable network connection in industrial environments.
Technical Specifications
| RoHS | Lead(Pb) Free |
| v0.1 | Datasheet EN |
| v0.2 | Datasheet EN |
| v0.3 | Datasheet EN |
| v0.4 | Datasheet EN |
| v0.5 | Datasheet EN |
| v0.6 | Datasheet EN |
| v1.0 | EH2008 Certification UL |
| Input | 9-48 VDC |
| EH2008 | 1P1EH200800001G |
| Weight | 150g Max |
| CE(EMI) | EN55032:2012/AC:2013 Class A EN61000-3-2:2014 EN61000-3-3:2013 EN61000-6-4:2007 |
| CE(EMS) | EN55024:2010/A1:2015 IEC 61000-4-2:2008-12 IEC 61000-4-3:2010-04 IEC 61000-4-4:2012-04 IEC 61000-4-5:2014 IEC 61000-4-6:2013-10 IEC 61000-4-8:2009-09 IEC 61000-4-11:2004-03 EN61000-6-2:2005/AC:2005 |
| Housing | IP30 protection, plastic housing |
| Storage | -20oC ~ 70oC ( -4oF ~ 158oF ) |
| FCC(EMI) | FCC 47 CFR Part15, Subpart B, Class A |
| Warranty | 5 years |
| Connector | Removable 5-pin Terminal Block for power input |
| Dimension | 45.2mm * 90mm * 83mm (W x H x D) |
| Operating | 0°C ~ 60°C ( 32oF ~ 140oF ) |
| Standards | IEEE802.3, 802.3u, 802.3x IEEE802.1Q/p |
| UL(Safety) | UL/IEC 60950-1, UL/IEC 62368-1 |
| Consumption | 5.4 W Max |
| RJ-45 Ports | 10/100BaseT(X) auto negotiation speed Full/Half-duplex mode, and auto MDI/MDI-X connection |
| Flow Control | IEEE802.3x flow control, backpressure flow control |
| Power Adapter | UN315-1212 (US-Y) |
| LED Indicators | Power, 10/100M |
| Processing Type | Store and Forward |
| UNE315-1212 (EU-Y) | Y-Type power adaptor, 100-240VAC input, 1.25A @ 12VDC output, EU plug, LV6 |
| Ambient Relative Humidity | 5%~95% non-condensing |
| Reverse Polarity Protection | Present |
| MTBF (according to MIL-HDBK-217F) | 443115 hrs(25oC) / 50.58 years(25oC) |
| Brand | ATOP |
| Model | EH2008 - ATOP |
| Main Category | Atop |
