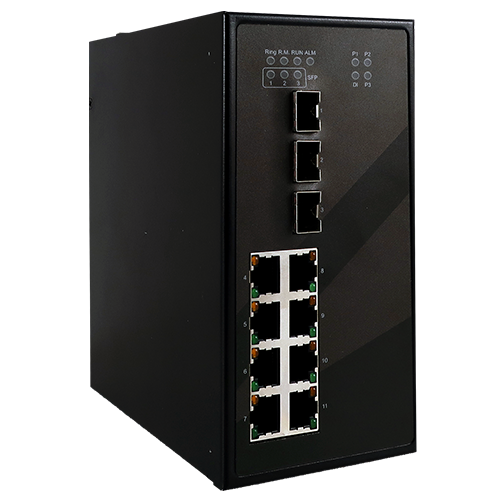

11-Port Fast Ethernet IEC 61850-3 Industrial Managed Switch
Comprehensive Connectivity
• 8x FE ports + 3x Gbps SFP ports
• 1 x RS-232 console port (RJ-45 connector)
• 4 x DIP switches for Ring control...
Product Description
11-Port Fast Ethernet IEC 61850-3 Industrial Managed Switch
- Comprehensive Connectivity • 8x FE ports + 3x Gbps SFP ports • 1 x RS-232 console port (RJ-45 connector) • 4 x DIP switches for Ring control
- Compact & Robust Enclosure • Dimensions (mm): 77 x 167 x 138 • Operating temp. from -40°C to +75°C • Ambient relative humidity from 5% to 95%
- Secured & Trusted Network • Secure industrial network design based on IEC62443 • Access Control with 802.1x, AAA, ACL, IP Source Guard, etc. • Network Monitoring with Port Mirroring, sFlow, etc.
- Time Precision Certifications • IEEE 1588 power profile specific parameters with C37.238 & IEC 61850-9-3 • Precision time synchronization with SyncE and IEEE1588v2 (PTP) P2P/E2E TC with delay within 50ns.
- Substation-Fit Certifications • IEC 61850-3 & IEEE 1613 compliance • CE/FCC/UL & other certifications
- Reliable & Redundant Topology • Low-voltage 24-48 VDC or high-voltage 110-240 VAC/110-300 VDC power input • ITU-T G.8032 ERPS Ring, MSTP/RSTP/STP supported
Technical Specifications
| CE | EN 55032:2015/AC:2016 Class A EN 61000-6-4: 2007 + A1: 2011 EN 61000-3-2: 2014, Class A EN 61000-3-3: 2013 |
| AAA | RADIUS, TACACS+ |
| EMI | FCC |
| EMS | CE |
| LLDP | Y |
| RoHS | Y |
| SNMP | SNMPv1/v2c/v3, SNMP Inform |
| v0.4 | EH9711 User Manual |
| v1.0 | EH9711 Hardware Installation guide |
| v1.1 | EH9711 Hardware Installation guide |
| v1.2 | Datasheet EN |
| v1.3 | Datasheet EN |
| v1.4 | Datasheet EN |
| v1.5 | Datasheet EN |
| v1.6 | Datasheet EN |
| Alarm | Relay, E-mail (SMTP), LED |
| BootP | Y |
| SyncE | Y |
| v1.16 | EH9711 Firmware |
| v1.25 | EH9711 Firmware |
| Button | 1 x Factory Reset |
| Safety | UL/IEC(CB) 62368 |
| Syslog | Y |
| Weight | 1,500g (3.31lb) |
| Housing | IP30 SPCC, Black |
| VLAN ID | 1 to 4094 |
| SNMP MIB | IF-MIB, SNMPv2-MIB, BRIDGE-MIB, LLDP Standard MIB, 802.1q Bridge-MIB, 802.1x PAE MIB, 802.1 MSTP MIB, 802.3ad LACP MIB, RMON MIB Group 1,2,3,9, TIA 1057 LLDP-MED, RFC 1157, RFC 1213 MIB II, RFC 1213, RFC 1215, RFC 1493, RFC 1643, RFC 1757, RFC 2011, RFC 2012, RFC 2013, RFC 2233, RFC 2571, RFC 2613, RFC 2674, RFC 2742, RFC 2819, RFC 2863, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 3635, RFC 3636, RFC 4133, RFC 4188, RFC 4292, RFC 4293, RFC 4668, RFC 4670, RFC 4878, RFC 5519 |
| Connector | 1 x 5-Pin 5.08mm Lockable Terminal Block for DC/HV Series 1 x 4-Pin 5.08mm Lockable Terminal Block for DC/HV Series 1 x 3-Pin 5.08mm Lockable Terminal Block for HV Series |
| SDR-75-24 | 50500752240001G |
| VLAN Type | Management VLAN Port-Based VLAN 802.1q Tag-Based VLAN MAC-Based VLAN (up to 512 VLANs) Protocol-Based VLAN |
| DIP Switch | 4 x for Ring Control |
| IP Version | IPv4, IPv6 |
| RMON Group | 1, 2, 3, 9 |
| Redundancy | ITU-T G.8032 ERPS Ring IEEE 802.1d-2004 for STP IEEE 802.1w for RSTP IEEE 802.1s for MSTP |
| DHCP Option | 66, 67, 82 |
| Jumbo Frame | 9216B |
| NMU Managed | Y |
| RJ-45 Ports | 8 x 10/100BASE-T(X) |
| Signal Port | Line-to-Earth ±2.5KV |
| Console Port | 1 x RS-232 (RJ-45 connector) |
| DHCP Support | DHCP Server, DHCP Client, DHCP Relay |
| Installation | DIN-Rail mount / Wall mount (optional kit) |
| MLD Snooping | v1 |
| Relay Output | 1 x Relay Output (24V/1A) with current carrying capacity of 1A @ 24 VDC |
| Air Discharge | ±15KV |
| DC Power Port | Line-to-Line ±1.0KV |
| DHCP Snooping | Y |
| IEC 61000-4-2 | ESD |
| IEC 61000-4-3 | RS |
| IEC 61000-4-4 | EFT |
| IEC 61000-4-5 | Surge |
| IEC 61000-4-6 | CS |
| IEC 61000-4-8 | PFMF |
| IGMP Snooping | v1/v2/v3 |
| Input Voltage | 18-52 VDC 85-264 VAC for AC series 88-330 VDC for HV Series |
| Port Security | Y |
| Storm Control | Unicast, Multicast, Broadcast |
| Web Interface | HTTP, HTTPS |
| AXGD-1354-0523 | 522AXGD1354001G |
| AXGD-1354-0533 | 522AXGD1354011G |
| AXGD-3354-0593 | 522AXGD3354001G |
| AXGD-5854-0513 | 522AXGD5854001G |
| Backup/Restore | HTTP, TFTP |
| EH9711-3SFP-DC | 1P1EH971100001G |
| EH9711-3SFP-HV | 1P1EH971100002G |
| IEC 61000-4-11 | AC Power Port |
| IEC 61000-4-16 | Main Frequency |
| IEC 61000-4-17 | Ripple |
| IEC 61000-4-18 | Damped Oscillatory |
| IEC 61000-4-29 | DC Input Port |
| LED Indicators | 1 x P1 & P2 & P3 (P3 for HV Model) 1 x Alarm 1 x Firmware Running 1 x Ring Master 1 x Ring 1 x SFP1 & SFP2 & SFP3 1 x Digital Input 1 x LAN Ports |
| MAC Table Size | 4K |
| Wall Mount Set | 70100000000056G |
| v1.16 checksum | EH9711 FW Checksum (SHA-512) |
| v1.25 checksum | EH9711 FW Checksum (SHA-512) |
| EH9711s-3SFP-DC | 1P1EH9711S0001G |
| EH9711s-3SFP-HV | 1P1EH9711S0002G |
| IP Source Guard | Y |
| Queue Selection | Strict Priority (SP), Weighted Round Robin (WRR) |
| Power Automation | IEC 61850-3 IEEE 1613 |
| Switching Fabric | 5.7 Mpps |
| Power Consumption | 13.25W@48VDC (with input current 0.276A) 10.48W@264VAC for AC series (with input current 0.105A) 11.40W@300VDC for HV series (with input 0.038A) |
| Ethernet Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for Flow Control, back pressure flow control IEEE 802.1d-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1x for Authentication IEEE 802.3ad for Port Trunk with LACP IEEE 802.1ad QinQ IEEE 802.1AB LLDP |
| Fiber Optics Ports | 3 x 100/1000FX SFP Slot |
| Network Time Sync. | NTP Server/Client, SNTP |
| Packet Buffer Size | 1.75 Mb |
| Switching Capacity | 7.6 Gbps |
| Access Control List | MAC, IPv4, IPv6 |
| Automation Profiles | RADIUS, TACACS+ |
| Max. Number of VLAN | 4KB |
| Port Authentication | Modbus/TCP status registers |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| User Authentication | Local Database, RADIUS, TACACS+ |
| ARP Spoof Prevention | Y |
| Rate Limit & Shaping | Y |
| Rated Supply Voltage | 24-48 VDC 110-240 VAC for AC series 110-300 VDC for HV Series |
| UDLD Loop Protection | Y |
| Diagnostics Utilities | Port Mirror, Ping, Ping6, IPv4/v6 TraceRoute, Cable Diagnostics |
| Dimension (W x H x D) | 77 x 163 x 138 mm |
| Operating Temperature | -40°C to +75°C (-40°F to +167°F) |
| Voltage Interruptions | 100% Reduction, 50Cycle |
| CoS (Class of Service) | 802.1p CoS, DSCP |
| Command Line Interface | Telnet, SSHv2 |
| Dynamic ARP Inspection | Y |
| CBL-RJ45(8P)-DB9(F)-90-C | 50891971G |
| Ambient Relative Humidity | 5% to 95% (Non-condensing test @ 55°C) |
| Number of Priority Queues | 8 |
| Max. Number of Trunk Groups | 4 |
| Reverse Polarity Protection | Y |
| Precision Network Time Sync. | IEEE1588 PTP v1/v2 (hardware-based) IEEE1588 Hardware-based peer-to-peer / end-to-end transparent clock |
| Max. Number of Static IGMP Groups | 128 |
| GVRP (GARP VLAN Registration Protocol) | Y |
| Brand | ATOP |
