EHG2008 - ATOP
In Stock (100 items)
45 views
€0,00
VAT Included
Product Summary

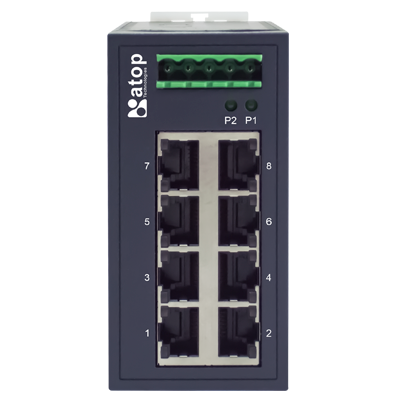

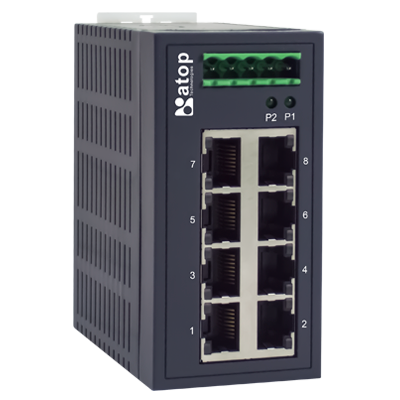

Industrial 8-Port Unmanaged Gigabit Switch Plastic Housing
8x 10/100/1000BaseT(X) (RJ45)Support IEEE 802.3/ 802.3u/ 802.3x/ 802.3ab10/100/1000M, Full/Half-Duplex, MDI/MDI-X auto-detectionProfinet Pack...
Product Description
Industrial 8-Port Unmanaged Gigabit Switch Plastic Housing
- 8x 10/100/1000BaseT(X) (RJ45)
- Support IEEE 802.3/ 802.3u/ 802.3x/ 802.3ab
- 10/100/1000M, Full/Half-Duplex, MDI/MDI-X auto-detection
- Profinet Packet Prioritization according to 802.1p
- Redundant dual DC power inputs
- Operating temperature ranges from 0 to +60ºC
- Rugged plastic housing
- DIN-Rail or wall mounting ability
The ATOP EHG2008 stands out with its industrial durability and reliability. With a wide operating temperature range from -40°C to +75°C, this switch ensures high performance even in harsh conditions. Its IP30 protection class enhances the device's resistance to dust and other external factors, while the DIN-Rail mounting option provides ease of installation. Additionally, redundant power inputs ensure uninterrupted operation of the system. With its suitability for industrial applications in Turkey, the EHG2008 is an excellent choice, particularly for automation systems and data communication networks. This model from ATOP meets the highest demands for reliable network communication in businesses.
Technical Specifications
| RoHS | Lead (Pb) Free |
| v0.1 | Datasheet EN |
| v0.2 | Datasheet EN |
| v0.3 | Datasheet EN |
| v0.4 | Datasheet EN |
| v0.5 | Datasheet EN |
| v1.0 | EHG2008 - CE-FCC-IEC(CB)-UL certification |
| Ports | 8 |
| Safety | UL/IEC 60950-1, UL/IEC 62368-1 |
| Weight | 150g |
| EHG2008 | 1P1EHG20080001G |
| Housing | IP40 protection, plastic housing |
| CE (EMI) | EN 55032:2015/AC:2016, Class A EN61000-3-2:2014 EN61000-3-3:2013 EN61000-6-4:2007 |
| CE (EMS) | EN55024:2010/A1:2015, IEC 61000-4-2:2008-12, IEC 61000-4-3:2010-04, IEC 61000-4-4:2012-04, IEC 61000-4-5:2014, IEC 61000-4-6:2013-10, IEC 61000-4-8:2009-09, IEC 61000-4-11:2004-03, EN61000-6-2:2005/AC:2005 |
| Warranty | 5 years |
| Connector | 5.08mm 5 pin Terminal Block |
| FCC (EMI) | FCC 47 CFR Part15, Subpart B, Class A |
| Standards | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T |
| Redundancy | Yes |
| Flow Control | IEEE802.3X flow control, back-pressure flow control |
| Installation | DIN Rail, Wall mount (optional) |
| Input Current | 0.45A |
| Input Voltage | 9-48 VDC |
| Auto MDI/MDI-X | Yes |
| Jumbo Frame Size | Up to 9216 byte |
| Power Consumption | 4.05W max. |
| Transmission Rate | 10/100/1000 Mbps |
| UN315-1212 (US-Y) | 50500151120003G |
| UNE315-1212 (EU-Y) | 50500151120013G |
| Storage Temperature | -20ºC to +70ºC ( -4ºF to +158ºF ) |
| MTBF (MIL-HDBK-217F) | 434684 hrs (25ºC) / 49.62 years (25ºC) |
| Dimension (W x H x D) | 45.2mm x 90mm x 83mm (W x H x D) |
| Operating Temperature | 0°C to +60°C ( 32ºF to +140ºF ) |
| Ambient Relative Humidity | 5% to 95% non-condensing |
| Reverse Polarity Protection | Yes |
| Brand | ATOP |
| Model | EHG2008 - ATOP |
| Main Category | Atop |
