EHG3005 - ATOP
In Stock (100 items)
48 views
€0,00
VAT Included
Product Summary
Unmanaged Gigabit Ethernet Switch, 5-Port Slim-Type, Plastic Housing
5 x 10/100/1000 Base-T(X) RJ45Support 10K Jumbo framesSupport 802.3az Energy Efficient Ethernet for power savingsSupport 802.1Q/p Q...
Product Description
Unmanaged Gigabit Ethernet Switch, 5-Port Slim-Type, Plastic Housing
- 5 x 10/100/1000 Base-T(X) RJ45
- Support 10K Jumbo frames
- Support 802.3az Energy Efficient Ethernet for power savings
- Support 802.1Q/p QoS, prioritizing critical packets such as PROFINET packets
- Redundant DC power input
- Operation temperature from 0 °C to 60 °C

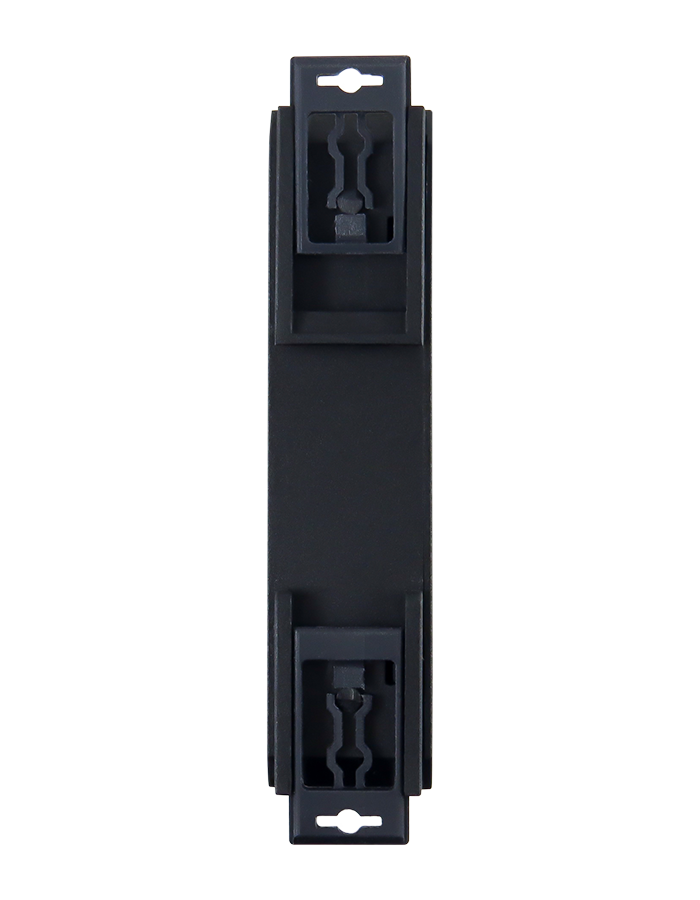

- DIN-Rail mounting
- Slim type, plastic housing
The ATOP EHG3005 is an unmanaged gigabit Ethernet switch that stands out for its industrial durability and reliability. With its wide operating temperature range of -40°C to +75°C, it can operate seamlessly in harsh industrial environments. Its IP30 protection class ensures high resistance against dust and foreign objects, extending the device's lifespan, while the DIN-Rail mounting option allows for easy installation. Additionally, the redundant power input ensures uninterrupted energy supply, enhancing system reliability. These advantages of the EHG3005 make it an ideal solution for industrial applications in Turkey.
Technical Specifications
| v1.0 | EHG3005 FCC Compliance |
| Safety | UL/IEC 62368-1 |
| Weight | TBD |
| CE(EMI) | EN 55032:2015/AC:2016 EN 61000-3-2: 2014, Class A EN 61000-3-3: 2013 EN 61000-6-4: 2007 + A1: 2011 |
| CE(EMS) | EN 55024:2010 + A1: 2015 EN 61000-6-2:2005 + AC: 2005 |
| EHG3005 | 1P1EHG30050001G |
| Housing | IP30 protection, Plastic, Black |
| FCC(EMI) | FCC Part 15, Subpart B, Class A |
| SDR-75-24 | 50500752240001G |
| Compliance | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-T(X) IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3x for Flow Control, back pressure flow control IEEE 802.1q/p for VLAN Tagging and Class of Service IEEE 802.3az for Energy Efficient Ethernet |
| Connection | Lockable 5-pin terminal blocks for power input |
| Model name | Part Number |
| Jumbo Frame | 10K Bytes |
| Installation | DIN-Rail mounting |
| IEC 61000-4-2 | 2008 |
| IEC 61000-4-3 | 2010 |
| IEC 61000-4-4 | 2012 |
| IEC 61000-4-5 | 2014 |
| IEC 61000-4-6 | 2013 |
| IEC 61000-4-8 | 2009 |
| Input Current | 0.5 A max. |
| Auto MDI/MDI-X | Yes |
| LED Indicators | PWR1, PWR2, Alarm, ALM, LAN |
| MAC Table Size | 8k |
| Power Consumption | 6 W max. |
| Processing Scheme | Store-and-Forward |
| Dual Input Voltage | 12 - 48 VDC |
| Packet Buffer Size | 1 MB |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Dimension (W x H x D) | Slim type, 23mm x 94mm x 72mm |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Ambient Relative Humidity | 5 to 95%, 55°C (non-condensing) |
| Reverse Polarity Protection | Present |
| Brand | ATOP |
| Model | EHG3005 - ATOP |
| Main Category | Atop |
