EHG3305 - ATOP
In Stock (100 items)
52 views
€0,00
VAT Included
Product Summary

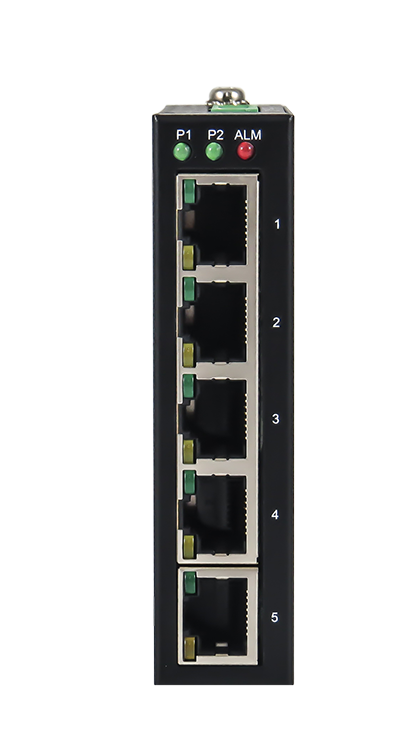

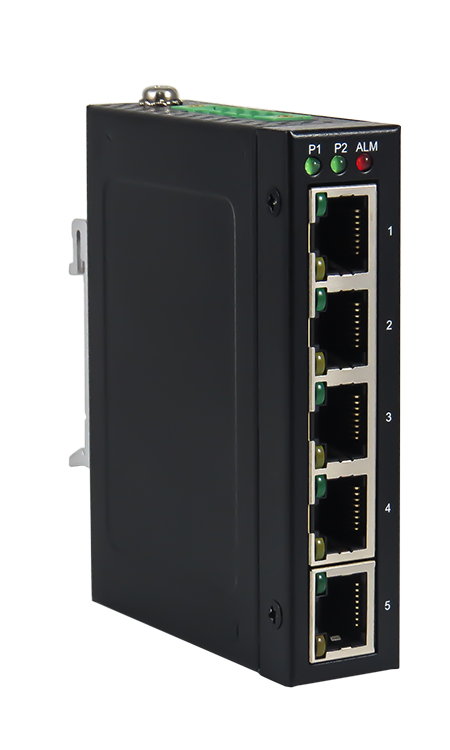

Unmanaged Gigabit Ethernet Switch, 5-Port Slim-Type, SPCC Housing
5 x 10/100/1000 Base-T(X) RJ45Support 10K Jumbo framesSupport 802.3zx Energy Efficient Ethernet for power savingsSupport 802.1Q/p QoS,...
Product Description
Unmanaged Gigabit Ethernet Switch, 5-Port Slim-Type, SPCC Housing
- 5 x 10/100/1000 Base-T(X) RJ45
- Support 10K Jumbo frames
- Support 802.3zx Energy Efficient Ethernet for power savings
- Support 802.1Q/p QoS, prioritizing critical packets such as PROFINET packets
- Redundant DC power input
- Operation temperature from -40~70°C
- DIN-Rail mounting
- Slim type, SPCC housing
The ATOP EHG3305 offers an excellent choice for industrial applications by prioritizing durability and reliability. With a wide operating temperature range of -40°C to +70°C, this switch performs seamlessly even in harsh environmental conditions. Its IP30 protection class safeguards against dust and external influences, while the DIN-Rail mounting facilitates easy integration. Additionally, the redundant power input ensures uninterrupted energy supply, and the support for 802.1Q/p QoS allows prioritization of critical PROFINET packets, enhancing operational efficiency. The EHG3305 is an ideal solution for industrial applications in Turkey, standing out for its reliability and performance.
Technical Specifications
| v1.0 | EHG3305 UL61010-1_LCC Safety CB |
| Safety | UL/IEC(CB)61010-1, 61010-2-201 |
| Weight | TBD |
| CE(EMI) | EN 55032:2015/AC:2016 Class A EN 61000-3-2: 2014 EN 61000-3-3: 2013 EN 61000-6-4: 2007 + A1: 2011 |
| CE(EMS) | EN 55024:2010 + A1: 2015 EN 61000-6-2:2005 + AC: 2005 |
| EHG3305 | 1P1EHG33050001G |
| Housing | IP30 protection, SPCC, Black |
| FCC(EMI) | FCC Part 15, Subpart B, Class A |
| SDR-75-24 | 50500752240001G |
| Compliance | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-T(X) IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3x for Flow Control, back pressure flow control IEEE 802.1q/p for VLAN Tagging and Class of Service IEEE 802.3az for Energy Efficient Ethernet |
| Connection | Lockable 5-pin terminal blocks for power input |
| Model name | Part Number |
| Jumbo Frame | 10K Bytes |
| Installation | DIN-Rail mounting |
| IEC 61000-4-2 | 2008 |
| IEC 61000-4-3 | 2010 |
| IEC 61000-4-4 | 2012 |
| IEC 61000-4-5 | 2014 |
| IEC 61000-4-6 | 2013 |
| IEC 61000-4-8 | 2009 |
| Input Current | 0.5 A max. |
| Auto MDI/MDI-X | Yes |
| LED Indicators | PWR1, PWR2, Alarm, ALM, LAN |
| MAC Table Size | 8k |
| Power Consumption | 6 W max. |
| Processing Scheme | Store-and-Forward |
| Dual Input Voltage | 12 - 48 VDC |
| Packet Buffer Size | 1 MB |
| Storage Temperature | -40 to 85°C (-40°F to 185°F) |
| Dimension (W x H x D) | Slim type, 23mm x 94mm x 72mm |
| Operating Temperature | -40 to 70°C (-40°F to 158°F) |
| Ambient Relative Humidity | 5 to 95%, 55°C (non-condensing) |
| Reverse Polarity Protection | Present |
| Brand | ATOP |
| Model | EHG3305 - ATOP |
| Main Category | Atop |
