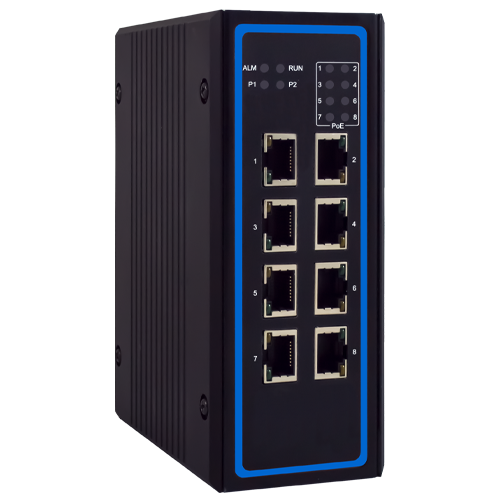

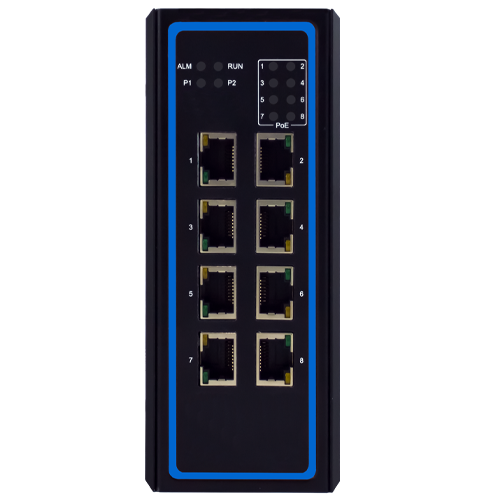

EHG6408 Series - ATOP
In Stock (100 items)
61 views
€0,00
VAT Included
Product Summary
Its modern, slim, and flat design minimizes surface area usage and make it ideal for industrial applications that require compact solutions.
8 x 10/100/1000 BASE-T(X) ports or8 x 10/100/1000 BASE-T(X)...
Product Description
Its modern, slim, and flat design minimizes surface area usage and make it ideal for industrial applications that require compact solutions.
- 8 x 10/100/1000 BASE-T(X) ports or
- 8 x 10/100/1000 BASE-T(X) ports with 2 x 100/1000 SFP slots or
- 8 x 10/100/1000 BASE-T(X) ports with 2 x 1000 BASE-X SFP slots
- Optional PoE ports with booster function (12~57 VDC)
- IP30 aluminum with DIP-Rail / Wall mount (optional)
- Operating range of -40°C to +75°C
- CB/IEC60950-1&62368-1 and UL/cUL62368-1
- Support 802.1Q/p QoS, prioritizing critical packets such as PROFINET packets
The ATOP EHG6408 Series is an excellent choice for users seeking industrial durability and reliability. With an expansive operating temperature range from -40°C to +75°C, it ensures safe operation even in harsh environmental conditions. The IP30 protection class enhances the device's resistance to dust and water, while the DIN-rail mounting option facilitates easy installation. Furthermore, the redundant power input guarantees uninterrupted energy supply, maximizing system security. Specifically designed for industrial applications in Turkey, the EHG6408 Series stands out with its high performance and reliability. These features make it ideal for critical applications such as automation, energy distribution, and network management systems.
Technical Specifications
| EMC | FCC Part 15, Subpart B, Class A EN 55032:2015 +AC:2016 Class A EN 61000-3-2: 2014, Class A, EN 61000-3-3: 2013, EN61000-6-4:2017+A1:2011 EN 55024: 2010+ A1:2015, EN 61000-6-2:2005+ AC : 2005 |
| Drop | MIL-STD-810G Method 516.7(2014) |
| MTBF | 20.35 years according to MIL-HDBK-217F (worst case: 15.74 years) |
| RoHS | Yes |
| v0.7 | Datasheet EN |
| v0.8 | Datasheet EN |
| v1.0 | Test Certificate CB IEC62368-1 |
| v1.1 | Datasheet EN |
| v1.2 | Datasheet EN |
| v1.3 | Datasheet EN |
| v1.4 | Datasheet EN |
| v2.0 | CE Test Report |
| v2.1 | EHG6408-Hardware Installation Guide |
| v3.0 | EHG6408-Hardware Installation Guide |
| Shock | MIL-STD-810G Method 516.7(2014) |
| Safety | UL62368-1:2014(2nd Ed.),CB/IEC60950-1:2005(2nd Ed.),CB/IEC62368-1:2014(2nd Ed.) |
| Weight | 700g |
| EHG6408 | 1P1EHG64080004G |
| Housing | IP30 metal housing |
| Warranty | 5 years |
| Vibration | MIL-STD-810G Method 514.7(2014) |
| Compliance | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BASE-FX IEEE 802.3ab for 1000BaseT IEEE 802.3x for 1000BaseX IEEE 802.3x for Flow Control, back pressure flow control IEEE 802.3af/at for Power-over-Ethernet IEEE 802.3az Energy Efficient Ethernet IEEE 802.1Q for VLAN Tagging IEEE 802.1p for CoS |
| Indicators | P1, P2, Fault, SFP1-2, PoE LED |
| SDR-240-48 | 50502401480001G |
| SDR-480-48 | 50504801480001G |
| Wall Mount | Wall Mount set |
| Jumbo Frame | 10K Bytes |
| Flow Control | Back pressure and pause frame-based flow control schemes |
| Installation | DIN-Rail , Wall mount (optional kit) |
| Power Supply | SDR-75-24 |
| IEC 61000-4-2 | ESD |
| IEC 61000-4-3 | RS |
| IEC 61000-4-4 | EFT |
| IEC 61000-4-5 | Surge |
| IEC 61000-4-6 | CS |
| IEC 61000-4-8 | PFMF |
| Input Current | PoE booster (-24V): 12~23VDC, max 7A 24~57VDC, max 6A |
| Input Voltage | 12~57 VDC |
| AXFD-1314-0553 | 522AXFD1314011G |
| AXGD-1354-0523 | 522AXGD1354001G |
| AXGD-1354-0533 | 522AXGD1354011G |
| AXGD-3354-0593 | 522AXGD3354001G |
| AXGD-5854-0513 | 522AXGD5854001G |
| Auto MDI/MDI-X | Yes |
| SFP Transceiver | AXFD-1314-0523 |
| EHG6408-4PoE-24V | 1P1EHG64080005G |
| EHG6408-8PoE-24V | 1P1EHG64080006G |
| MAC Address Table | 16 K |
| Processing Scheme | Store and Forward |
| Packet Buffer Size | 2MBits |
| PoE Voltage Booster | Yes (Max support 120W), by optional model |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Dimension (W x H x D) | 54 x 145 x 113 mm |
| Operating Temperature | Non-PoE models: -40°C to +75°C (-40°F to +167°F) PoE models: 12~23VDC, 60W, -40°C to +70°C (-40°F to +158°F) 24~57VDC, 120W,-40°C to +70°C (-40°F to +158°F) |
| SFP Transmission Rate | 100/1000 Mbps (by Dip-switch) – EHG6410-D only 1000 Mbps - EHG6410 (without -D extension only) |
| Max. Power Consumption | 12~23VDC, max total 60W 24~57VDC, max total 120W |
| RJ 45 Transmission Rate | 10/100/1000 Mbps |
| Ambient Relative Humidity | 5% to 95%, 55°C (Non-condensing) |
| Brand | ATOP |
| Model | EHG6408 Series - ATOP |
| Main Category | Atop |
