Product Summary

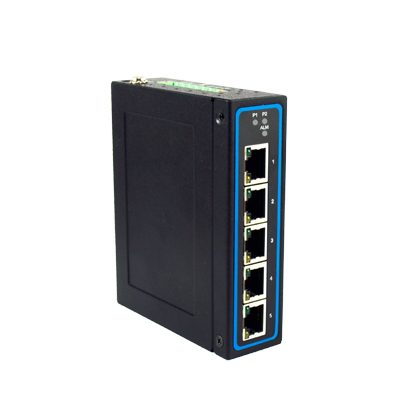

Industrial 5-Port PoE Unmanaged Gigabit Ethernet Switch
EHG7305 series support maximum 5 x 10/100/1000 Base-T(X) RJ45 ports, 1 x 100/1000 Base-F(x) SFP portUp to 4 802.3af or 802.3at compliant PoE por...
Product Description
Industrial 5-Port PoE Unmanaged Gigabit Ethernet Switch
- EHG7305 series support maximum 5 x 10/100/1000 Base-T(X) RJ45 ports, 1 x 100/1000 Base-F(x) SFP port
- Up to 4 802.3af or 802.3at compliant PoE ports
- Support 10K Jumbo frames
- Supports 802.3az Energy Efficient Ethernet for power savings
- Support 802.1Q/p QoS, prioritizing critical packets such as PROFINET packets
- Works from -40°C~70°C
- Failed power input alarm contact
- Certified by CE/FCC UL 61010-2-201 and UL C1D2/ATEX Zone 2
- EN50155 and EN50121-4 certified for Railway and Trackside applications
The ATOP EHG7305 series is an industrial networking solution that offers exceptional durability and reliability. With an operating temperature range of -40°C to +70°C, it is capable of functioning reliably even in harsh conditions. The IP30 protection class ensures defense against dust and water, while the DIN-Rail mounting option allows for easy integration into various industrial environments. Additionally, the redundant power input guarantees continuous operation of the system. Its suitability for industrial applications in Turkey, combined with high performance, makes the EHG7305 series an ideal choice for projects that demand energy efficiency and safety. With its robust design and flexible connectivity options, the EHG7305 provides a dependable solution for industrial networking needs.
Technical Specifications
| EMC | EN 55032 EN 61000-6-4 EN 55024 EN 61000-6-2 FCC Part15 Subpart B (Class A) |
| Drop | MIL-STD-810G (2014) |
| LLDP | Forwarding |
| MTBF | TBD |
| RoHS | YES |
| v1.0 | EHG7305-EHG7306-EHG7307 Certifications FCC |
| v1.1 | EHG7305-EHG7306-EHG7307 Hardware Installation Guide |
| v1.9 | Datasheet EN |
| Shock | MIL-STD-810G (2014) |
| Safety | UL 61010-1 , IEC 61010-1, IEC 61010-2-201, UL C1D2/ATEX Zone 2 |
| Weight | 420g |
| EHG7305 | 1P1EHG73050001G |
| Housing | IP30 SECC housing |
| Warranty | 5 years |
| Connector | Terminal block |
| SDR-75-24 | 50500752240001G |
| Vibration | MIL-STD-810G (2014) |
| Compliance | IEEE802.3 for 10BASE-T IEEE802.3u for 100BASE-T(X) and 100BASE-FX IEEE 802.3ab for 1000BASE-T IEEE 802.3z for 1000BASE-X IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.3x Flow Control IEEE 802.3af / 802.3at for Power-over-Ethernet IEEE 802.3az for Energy Efficient Ethernet |
| SDR-240-48 | 50502401480001G |
| Flow Contro | Back pressure and pause frame-based flow control schemes |
| Jumbo Frame | 10K Bytes |
| EHG7305-4PoE | 1P1EHG73050002G |
| Installation | DIN-Rail , Wall mount (optional kit) |
| Rail Traffic | EN50155 / EN50121-1/ EN50121-3-2/ EN50121-4 |
| Relay Output | 24 V / 0.5A |
| High Altitude | Certified for 4000m altitude |
| IEC 61000-4-2 | ESD |
| IEC 61000-4-3 | RS |
| IEC 61000-4-4 | EFT |
| IEC 61000-4-5 | Surge |
| IEC 61000-4-6 | CS |
| IEC 61000-4-8 | PFMF |
| Input Voltage | 12-52VDC |
| Packet Buffer | 1 Mbits |
| WMK-315-Black | 70100000000050G |
| WMK-454-Black | 70100000000043G |
| AXFD-1314-0523 | 522AXFD1314001G |
| AXFD-1314-0553 | 522AXFD1314011G |
| AXGD-1354-0523 | 522AXGD1354001G |
| AXGD-1354-0533 | 522AXGD1354011G |
| AXGD-3354-0593 | 522AXGD3354001G |
| AXGD-5854-0513 | 522AXGD5854001G |
| Auto MDI/MDI-X | Yes |
| IEC 61000-4-11 | DIP |
| LED Indicators | PWR1, PWR2, Alarm, RJ45 Act/Link, SFP Link, PoE |
| MAC Table Size | 8096 |
| Processing Scheme | Store-and-Forward |
| Storage Temperature | 40°C~85°C (-40°F~185°F) |
| Dimension (W x H x D) | 32 x 90 110 mm |
| Operating Temperature | -40°C~70°C (-40°F~158°F) |
| Input Current (System) | 0.5A @ 12 V |
| Input Current with PoE | 2.6A @ 51 V |
| Ambient Relative Humidity | 5%~95%, 55°C (Non-condensing) |
| Transmission Rate for SFP | EHG7306 1 x 100/1000 Mbps; EHG7307 SFP1: 1000Mbps / SFP2: 100/1000 Mbps |
| Power Consumption (System) | 6 W |
| Transmission Rate for RJ45 | 5 x 10/100/1000 Mbps |
| Max. Power Consumption with PoE | 130 W |
| Brand | ATOP |
| Model | EHG7305 Series - ATOP |
| Main Category | Atop |
