Product Summary

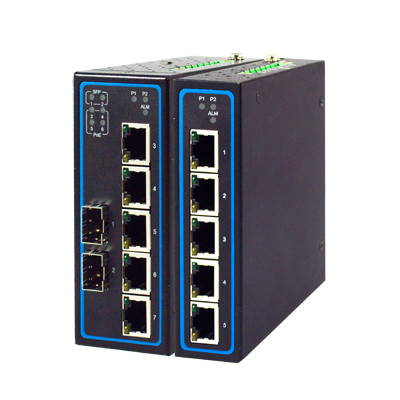

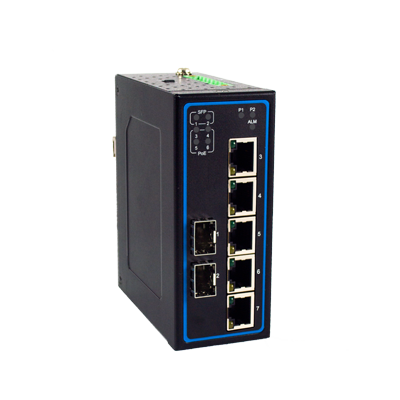

Industrial 7-Port PoE Unmanaged Gigabit Ethernet Switch
EHG7307 support maximum 5 x 10/100/1000 Base-T(X) RJ45 ports, 1 x 100/1000 Base-F(x) SFP port and 1 x 1000 Base-X SFP port2 x Gigabit SFP Uplink...
Product Description
Industrial 7-Port PoE Unmanaged Gigabit Ethernet Switch
- EHG7307 support maximum 5 x 10/100/1000 Base-T(X) RJ45 ports, 1 x 100/1000 Base-F(x) SFP port and 1 x 1000 Base-X SFP port
- 2 x Gigabit SFP Uplink slots
- Up to 4 802.3af or 802.3at compliant PoE ports
- Support 10K Jumbo frames
- Supports 802.3az Energy Efficient Ethernet for power savings
- Support 802.1Q/p QoS, prioritizing critical packets such as PROFINET packets
- Works from -40°C~70°C
- Failed power input alarm contact
- Certified by CE/FCC UL 61010-2-201 and UL C1D2/ATEX Zone 2
- EN50155 and EN50121-4 certified for Railway and Trackside applications
The ATOP EHG7307 Series stands out with its industrial durability and reliability. With a wide operating temperature range of -40°C to +70°C, it delivers high performance even in harsh environmental conditions. Its IP30 protection class ensures defense against dust and moisture, while DIN-Rail mounting allows for easy installation. The redundant power input provides a guarantee of uninterrupted operation, enhancing security in critical industrial applications. The EHG7307 model's 802.3af/at compliant PoE ports offer energy savings and flexible installation options, making it an ideal fit for industrial applications in Turkey. These features make the EHG7307 a smart and reliable networking solution.
Technical Specifications
| EMC | EN 55032 EN 61000-6-4 EN 55024 EN 61000-6-2 FCC Part15 Subpart B (Class A) |
| Drop | MIL-STD-810G (2014) |
| LLDP | Forwarding |
| MTBF | TBD |
| RoHS | YES |
| v1.0 | EHG7305-EHG7306-EHG7307 Certifications FCC |
| v1.1 | EHG7305-EHG7306-EHG7307 Hardware Installation Guide |
| v1.9 | Datasheet EN |
| Shock | MIL-STD-810G (2014) |
| Safety | UL 61010-1 , IEC 61010-1, IEC 61010-2-201, UL C1D2/ATEX Zone 2 |
| Weight | 420g |
| Housing | IP30 SECC housing |
| Warranty | 5 years |
| Connector | Terminal block |
| SDR-75-24 | 50500752240001G |
| Vibration | MIL-STD-810G (2014) |
| Compliance | IEEE802.3 for 10BASE-T IEEE802.3u for 100BASE-T(X) and 100BASE-FX IEEE 802.3ab for 1000BASE-T IEEE 802.3z for 1000BASE-X IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.3x Flow Control IEEE 802.3af / 802.3at for Power-over-Ethernet IEEE 802.3az for Energy Efficient Ethernet |
| SDR-240-48 | 50502401480001G |
| Flow Contro | Back pressure and pause frame-based flow control schemes |
| Jumbo Frame | 10K Bytes |
| EHG7307-2SFP | 1P1EHG73070003G |
| Installation | DIN-Rail , Wall mount (optional kit) |
| Rail Traffic | EN50155 / EN50121-1/ EN50121-3-2/ EN50121-4 |
| Relay Output | 24 V / 0.5A |
| High Altitude | Certified for 4000m altitude |
| IEC 61000-4-2 | ESD |
| IEC 61000-4-3 | RS |
| IEC 61000-4-4 | EFT |
| IEC 61000-4-5 | Surge |
| IEC 61000-4-6 | CS |
| IEC 61000-4-8 | PFMF |
| Input Voltage | 12-52VDC |
| Packet Buffer | 1 Mbits |
| WMK-315-Black | 70100000000050G |
| WMK-454-Black | 70100000000043G |
| AXFD-1314-0523 | 522AXFD1314001G |
| AXFD-1314-0553 | 522AXFD1314011G |
| AXGD-1354-0523 | 522AXGD1354001G |
| AXGD-1354-0533 | 522AXGD1354011G |
| AXGD-3354-0593 | 522AXGD3354001G |
| AXGD-5854-0513 | 522AXGD5854001G |
| Auto MDI/MDI-X | Yes |
| IEC 61000-4-11 | DIP |
| LED Indicators | PWR1, PWR2, Alarm, RJ45 Act/Link, SFP Link, PoE |
| MAC Table Size | 8096 |
| EHG7307-4PoE-2SFP | 1P1EHG73070002G |
| Processing Scheme | Store-and-Forward |
| Storage Temperature | 40°C~85°C (-40°F~185°F) |
| Dimension (W x H x D) | 32 x 90 110 mm |
| Operating Temperature | -40°C~70°C (-40°F~158°F) |
| Input Current (System) | 0.6A @ 12 V |
| Input Current with PoE | 2.6A @ 51 V |
| Ambient Relative Humidity | 5%~95%, 55°C (Non-condensing) |
| Transmission Rate for SFP | EHG7306 1 x 100/1000 Mbps; EHG7307 SFP1: 1000Mbps / SFP2: 100/1000 Mbps |
| Power Consumption (System) | 7.2 W |
| Transmission Rate for RJ45 | 5 x 10/100/1000 Mbps |
| Max. Power Consumption with PoE | 130 W |
| Brand | ATOP |
| Model | EHG7307 Series - ATOP |
| Main Category | Atop |
