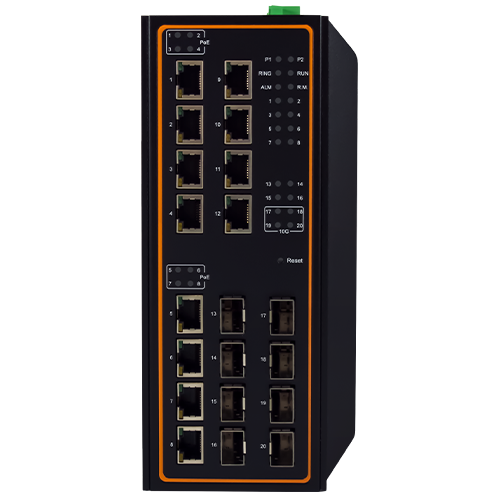

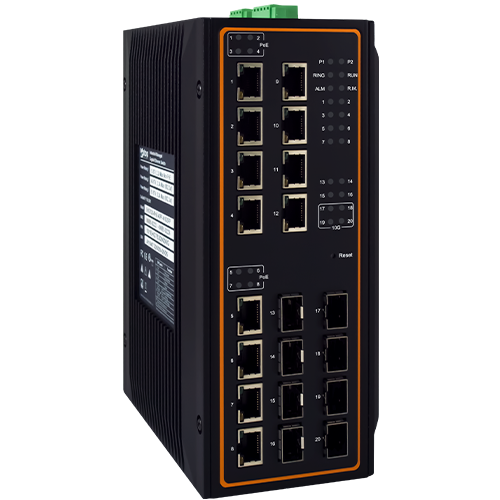

20-Port High-Bandwidth Industrial Managed Gigabit PoE Switch
Up to 16 10/100/1000 RJ45 ports or 100/1000 BASE-X SFP slots. Plus
4 dedicated 1/10G Uplink SFP slotsUp to 8x 802.3af/ 802.3at PoE/PoE+ Pow...
Product Description
20-Port High-Bandwidth Industrial Managed Gigabit PoE Switch
- Up to 16 10/100/1000 RJ45 ports or 100/1000 BASE-X SFP slots. Plus 4 dedicated 1/10G Uplink SFP slots
- Up to 8x 802.3af/ 802.3at PoE/PoE+ Power over Ethernet ports, with maximum 30W PoE power per port and up to 240W power budget
- Maximum 112 Gbps High-Performance non-blocking Switching Fabric
- Redundancy through ITU-T G.8032 ERPS Ring, RSTP, STP, MRP (Client)
- IEEE 1588v2 Precision Time Protocol HW-Based E2E Transparent clock
- Wide temperature operations, from -40°C to 70°C
- UL 62368-1:2014, CE/FCC, NEMA TS-2 certified for traffic control applications
- Compliant with KEMA/DNV.GL
- Security features based on IEC62443-4-2
The ATOP EHG7520 Series stands out as a solution that provides industrial durability and reliability. With an operating temperature range of -40°C to +70°C, it ensures uninterrupted performance even under harsh environmental conditions. The IP30 protection class efficiently guards against dust and water ingress, while the DIN-Rail mounting option offers installation flexibility. The redundant power input enhances system continuity, guaranteeing operational stability even during power outages. These features of the EHG7520 Series make it an excellent choice for industrial applications in Turkey, providing a robust communication infrastructure for businesses that require reliable connectivity solutions.
Technical Specifications
| EMC | FCC Part 15, Subpart B, Class A EN 55032, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 61000-6-4, |
| Drop | MIL-STD-810F Method 516.5 |
| MTBF | 20 Years |
| v1.0 | EHG7512-16-20 EHG7612-16-20 Certification NEMA TS2 |
| v2.0 | EHG75XX/ EMG85XX/ RHG75XX/ RHG95XX/ EHG95XX User Manual |
| v2.4 | Datasheet EN |
| v3.1 | EHG7512/EHG7516/EHG7520/EHG7612/EHG7616/EHG7620 Hardware Installation Guide |
| Shock | MIL-STD-810G Method 516.5 |
| v1.80 | EHG75XX Firmware |
| v2.68 | EHG75XX Firmware |
| v2.88 | EHG75XX Firmware |
| v5.20 | Management Utility for Windows |
| v5.60 | Management Utility for Windows |
| v7.38 | EHG75XX Firmware |
| v7.70 | EHG75XX Firmware |
| v7.92 | EHG75XX Firmware |
| v8.00 | EHG7520 Firmware |
| v8.20 | EHG7520 Firmware |
| Button | Reset Button |
| Safety | UL62368-1, 2nd Ed., CSAC22.2 No. 62368-1-14, AS/NZS62368:2018, EN62368 1:2014+A11:2017 |
| Weight | 2,500 g |
| Console | RS232 (RJ45 connector) |
| Housing | IP30 SPCC Metal housing, ruggedized Heat-sink |
| SNMP MIB | MIB II, IF-MIB, SNMPv2 MIB, BRIDGE-MIB, RMON MIB Group 1,2,3,9, RFC RFC 1157, RFC 1213, RFC 1215, RFC 1493, RFC 1643, RFC 1757, RFC 2011, RFC 2012, RFC 2013, RFC 2233, RFC 2571, RFC 2742, RFC 2819, RFC 2863, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 2674 |
| Connector | 5-Pin 5.08mm Lockable Terminal Block |
| Protocols | IPv4, IPv6, IGMPv1/v2/v3, IGMP Snooping, GARP, GMRP, GVRP, SNMPv1/v2c/v3, SNMP Inform, ICMP, Telnet, SSH, DHCP Relay/Client, BootP, TFTP, SMTP, SMTP (Gmail), RMON, HTTP, HTTPS, Syslog, MRP (Manager/Client), LLDP, 802.1x, EAP, RADIUS, TACACS+, Mirror port, QoS, ACL, ITU-T G.8032 ERPS Ring, STP, RSTP, MSTP, Compatible Ring/Chain, U-Ring, NTP Server/Client, Serial Console, Modbus/TCP, IEEE 1588 PTP V1/V2, UDLD, Security, Trunk, LACP, MLD, 802.1Q VLAN, Port-Based VLAN, MAC-Based VLAN, IP-Subnet-Based VLAN, Protocol-Based VLAN, QinQ, 802.1x, ARP spoof Prevention, DHCP snooping, IP source Guard, Dynamic ARP Inspection, DHCP relay Agent, Voice VLAN, sFlow, PoE continue |
| SDR-75-24 | 50500752240001G |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3ae For 10 Gigabit Ethernet Fiber IEEE 802.3x for Flow Control, back pressure flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1X for Authentication IEEE 802.3ad for Port Trunk with LACP IEEE 802.3az for Energy Efficient Ethernet |
| Vibration | MIL-STD-810F Method 514.5 C-1 & C-2 |
| RJ45 Ports | Up to 16 10/100/1000BASE-T(X) auto negotiation speed |
| Redundancy | ITU-T G.8032 ERPS, STP, RSTP, MSTP, MRP(Manager/Client), Compatible Ring/Chain, U-Ring |
| SDR-240-48 | 50502401480001G |
| SDR-480-48 | 50504801480001G |
| See in NMU | Network Management Utility |
| VLAN Table | 4,096 |
| Jumbo Frame | 9216 Byte |
| Trunk Group | 4 |
| DIP Switches | Ring Control and Profinet Setting |
| Installation | DIN-Rail, Wall mount (optional kit) |
| Relay Output | 2 relay outputs with current carrying capacity of 1A @ 24 VDC |
| IEC 61000-4-2 | ESD |
| IEC 61000-4-3 | RS |
| IEC 61000-4-4 | EFT |
| IEC 61000-4-5 | Surge |
| IEC 61000-4-6 | CS |
| IEC 61000-4-8 | PFMF |
| Input Voltage | 9-57 VDC for Non-PoE models 45-57 VDC for 802.3af mode 51-57 VDC for 802.3at mode |
| VLAN ID Range | VID 1 to 4,094 |
| AXFD-1314-0523 | 522AXFD1314001G |
| AXFD-1314-0553 | 522AXFD1314011G |
| AXGD-1354-0523 | 522AXGD1354001G |
| AXGD-1354-0533 | 522AXGD1354011G |
| AXGD-3354-0593 | 522AXGD3354001G |
| AXGD-5854-0513 | 522AXGD5854001G |
| AXXE-5886-05B3 | 522AXXE5886001G |
| IEC 61000-4-11 | DIP |
| LED Indicators | PWR1, PWR2, Alarm, Run, Ring, Ring Master, RJ-45 Link/Speed, SFP Link, PoE |
| MAC Table Size | 16k |
| MAC-Based VLAN | 512 |
| Wall mount set | 70100000000056G |
| EHG7520-410GSFP | 1P1EHG75200001G |
| Priority Queues | 8 |
| Traffic Control | NEMA TS-2 |
| Fiber Optics Ports | Up to 16 100/1000BASE-X SFP slot plus 4 1000BASE-X or 4 10G SFP slots |
| Packet Buffer Size | 1.5 MB |
| Static IGMP Groups | 128 |
| Automation Profiles | Modbus/TCP device status registers provided |
| Dynamic IGMP Groups | 256 |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| EHG7520-4PoE-410GSFP | 1P1EHG75200002G |
| EHG7520-4SFP-410GSFP | 1P1EHG75200004G |
| EHG7520-8PoE-410GSFP | 1P1EHG75200003G |
| EHG7520-8SFP-410GSFP | 1P1EHG75200007G |
| Time Synchronization | Network Synchronization |
| Dimension (W x H x D) | EHG7516-EHG7520 / EHG7616-EHG7620: 95 x 200 x 160 mm |
| EHG7520-12SFP-410GSFP | 1P1EHG75200008G |
| EHG7520-16SFP-410GSFP | 1P1EHG7520000AG |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Input Current (System) | Max. 2.2A @ 9 VDC (without PoE) Max. 3.3 A @ 45 VDC (Support up to 8 ports at 15.4 W per PoE port) Max. 5.2 A @ 51 VDC (Support up to 8 ports at 30 W per PoE port) |
| CBL-RJ45(8P)-DB9(F)-90-C | 50891971G |
| Ambient Relative Humidity | 5% to 95%, 55°C (Non-condensing) |
| EHG7520-4PoE-4SFP-410GSFP | 1P1EHG75200005G |
| EHG7520-8PoE-4SFP-410GSFP | 1P1EHG75200006G |
| EHG7520-4PoE-12SFP-410GSFP | 1P1EHG75200009G |
| Power Consumption (System) | Max. 19.8 W @ 9 VDC (without PoE) Max. 148.5 W @ 45 VDC (Support up to 8 ports at 15.4 W per PoE port) Max. 265.2 W @ 51 VDC (Support up to 8 ports at 30 W per PoE port) |
| Reverse Polarity Protection | Yes |
| Precision Network Synchronization | IEEE1588v1 OC/BC (Software) IEEE1588v2 E2E TC (Hardware) - ns acc. IEEE1588v2 OC/BC (Software) |
| Brand | ATOP |
| Model | EHG7520 Series - ATOP |
| Main Category | Atop |
