Product Summary

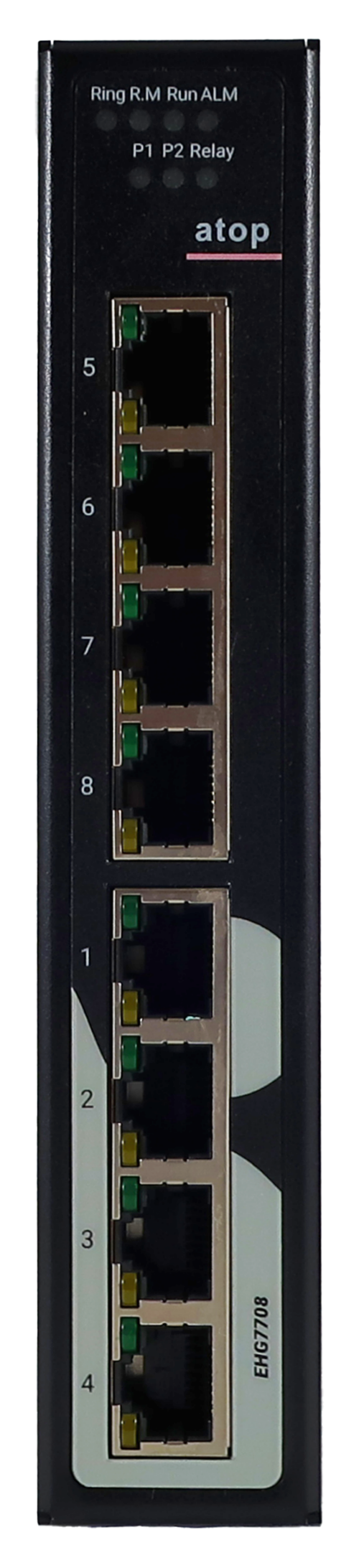

8-port Industrial Managed Gigabit PoE Switch, Precision Timing supported
Up to 8 x 10/100/1000 BASE-T(X) RJ45 ports and 2 x 2.5Gbps SFP slotsUp to 8 x 802.3af/at/bt PoE ports with maximum 90W per port...
Product Description
8-port Industrial Managed Gigabit PoE Switch, Precision Timing supported
- Up to 8 x 10/100/1000 BASE-T(X) RJ45 ports and 2 x 2.5Gbps SFP slots
- Up to 8 x 802.3af/at/bt PoE ports with maximum 90W per port and maximum 180W power budget
- Powerful switching platform, supporting redundancy protocols, such as ERPS/RSTP/STP/MRP and compatible rings
- IEEE 1588v2 Precision Time Protocol HW-Based TC/BC
- CE/FCC/UL certificated with wide operation temperature -40°C to +75°C
- Compliance with IEC62443-4-1 development and functions requirements
- Slim type housing for limited space
The ATOP EHG7708 Series is the perfect solution for users seeking industrial durability and reliability. With an extensive operating temperature range of -40°C to +75°C, it can withstand harsh environmental conditions. Its IP30 protection class safeguards against dust and external impacts, while the DIN-Rail mounting option allows for easy installation in confined spaces. Additionally, the redundant power input feature ensures uninterrupted operation and enhances system security. The ATOP EHG7708 model, with its high performance and advanced features, is an excellent choice for industrial applications in Turkey, enabling businesses to achieve seamless communication and reliability in their network infrastructure.
Technical Specifications
| CE | EN 55032:2015/A11:2020 Class A EN 61000-6-4: 2007 + A1: 2011 EN 61000-3-2: 2014, Class A EN 61000-3-3: 2013 |
| EMI | FCC |
| EMS | CE |
| MTBF | 20 Years |
| v1.0 | EHG7708 Hardware Installation Guide |
| v1.2 | EHG7708 Hardware Installation Guide |
| v1.6 | Datasheet EN |
| v3.2 | EHG7708 Firmware |
| v3.12 | EHG7708 Firmware |
| Button | Reset Button |
| Safety | UL/EN/IEC (CB) 62368-1 |
| Weight | 800g |
| Console | RS232 (RJ45 connector) |
| EHG7708 | 1P1EHG77080001G |
| Housing | IP30 aluminum housing |
| RoHS II | Yes |
| SNMP MIB | MIB II, IF-MIB, SNMPv2 MIB, BRIDGE-MIB, RMON MIB Group 1,2,3,9, RFC RFC 1157, RFC 1213, RFC 1215, RFC 1493, RFC 1643, RFC 1757, RFC 2011, RFC 2012, RFC 2013, RFC 2233, RFC 2571, RFC 2742, RFC 2819, RFC 2863, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, |
| Connector | 5-Pin 5.08mm Lockable Terminal Block |
| Protocols | IPv4, IPv6, IGMPv1/v2/v3, IGMP Snooping, GARP, GMRP, GVRP, SNMPv1/v2c/v3, SNMP Inform, ICMP, Telnet, SSH, Client/IP-port-mapping, BootP, TFTP, SMTP, SMTP (Gmail), RMON, HTTP, HTTPS, Syslog, LLDP, 802.1x, EAP,RADIUS, TACACS+, Mirror port, QoS, ACL, ITU-T G.8032 ERPS Ring, STP, RSTP, MSTP, NTP Server/Client, Serial Console,Modbus/TCP, IEEE 1588 PTP V1/V2,UDLD, Security, PoE, Trunk, LACP, MLD, 802.1Q VLAN, Port-Based VLAN, MAC-Based VLAN, IP-Subnet-Based VLAN, Protocol-Based VLAN, QinQ, 802.1x, ARP spoof Prevention, DHCP snooping, IP source Guard, Dynamic ARP Inspection, DHCP relay Agent, OAM, sFlow, PoE continue |
| SDR-75-24 | 50500752240001G |
| Standards | IEEE 802.3af/at/bt for Power-over-Ethernet IEEE 802.3/802.3u for 10BASE-T/100BASE-T(X) IEEE 802.3ab for 1000BASE-T IEEE 802.3z for 1000BASE-X IEEE 802.3x for Flow Control IEEE 802.1d-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1q/p for VLAN Tagging and Class of Service IEEE 8021x for Authentication IEEE 802.3ad for Port Trunk with LACP |
| RJ45 Ports | Up to 8 10/100/1000BASE-T(X) auto negotiation speed |
| Redundancy | ITU-T G.8032 ERPS, STP, RSTP, MSTP, MRP(Manager/Client), Compatible Ring/Chain, U-Ring |
| SDR-240-48 | 50502401480001G |
| VLAN Table | 4096 |
| Jumbo Frame | 9216 Byte |
| Trunk Group | 4 |
| DIP Switches | Ring Control |
| EHG7708-8PoE | 1P1EHG77080003G |
| Installation | DIN-Rail , Wall mount (optional kit) |
| Relay Output | 2 relay outputs with current carrying capacity of 1A @ 24 VDC |
| IEC 61000-4-2 | ESD |
| IEC 61000-4-3 | RS |
| IEC 61000-4-4 | EFT |
| IEC 61000-4-5 | Surge |
| IEC 61000-4-6 | CS |
| IEC 61000-4-8 | PFMF |
| Input Voltage | 9-57 VDC for Non-PoE models 45-57 VDC for 802.3af mode 53-57 VDC for for 802.3at/bt |
| VLAN ID Range | VID 1 to 4094 |
| WMK-450-Black | 70100000000050G |
| AXGD-1354-0523 | 522AXGD1354001G |
| AXGD-1354-0533 | 522AXGD1354011G |
| AXGD-3354-0593 | 522AXGD3354001G |
| AXGD-5854-0513 | 522AXGD5854001G |
| LED Indicators | PWR1, PWR2, Alarm, Run, Ring, Ring Master, RJ-45 Link/Speed, SFP Link, PoE |
| MAC Table Size | 4K |
| MAC-Based VLAN | 512 |
| Priority Queues | 8 |
| Fiber Optics Ports | Up to 2 x 1000BASE-X SFP and 2 x 2500Base-X SFP |
| Packet Buffer Size | 1.75 Mb |
| Static IGMP Groups | 128 |
| Automation Profiles | Modbus/TCP device status registers provided |
| Dynamic IGMP Groups | 256 |
| EHG7708-2SFP-225SFP | 1P1EHG77080002G |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Shock Drop Vibration | MIL-STD-810G Method 516.5 MIL-STD-810F Method 516.5 MIL-STD-810F Method 514.5 C-1 & C-2 |
| Time Synchronization | VID 1 to 4094 |
| Dimension (W x H x D) | EHG7704/06/08(C): 168 x 135 x 32mm EHG7711: 168 x 135 x 55mm |
| Operating Temperature | -40°C to +75°C (-40°F to +167°F) |
| Input Current (System) | 2.2A Max. for Non-PoE models 4.5A Max. for 802.3af mode 3.8A Max. for for 802.3at/bt |
| Network Synchronization | IEEE1588 hardware-based TC End-to-End and Peer-to-Peer IEEE1588 hardware-based BC 802.1AS |
| CBL-RJ45(8P)-DB9(F)-90-C | 50891971G |
| EHG7708-4PoE-2SFP-225SFP | 1P1EHG77080004G |
| Ambient Relative Humidity | 5% to 95%, 55°C (Non-condensing) |
| Power Consumption (System) | 10W Max. @57Vdc, for Non-PoE models 195W Max. @57Vdc, for 802.3af mode 195W Max. @57Vdc, for for 802.3at/bt |
| Reverse Polarity Protection | Yes |
| Brand | ATOP |
| Model | EHG7708 Series - ATOP |
| Main Category | Atop |
