EHG9608 - ATOP
In Stock (100 items)
221 views
€0,00
VAT Included
Product Summary

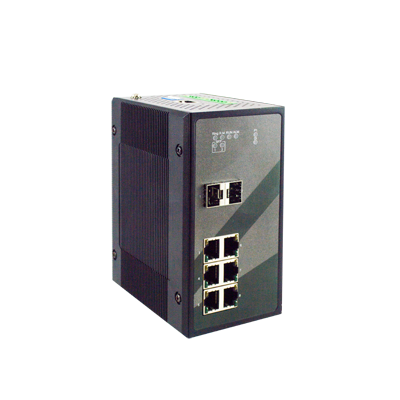

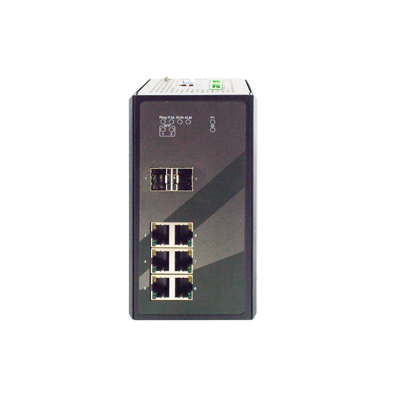

8-Port IEC61850-3 Certified Industrial Managed Layer-3 Gigabit Switch
IEC61850-3 CertifiedUp to 6 or 8 x 10/100/1000 BASE-T(X) ports and 2 or 4 1000 BASE-X
SFP portsPowerful Layer-3 Switching, support...
Product Description
8-Port IEC61850-3 Certified Industrial Managed Layer-3 Gigabit Switch
- IEC61850-3 Certified
- Up to 6 or 8 x 10/100/1000 BASE-T(X) ports and 2 or 4 1000 BASE-X SFP ports
- Powerful Layer-3 Switching, supporting BGPv4, IPv4 Static, RIPv1/v2 and OSPFv2
- IEEE1588v2 Precision Time Protocol support, with nanosecond-accurate Hardware-based E2E Transparent clock and Software Boundary Clock
- ERPS and Compatible Ring (recovery time < 20ms @ 40 switches), STP/RSTP/MSTP/MRP (Manager/ Client) for network redundancy
- Remote management over Web browser, Telnet, Serial console, Utility
The ATOP EHG9608 is an excellent solution for businesses seeking industrial durability and reliability. With a wide temperature range of -40°C to +75°C, it delivers dependable performance even in harsh environmental conditions. The IP30 protection class enhances the device's resistance to dust and moisture, while the DIN-Rail mounting option allows for easy installation. Additionally, the redundant power input feature increases system reliability, ensuring uninterrupted operation. The Layer-3 management capabilities and extensive protocol support offered by the EHG9608 make it ideal for industrial applications in Turkey. This device is designed to provide reliable network communication in the energy, automation, and transportation sectors.
Technical Specifications
| EMC | FCC Part 15, Subpart B, Class A EN 55032, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 61000-6-4, |
| MTBF | 20 Years |
| v1.0 | EHG9608-EHG9612 ertifications FCC |
| v1.1 | EHG9608-EHG9612 Hardware Installation Guide |
| v2.4 | EHG76XX/ EHG96XX/ RHG76XX/ EMG86XX User Manual |
| v5.60 | Management Utility for Windows |
| v6.50 | EHG96XX Firmware |
| v6.56 | EHG96XX Firmware |
| v6.66 | EHG96XX Firmware |
| RoHS 2 | Yes |
| Safety | UL/CUL/IEC(CB) 61010-2-201 |
| Weight | 1,000g (AC/HV versions) / 1,200g (other) |
| Console | RS232 (RJ45 connector) |
| Housing | IP30 SPCC, Black housing |
| SNMP MIB | MIB II, IF-MIB, SNMPv2 MIB, BRIDGE-MIB, RMON MIB Group 1,2,3,9, RFC RFC 1157, RFC 1213, RFC 1215, RFC 1493, RFC 1643, RFC 1757, RFC 2011, RFC 2012, RFC 2013, RFC 2233, RFC 2571, RFC 2742, RFC 2819, RFC 2863, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415 |
| Warranty | 5 Years |
| Connector | 5-Pin 5.08mm Lockable Terminal Block |
| Protocols | IPv4, IPv6, IGMPv1/v2/v3, IGMP Snooping, GARP, GMRP, GVRP, SNMPv1/v2c/ v3, SNMP Inform, ICMP, Telnet, SSH, DHCP Server/Relay/Client, DHCP Option 66/67/82, BootP, RARP, TFTP, NTP Server/Client, SNTP, SMTP, SMTP (Gmail), RMON, HTTP, HTTPS, Syslog, MRP (Manager/ Client), LLDP, IEEE 1588 PTP V1/V2, IEEE 1588 Hardware-Assisted End-to-End Transparent Clock and Software- assisted Boundary Clock, 802.1x, EAP, RADIUS, TACACS+, Mirror port, QoS, ACL, Serial Console, U-Ring, STP, RSTP, MSTP, Redundancy Compatible Ring, DHCP Snooping, ARP Spoof Prevention, Dynamic ARP Inspection, MLD, UDLD, IP Source Guard, sFlow |
| SDR-75-24 | 50500752240001G |
| Standards | IEEE 802.3 for 10BASE-T IEEE 802.3u for 100BASE-T(X) IEEE 802.3ab for 1000BASE-T IEEE 802.3z for 1000BASE-X IEEE 802.3x for Flow Control/ Back pressure control IEEE 802.1d-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 8021x for Authentication |
| RJ45 Ports | Up to 8x10/100/1000BASE-T(X) auto negotiation speed |
| VLAN Table | 4096 |
| Jumbo Frame | 9216 Byte |
| Trunk Group | 4 |
| DIP Switches | Ring Control |
| EHG9608-2SFP | 1P1EHG96080001G |
| Installation | DIN-Rail , Wall mount (optional kit) |
| Relay Output | 2 x Relay outputs with current carrying capacity of 1A @ 24 VDC |
| Reset Button | Yes |
| IEC 61000-4-2 | ESD |
| IEC 61000-4-3 | RS |
| IEC 61000-4-4 | EFT |
| IEC 61000-4-5 | Surge |
| IEC 61000-4-6 | CS |
| IEC 61000-4-8 | PFMF |
| Input Voltage | 19.2-62.7 VDC 85-264 VAC for AC series 110-370 VDC for HV Series |
| VLAN ID Range | VID 1 to 4094 |
| AXGD-1354-0523 | 522AXGD1354001G |
| AXGD-1354-0533 | 522AXGD1354011G |
| AXGD-3354-0593 | 522AXGD3354001G |
| AXGD-5854-0513 | 522AXGD5854001G |
| IEC 61000-4-11 | DIP |
| LED Indicators | PWR1, PWR2, Alarm, Run, Ring, Ring Master, RJ-45 Link/Speed, SFP Link |
| MAC Table Size | 16K |
| MAC-Based VLAN | 512 |
| Wall Mount Set | 70100000000056G |
| EHG9608-2SFP-AC | 1P1EHG96080003G |
| EHG9608-2SFP-HV | 1P1EHG96080002G |
| Priority Queues | 8 |
| Fiber Optic Ports | Up to 4 1000BASE-X SFP slot |
| Industry Specific | IEC61850-3 (Including 6.10.3 Seismic test), IEEE 1613 |
| Layer-3 Protocols | Routing: IPv4 Unicast static routing, RIP v1/v2, OSPFv2, Multicast: IGMPv1/v2/v3, DVMRP, PIM-DM, PIM-SM, PIM-SSM Routing Redundancy: VRRP (Virtual Router Redundancy Protocol) |
| Packet Buffer Size | 1.5 MB |
| Static IGMP Groups | 128 |
| Automation Profiles | Modbus/TCP status registers |
| Dynamic IGMP Groups | 256 |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Rated Supply Voltage | 24-57 VDC 100-240 VAC for AC series 110-370 VDC for HV Series |
| Dimension (W x H x D) | 77 x 145 x 113 mm |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) /-40°C to 70°C (-40°F to 158°F) For UL |
| Input Current (System) | 0.63A @ 24 VDC 0.16A @ 100 VAC for AC series 0.12A @ 110 VDC for HV series |
| CBL-RJ45(8P)-DB9(F)-90-C | 50891971G |
| Ambient Relative Humidity | 5%~95% RH, 55°C (Non-condensing) |
| Reverse Polarity Protection | Yes |
| Brand | ATOP |
| Model | EHG9608 - ATOP |
| Main Category | Atop |
