Product Summary
5-Port EN 50155 Certified Railway IP67 Waterproof Unmanaged Gigabit Switch
5 x 10/100/1000 BASE-T(X) ports, M12 connector (A or X coding)EN50155, EN50121-4 Railway Track-side and on-board certifiedUL...
Product Description

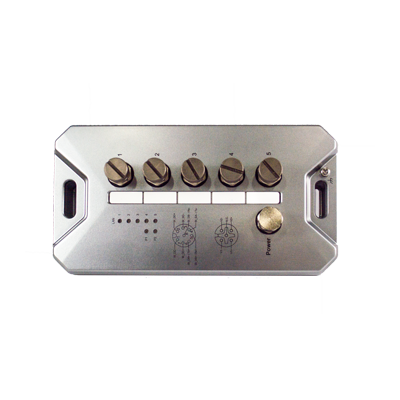

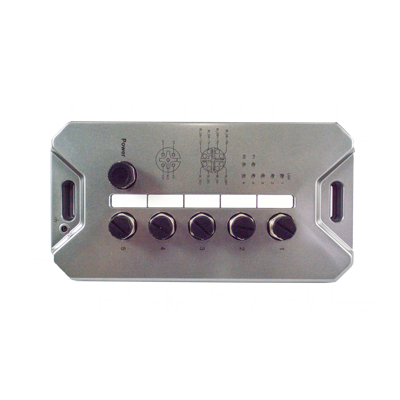

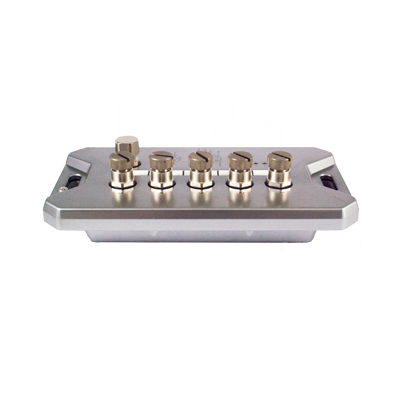

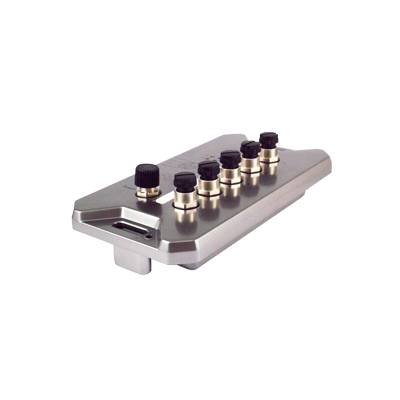

5-Port EN 50155 Certified Railway IP67 Waterproof Unmanaged Gigabit Switch
- 5 x 10/100/1000 BASE-T(X) ports, M12 connector (A or X coding)
- EN50155, EN50121-4 Railway Track-side and on-board certified
- UL 61010-2-201 certified
- Redundant power input 12~48 VDC
- Ruggedized IP67 aluminum case design
- Works from -40°C~75°C
- Prioritizes Profinet packets according to 802.1p
The ATOP EMG8305 Series is an excellent solution for businesses seeking industrial durability and reliability. With an extensive temperature range (-40°C to +75°C), it operates seamlessly even in harsh environmental conditions. The IP67 protection class provides superior defense against dust and water, making it ideal for outdoor applications. Additionally, the inclusion of DIN-Rail mounting kits enables easy installation and integration. The redundant power input ensures continuous operation, while the EMG8305's ability to prioritize Profinet packets enhances data transmission performance, offering significant advantages for industrial applications in Turkey. These features elevate the reliability of the ATOP EMG8305, making it a critical component for industrial facilities.
Technical Specifications
| EMC | FCC Part 15, Subpart B, Class A EN 55032, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-3-3, EN 61000-6-2, EN 61000-6-4 |
| MTBF | 32.70 Years (according to MIL-HDBK-217F) |
| v0.8 | Datasheet EN |
| v0.9 | Datasheet EN |
| v1.0 | EMG8305 Hardware Installation Guide |
| v1.1 | EMG8305 Hardware Installation Guide |
| RoHS2 | Yes |
| RoHS 2 | Yes |
| Safety | UL/IEC/EN 61010-1, UL/IEC(CB) 61010-2-201 |
| Weight | 650g |
| Housing | IP67 protection according to EN 60529, Aluminum Housing |
| Warranty | 5 Years |
| Connector | 5-Pin A-Code Male M12 |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT IEEE 802.3x for Flow Control, back pressure flow control |
| Jumbo Frame | 10k Bytes |
| DIN-Rail Kit | 70100000000062G |
| Flow Control | Back pressure and pause frame - based flow control schemes |
| Installation | Wall mount (optional kit) |
| Rail Traffic | EN50155; EN50121-4 |
| EMG8305-M12-A | 1P1EMG8305A001G |
| EMG8305-M12-X | 1P1EMG8305X001G |
| IEC 61000-4-2 | ESD |
| IEC 61000-4-3 | RS |
| IEC 61000-4-4 | EFT |
| IEC 61000-4-5 | Surge |
| IEC 61000-4-6 | CS |
| IEC 61000-4-8 | PFMF |
| Input Current | 0.42A @ 12 V |
| Input Voltage | 12-48 VDC |
| MAC Address Table | 8096 |
| Processing Scheme | Store-and-Forward |
| Transmission Rate | 10/100/1000 Mbps |
| Packet Buffer Size | 1Mbits |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| M12 screw plug Metal | 59908561G |
| Dimension (W x H x D) | 105.7 x 196 x 48.3 mm |
| M12 Sealing Cap Metal | 59908571G |
| Max Power Consumption | 5W |
| Operating Temperature | -40°C~75°C (-40°F~167°F) |
| M12 screw plug Plastic | 3990078G |
| M12 Sealing Cap Plastic | 3990079G |
| Ambient Relative Humidity | 5%~95%, 55°C (Non-condensing) |
| Brand | ATOP |
| Model | EMG8305 Series - ATOP |
| Main Category | Atop |
