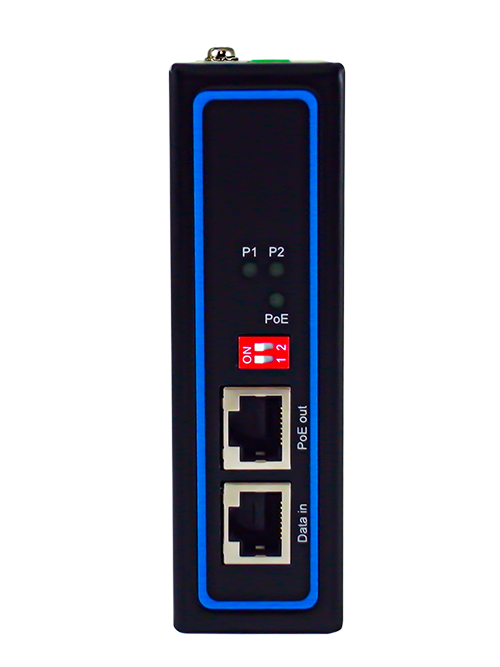

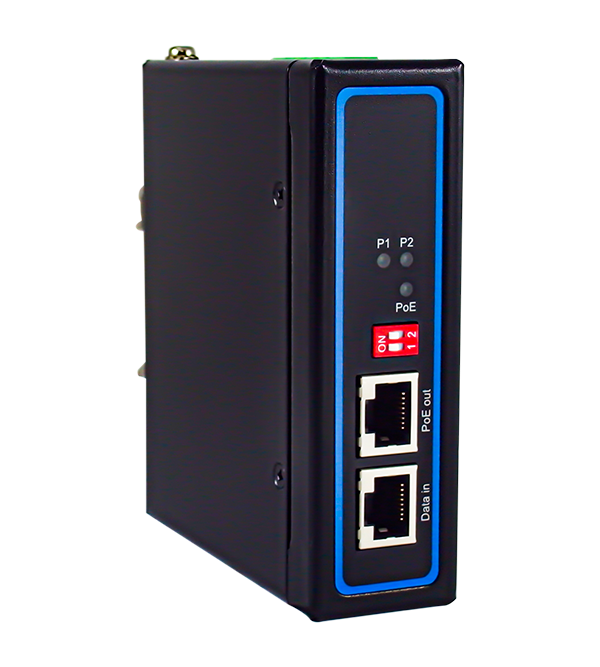

IJG7001 - ATOP
In Stock (100 items)
39 views
€0,00
VAT Included
Product Summary
The IJG7001 PoE injector supports IEEE 802.3at (PoE+) as well as the legacy IEEE 802.3af (PoE), so you can provide PoE power to virtually any device.
Supports 802.3af (PoE), 802.3at (PoE+)Up to 30W Po...
Product Description
The IJG7001 PoE injector supports IEEE 802.3at (PoE+) as well as the legacy IEEE 802.3af (PoE), so you can provide PoE power to virtually any device.
- Supports 802.3af (PoE), 802.3at (PoE+)
- Up to 30W PoE power available
- Dedicated 12VDC power input
- Supports Mode A and Mode B, DIP-Switch selectable
- 2x 10/100/1000 BASE-T(X) ports (data in, data + PoE out)
- IP30 aluminum with DIP-Rail / Wall mount (optional)
- Operating range of -40°C to 75°C
- EN 62368-1 and IEC 62368-1 certified
- Strong EMC protection, up to Level 4
The ATOP IJG7001 PoE injector stands out as an exceptional solution for those seeking industrial durability and reliability. With an extensive operating temperature range of -40°C to +75°C, it ensures uninterrupted performance even in challenging environmental conditions. Its IP30 protection rating offers resistance against dust and moisture, making it a safe choice for industrial settings. Additionally, the DIN-Rail mounting option facilitates easy installation. The redundant power input feature guarantees continuous power supply, even in the event of a power source interruption. Designed for industrial applications in Turkey, the ATOP IJG7001, with its robust EMC protection capabilities, is an ideal choice for those in need of a dependable power and data solution.
Technical Specifications
| EMC | FCC Part 15, Subpart B, Class A EN 55032:2015 +AC:2016 Class A, EN 61000-3-2: 2014, Class A, EN 61000-3-3: 2013, EN 61000-6-4: 2007+ A1: 2001 EN 55024: 2010+ A1:2015, EN 61000-6-2:2005+ AC : 2005 |
| Drop | MIL-STD-810F Method 516.5 |
| MTBF | 72.23 years |
| RoHS | Yes |
| v0.2 | Datasheet EN |
| v0.3 | Datasheet EN |
| v1.0 | IJG7001 Certifications UL |
| v1.1 | IJG7001 Hardware Installation Guide |
| Shock | MIL-STD-810F Method 516.5 |
| Safety | EN60950-1, EN62368-1 |
| Weight | 340 g |
| Housing | IP30 metal housing |
| IJG7001 | 1P1IJG70010001G |
| Warranty | 5 years |
| PoE modes | Mode A/ Mode B DIP-Switch selectable Mode A: PoE power through data pins (1,2,3,6) Mode B: PoE power through spare pins (4,5,7,8) |
| Vibration | MIL-STD-810F Method 514.5 C-1 & C-2 |
| Compliance | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3af for Power-over-Ethernet (PoE - max 15.4W) IEEE 802.3at for Power-over-Ethernet (PoE+ - max 30.0W) |
| Indicators | P1, P2, PoE |
| Wall Mount | Wall Mount set |
| Installation | DIN-Rail, Wall mount (optional kit) |
| IEC 61000-4-2 | ESD |
| IEC 61000-4-3 | RS |
| IEC 61000-4-4 | EFT |
| IEC 61000-4-5 | Surge |
| IEC 61000-4-6 | CS |
| IEC 61000-4-8 | PFMF |
| Input Current | Max 3.6A @12VDC |
| Input Voltage | 12 (power limitations) |
| Auto MDI/MDI-X | Yes |
| IEC 61000-4-11 | DIP |
| PoE Voltage Booster | Yes (Max support 30W) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Dimension (W x H x D) | 32 x 110 x 90 mm |
| Operating Temperature | -40°C to +75°C (-40°F to +167°F) |
| Max. Power Consumption | 30W |
| RJ 45 Transmission Rate | 10/100/1000 Mbps |
| Ambient Relative Humidity | 5% to 95% (Non-condensing test @55°C) |
| Brand | ATOP |
| Model | IJG7001 - ATOP |
| Main Category | Atop |
