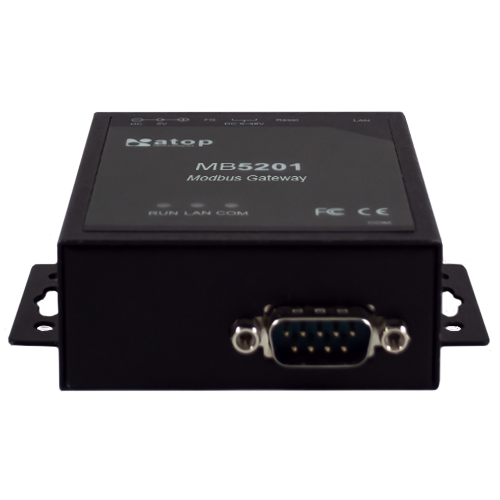

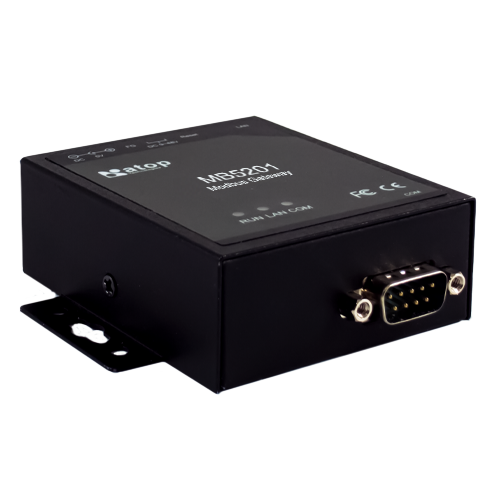

MB5201 - ATOP
In Stock (100 items)
47 views
€0,00
VAT Included
Product Summary
Compact 1-Port Industrial Modbus TCP/RTU/ASCII Gateway, Field-Mount
1 x software-selectable RS-232/485/422 port1 x 10/100Mbps RJ45 Fast Ethernet portSupports TCP server/client, UDP, Virtual COM and Tu...
Product Description
Compact 1-Port Industrial Modbus TCP/RTU/ASCII Gateway, Field-Mount
- 1 x software-selectable RS-232/485/422 port
- 1 x 10/100Mbps RJ45 Fast Ethernet port
- Supports TCP server/client, UDP, Virtual COM and Tunneling modes
- Modbus TCP/RTU/ASCII
- Configuration via Web Server page, Telnet Console, and Windows Utility
- Upgradable firmware via Ethernet from a remote-PC
- Rugged metal casing; industrial EMC protection
- Redundant dual DC power inputs for non-stop operation
- Optional DIN-Rail mounting
The ATOP MB5201 model is a rugged Modbus TCP/RTU/ASCII gateway designed for industrial applications. With a wide temperature range of -40°C to +75°C, it ensures reliable performance even in harsh environmental conditions. Its IP30 protection class offers resistance against dust and moisture, making it ideal for industrial settings. Additionally, the option for DIN-Rail mounting and redundant power inputs provides uninterrupted operation and flexibility. In industrial automation projects in Turkey, the ATOP MB5201 stands out with its reliability and robust design, facilitating integration processes by supporting various protocols.
Technical Specifications
| EMC | FCC Part 15, Subpart B, Class A, EN 55032, EN61000-6-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN61000-6-2 |
| Drop | MIL-STD-810F Method 516.5 |
| MTBF | 25.29 years according to MIL-HDBK-217F, 25 degrees C |
| Mode | RS-232/RS-485(2 and 4 wire)/RS-422, software selectable |
| v0.1 | Datasheet EN |
| v0.2 | Datasheet EN |
| v0.3 | Datasheet EN |
| v0.4 | Datasheet EN |
| v0.5 | Datasheet EN |
| v1.0 | SE5201_MB5201_LVD |
| DK-25 | 30200000000022G |
| Ports | 1 |
| REACH | Yes |
| Shock | MIL-STD-810F Method 516.5 |
| Speed | IEEE 802.3 10BaseT IEEE 802.3u 100BaseT(X) |
| v1.02 | MB5201 Firmware |
| v1.04 | MB5201 Firmware. Notes: This new version improves the firmware mechanism and takes its new firmware upgrade mechanism, so downgrading to older FW versions is not allowed. |
| v1.06 | MB5201 Firmware |
| v5.60 | Management Utility for Windows |
| Modbus | TCP/RTU/ASCII |
| Parity | None, Odd, Even, Space, Mark |
| RoHS 2 | Yes |
| Safety | EN 60950-1 / EN62368-1 |
| Weight | 185g |
| Warranty | 5 Years |
| Baud Rate | 1200~230,400 bps |
| Connector | 3-Pin 5.08mm Lockable Terminal Block and DC Jack for redundancy |
| Data Bits | 7, 8 |
| MB5201-DB | 1P1MB520100001G |
| MB5201-TB | 1P1MB520100002G |
| Protocols | TCP, IPv4, UDP, DHCP Client, HTTP, HTTPS, Telnet, ARP, SNMPv1,v2c,v3 |
| Stop Bits | 1, 2 |
| Vibration | MIL-STD-810F Method 514.5 C-1 & C-2 |
| Protection | IEC/EN60529 - IP30 |
| VirtualCOM | Windows/Linux redirection software |
| Flow Control | None, Xon/Xoff, RTS/CTS (RS-232 only) |
| Installation | Wall mount, DIN-Rail (optional) |
| Reset Button | Yes |
| Configuration | Atop Management Utility, Web UI, Telnet, CLI |
| IEC 61000-4-2 | Electrostatic Discharge |
| IEC 61000-4-3 | Radiated Susceptibility |
| IEC 61000-4-4 | EFT |
| IEC 61000-4-5 | Surge |
| IEC 61000-4-6 | Conducted Susceptibility |
| IEC 61000-4-8 | PFMF |
| Input Voltage | 3-Pin 5.08mm Lockable Terminal Block: 9-30VDC; DC Jack 5VDC |
| ADP-DB9(F)-TB5 | 59906231G |
| Auto MDI/MDI-X | Present |
| IEC 61000-4-11 | DIP |
| Connector ports | RJ45 x 1 |
| Auto-negotiation | Present |
| Power Redundancy | Yes |
| Supported Models | Ethernet: Modbus TCP Server/Client(or VCOM); Serial: Modbus RTU/ASCII (master/slave) |
| ADP-DB9(M)-DB9(F) | 59901411G |
| Power Consumption | <1.5W @9VDC |
| UN315-1212 (US-Y) | 50500151120003G |
| UV305-0510(US-DC) | 50500051500003G |
| UNE315-1212 (EU-Y) | 50500151120013G |
| UVE305-0510(UK-DC) | 50500051500023G |
| Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| UVE305-0510 (EU-DC) | 50500051500013G |
| Dimension (W x H x D) | 65mm x 78mm x 28mm (without wall-mount part) SE5201-TB: 88.5 x 78.3 x 27.8mm (with wall-mount part) SE5201-DB: 88.5 x 84 x 27.8mm (with wall-mount part and DB9 connector) |
| Operating Temperature | -20°C ~ 70°C (-4°F ~ 158°F) |
| Ambient Relative Humidity | 5 ~ 95% RH, (non-condensing) |
| Reverse Polarity Protection | Yes |
| Maximum number of clients/slaves | Modbus TCP: Maximum 16 clients; Maximum 32 slave connections |
| Brand | ATOP |
| Model | MB5201 - ATOP |
| Main Category | Atop |
