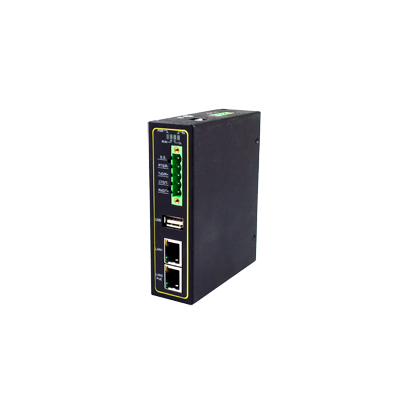

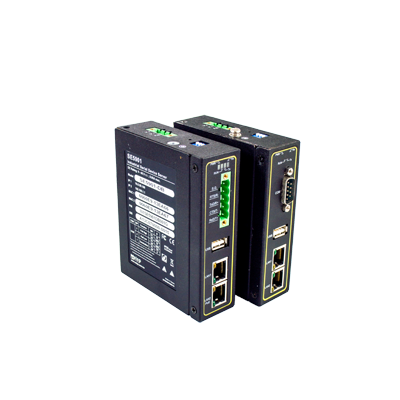

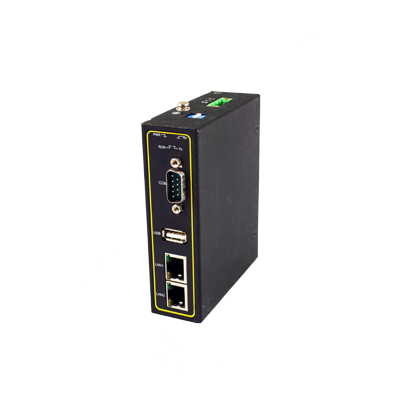

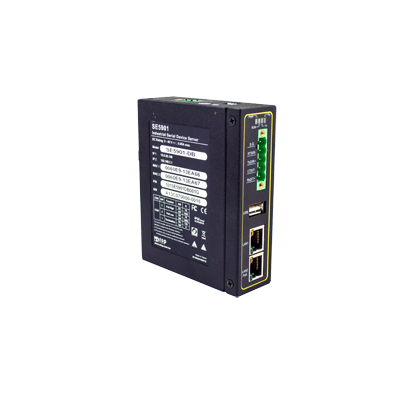

PG5901 Series - ATOP
In Stock (100 items)
56 views
€0,00
VAT Included
Product Summary
1-Port RS232/485/422 and 2 x Fast-Ethernet RJ45 DNP3.0, Modbus, IEC 60870-5-101/103/104, IEC 61850 Smart Grid Protocol Gateway
Dual 10/100 Mbps Ethernet port, Optional 802.3af PoE PD capable1-port RS-...
Product Description
1-Port RS232/485/422 and 2 x Fast-Ethernet RJ45 DNP3.0, Modbus, IEC 60870-5-101/103/104, IEC 61850 Smart Grid Protocol Gateway
- Dual 10/100 Mbps Ethernet port, Optional 802.3af PoE PD capable
- 1-port RS-232/422/485, baud rate up to 921.6 Kbps
- IP30 Metal housing with Aluminum heat sink
- Strong EMC protection, works in environments from -40 to 85°C
- Same hardware platform for different protocol conversion (Modbus TCP/RTU/ASCII, DNP3.0 TCP or serial, IEC 60870-5-101, IEC 60870-5-103, IEC 60870-5-104, IEC 61850)
- Optional Full-License version for simultaneous transformation of multiple protocols
- User friendly configuration with a Java-Based Windows utility
- Embedded IPsec, PPTP and OpenVPN for enhanced security
- Redundancy through embedded RSTP Protocol
The ATOP PG5901 Series stands out as a solution known for its durability and reliability in industrial automation. With a wide temperature range of -40°C to +75°C, it operates seamlessly even in harsh environmental conditions. The IP30 protection class ensures dust and water resistance, making it safe for use in industrial settings. Additionally, the DIN-Rail mounting option provides flexible installation capabilities, while the redundant power input guarantees continuous operation of the system. These features make the PG5901 an ideal solution for industrial applications in Turkey, allowing users to benefit from reliable data transmission and system integration advantages.
Technical Specifications
| FL | Allows a model to run single or multiple protocol(s) in both front-end to SCADA and back-end to IED sides |
| EMC | FCC Part 15, Subpart B, Class A FCC Part 15, Subpart B, Class A EN 55032, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-2, EN 61000-6-4 |
| Drop | IEC 60068-2-32 |
| MTBF | 21.16 years (MIL-HDBK-217F-based prediction) |
| RoHS | Yes |
| v1.0 | STP File PG-SE-MB5901 |
| v1.5 | eNode-Designer-User-Manual-103-Atop |
| v1.6 | eNode-Designer-User-Manual-IEC61850-Atop |
| v1.8 | Getting started with Atop PG and eNode Designer |
| v2.0 | SE5901/MB5901/PG5901 Hardware Installation Guide |
| v2.2 | Datasheet EN |
| Ports | 1 |
| REACH | Yes |
| Shock | IEC 60068-2-27 |
| Speed | USB 2.0 |
| v1.00 | PG59XX Full-License |
| v1.31 | eNode designer - Support PG59xx v0.66 and the older version |
| v5.60 | Management Utility for Windows |
| Safety | EN60950-1:2006; EN62368-1 |
| Weight | 400g |
| Housing | IP30 protection, SPCC metal housing |
| Warranty | 5 Years |
| 01SS-04EC | IEC 60870-5-101 Serial Slave to IEC 60870-5-104 Ethernet Client |
| 01SS-50EC | IEC 60870-5-101 Serial Slave to IEC 61850 Client |
| 01SS-DNEC | IEC 60870-5-101 Serial Slave to DNP3 Ethernet Client |
| 01SS-MBEC | IEC 60870-5-101 Serial Slave to Modbus Ethernet Client |
| 04ES-01SM | IEC 60870-5-104 Ethernet Server to IEC 60870-5-101 Serial Master |
| 04ES-03SM | IEC 60870-5-104 Ethernet Server to IEC 60870-5-103 Serial Master |
| 04ES-50EC | IEC 60870-5-104 Ethernet Server to IEC 61850 Ethernet Client |
| 04ES-DNEC | IEC 60870-5-104 Ethernet Server to DNP3 Ethernet Client |
| 04ES-DNSM | IEC 60870-5-104 Ethernet Server to DNP3 Serial Master |
| 04ES-MBEC | IEC 60870-5-104 Ethernet Server to Modbus Ethernet Client |
| 04ES-MBSM | IEC 60870-5-104 Ethernet Server to Modbus Serial Master |
| 50ES-01SM | IEC 61850 Ethernet Server to IEC 60870-5-101 Serial Master |
| 50ES-03SM | IEC 61850 Ethernet Server to IEC 60870-5-103 Serial Master |
| 50ES-04EC | IEC 61850 Ethernet Server to IEC 60870-5-104 Ethernet Client |
| 50ES-DNEC | IEC 61850 Ethernet Server to DNP3 Ethernet Client |
| 50ES-DNSM | IEC 61850 Ethernet Server to DNP3 Serial Master |
| 50ES-MBEC | IEC 61850 Ethernet Server to Modbus Ethernet Client |
| 50ES-MBSM | IEC 61850 Ethernet Server to Modbus Serial Master |
| Baud Rate | 1,200 ~ 921,600 bps software selectable |
| Connector | 3-Pin 5.08mm Lockable Terminal Block |
| DNES-01SM | DNP3 Ethernet Server to IEC 60870-5-101 Serial Master |
| DNES-03SM | DNP3 Ethernet Server to IEC 60870-5-103 Serial Master |
| DNES-04EC | DNP3 Ethernet Server to IEC 60870-5-104 Ethernet Client |
| DNES-50EC | DNP3 Ethernet Server to IEC 61850 Ethernet Client |
| DNES-DNSM | DNP3 Ethernet Server to DNP3 Serial Master |
| DNES-MBEC | DNP3 Ethernet Server to Modbus Ethernet Client |
| DNES-MBSM | DNP3 Ethernet Server to Modbus Serial Master |
| DNSS-04EC | DNP3 Serial Slave to IEC 60870-5-104 Ethernet Client |
| DNSS-50EC | DNP3 Serial Slave to IEC 61850 Ethernet Client |
| DNSS-DNEC | DNP3 Serial Slave to DNP3 Ethernet Client |
| DNSS-MBEC | DNP3 Serial Slave to Modbus Ethernet Client |
| Data Bits | 7, 8 software selectable |
| MBES-01SM | Modbus Ethernet Server to IEC 60870-5-101 Serial Master |
| MBES-03SM | Modbus Ethernet Server to IEC 60870-5-103 Serial Master |
| MBES-04EC | Modbus Ethernet Server to IEC 60870-5-104 Ethernet Client |
| MBES-50EC | Modbus Ethernet Server to IEC 61850 Ethernet Client |
| MBES-DNEC | Modbus Ethernet Server to DNP3 Ethernet Client |
| MBES-DNSM | Modbus Ethernet Server to DNP3 Serial Master |
| MBSS-04EC | Modbus Serial Slave to IEC 60870-5-104 Ethernet Client |
| MBSS-50EC | Modbus Serial Slave to IEC 61850 Client |
| MBSS-DNEC | Modbus Serial Slave to DNP3 Ethernet Client |
| PG5901-DB | 2x RJ45 |
| PG5901-TB | 2x RJ45 |
| Protocols | IPv4, ARP, ICMP, TCP, UDP, DHCP Client, DNS Client, Telnet, HTTP, HTTPS, SMTP/TLS, SNMP v1/v2c/v3, Syslog, 802.1D-2004 RSTP, OpenVPN or IPsec VPN (peer-to-peer or peer-to-side), with a maximum VPN throughput of 37.9Mbps(*), and PPTP |
| Stop Bits | 1, 2 software selectable |
| USB Ports | 1 |
| Vibration | IEC 60068-2-64 |
| Flow Control | None, Xon/Xoff, RTS/CTS |
| Installation | DIN-Rail , Wall mount (optional kit) |
| Reset Button | Yes |
| Configuration | Atop Management Utility, Web UI, Telnet, Serial Console, ATOP eNode Designer |
| IEC 61000-4-2 | ESD |
| IEC 61000-4-3 | RS |
| IEC 61000-4-4 | EFT |
| IEC 61000-4-5 | Surge |
| IEC 61000-4-6 | CS |
| IEC 61000-4-8 | PFMF |
| Input Voltage | 9 - 48VDC (non-PoE Models); or through Ethernet Cable (PoE versions) |
| PG5901-PoE-DB | 2x RJ45 |
| PG5901-PoE-TB | 2x RJ45 |
| WMK-315-Black | 70100000000050G |
| ADP-DB9(F)-TB5 | 59906231G |
| IEC 61000-4-11 | DIP |
| Connector ports | RJ45 x 2 |
| Protocol setting | eNode designer |
| Power Consumption | Approximately 6 W (Max) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Supported Protocols | Modbus TCP/RTU/ASCII, DNP3.0 over serial and TCP/IP, IEC61850, IEC60870-5-101, IEC60870-5-103, IEC60870-5-104 |
| UN315-1212(US-Y) LV6 | 50500151120003G |
| Dimension (W x H x D) | 32mm x 122mm x 92mm |
| Operating Temperature | -40°C~85°C (-40°F~185°F) |
| UNE315-1212(EU-Y) LV6 | 50500151120013G |
| Input Current (@ 9VDC) | 0.65 A @ 9 VDC |
| PoE standard supported | IEEE 802.3 af (PoE) |
| Protocol specifications | Refer to datasheet |
| Ambient Relative Humidity | 5%~95% RH, 55°C (Non-condensing) |
| Reverse Polarity Protection | Yes |
| Brand | ATOP |
| Model | PG5901 Series - ATOP |
| Main Category | Atop |
