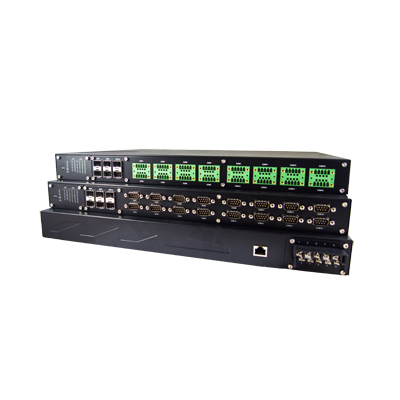

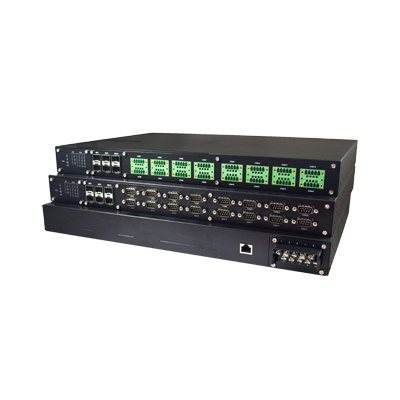

PG5916A Series - ATOP
In Stock (100 items)
53 views
€0,00
VAT Included
Product Summary
IEC61850-3 Certified Smart Grid Protocol Gateway
6 x 10/100Mbps RJ45 or SFP Ethernet ports, Embedded IPsec VPN for enhanced securityIEC 61850-3 and IEEE 1613 Power Substation Standards certified16-por...
Product Description
IEC61850-3 Certified Smart Grid Protocol Gateway
- 6 x 10/100Mbps RJ45 or SFP Ethernet ports, Embedded IPsec VPN for enhanced security
- IEC 61850-3 and IEEE 1613 Power Substation Standards certified
- 16-port RS-232/422/485, D-Sub9 or TB5 connecter, Optional isolation
- Isolated redundant power inputs with 24-48 VDC ,100-240 VAC, 100-370 VDC variations, two relay outputs
- Works in environments from -40 to +80°C
- Same hardware platform for different protocol conversion (Modbus TCP/RTU/ASCII, DNP3.0 TCP or serial, IEC 60870-5-101, IEC 60870-5-103, IEC 60870-5-104, IEC 61850)
- Optional Full-License version for simultaneous transformation of multiple protocols
- User friendly configuration with a Java-Based Windows utility
- Embedded PPTP, IPsec and OpenVPN Client/Server for enhanced security
The ATOP PG5916A Series is an excellent solution for businesses seeking industrial durability and reliability. Its wide temperature range (-40°C to +80°C) ensures stable performance even in harsh environmental conditions. The IP30 protection class and DIN rail mounting features facilitate secure integration of the device. Moreover, the redundant power input guarantees uninterrupted power flow, providing a significant advantage for critical industrial applications. Its suitability for industrial applications in Turkey offers a reliable solution for energy plants, automation systems, and other infrastructure projects. The multi-protocol support offered by the PG5916A Series enables seamless communication between different systems, ultimately enhancing operational efficiency.
Technical Specifications
| FL | Allows a model to run single or multiple protocol(s) in both front-end to SCADA and back-end to IED sides |
| EMC | FCC Part 15, Subpart B, Class A, EN 55032, Class A, EN 61000-6-2, EN 61000-3-2, EN 61000- 3-3, EN 55024, EN 61000-6-4, IEC 61850-3 / IEEE 1613 |
| MTBF | PG5900A: 16.60 years PG5916A-6SFP-Sis-HV: 9.18 years PG5916A-6SFP-Sis: 8.63 years |
| Mode | RS-232/422/485 Software selectable |
| RoHS | Yes |
| v1.0 | SE-MB-PG5900A-08A-16A Certifications LVD |
| v1.3 | SE5916A/MB5916A/PG5916A Hardware Installation Guide |
| v1.4 | PG5916A Hardware Installation Guide |
| v1.5 | eNode-Designer-User-Manual-103-Atop |
| v1.6 | eNode-Designer-User-Manual-IEC61850-Atop |
| v1.8 | Getting started with Atop PG and eNode Designer |
| v2.0 | Datasheet EN |
| Ports | 16 |
| Shock | MIL-STD-810F Method 516.5 |
| Speed | IEEE 802.3 10BaseT IEEE 802.3u 100BaseT(X) - RJ45 version IEEE 802.3u 100Base-FX - SFP version |
| v1.00 | PG59XX Full-License |
| v1.31 | eNode designer - Support PG59xx v0.66 and the older version |
| v5.20 | Management Utility for Windows |
| v5.50 | Management Utility for Windows |
| Safety | EN61010-1, EN 61010-2-201 |
| Weight | 4,000g |
| GDC-120 | 59906861G |
| Housing | IP30 SPCC housing |
| PG5916A | Ind. 16 Port Protocol Gateway, 10/100BASE-T(X) RJ45, DB9, 24-48 VDC |
| Warranty | SE5916A-6SFP-Sis-HV: 9.18 years SE5916A-6SFP-Sis: 8.63 years PG5900A / PG5908A / PG5916A: 5 years |
| 01SS-03SM | IEC 60870-5-101 Serial Slave to IEC 60870-5-103 Serial Master |
| 01SS-04EC | IEC 60870-5-101 Serial Slave to IEC 60870-5-104 Ethernet Client |
| 01SS-50EC | IEC 60870-5-101 Serial Slave to IEC 61850 Client |
| 01SS-DNEC | IEC 60870-5-101 Serial Slave to DNP3 Ethernet Client |
| 01SS-DNSM | IEC 60870-5-101 Serial Slave to DNP3 Serial Master |
| 01SS-MBEC | IEC 60870-5-101 Serial Slave to Modbus Ethernet Client |
| 01SS-MBSM | IEC 60870-5-101 Serial Slave to Modbus Serial Master |
| 04ES-01SM | IEC 60870-5-104 Ethernet Server to IEC 60870-5-101 Serial Master |
| 04ES-03SM | IEC 60870-5-104 Ethernet Server to IEC 60870-5-103 Serial Master |
| 04ES-50EC | IEC 60870-5-104 Ethernet Server to IEC 61850 Ethernet Client |
| 04ES-DNEC | IEC 60870-5-104 Ethernet Server to DNP3 Ethernet Client |
| 04ES-DNSM | IEC 60870-5-104 Ethernet Server to DNP3 Serial Master |
| 04ES-MBEC | IEC 60870-5-104 Ethernet Server to Modbus Ethernet Client |
| 04ES-MBSM | IEC 60870-5-104 Ethernet Server to Modbus Serial Master |
| 50ES-01SM | IEC 61850 Ethernet Server to IEC 60870-5-101 Serial Master |
| 50ES-03SM | IEC 61850 Ethernet Server to IEC 60870-5-103 Serial Master |
| 50ES-04EC | IEC 61850 Ethernet Server to IEC 60870-5-104 Ethernet Client |
| 50ES-DNEC | IEC 61850 Ethernet Server to DNP3 Ethernet Client |
| 50ES-DNSM | IEC 61850 Ethernet Server to DNP3 Serial Master |
| 50ES-MBEC | IEC 61850 Ethernet Server to Modbus Ethernet Client |
| 50ES-MBSM | IEC 61850 Ethernet Server to Modbus Serial Master |
| Baud Rate | 1,200 ~ 921,600 bps software selectable |
| Connector | 10-Pin Terminal Block |
| DNES-01SM | DNP3 Ethernet Server to IEC 60870-5-101 Serial Master |
| DNES-03SM | DNP3 Ethernet Server to IEC 60870-5-103 Serial Master |
| DNES-04EC | DNP3 Ethernet Server to IEC 60870-5-104 Ethernet Client |
| DNES-50EC | DNP3 Ethernet Server to IEC 61850 Ethernet Client |
| DNES-DNSM | DNP3 Ethernet Server to DNP3 Serial Master |
| DNES-MBEC | DNP3 Ethernet Server to Modbus Ethernet Client |
| DNES-MBSM | DNP3 Ethernet Server to Modbus Serial Master |
| DNSS-01SM | DNP3 Serial Slave to IEC 60870-5-101 Serial Master |
| DNSS-03SM | DNP3 Serial Slave to IEC 60870-5-103 Serial Master |
| DNSS-04EC | DNP3 Serial Slave to IEC 60870-5-104 Ethernet Client |
| DNSS-50EC | DNP3 Serial Slave to IEC 61850 Ethernet Client |
| DNSS-DNEC | DNP3 Serial Slave to DNP3 Ethernet Client |
| DNSS-MBEC | DNP3 Serial Slave to Modbus Ethernet Client |
| DNSS-MBSM | DNP3 Serial Slave to Modbus Serial Master |
| Data Bits | 5, 6, 7, 8 software selectable |
| MBES-01SM | Modbus Ethernet Server to IEC 60870-5-101 Serial Master |
| MBES-03SM | Modbus Ethernet Server to IEC 60870-5-103 Serial Master |
| MBES-04EC | Modbus Ethernet Server to IEC 60870-5-104 Ethernet Client |
| MBES-50EC | Modbus Ethernet Server to IEC 61850 Ethernet Client |
| MBES-DNEC | Modbus Ethernet Server to DNP3 Ethernet Client |
| MBES-DNSM | Modbus Ethernet Server to DNP3 Serial Master |
| MBSS-01SM | Modbus Serial Slave to IEC 60870-5-101 Serial Master |
| MBSS-03SM | Modbus Serial Slave to IEC 60870-5-103 Serial Master |
| MBSS-04EC | Modbus Serial Slave to IEC 60870-5-104 Ethernet Client |
| MBSS-50EC | Modbus Serial Slave to IEC 61850 Client |
| MBSS-DNEC | Modbus Serial Slave to DNP3 Ethernet Client |
| MBSS-DNSM | Modbus Serial Slave to DNP3 Serial MasterMBSS-MBEC |
| Protocols | IPv4, ARP, ICMP, TCP, UDP, DHCP Client, DNS Client, Telnet, HTTP, HTTPS, SMTP/TLS, SNMP v1/v2c/v3, Syslog, 802.1D-2004 RSTP, OpenVPN or IPsec VPN (peer-to-peer or peer-to-side), with a maximum VPN throughput of 37.9Mbps(*), and PPTP |
| SDR-75-24 | 50500752240001G |
| Stop Bits | 1, 2 software selectable |
| Vibration | MIL-STD-810F Method 514.5 C1 & C2 |
| PG5916A-HV | Ind. 16 Port Protocol Gateway, 10/100BASE-T(X) RJ45, DB9, 100-240VAC/ 100-370VDC |
| PG5916A-TB | Ind. 16 Port Protocol Gateway, 10/100BASE-T(X) RJ45, TB5, 24-48 VDC |
| PG5916A-Sis | Ind. 16 Port Protocol Gateway, 10/100BASE-T(X) RJ45, Isolation, 24-48 VDC |
| Flow Control | None, Xon/Xoff, RTS/CTS |
| Installation | 19’’ Rack-Mount (Kit included) |
| Network mode | Independent IP address (6 ports) or Independent IP address (4 ports) + Unmanaged Switch (3 ports, including LAN4) |
| PG5916A-6SFP | Ind. 16 Port Protocol Gateway, 10/100BASE-T(X) SFP slot, DB9, 24-48 VDC |
| Reset Button | Yes |
| Configuration | Atop Management Utility, Web UI, Telnet, Serial Console, ATOP eNode Designer |
| IEC 61000-4-2 | ESD |
| IEC 61000-4-3 | RS |
| IEC 61000-4-4 | EFT |
| IEC 61000-4-5 | Surge |
| IEC 61000-4-6 | CS |
| IEC 61000-4-8 | PFMF |
| Input Current | 0.73 A @ 24 VDC 0.35 A @ 100 VAC 0.20 A @ 100 VDC |
| ADP-DB9(F)-TB5 | 59906231G |
| AXFD-1314-0523 | 522AXFD1314001G |
| AXFD-1314-0553 | 522AXFD1314011G |
| IEC 61000-4-11 | DIP |
| PG 5916A-TB-HV | Ind. 16 Port Protocol Gateway, 10/100BASE-T(X) RJ45, TB5, 100-240VAC/ 100-370VDC |
| Connector ports | RJ45 x 6 (RJ45 version) SFP x 6 (SFP version) |
| Drop (Freefall) | MIL-STD-810F Method 516.5 |
| PG 5916A-Sis-HV | Ind. 16 Port Protocol Gateway, 10/100BASE-T(X) RJ45, Isolated,100-240VAC/100-370VDC |
| PG5916A-6SFP-HV | Ind. 16 Port Protocol Gateway, 10/100BASE-T(X) SFP, DB9, 100-240VAC/100-370VDC |
| PG5916A-6SFP-TB | Ind. 16 Port Protocol Gateway, 10/100BASE-T(X) SFP slot, TB5, 24-48 VDC |
| PG5916A-6SFP-Sis | Ind. 16 Port Protocol Gateway, 10/100BASE-T(X) SFP slot, Isolation, 24-48 VDC |
| Power Redundancy | Yes |
| Protocol setting | eNode designer |
| Serial Isolation | 3 kV (Sis versions only) |
| Power Consumption | Approximately 20 W (Max) |
| PG5916A-6SFP-TB-HV | Ind. 16 Port Protocol Gateway, 10/100BASE-T(X) SFP slot, TB5, 100-240VAC/100-370VDC |
| Input Voltage Range | Redundant 19.2-52.8 VDC or Redundant 85-264 VAC/ 100-370 VDC (HV Series) |
| PG5916A-6SFP-Sis-HV | Ind. 16 Port Protocol Gateway, 10/100BASE-T(X) SFP, Isolated, 100-240VAC/100-370VDC |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Supported Protocols | Modbus TCP/RTU/ASCII, DNP3.0 over serial and TCP/IP, IEC61850, IEC60870-5-101, IEC60870-5-103, IEC60870-5-104 |
| Rated Supply Voltage | Redundant 24-48 VDC or Redundant 100-240 VAC/ 100-370 VDC (HV Series) |
| Dimension (W x H x D) | 440.6 x 44 x 309 mm (1U Rack-mount) |
| Operating Temperature | -40°C~80°C (-40°F~176°F) |
| Protocol specifications | Refer to datasheet |
| Ambient Relative Humidity | 5%~95%, 55°C (Non-condensing) |
| Reverse Polarity Protection | Yes |
| Brand | ATOP |
| Model | PG5916A Series - ATOP |
| Main Category | Atop |
