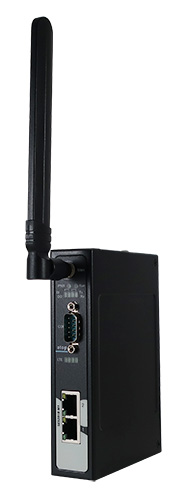

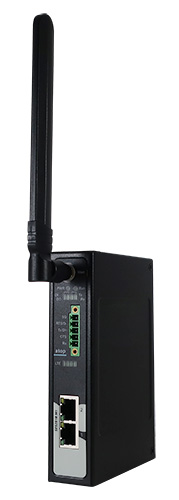

SE5201B-M1 - ATOP
In Stock (100 items)
45 views
€0,00
VAT Included
Product Summary
Low Power Consumption Gateway LTE Cat-M1
Comprehensive Connectivity
- Global LTE Cat M1 & Cat NB2 with GSM fallback
- Support LTE-M 450 MHZ – EU Version
- 2x 100 Base TX RJ 45,1 RS 232/485 Ports
- 1 D...
Product Description
Low Power Consumption Gateway LTE Cat-M1
- Comprehensive Connectivity - Global LTE Cat M1 & Cat NB2 with GSM fallback - Support LTE-M 450 MHZ – EU Version - 2x 100 Base TX RJ 45,1 RS 232/485 Ports - 1 DI & 1 DO I/O Interface
- Reliable & Trustworthy Platform - Dual SIM auto Failover - Secure VPN and Firewall Isolation - LED indicators for signal reception
- Quick Deployment & Management - ATOP NIMBL Device Management
- Compact and Robust Design - Low standby Power Consumption (~100 mW) - Dimensions: 136 x 95 x 30 mm - Industrial EMC Protection - -30°C to +75°C Operation
- Other Features - SD Slot for Configuration and Storage - GNSS Posting and Optional TPM Module - Schedulable Power Management
- High Quality Guaranteed - Made in Taiwan with 5 Years Warranty
The ATOP SE5201B-M1 is specifically designed to provide the durability and reliability required for industrial applications. Its wide operating temperature range of -40°C to +75°C ensures seamless performance even in harsh environmental conditions. With an IP30 ingress protection rating, the device is safeguarded against dust and external impacts, while the DIN-Rail mounting option simplifies the installation process. Additionally, the redundant power input offers an extra layer of security against power interruptions, ensuring continuous operational reliability. An excellent choice for industrial applications in Turkey, the SE5201B-M1 meets the highest standards of security and performance in the industry.
Technical Specifications
| CE | Cellular |
| EMC | EN55032, EN61000-6-4, EN55035, EN61000-6-2, FCC Part 15B |
| FCC | FCC Part 15B, Part 22H/24E/27L/90 |
| VPN | IPSEC, OpenVPN, L2TP |
| MTBF | 20 years |
| v1.1 | SE5201B-M1 Hardware Installation Guide |
| Ports | 1 x RS-232/RS-485-2W, software selectable |
| Shock | IEC 60068-2-27 |
| v0.17 | SE5201B-M1 Firmware |
| Others | - ROHS, including 2015 amendment - REACH - TSCA (US) - TPCH (US) - Conflict mineral free |
| Parity | None, Odd, Even |
| Safety | EN62368-1, IEC62368-1 |
| Weight | 550g |
| COM LED | 1x Tx Green LED; 1x Rx Green LED |
| Housing | Metal housing, IP30 Protection |
| Run LED | 1x Green LED |
| SD Slot | 1x Micro SD slot |
| Cellular | 1 x SMA(M) Antenna for LTE Cat.M1. |
| Firewall | ACL, NAT, Port-forwarding |
| Freefall | IEC 60068-2-32 |
| LTE NB2* | B1/B2/B3/B4/B5/B8/B12/B13/ B18/B19/B20/B25/B26/B28/B66/ B71/B85 |
| Security | OpenVPN, IPSEC, L2TP |
| Warranty | 5 years |
| Baud Rate | 1200 to 460,800 bps |
| DI/DO LED | 1x DI LED; 1x DO Green LED |
| Data Bits | 5, 6, 7, 8, software selectable |
| Power LED | 1x Green LED |
| Protocols | TCP/IP, UDP, ARP, DHCP, SMTP, SNMP, Https, SNMP v1/v2/v3 |
| Standards | GPS/GLONASS/BeiDou/Galileo/QZSS |
| Stop Bits | 1, 2, software selectable |
| Vibration | IEC60068-2-64 |
| LTE Signal | 4X Green LED |
| Model Name | SE5201B-M1 |
| Mode Button | 1 key |
| Virtual COM | Yes |
| Flow Control | None, Xon/Xoff, RTS/CTS (RS-232 only) |
| Installation | DIN-Rail, Wall mount (Optional) |
| Reset Button | Yes |
| IEC 61000-4-2 | ESD |
| IEC 61000-4-3 | RS |
| IEC 61000-4-4 | EFT |
| IEC 61000-4-5 | Surge |
| IEC 61000-4-6 | CS |
| IEC 61000-4-8 | PFMF |
| Input Voltage | 9 to 48 VDC |
| Rated Voltage | 9 to 48 VDC |
| Connector Type | Terminal Block |
| SIM card slots | 2 push-pull SIM card holder |
| WALL MOUNT-P13 | 70100000000082G |
| GNSS (Optional) | 1 x Wide-Band |
| Power Management | Scheduled power management - Sleep mode - Hibernation mode Multi waken-up mechanisms from sleep/hibernation modes - Timer |
| System Management | WEB, SSH, Telnet |
| Storage Temperature | -40 to + 85 °C |
| Default/Reset Button | 1 key |
| SE5201B-Q-T-M1-DB-EU | 1P1SE5201B001BG |
| SE5201B-Q-T-M1-DB-LA | Contact Headquarters |
| SE5201B-Q-T-M1-DB-US | 1P1SE5201B000BG |
| SE5201B-Q-T-M1-TB-EU | 1P1SE5201B001CG |
| SE5201B-Q-T-M1-TB-LA | Contact Headquarters |
| SE5201B-Q-T-M1-TB-US | 1P1SE5201B000CG |
| UN315-1212(US-Y) LV6 | 50500151120003G |
| Contact Headquarters | LTE NB2* |
| Dimension (W x H x D) | 136 x 95 x 30 mm |
| Operating Temperature | -30 to +75 °C |
| UNE315-1212(EU-Y) LV6 | 50500151120013G |
| Digital Input & Output | 1 x DI, Photo coupled isolated (5VDC) 1 x DO Normal Open Digital Relay Output (1A@DC 24V) |
| Terminal Resistor (Ω) | 120 |
| Ambient Relative Humidity | 5% to 95% (non-condensing) |
| Ingress Protection Rating | IP30 |
| Pull High/Low Resistor (Ω) | On: 1K; Off: 100K |
| Reverse Polarity Protection | Yes |
| Power Consumption (SE5201B only) | Idle < 3W@12VDC; Hibernate < 100mW@12VDC |
| Brand | ATOP |
| Model | SE5201B-M1 - ATOP |
| Main Category | Atop |
