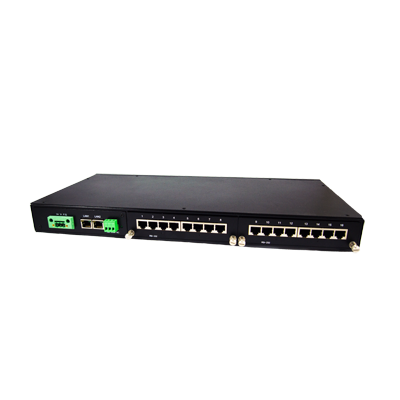

SE5916 SDK Series - ATOP
In Stock (100 items)
51 views
€0,00
VAT Included
Product Summary
16-Port Industrial Serial to Ethernet Embedded Computer
Ideal for IoT and IIoT applications.Wide -20°C~70°C temperature range for Industrial EMC Protection2 x 10/100Mbps Ethernet portUp to 16 x RS-232...
Product Description
16-Port Industrial Serial to Ethernet Embedded Computer
- Ideal for IoT and IIoT applications.
- Wide -20°C~70°C temperature range for Industrial EMC Protection
- 2 x 10/100Mbps Ethernet port
- Up to 16 x RS-232/422/485 port – selectable baud rate up to 921.6 Kbps
- 3 kV optional isolation on the serial ports (supports RS-485/422 only)
- SD Card slot
- Customizable LCM matrix and keypad
- Atop customized Linux SDK environment with reliable APIs
- 100~240VAC or 24~48VDC power input; one Relay Output alarm
- Rugged metal housing in 1U Rack-mount (rack-mount kit included)
The ATOP SE5916 SDK Series stands out with its industrial durability and reliability. Offering a wide temperature range from -40°C to +75°C, it ensures seamless operation even in harsh conditions. With an IP30 protection class and DIN-Ray mounting capabilities, it maximizes safety and robustness in industrial environments. Additionally, the redundant power input guarantees uninterrupted energy supply, making it an ideal solution for industrial applications in Turkey. This way, the high performance and flexibility of the SE5916 model create a reliable communication infrastructure for critical applications.
Technical Specifications
| CPU | Texas Instruments Sitara ARM Cortex A8 AM3352 1000MHz |
| EMC | FCC Part 15, Subpart B, Class A EN 55032, Class B, EN 61000-3-2, EN 61000-3-3, EN 55024 EN 55032, Class B, EN 61000-3-2, EN 61000-3-3, EN 55024 |
| RAM | 256 MB DDR3 (customizable upon request up to 1 GB) |
| Drop | MIL-STD-810G Method 516.7 |
| MTBF | SE5908-DC: 22.74 years; MB5916-US/EU: 13.95 years; SE5908-SiS-DC: 19.00 years; MB5908-SiS-US/EU: 19.03 years SE5916-SiS-DC: 13.38 years; MB5916-SiS-US/EU: 13.38 years MB5908-DC: 22.74 years; MB5916-US/EU: 13.95 years; MB5908-SiS-DC: 19.00 years; MB5908-SiS-US/EU: 19.03 years MB5916-SiS-DC: 13.38 years; MB5916-SiS-US/EU: 13.38 years |
| v0.1 | AWS Getting started guide |
| v0.2 | Datasheet EN |
| v0.3 | Datasheet EN |
| v0.4 | Datasheet EN |
| v0.5 | SE59XX SDK User Manual |
| v0.8 | Datasheet EN |
| v0.9 | Datasheet EN |
| v1.0 | Datasheet EN |
| v1.1 | SE59XX SDK User Manual |
| v1.2 | SE59XX SDK User Manual |
| v1.4 | SE59XX Node-RED User Manual |
| v2.0 | SE5908/MB5908/PG5908 Hardware Installation Guide |
| Flash | 32 MB NOR Flash (customizable upon request up to 128 MB) |
| Ports | SE5908: 8 ports (RS-232/RS-422/RS-485, RS-422/RS-485 on Isolation vers.) SE5916: 16 ports (RS-232/RS-422/RS-485, RS-422/RS-485 on Isolation vers.) |
| Shock | MIL-STD-810G Method 516.7 |
| Buzzer | Yes |
| EEPROM | 24LC64 |
| Safety | EN60950-1:2006; EN62368-1 |
| Weight | 3,000g (8-port version); 3,200 g (16-port version) |
| GDC-120 | 59906861G |
| Housing | IP30 protection, SPCC metal housing |
| SD Card | SD card slot (internal) |
| Warranty | 5 Years |
| Watchdog | ADM706 |
| Baud Rate | 50 ~ 921,600bps |
| Connector | DC version: 5.08mm 3-pin Lockable Terminal Block EU-US version: IEC 60320-1 C14 AC Power Inlet |
| Data Bits | 5, 6, 7, 8 |
| SDR-75-24 | 50500752240001G |
| SE5916-DC | Contact Headquarter |
| SE5916-EU | Contact Headquarter |
| SE5916-US | Contact Headquarter |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) |
| Stop Bits | 1, 2 |
| USB ports | 1 x USB A Type (USB 2.0) - internal 1-port High-Speed OTG + power |
| Vibration | MIL-STD-810G Method 514.7 |
| Bootloader | U-boot 2014.07 |
| LCM Matrix | Programmable LCM Matrix with 5-buttons |
| Console port | Yes - on-board connector |
| Flow Control | None, Xon/Xoff, RTS/CTS (RS-232 only) |
| Installation | 19’’ Rack-Mount (Kit included) |
| Linux kernel | Linux 3.14.26 |
| Relay Output | 1x 1A@30VDC (Normal open) |
| Reset Button | Yes |
| IEC 61000-4-2 | ESD |
| IEC 61000-4-3 | RS |
| IEC 61000-4-4 | EFT |
| IEC 61000-4-5 | Surge |
| IEC 61000-4-6 | CS |
| IEC 61000-4-8 | PFMF |
| Input Current | DC version: 0.54 A @24VDC; US-EU version: 0.21A@100VAC |
| RMK-718-Black | 70100000000040G |
| SE5916-SiS-DC | Contact Headquarter |
| SE5916-SiS-EU | Contact Headquarter |
| SE5916-SiS-US | Contact Headquarter |
| Ethernet Ports | 2x 10/100 BASE-T(X) RJ45 |
| IEC 61000-4-11 | DIP |
| Serial Console | 1x Serial Console port (RJ45) |
| AD17-24C (US-Y) | 50500151240002G |
| AD17-24D (EU-Y) | 50500151240012G |
| Linux toolchain | Linux 32 bits toolchain gcc (C/C++ PC cross compiler), glibc |
| Power Cable (EU) | 50801051G |
| Power Cable (US) | 50801041G |
| Power Redundancy | No |
| Linux sample code | RS232, RS485, RTC, watchdog, LED, Buzzer, Button, network socket |
| Power Consumption | Approximately 21 W (Max) |
| Input Voltage Range | DC version: 24-48VDC; US-EU version: 90-264 VAC (EU or US Plug) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Rated Supply Voltage | DC version: 24-48VDC; US-EU version: 100-240 VAC (EU or US Plug) |
| Dimensions(W x H x D) | 436 mm x 43.5 mm x 200 mm |
| Operating Temperature | -20°C~70°C (-4°F~158°F) |
| Real Time Clock (RTC) | Yes - with external chip |
| Serial Port Isolation | 2.5 kV (SiS version only) - Isolation version supports only RS-422/RS-485 |
| CBL-RJ45(8P)-DB9(F)-90 | 50891791G |
| CBL-RJ45(8P)-DB9(M)-90 | 50891781G |
| CBL-RJ45(8P)-DB9(M)-200 | 50891951G |
| CBL-RJ45(8)-DB9(F)-200-C | 50891961G |
| CBL-RJ45(8P)-DB9(F)-90-C | 50891971G |
| Ambient Relative Humidity | 5%~95% (Non-condensin |
| Reverse Polarity Protection | Yes (DC version only) |
| Pull-high / Pull-low /Term. resistors | Software Selectable |
| Brand | ATOP |
| Model | SE5916 SDK Series - ATOP |
| Main Category | Atop |
