Product Summary
2-Port IP68 Waterproof Serial Server with M12 connectors, EN50155 and EN50121-4 Railway certified
10/100 Mbps Fast Ethernet full duplex auto negotiationSupport multiple link mode with TCP server/clien...
Product Description

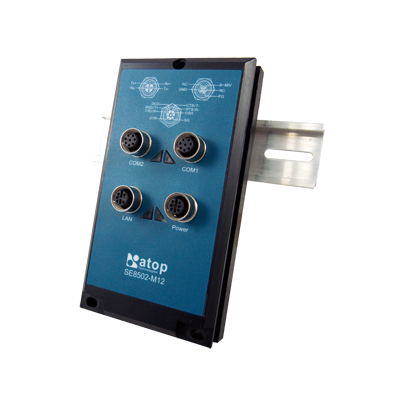

2-Port IP68 Waterproof Serial Server with M12 connectors, EN50155 and EN50121-4 Railway certified
- 10/100 Mbps Fast Ethernet full duplex auto negotiation
- Support multiple link mode with TCP server/client, UDP and Virtual COM mode
- Monitor, manage and control industrial field devices remotely
- Configuration: Built-in Web Server /Serial Console/ Telnet
- Windows-based utility for IP configuration
- Firmware upgrade remotely via Ethernet
- Rigid aluminum case design compliant with IP68 standard
- Wide operating temperature range : -40°C ~ 75°C
The ATOP SE8502 Series is an excellent choice for users seeking industrial durability and reliability. With a wide operating temperature range of -40°C to +75°C, it delivers safe and stable performance even in harsh environments. Its IP68 protection class ensures it is waterproof and dustproof, making it ideal for outdoor applications. Additionally, the DIN-Rail mounting option offers flexibility and ease of integration. The redundant power input guarantees continuous operation, while the multiple link modes provided by the SE8502 Series make it perfectly suited for industrial applications in Turkey. These features position the ATOP SE8502 as a robust solution for industrial automation and data communication needs.
Technical Specifications
| EMC | FCC Part 15, Subpart B, Class A EN 55032, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 61000-6-4 |
| MTBF | 264711 hrs (30.21Years) (Data base: MIL-HDBK-217F, GB 25°C) |
| Mode | RS-232/422/485 Software selectable / RS-422/485 Software selectable (Sis models) |
| v1.1 | SE8502 Hardware Installation Guide |
| v1.3 | SE8502 User Manual |
| v4.13 | SE8502 Firmware (Kernel + AP) |
| v5.20 | Management Utility for Windows |
| v5.60 | Management Utility for Windows |
| Parity | None, Odd, Even, Mark, Space |
| Weight | 700g |
| Housing | IP68 Rigid aluminum housing |
| RoHS II | Yes |
| Warranty | 5 years |
| Baud Rate | 110bps~921kbps (SE8502-M12 / SE8502-M12 (DIN-Rail)) 110bps~230kbps (SE8502-Sis-M12 / SE8502-M12-Sis (DIN-Rail)) |
| Data Bits | 5, 6, 7, 8 |
| Indicator | COM, LAN, RUN |
| Protocols | IPv4, ICMP, TCP, UDP, DHCP Client, SNMP, HTTP, Telnet, RFC2217, NTP, DNS, SMTP |
| SDR-75-24 | 50500752240001G |
| Stop Bits | 1, 2 |
| Compliance | IEEE802.3 10BASE-T / IEEE802.3u 100BASE-TX |
| Model Name | SE8502 |
| Protection | IP68 @ 1 hour (IEC/EN60529) under operating mode |
| VirtualCOM | Windows/ Linux redirection software |
| Flow Control | None, Xon/Xoff, RTS/CTS |
| Installation | Wall mount |
| Rail Traffic | EN50155, EN50121-3-2, EN50121-4 |
| Configuration | Atop Management Utility, Web UI, Telnet |
| IEC 61000-4-2 | ESD |
| IEC 61000-4-3 | RS |
| IEC 61000-4-4 | EFT |
| IEC 61000-4-5 | Surge |
| IEC 61000-4-6 | CS |
| IEC 61000-4-8 | PFMF |
| Input Current | 0.40A max |
| Input Voltage | 9 - 48 VDC |
| Auto MDI/MDI-X | YES |
| IEC 61000-4-11 | DIP |
| Connector Ports | 5-Pin A-coded Female M12 x 1 |
| SE8502-M12 IP68 | 1P1SE8502M1216G |
| Power Consumption | Approximately 3.6 W (Max) |
| Transmission Rate | 10/100 Mbps |
| SE8502-Sis-M12 IP68 | 1P1SE8502M1218G |
| Storage Temperature | -40°C to 85°C(-40°F to 185°F) |
| Shock Drop Vibration | IEC 60068-2-27 IEC 60068-2-32(ISTA Test Procedure 2A) IEC 60068-2-64 |
| Dimension (W x H x D) | 135.5 x 64.9 x 25.1 mm |
| Operating Temperature | -40°C to 75°C(-40°F to 167°F) |
| Ambient Relative Humidity | 5% to 95% (Non-condensing) |
| Brand | ATOP |
| Model | SE8502 Series - ATOP |
| Main Category | Atop |
