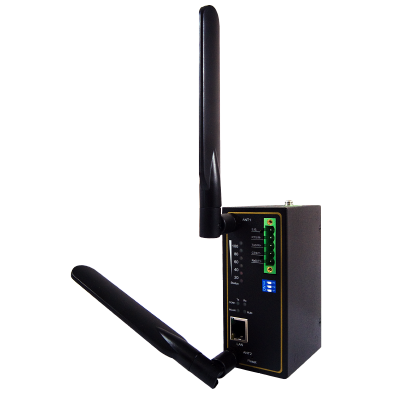

SW5501 Series - ATOP
In Stock (100 items)
28 views
€0,00
VAT Included
Product Summary
Industrial 802.11 abgn Wireless Serial Server with high-performance 2x2 MIMO, 1-serial Port combo TB5/DSub-9, DIN-rail mount
Designed for 802.11a/b/g/n networksEmbedded PCB coating protectionWeb serve...
Product Description
Industrial 802.11 abgn Wireless Serial Server with high-performance 2x2 MIMO, 1-serial Port combo TB5/DSub-9, DIN-rail mount
- Designed for 802.11a/b/g/n networks
- Embedded PCB coating protection
- Web server/Utility configuration
- Upgrade via Management Utility or Web User Interface
- 5 GHz frequency support to reduce interference on 2.4 GHz with other wireless devices
- FCC (United States), ETSI (Europe), and NCC (Taiwan) certified wireless equipment
The ATOP SW5501 Series stands out as a solution designed for industrial applications, emphasizing durability and reliability. With a wide operating temperature range of -40°C to +75°C, it delivers high performance even in harsh environmental conditions. The IP30 protection class and DIN-rail mounting options ensure safe installation and longevity of use. Additionally, the redundant power input guarantees uninterrupted operation. An ideal choice for industrial automation systems in Turkey, the SW5501 Series meets the needs of businesses with its high data rates and secure wireless communication capabilities.
Technical Specifications
| EMC | EN55032, EN55024, EN 301489-1 V2.2.0; EN301489-17 V3.2.0; FCC 15B (Class A), CNS13438 |
| EMF | EN 62311: 2008, EN 50385: 2002 |
| Drop | IEC 60068-2-32 |
| Gain | 3 dBi |
| MTBF | 22 Years (MIL-HDBK-217F) |
| Mode | RS-232/422/485 software selectable (DB and TB models) RS-422/485 software selectable (SiS models) |
| v1.0 | UL 60950-1 Certificate of compliance |
| v1.5 | SW5501-SW5502 User Manual |
| v4.1 | Datasheet EN |
| v4.2 | Datasheet EN |
| v4.4 | Datasheet EN |
| Ports | 1 |
| Radio | FCC 15C 15.247, FCC 15E 15.407, EN 301893 V2.1.1, EN 300328 V2.1.1, NCC LP00002 |
| Shock | IEC 60068-2-27 |
| Speed | IEEE802.3ab 10/100/1000Mbps |
| v3.29 | SW5501-SW5502 Firmware |
| v3.39 | SW5501-SW5502 Firmware |
| v5.20 | Management Utility for Windows |
| v5.60 | Management Utility for Windows |
| Parity | None, Odd, Even, Space, Mark |
| RoHS 2 | Yes |
| SW5501 | 1P1SW550100001G |
| Safety | UL60950-1 , CB IEC/EN60950-1, IEC/EN 62368-1, CNS 14336-1 |
| Weight | 500g |
| 802.11a | 54M |
| 802.11b | 11M |
| 802.11g | 54M |
| Housing | IP30 SPCC housing |
| Tx / Rx | 2T2R MIMO (2x2 with MCS 0-15) |
| Warranty | 5 Years |
| Baud Rate | 110 ~ 921,600 bps software selectable |
| Connector | 3-Pin 5.08mm Lockable Terminal Block |
| Data Bits | 5, 6, 7, 8 software selectable |
| Protocols | IPv4, ICMP, TCP, UDP, DHCP Client, SNMP, SMTP, HTTP, DNS, NTP, RADIUS, RFC2217, WPS |
| SW5501-TB | 1P1SW5501TB001G |
| Stop Bits | 1, 2 software selectable |
| Vibration | IEC 60068-2-64 |
| SW5501-Sis | 1P1SW5501SIS01G |
| VirtualCOM | Windows/Linux redirection software |
| Flow Control | None, Xon/Xoff, RTS/CTS (RS-232 only) |
| Installation | DIN-Rail , Wall mount (optional kit) |
| Reset Button | Yes |
| Taiwan (NCC) | 2412-2462(20Mhz)/2422-2452(40Mhz) |
| Configuration | Atop Management Utility, Web UI, Telnet, Serial Console |
| Europe (ETSI) | 2412-2472(20Mhz)/2422-2462(40Mhz) |
| IEC 61000-4-2 | ESD |
| IEC 61000-4-3 | RS |
| IEC 61000-4-4 | EFT |
| IEC 61000-4-5 | Surge |
| IEC 61000-4-6 | CS |
| IEC 61000-4-8 | PFMF |
| Input Current | 0.65 A @ 9 VDC |
| Input Voltage | 9 - 48 VDC |
| WMK-454-Black | 70100000000043G |
| 802.11a/n HT20 | MCS7 |
| 802.11a/n HT40 | MCS7 |
| ADP-DB9(F)-TB5 | 59906231G |
| Connector ports | RJ-45 |
| 802.11b/g/n HT20 | MCS7 |
| 802.11b/g/n HT40 | MCS7 |
| Link Modes - UDP | Up to 4 Ranges IP |
| 802.11n 5GHz/HT20 | +15dBm @ MCS 0/8 +15dBm @ MCS 4/12 +15dBm @ MCS 1/9 +11 - 14dBm @ MCS 5/13 +15dBm @ MCS 2/10 +9 - 12dBm @ MCS 6/14 +15dBm @ MCS 3/11 +7 - 10dBm @ MCS 7/15 |
| 802.11n 5GHz/HT40 | +14dBm @ MCS 0/8 +14dBm @ MCS 1/9 +14dBm @ MCS 2/10 +14dBm @ MCS 3/11 +14dBm @ MCS 4/12 +10– 13dBm @ MCS 5/13 +8 – 11dBm @ MCS 6/14 +6 – 9dBm @ MCS 7/15 |
| Power Consumption | Approximately 5.85 W (Max) |
| Wireless Security | WEP, WPA, WPA2, TKIP, AES, 802.1x |
| 802.11n 2.4GHz/HT20 | +16dBm @ MCS 0/8 +16dBm @ MCS 4/12 +16dBm @ MCS 1/9 +16dBm @ MCS 5/13 +16dBm @ MCS 2/10 +16dBm @ MCS 6/14 +16dBm @ MCS 3/11 +15dBm @ MCS 7/15 |
| 802.11n 2.4GHz/HT40 | +15dBm @ MCS 0/8 +15dBm @ MCS 4/12 +15dBm @ MCS 1/9 +15dBm @ MCS 5/13 +15dBm @ MCS 2/10 +15dBm @ MCS 6/14 +15dBm @ MCS 3/11 +14dBm @ MCS 7/15 |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| United States (FCC) | 2412-2462(20Mhz)/2422-2452(40Mhz) |
| Standard Conformance | 802.11a, 802.11b, 802.11g, and 802.11n |
| Dimension (W x H x D) | 47 mm x 110 mm x 90mm |
| Operating Temperature | -10°C ~ 60°C (14°F ~ 140°F) |
| Wireless PCI-e Module | Atheros AR9382 |
| Link Modes - TCP Client | Single destination or VirtualCOM |
| Link Modes - TCP Server | 4 Connections; VirtualCOM or reverse Telnet |
| 802.11n (20MHz bandwidth) | 1Nss: 65Mbps @ 800GI, 72.2Mbps @ 400GI (Max.) / 2Nss: 130Mbps @ 800GI, 144.4Mbps @ 400GI (Max.) |
| 802.11n (40MHz bandwidth) | 1Nss: 135Mbps @ 800GI, 150Mbps @ 400GI (Max.) / 2Nss: 270Mbps @ 800GI, 300Mbps @ 400GI (Max.) |
| Ambient Relative Humidity | 5%~95%, 55°C (Non-condensing) |
| Reverse Polarity Protection | Yes |
| AD17-24C (US-Y) Power Adapter | 50500151240002G |
| AD17-24D (EU-Y) Power Adapter | 50500151240012G |
| Brand | ATOP |
| Model | SW5501 Series - ATOP |
| Main Category | Atop |
