EH2316-2G - ATOP
In Stock (100 items)
58 views
€0,00
VAT Included
Product Summary

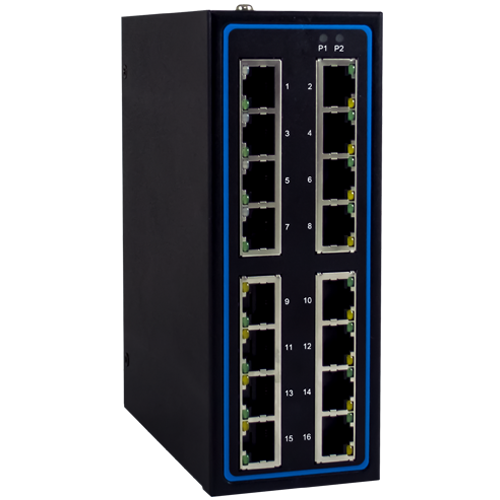

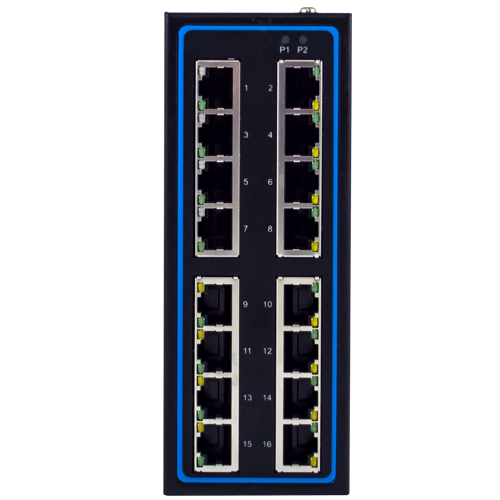

Industrial 16-port Unmanaged Fast-Ethernet Switch with Gigabit Uplink ports
14 10/100 BASE-T(X) RJ45 ports and 2 10/100/1000 BASE-T(X) RJ45 portsRugged IP30 housingWorks from -10°C~60°CSupport 802.1Q/...
Product Description
Industrial 16-port Unmanaged Fast-Ethernet Switch with Gigabit Uplink ports
- 14 10/100 BASE-T(X) RJ45 ports and 2 10/100/1000 BASE-T(X) RJ45 ports
- Rugged IP30 housing
- Works from -10°C~60°C
- Support 802.1Q/p QoS, prioritizing critical packets such as PROFINET packets
- Reverse Polarity Protection
The ATOP EH2316-2G stands out with its industrial durability and reliability. With a wide operating temperature range of -40°C to +75°C, it ensures uninterrupted performance even in harsh environments. The IP30 protection class enhances the device's resistance to dust and moisture, contributing to a longer lifespan. Additionally, the DIN-Rail mounting option allows for easy installation. The redundant power input offers continuous operation and adds an extra layer of security against power source failures. Ideal for industrial applications in Turkey, the EH2316-2G is crucial in manufacturing facilities, providing high data transmission speeds and dependable operation.
Technical Specifications
| EMC | FCC Part 15, Subpart B, Class A, EN 55032, EN 55024, EN 61000-6-4, EN 61000-6-2 |
| Drop | MIL-STD-810G Method 516.7 (2014) |
| MTBF | 177596 hours (25°C) - 20.27 Years (25°C) according to MIL-HDBK-217F |
| RoHS | Yes |
| v1.0 | EH2316-2G STP Drawings |
| Shock | MIL-STD-810G Method 516.7 (2014) |
| Safety | EN60950-1:2006, IEC(CB) 60950/62368-1, UL62368-1 |
| Weight | 700g |
| Housing | IP30 |
| Warranty | 5 Years |
| EH2316-2G | 1P1EH231600002G |
| Vibration | MIL-STD-810G Method 514.7 (2014) |
| Compliance | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE802.3ab for 1000BASE-T(X) IEEE 802.3x for Flow Control, back pressure flow control IEEE 802.1p packet prioritization (for Profinet CC-A) |
| Wall Mount | WMK-450-Black |
| Flow Control | Back pressure and pause frame-based flow control schemes |
| Installation | DIN-Rail mounting , Wall mount (optional kit)* |
| Power Supply | SDR-240-48 |
| IEC 61000-4-2 | ESD |
| IEC 61000-4-3 | RS |
| IEC 61000-4-4 | EFT |
| IEC 61000-4-5 | Surge |
| IEC 61000-4-6 | CS |
| IEC 61000-4-8 | PFMF |
| Input Current | 0.62 A Max |
| Input Voltage | 12~48 VDC |
| Auto MDI/MDI-X | Yes |
| IEC 61000-4-11 | DIP |
| LED Indicators | PWR1, PWR2 |
| Number of ports | 14 x 10/100 Mbps RJ45 2 x 10/100/1000 Mbps RJ45 |
| MAC Address Table | 4K |
| Power Consumption | 7.4 W |
| Processing Scheme | Store-and-Forward |
| Transmission Rate | 10/100 and 10/100/1000 Mbps on Gigabit ports |
| Packet Buffer Size | 2.75Mb |
| Storage Temperature | -20°C~70°C (-4°F~158°F) |
| Dimension (W x H x D) | 54 mm x 113mm x 145mm |
| Operating Temperature | -10°C~60°C (14°F~140°F) |
| Ambient Relative Humidity | 5%~95%, 55°C (Non-condensing) |
| Brand | ATOP |
| Model | EH2316-2G - ATOP |
| Main Category | Atop |
