10-Port EN 50155 Certified Railway IP67 WATERPROOF MANAGED Layer-3 Gigabit PoE SWITCH
8x10/100/1000 BASE-T(X) ports, M12 connector2x1000 Base-X SFP slotsUp to 4 or 8 802.3af or 802.3at complaint PoE p...
Product Description

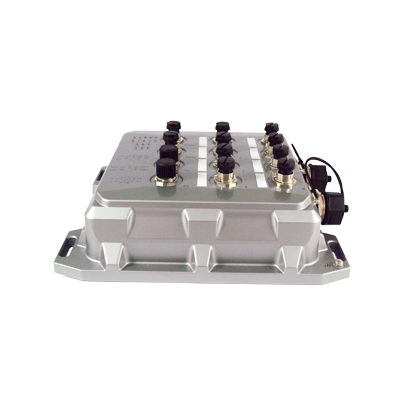

10-Port EN 50155 Certified Railway IP67 WATERPROOF MANAGED Layer-3 Gigabit PoE SWITCH
- 8x10/100/1000 BASE-T(X) ports, M12 connector
- 2x1000 Base-X SFP slots
- Up to 4 or 8 802.3af or 802.3at complaint PoE ports
- Powerful Layer-3 Switching, supporting BGPv4, IPv4 Static, RIPv1/v2 and OSPFv2
- EN50155, EN50121-4, IEC60571, EN45545-2 and UL 61010-2-201 certified
- Redundant power input, DC or High Voltage DC
- Ruggedized IP67 aluminum enclosure
- Works from -40°C~70°C
- 2x Relay outputs, 5-pin M12 A-Coding
The ATOP EMG8610 model stands out as an industrially durable and reliable networking solution. Its wide operating temperature range of -40°C to +70°C ensures uninterrupted performance in harsh environmental conditions and industrial applications. With an IP67 protection rating, the device is enhanced against dust and water, while the DIN-Rail mounting option offers flexibility. Redundant power inputs bolster the system's reliability, ensuring continuous operation. Perfectly suited for industrial applications in Turkey, the EMG8610 supports various protocols to meet diverse networking needs. With these features, the ATOP EMG8610 is an ideal choice for industrial automation and transportation systems.
Technical Specifications
| EMC | FCC Part 15, Subpart B, Class A EN 55032, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 61000-6-4 |
| MTBF | 18.53 years (mean avg. per model; MIL-HDBK-217F-based prediction) |
| v0.2 | Managed Layer-3 Switch CLI User Manual |
| v0.5 | Datasheet EN |
| v1.0 | EMG86XX Certifications UL |
| v2.1 | EMG86XX Hardware Installation Guide |
| v2.4 | EHG76XX/ EHG96XX/ RHG76XX/ EMG86XX User Manual |
| v5.6 | Management Utility for Windows |
| v6.50 | EMG86XX Firmware |
| v6.56 | EMG86XX Firmware |
| v6.66 | EMG86XX Firmware |
| RoHS 2 | Yes |
| Safety | UL/IEC/EN 61010-1, UL/IEC(CB) 61010-2-201 |
| Weight | 2kg |
| Console | RS232 (A-coding M12 connector) |
| Housing | IP67 protection according to EN 60529 |
| SNMP MIB | MIB II, IF-MIB, SNMPv2 MIB, BRIDGE-MIB, RMON MIB Group 1,2,3,9, RFC RFC 1157, RFC 1213, RFC 1215, RFC 1493, RFC 1643, RFC 1757, RFC 2011, RFC 2012, RFC 2013, RFC 2233, RFC 2571, RFC 2742, RFC 2819, RFC 2863, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 2674 |
| VESA Kit | 70100000000063G |
| Warranty | 5 Years |
| Protocols | IPv4, IPv6, IGMPv1/v2/v3, IGMP Snooping,GARP, GMRP, GVRP, SNMPv1/v2c/ v3, SNMP Inform, ICMP, Telnet, SSH, DHCP Server/Relay/Client, DHCP Option 66/67/82, BootP, RARP, TFTP, NTP Server/Client, SNTP, SMTP, SMTP (Gmail), RMON, HTTP, HTTPS, Syslog, MRP (Manager/ Client), LLDP, IEEE 1588 PTP V1/V2, IEEE 1588 Hardware End-to-End Transparent Clock, 802.1x, EAP, RADIUS, TACACS+, Mirror port, QoS, ACL, Serial Console, U-Ring, ITU-T G.8032 ERPS Ring, STP, RSTP, MSTP, Compatible Ring, DHCP Snooping, ARP Spoof Prevention, Dynamic ARP Inspection, MLD, UDLD, IP Source Guard |
| SDR-75-24 | 50500752240001G |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000Base-X IEEE 802.3af / 802.3at for Power over Ethernet IEEE 802.3x for Flow Control, back pressure flow control IEEE 802.1d-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1X for Authentication IEEE 802.3ad for Port Trunk with LACP IEEE 802.3az for Energy Efficient Ethernet |
| SDR-240-48 | 50502401480001G |
| SDR-480-48 | 50504801480001G |
| VLAN Table | 4096 |
| Jumbo Frame | 9216 Byte |
| Power Input | 2 x S-Coding M12 connectors (4 Pin) |
| Trunk Group | 4 |
| AFBR-5715ALZ | 50710361G |
| AFCT-5715ALZ | 50710351G |
| DIN-Rail Kit | 70100000000062G |
| EMG8610-2SFP | 1P1EMG86100001G |
| Installation | Wall-mount (Optional Din-Rail Kit) |
| Rail Traffic | EN50155, EN50121-4, IEC60571, EN45545-2 |
| Relay Output | 2 relay outputs with current carrying capacity of 1A @ 24 VDC (through A-coding M12 connector) |
| IEC 61000-4-2 | ESD |
| IEC 61000-4-3 | RS |
| IEC 61000-4-4 | EFT |
| IEC 61000-4-5 | Surge |
| IEC 61000-4-6 | CS |
| IEC 61000-4-8 | PFMF |
| Input Voltage | 50~145 VDC for High voltage product 12~57 VDC for Non-PoE models 45~57 VDC for 802.3af mode / 51~57 VDC for 802.3at mode |
| VLAN ID Range | VID 1 to 4094 |
| Ethernet Ports | 8 x 10/100/1000BASE-T(X) auto negotiation speed –M12 connector |
| LED Indicators | PWR1, PWR2, Alarm, Ethernet Act/Link, SFP Link, PoE, Ring |
| MAC Table Size | 16k |
| MAC-Based VLAN | 512 |
| EMG8610-2SFP-HV | 1P1EMG86100004G |
| Priority Queues | 8 |
| EMG8610-4PoE-2SFP | 1P1EMG86100002G |
| EMG8610-8PoE-2SFP | 1P1EMG86100003G |
| Layer-3 Protocols | Routing: IPv4 Unicast static routing, RIP v1/v2, OSPFv2, Multicast: IGMPv1/v2/v3, DVMRP, PIM-DM, PIM-SM, PIM-SSM Routing Redundancy: VRRP (Virtual Router Redundancy Protocol) |
| Fiber Optics Ports | 2 x 1000Base-X SFP slots |
| Packet Buffer Size | 1.5 MB |
| Static IGMP Groups | 128 |
| Automation Profiles | Modbus/TCP status registers |
| Dynamic IGMP Groups | 256 |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| M12 screw plug Metal | 59908561G |
| Dimension (W x H x D) | 216 x 232 x 72 |
| M12 Sealing Cap Metal | 59908571G |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| M12 screw plug Plastic | 3990078G |
| M12 Sealing Cap Plastic | 3990079G |
| Ambient Relative Humidity | 5%~95%, 55°C (Non-condensing) |
| Reverse Polarity Protection | Yes |
| Input Current/Power (System) | 50 – 145 VDC, 0.30A max. , 15.0W (For High voltage Models) 12 – 57 VAC, 1.19A max. , 14.28W (For Non-PoE Models) |
| Input Current (with PoE, full loading) | 45 – 57 VDC, 3.08A max. , 138.6W (PoE 802.3af Mode, 8-ports) 51 – 57 VDC, 5.03A max. , 256.53W (PoE 802.3at Mode. 8-ports) |
| Brand | ATOP |
| Model | EMG8610 - ATOP |
