Product Summary

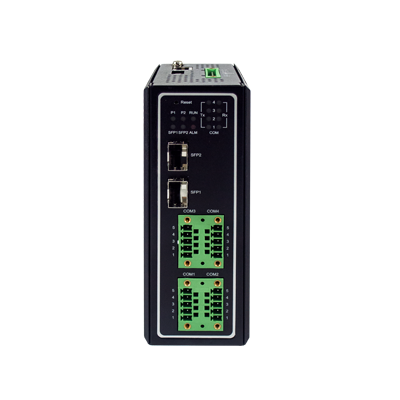

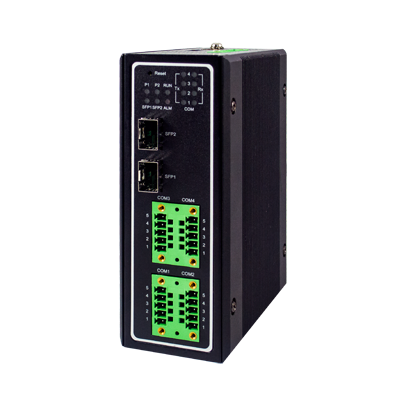

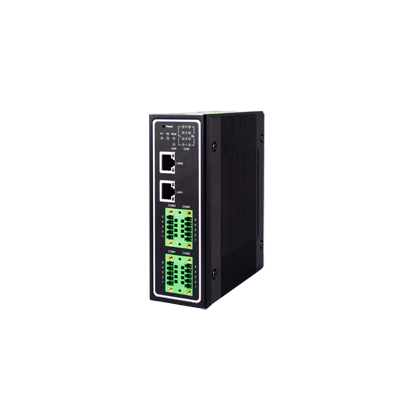

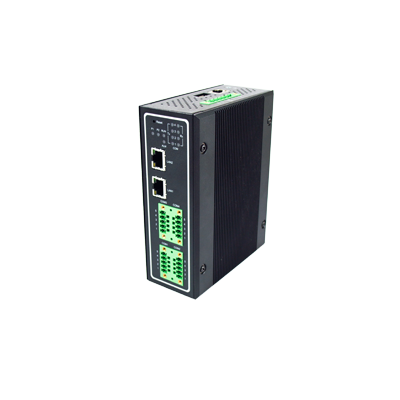

4-Port RS232/485/422 and 2 x Fast-Ethernet or Gigabit RJ45, DNP3.0, Modbus, IEC 60870-5-101/103/104, IEC 61850 Smart Grid Protocol Gateway
Dual 10/100 Mbps Ethernet port, with optional PoE PD or 100/1...
Product Description
4-Port RS232/485/422 and 2 x Fast-Ethernet or Gigabit RJ45, DNP3.0, Modbus, IEC 60870-5-101/103/104, IEC 61850 Smart Grid Protocol Gateway
- Dual 10/100 Mbps Ethernet port, with optional PoE PD or 100/1000 Mbps SFP Slot
- 4-port RS-232/422/485, baud rate up to 921.6 Kbps, D-Sub9 or Terminal Block, Optional 3kV Serial Isolation
- IP30 Metal housing with Aluminum heat sink
- Redundant DC power input, one Relay Output
- Strong EMC protection, works in environments from -40 to 85°C
- Same hardware platform for different protocol conversion (Modbus TCP/RTU/ASCII, DNP3.0 TCP or serial, IEC 60870-5-101, IEC 60870-5-103, IEC 60870-5-104, IEC 61850)
- Optional Full-License version for simultaneous transformation of multiple protocols
- User friendly configuration with a Java-Based Windows utility
- Embedded PPTP, IPsec VPN or OpenVPN for enhanced security
The ATOP PG5904D Series stands out for its industrial durability and reliability. With an extensive temperature range from -40°C to +75°C, it ensures dependable performance even in harsh environmental conditions. The IP30 protection class safeguards against dust and water, while the DIN-Rail mounting option allows for easy installation. Redundant power input guarantees uninterrupted operation, and ATOP's multiple protocol conversion features make it an excellent solution for industrial applications in Turkey. This capability allows seamless transitions between different protocols, optimizing your data communication and enhancing your operational efficiency.
Technical Specifications
| FL | Allows a model to run single or multiple protocol(s) in both front-end to SCADA and back-end to IED sides |
| EMC | FCC Part 15, Subpart B, Class A EN 55032, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-2, EN 61000-6-4 |
| MTBF | 14.56 Years (according to MIL-HDBK-217F) |
| Mode | RS-232/422/485, software selectable |
| RoHS | Yes |
| v1.0 | SE-MB-PG5904D Certifications UL |
| v1.1 | SE5904D/MB5904D/PG5904D Hardware Installation Guide |
| v1.5 | eNode-Designer-User-Manual-103-Atop |
| v1.6 | eNode-Designer-User-Manual-IEC61850-Atop |
| v1.8 | Getting started with Atop PG and eNode Designer |
| v2.0 | eNode designer - Caution: PG59xx v0.66 and the older version should use eNode v1.31 |
| v2.3 | Datasheet EN |
| Ports | 4 |
| Shock | MIL-STD-810G Method 516.7 |
| Speed | USB 2.0 |
| v1.00 | PG59XX Full-License |
| v1.31 | eNode designer - Support PG59xx v0.66 and the older version |
| v5.20 | Management Utility for Windows |
| v5.60 | Management Utility for Windows |
| Parity | None, Odd, Even |
| Safety | IEC/EN 61010-1, UL61010-1, IEC/EN 61010-2-201, UL61010-2-201, EN62368-1 |
| Weight | 1,000g |
| GDC-120 | 59906861G |
| Housing | IP30 SPCC housing |
| LAN Mode | Dual Subnets or Network Redundancy |
| Warranty | 5 Years |
| 01SS-03SM | IEC 60870-5-101 Serial Slave to IEC 60870-5-103 Serial Master |
| 01SS-04EC | IEC 60870-5-101 Serial Slave to IEC 60870-5-104 Ethernet Client |
| 01SS-50EC | IEC 60870-5-101 Serial Slave to IEC 61850 Client |
| 01SS-DNEC | IEC 60870-5-101 Serial Slave to DNP3 Ethernet Client |
| 01SS-DNSM | IEC 60870-5-101 Serial Slave to DNP3 Serial Master |
| 01SS-MBEC | IEC 60870-5-101 Serial Slave to Modbus Ethernet Client |
| 01SS-MBSM | IEC 60870-5-101 Serial Slave to Modbus Serial Master |
| 04ES-01SM | IEC 60870-5-104 Ethernet Server to IEC 60870-5-101 Serial Master |
| 04ES-03SM | IEC 60870-5-104 Ethernet Server to IEC 60870-5-103 Serial Master |
| 04ES-50EC | IEC 60870-5-104 Ethernet Server to IEC 61850 Ethernet Client |
| 04ES-DNEC | IEC 60870-5-104 Ethernet Server to DNP3 Ethernet Client |
| 04ES-DNSM | IEC 60870-5-104 Ethernet Server to DNP3 Serial Master |
| 04ES-MBEC | IEC 60870-5-104 Ethernet Server to Modbus Ethernet Client |
| 04ES-MBSM | IEC 60870-5-104 Ethernet Server to Modbus Serial Master |
| 50ES-01SM | IEC 61850 Ethernet Server to IEC 60870-5-101 Serial Master |
| 50ES-03SM | IEC 61850 Ethernet Server to IEC 60870-5-103 Serial Master |
| 50ES-04EC | IEC 61850 Ethernet Server to IEC 60870-5-104 Ethernet Client |
| 50ES-DNEC | IEC 61850 Ethernet Server to DNP3 Ethernet Client |
| 50ES-DNSM | IEC 61850 Ethernet Server to DNP3 Serial Master |
| 50ES-MBEC | IEC 61850 Ethernet Server to Modbus Ethernet Client |
| 50ES-MBSM | IEC 61850 Ethernet Server to Modbus Serial Master |
| Baud Rate | 1,200~921,600 bps |
| Connector | 7-Pin 5.08mm Lockable Terminal Block |
| DNES-01SM | DNP3 Ethernet Server to IEC 60870-5-101 Serial Master |
| DNES-03SM | DNP3 Ethernet Server to IEC 60870-5-103 Serial Master |
| DNES-04EC | DNP3 Ethernet Server to IEC 60870-5-104 Ethernet Client |
| DNES-50EC | DNP3 Ethernet Server to IEC 61850 Ethernet Client |
| DNES-DNSM | DNP3 Ethernet Server to DNP3 Serial Master |
| DNES-MBEC | DNP3 Ethernet Server to Modbus Ethernet Client |
| DNES-MBSM | DNP3 Ethernet Server to Modbus Serial Master |
| DNSS-01SM | DNP3 Serial Slave to IEC 60870-5-101 Serial Master |
| DNSS-03SM | DNP3 Serial Slave to IEC 60870-5-103 Serial Master |
| DNSS-04EC | DNP3 Serial Slave to IEC 60870-5-104 Ethernet Client |
| DNSS-50EC | DNP3 Serial Slave to IEC 61850 Ethernet Client |
| DNSS-DNEC | DNP3 Serial Slave to DNP3 Ethernet Client |
| DNSS-MBEC | DNP3 Serial Slave to Modbus Ethernet Client |
| DNSS-MBSM | DNP3 Serial Slave to Modbus Serial Master |
| Data Bits | 7,8 |
| Isolation | 2 KV |
| MBES-01SM | Modbus Ethernet Server to IEC 60870-5-101 Serial Master |
| MBES-03SM | Modbus Ethernet Server to IEC 60870-5-103 Serial Master |
| MBES-04EC | Modbus Ethernet Server to IEC 60870-5-104 Ethernet Client |
| MBES-50EC | Modbus Ethernet Server to IEC 61850 Ethernet Client |
| MBES-DNEC | Modbus Ethernet Server to DNP3 Ethernet Client |
| MBES-DNSM | Modbus Ethernet Server to DNP3 Serial Master |
| MBSS-01SM | Modbus Serial Slave to IEC 60870-5-101 Serial Master |
| MBSS-03SM | Modbus Serial Slave to IEC 60870-5-103 Serial Master |
| MBSS-04EC | Modbus Serial Slave to IEC 60870-5-104 Ethernet Client |
| MBSS-50EC | Modbus Serial Slave to IEC 61850 Client |
| MBSS-DNEC | Modbus Serial Slave to DNP3 Ethernet Client |
| MBSS-DNSM | Modbus Serial Slave to DNP3 Serial MasterMBSS-MBEC |
| Protocols | IPv4, ARP, ICMP, TCP, UDP, DHCP Client, DNS Client, Telnet, HTTP, HTTPS, SMTP/TLS, SNMP v1/v2c/v3, Syslog, 802.1D-2004 RSTP, OpenVPN or IPsec VPN (peer-to-peer or peer-to-side), with a maximum VPN throughput of 37.9Mbps(*), and PPTP |
| SDR-75-24 | 50500752240001G |
| Stop Bits | 1,2 |
| USB Ports | 1 |
| Vibration | MIL-STD-810G Method 514.7 |
| Installation | DIN-Rail , Wall mount (optional kit) |
| Relay Output | 1A @ 30 VDC (normal open) |
| Reset Button | Yes |
| Configuration | Atop Management Utility, Web UI, Telnet, Serial Console, ATOP eNode Designer |
| IEC 61000-4-2 | ESD |
| IEC 61000-4-3 | RS |
| IEC 61000-4-4 | EFT |
| IEC 61000-4-5 | Surge |
| IEC 61000-4-6 | CS |
| IEC 61000-4-8 | PFMF |
| Input Voltage | Dual 12 - 48VDC (non-PoE Models); or through Ethernet Cable (PoE versions) |
| LM28-C3S-TI-N | 50708031G |
| LM38-C3S-TI-N | 50709411G |
| LS38-C3L-TI-N | 50709441G |
| LS38-C3S-TI-N | 50709391G |
| PG5904D-4P-DB | Industrial 4-Port Protocol Gateway, 10/100BASE-T(X), DB9 |
| PG5904D-4P-TB | Industrial 4-Port Protocol Gateway, 10/100BASE-T(X), TB5 |
| WMK-450-Black | 70100000000052G |
| ADP-DB9(F)-TB5 | 59906231G |
| PG5904D-4P-Sis | Industrial 4-Port Protocol Gateway, 10/100BASE-T(X), Isolation |
| Connector ports | 2x 10/100BASE-T(X) RJ-45 or 2x 100/1000 Base-X SFP Slots (SFP version) |
| Drop (Freefall) | MIL-STD-810G Method 516.7 |
| Power Redundancy | Yes |
| Protocol setting | eNode designer |
| PG5904D-4P-PoE-DB | Industrial 4-Port Protocol Gateway, 10/100BASE-T(X) with PoE, DB9 |
| PG5904D-4P-PoE-TB | Industrial 4-Port Protocol Gateway, 10/100BASE-T(X) with PoE, TB5 |
| Power Consumption | Approximately 8 W (Max) |
| PG5904D-4P-PoE-Sis | Industrial 4-Port Protocol Gateway, 10/100BASE-T(X) With PoE, Isolation |
| PG5904D-4P-G-DB-SFP | Industrial 4-Port Protocol Gateway, 100/1000BASE-X with SFP Slot, DB9 |
| PG5904D-4P-G-TB-SFP | Industrial 4-Port Protocol Gateway, 100/1000BASE-X with SFP Slot, TB5 |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Supported Protocols | Modbus TCP/RTU/ASCII, DNP3.0 over serial and TCP/IP, IEC61850, IEC60870-5-101, IEC60870-5-103, IEC60870-5-104 |
| PG5904D-4P-G-Sis-SFP | Industrial 4-Port Protocol Gateway, 100/1000BASE-X with SFP Slot, Isolation |
| Dimension (W x H x D) | 55 x 145 x 113 mm |
| Operating Temperature | -40°C~85°C (-40°F~185°F) |
| PoE standard supported | IEEE 802.3 af (-PoE version only) |
| Input Current (@ 12VDC) | 0.65 A @ 12 VDC |
| Protocol specifications | Refer to datasheet |
| CBL-RJ45(8P)-DB9(F)-90-C | 50891971G |
| Ambient Relative Humidity | 5%~95%, 55°C (Non-condensing) |
| Reverse Polarity Protection | Yes |
| Brand | ATOP |
| Model | PG5904D Series - ATOP |
| Main Category | Atop |
