Product Summary
8-Port RS232/485/422 with RJ45 and 2-Port Fast-Ethernet, DNP3, Modbus, IEC 60870-5-101/103/104, IEC 61850, Smart Grid Protocol Gateway
Dual 10/100Mbps Ethernet ports, Embedded PPTP, IPsec or OpenVPN f...
Product Description
8-Port RS232/485/422 with RJ45 and 2-Port Fast-Ethernet, DNP3, Modbus, IEC 60870-5-101/103/104, IEC 61850, Smart Grid Protocol Gateway
- Dual 10/100Mbps Ethernet ports, Embedded PPTP, IPsec or OpenVPN for enhanced security
- Remotely monitor, manage, and control industrial field devices
- Relay out indicator for Network link-status

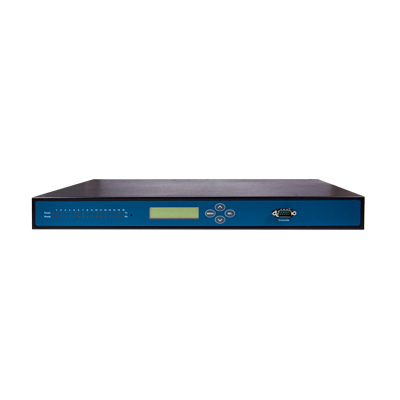

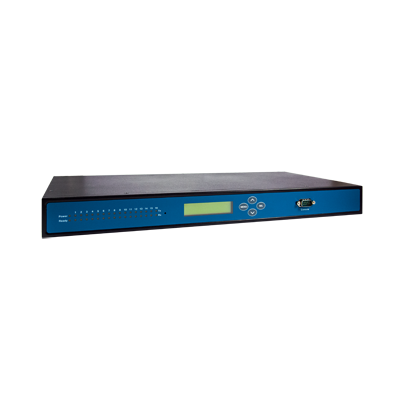

- LCM display with 4-key touch pad for configuration
- Same hardware platform for different protocol conversion (Modbus TCP/ RTU/ASCII, DNP3.0 TCP or serial, IEC 60870-5-101, IEC 60870-5-103, IEC 60870-5-104, IEC 61850)
- Optional Full-License version for simultaneous transformation of multiple protocols
- User friendly configuration with a Java-Based Windows utility
- Integrated RSTP redundancy
The ATOP PG5908 Series stands out as a robust protocol gateway designed for industrial applications. With an extensive operating temperature range of -40°C to +75°C, it ensures reliable performance even in harsh environmental conditions. Its IP30 protection class enhances the unit's resilience against external factors, while the DIN-Rail mounting option facilitates easy installation and integration. Moreover, the redundant power input provides an added layer of security against power interruptions, making it an ideal solution for uninterrupted operations in industrial facilities across Turkey. The multi-protocol support offered by the PG5908 Series allows users to seamlessly integrate various industrial communication standards, solidifying its position as an indispensable tool in the Turkish industrial sector.
Technical Specifications
| FL | Allows a model to run single or multiple protocol(s) in both front-end to SCADA and back-end to IED sides |
| EMC | FCC Part 15, Subpart B, Class A EN 55032, Class A EN 61000-3-2 EN 61000-3-3 EN 55024 |
| Drop | ISTA Test Procedure 2A |
| Fuse | 50709441G |
| MTBF | PG5908-SiS-DC: 19.00 years; PG5908-SiS-US/EU: 19.03 years PG5916-SiS-DC: 13.38 years; PG5916-SiS-US/EU: 13.38 years |
| Mode | RS-232/422/485, software selectable |
| v1.0 | Tcpdump for diagnosis |
| v1.5 | eNode-Designer-User-Manual-103-Atop |
| v1.6 | eNode-Designer-User-Manual-IEC61850-Atop |
| v1.8 | Getting started with Atop PG and eNode Designer |
| v2.0 | SE5908/MB5908/PG5908 Hardware Installation Guide |
| Ports | 8 |
| Shock | IEC 60068-2-27 |
| v1.00 | PG59XX Full-License |
| v1.31 | eNode designer - Support PG59xx v0.66 and the older version |
| v5.20 | Management Utility for Windows |
| v5.50 | Management Utility for Windows |
| Parity | None, Odd, Even |
| RoHS 2 | Yes |
| Safety | EN60950-1:2006; EN62368-1 |
| Weight | 3,000g (8-port version); 3,200 g (16-port version) |
| GDC-120 | 59906861G |
| Housing | IP30, SPCC housing |
| LAN Mode | Dual Subnets or RSTP LAN Redundancy |
| Warranty | 5 Years |
| 01SS-03SM | IEC 60870-5-101 Serial Slave to IEC 60870-5-103 Serial Master |
| 01SS-04EC | IEC 60870-5-101 Serial Slave to IEC 60870-5-104 Ethernet Client |
| 01SS-50EC | IEC 60870-5-101 Serial Slave to IEC 61850 Client |
| 01SS-DNEC | IEC 60870-5-101 Serial Slave to DNP3 Ethernet Client |
| 01SS-DNSM | IEC 60870-5-101 Serial Slave to DNP3 Serial Master |
| 01SS-MBEC | IEC 60870-5-101 Serial Slave to Modbus Ethernet Client |
| 01SS-MBSM | IEC 60870-5-101 Serial Slave to Modbus Serial Master |
| 04ES-01SM | IEC 60870-5-104 Ethernet Server to IEC 60870-5-101 Serial Master |
| 04ES-03SM | IEC 60870-5-104 Ethernet Server to IEC 60870-5-103 Serial Master |
| 04ES-50EC | IEC 60870-5-104 Ethernet Server to IEC 61850 Ethernet Client |
| 04ES-DNEC | IEC 60870-5-104 Ethernet Server to DNP3 Ethernet Client |
| 04ES-DNSM | IEC 60870-5-104 Ethernet Server to DNP3 Serial Master |
| 04ES-MBEC | IEC 60870-5-104 Ethernet Server to Modbus Ethernet Client |
| 04ES-MBSM | IEC 60870-5-104 Ethernet Server to Modbus Serial Master |
| 50ES-01SM | IEC 61850 Ethernet Server to IEC 60870-5-101 Serial Master |
| 50ES-03SM | IEC 61850 Ethernet Server to IEC 60870-5-103 Serial Master |
| 50ES-04EC | IEC 61850 Ethernet Server to IEC 60870-5-104 Ethernet Client |
| 50ES-DNEC | IEC 61850 Ethernet Server to DNP3 Ethernet Client |
| 50ES-DNSM | IEC 61850 Ethernet Server to DNP3 Serial Master |
| 50ES-MBEC | IEC 61850 Ethernet Server to Modbus Ethernet Client |
| 50ES-MBSM | IEC 61850 Ethernet Server to Modbus Serial Master |
| Baud Rate | 1,200 ~ 921,600 bps |
| Connector | IEC 60320-1 C14 AC Power Inlet (AC models) 5.08mm 3-pin Lockable Terminal Block (DC models) |
| DNES-01SM | DNP3 Ethernet Server to IEC 60870-5-101 Serial Master |
| DNES-03SM | DNP3 Ethernet Server to IEC 60870-5-103 Serial Master |
| DNES-04EC | DNP3 Ethernet Server to IEC 60870-5-104 Ethernet Client |
| DNES-50EC | DNP3 Ethernet Server to IEC 61850 Ethernet Client |
| DNES-DNSM | DNP3 Ethernet Server to DNP3 Serial Master |
| DNES-MBEC | DNP3 Ethernet Server to Modbus Ethernet Client |
| DNES-MBSM | DNP3 Ethernet Server to Modbus Serial Master |
| DNSS-01SM | DNP3 Serial Slave to IEC 60870-5-101 Serial Master |
| DNSS-03SM | DNP3 Serial Slave to IEC 60870-5-103 Serial Master |
| DNSS-04EC | DNP3 Serial Slave to IEC 60870-5-104 Ethernet Client |
| DNSS-50EC | DNP3 Serial Slave to IEC 61850 Ethernet Client |
| DNSS-DNEC | DNP3 Serial Slave to DNP3 Ethernet Client |
| DNSS-MBEC | DNP3 Serial Slave to Modbus Ethernet Client |
| DNSS-MBSM | DNP3 Serial Slave to Modbus Serial Master |
| Data Bits | 5, 6, 7, 8 |
| MBES-01SM | Modbus Ethernet Server to IEC 60870-5-101 Serial Master |
| MBES-03SM | Modbus Ethernet Server to IEC 60870-5-103 Serial Master |
| MBES-04EC | Modbus Ethernet Server to IEC 60870-5-104 Ethernet Client |
| MBES-50EC | Modbus Ethernet Server to IEC 61850 Ethernet Client |
| MBES-DNEC | Modbus Ethernet Server to DNP3 Ethernet Client |
| MBES-DNSM | Modbus Ethernet Server to DNP3 Serial Master |
| MBSS-01SM | Modbus Serial Slave to IEC 60870-5-101 Serial Master |
| MBSS-03SM | Modbus Serial Slave to IEC 60870-5-103 Serial Master |
| MBSS-04EC | Modbus Serial Slave to IEC 60870-5-104 Ethernet Client |
| MBSS-50EC | Modbus Serial Slave to IEC 61850 Client |
| MBSS-DNEC | Modbus Serial Slave to DNP3 Ethernet Client |
| MBSS-DNSM | Modbus Serial Slave to DNP3 Serial MasterMBSS-MBEC |
| PG5908-DC | Ind. 8-Port Protocol Gateway,RS-232/422/485 Software Selectable, DC TB3 |
| PG5908-EU | Ind. 8 Port Protocol Gateway, RS-232/422/485 Software Selectable, AC Inlet, EU Plug |
| PG5908-US | Ind. 8 Port Protocol Gateway, RS-232/422/485 Software Selectable, AC Inlet, US Plug |
| Protocols | IPv4, ARP, ICMP, TCP, UDP, DHCP Client, DNS Client, Telnet, HTTP, HTTPS, SMTP/TLS, SNMP v1/v2c/v3, Syslog, RSTP, OpenVPN or IPsec VPN (peer-to-peer or peer-to-side), with a maximum VPN throughput of 37.9Mbps(*), and PPTP |
| SDR-75-24 | 50500752240001G |
| Stop Bits | 1, 2 |
| Vibration | IEC 60068-2-64 |
| Compliance | IEEE 802.3 10BaseT IEEE 802.3u 100BaseT(X) |
| Installation | 19’’ Rack-Mount (Kit included) |
| Reset Button | Yes |
| Ethernet Port | 2x RJ-45 |
| IEC 61000-4-2 | ESD |
| IEC 61000-4-3 | RS |
| IEC 61000-4-4 | EFT |
| IEC 61000-4-5 | Surge |
| IEC 61000-4-6 | CS |
| IEC 61000-4-8 | PFMF |
| PG5908-SiS-DC | Ind. 8 Port Protocol Gateway, RS-422/485 Software Selectable, 2.5kV isolation, DC TB3 |
| PG5908-SiS-EU | Ind. 8 Port Protocol Gateway, RS-422/485 Software Selectable, 2.5kV isolation, AC Inlet, EU Plug |
| PG5908-SiS-US | Ind. 8 Port Protocol Gateway, RS-422/485 Software Selectable, 2.5kV isolation, AC Inlet, US Plug |
| RMK-718-Black | 70100000000040G |
| IEC 61000-4-11 | DIP |
| Power Cable (EU) | 50801051G |
| Power Cable (US) | 50801041G |
| Power Redundancy | No |
| Power Consumption | 0.54A @ 24 VDC 0.21A @ 100 VAC |
| Input Voltage Range | DC version: 24-48VDC; US-EU version: 90-264 VAC (EU or US Plug) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Rated Supply Voltage | DC version: 24-48VDC; US-EU version: 100-240 VAC (EU or US Plug) |
| Dimension (W x H x D) | 436 mm x 43.5 mm x 200 mm |
| Operating Temperature | -20°C~70°C (-4°F~158°F) |
| CBL-RJ45(8P)-DB9(F)-90 | 50891791G |
| CBL-RJ45(8P)-DB9(M)-90 | 50891781G |
| CBL-RJ45(8P)-DB9(M)-200 | 50891951G |
| Protocol specifications | Refer to datasheet |
| CBL-RJ45(8)-DB9(F)-200-C | 50891961G |
| CBL-RJ45(8P)-DB9(F)-90-C | 50891971G |
| Ambient Relative Humidity | 5%~95%, 55°C (Non-condensing) |
| Reverse Polarity Protection | Yes (DC version only) |
| Power Adapter AD17-24C (US-Y) | 50500151240002G |
| Power Adapter AD17-24D (EU-Y) | 50500151240012G |
| Brand | ATOP |
| Model | PG5908 Series - ATOP |
| Main Category | Atop |
