IEC61850-3 Certified Rack-Mount High-Availability Managed Modular Gigabit Switch – Layer3
Supports HSR (IEC 62439-3 Clause 5) and PRP (IEC 62439-3 Clause 4)IEC 61850-3 and IEEE 1613 certificationDesig...
Product Description

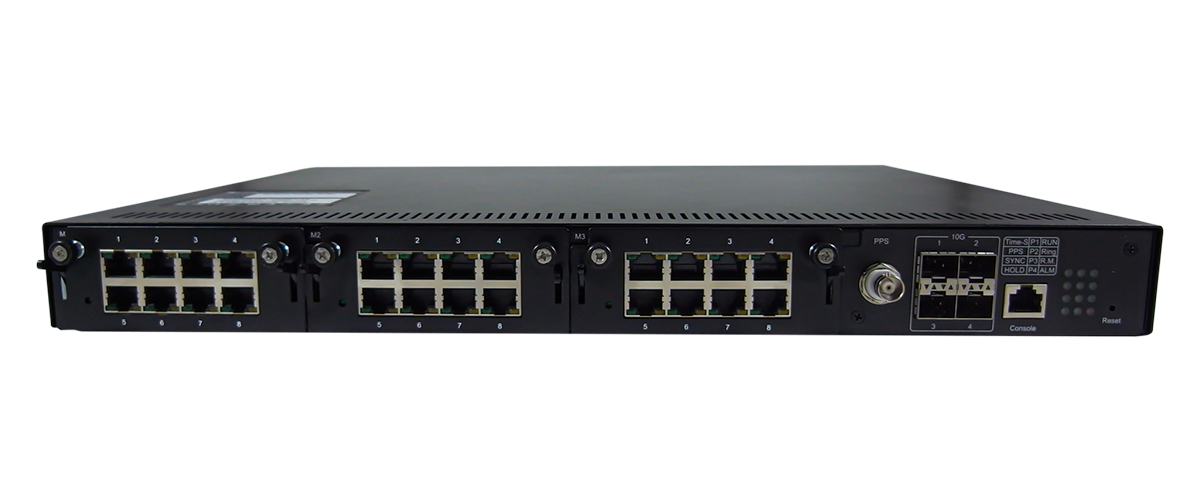

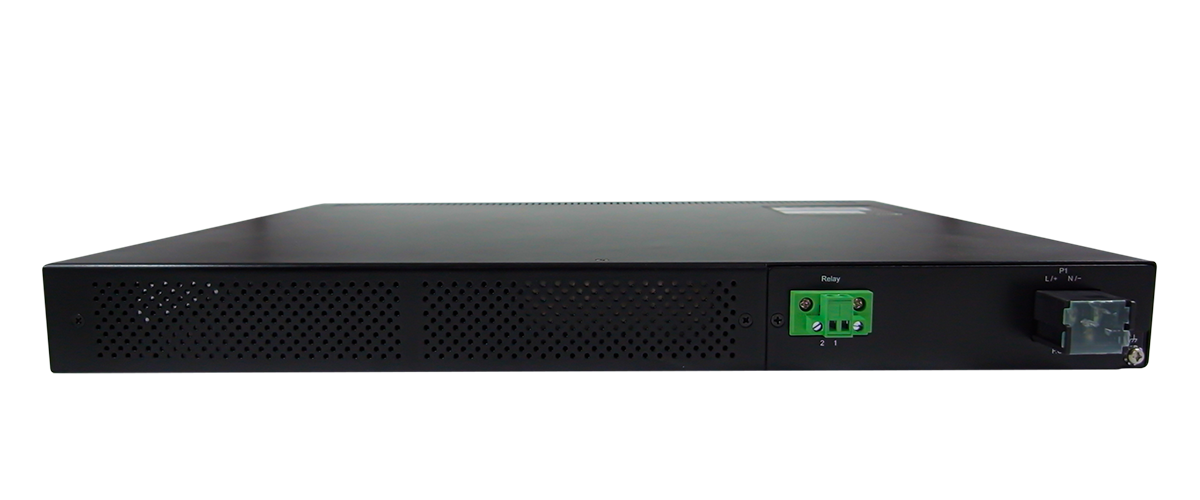

IEC61850-3 Certified Rack-Mount High-Availability Managed Modular Gigabit Switch – Layer3
- Supports HSR (IEC 62439-3 Clause 5) and PRP (IEC 62439-3 Clause 4)
- IEC 61850-3 and IEEE 1613 certification
- Designed in compliance with IEC61850-90-4
- Integrated IEEE 1588v2 hardware-based BC and TC (-BC/SB version)
- Maximum 128Gbps switching capacity, 95.24Mpps throughput
- Rugged industrial design for harsh environments between -40~85°C
- Flexible modular configuration; 3 Module-dedicated slots
- Up to 24 Gigabit ports, and 4x10 Gigabit SFP Uplink slots, 1PPS BNC
- ITU-T G.8032 ERPS Ring, RSTP, or MRP (Manager/ Client) redundancy
- Advanced management features such as QoS and VLAN
The ATOP RHG9628 offers industrial durability and reliability, ensuring excellent performance in challenging operating conditions. With a wide temperature range of -40°C to +75°C, this device is suitable for various industrial applications. The IP30 protection class provides resistance against dust and water, while the DIN-Rail mounting option facilitates easy installation. Furthermore, the redundant power input minimizes system downtime, ensuring a reliable operating environment for users. Ideal for industrial applications in Turkey, the RHG9628 stands out with its high performance and flexible modular design. These features make it a preferred choice in critical sectors such as power plants, transportation systems, and automation applications.
Technical Specifications
| EMC | FCC Part 15, Subpart B, Class A, EN 55032, EN 55035, EN 61000-6-4:2007+A1 2011, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2:2005 |
| MIB | MIB II, IF-MIB, SNMPv2 MIB, BRIDGE-MIB, RMON MIB Group 1,2,3,9 |
| Drop | MIL-STD-810F Method 516.7 (2014) |
| MTBF | 20 Years |
| V1.0 | RHG9628 Test Certificate CB IEC62368-1 |
| v0.2 | Managed Layer-3 Switch CLI User Manual |
| v1.0 | RHG9628 Test Report IEC61850-3 |
| v1.2 | RHG9628 Hardware Installation guide |
| v1.5 | RHG9628 Datasheet EN |
| v2.4 | RHG9628 User Manual |
| Shock | MIL-STD-810G Method 516.7 (2014) |
| v5.60 | Management Utility for Windows |
| v6.50 | RHG9628 Firmware |
| v6.56 | RHG9628 Firmware |
| v6.66 | RHG9628 Firmware |
| RoHS 2 | Yes |
| Safety | UL/EN/IEC(CB) 62368-1 |
| Weight | 5Kg (not including module but module cover only) |
| Housing | IP30 SPCC metal housing |
| Warranty | 5 Years |
| Protocols | IPv4, IPv6, IGMPv1/v2/v3, GMRP, GVRP, SNMPv1/v2c/v3, SNMP Inform, ICMP, Telnet, SSH, DHCP Server/Relay/Client, DHCP Option 66/67/82, BootP, TFTP, NTP Server/Client, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, MRP(Manager/ Client), ERPS, LLDP, IEEE 1588 PTP V2(Hw-based), 802.1x, RADIUS, TACACS+, SyncE, HSR, PRP, ACL, DHCP Snooping, ARP Spoof Prevention, Dynamic ARP Inspection, MLD, UDLD, IP Source Guard, sFlow |
| Standards | IEEE 802.3 for 10BASE-T IEEE 802.3u for 100BASE-T(X) IEEE 802.3u for 100BASE-FX IEEE 802.3ab for 1000BASE-T(X) IEEE 802.3z for 1000BASE-X IEEE 802.3ae For 10 Gigabit Ethernet Fiber IEEE 802.3x for Flow Control, backpressure control IEEE 802.1D-2004 for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 8021X for Authentication IEEE 802.1AB Link Layer Discovery Protocol (LLDP) IEEE 802.1Q VLAN. IEEE 802.3ad for Port Trunk with LACP IEC-62439-3 Clause 4 PRP (Parallel Redundancy Protocol) IEEE1588v2 PTP (Hardware-based) - (-SB version only) ITU-T G.8261 Synchronous Ethernet |
| Vibration | MIL-STD-810F Method 514.7 C-1 & C-III Category 4(2014) |
| Connectors | AC: Barrier Terminal Block 4pin 9.52mm DC: Barrier Terminal Block 3Pin 13mm |
| MODEL NAME | PART NUMBER |
| RHG9X28-M1 | 1P1RHG9X28M101G |
| RHG9X28-M2 | 1P1RHG9X28M201G |
| RHG9X28-M3 | 1P1RHG9X28M301G |
| RHG9X28-M4 | 1P1RHG9X28M401G |
| RHG9X28-M5 | 1P1RHG9X28M501G |
| RHG9X28-M6 | 1P1RHG9X28M601G |
| Redundancy | IEC62439-3 Clause 5 High-Avail-Seamless-Redundancy(HSR) only RHG9X28-M5/6 IEC62439-3 Clause 4 Parallel-Redundancy-Protocol (PRP) - only with RHG9X28-M5/6 ITU-T G.8032 ERPS, STP, RSTP, MSTP, MRP, Compatible Ring/Chain, U-Ring |
| SDR-240-48 | 50502401480001G |
| SDR-480-48 | 50504801480001G |
| VLAN Table | 512 |
| Jumbo Frame | 9216 Byte |
| Trunk Group | 8 |
| Installation | 1U Rack-mount, Rack-mount kit included |
| Relay Output | 1 Relay Output (24V/1A) |
| DC Input Port | 100% Reduction: 0.05 sec |
| IEC 61000-4-2 | ESD |
| IEC 61000-4-3 | RS |
| IEC 61000-4-4 | EFT |
| IEC 61000-4-5 | Surge |
| IEC 61000-4-6 | CS |
| IEC 61000-4-8 | PFMF |
| Input Voltage | DC version: redundant 19-132 VDC AC version: redundant 90-264 VAC HV version: redundant 120-380 VDC |
| VLAN ID Range | VID 1 to 4094 |
| AXFD-1314-0523 | 522AXFD1314001G |
| AXFD-1314-0553 | 522AXFD1314011G |
| AXGD-1354-0523 | 522AXGD1354001G |
| AXGD-1354-0533 | 522AXGD1354011G |
| AXGD-3354-0593 | 522AXGD3354001G |
| AXGD-5854-0513 | 522AXGD5854001G |
| AXXE-5886-05B3 | 522AXXE5886001G |
| IEC 61000-4-11 | DIP |
| IEC 61000-4-16 | Main Frequency |
| IEC 61000-4-17 | Ripple |
| IEC 61000-4-18 | Damped Oscillatory |
| IEC 61000-4-29 | DC Input Port |
| MAC Table Size | 16k |
| MAC-Based VLAN | 512 |
| Main Frequency | Signal Port |
| Priority Queues | 8 |
| Power Automation | IEC61850-3, IEEE 1613 |
| Holdover Accuracy | Boundary Clock/ SyncE (-SB): |
| AC POWER CORD (EU) | 50891751G |
| AC POWER CORD (US) | 50892531G |
| Damped Oscillatory | Signal Port |
| Maximum throughput | 95.24 Mpps |
| Packet Buffer Size | 1.5 MB |
| RHG9628-410GSFP-AC | 1P1RHG96280006G |
| RHG9628-410GSFP-DC | 1P1RHG96280004G |
| RHG9628-410GSFP-HV | 1P1RHG96280005G |
| Static IGMP Groups | 128 |
| Automation Profiles | Modbus TCP |
| Dynamic IGMP Groups | 256 |
| Input Current (Max) | 2.66A Max, 64W Max (For DC version models) 0.7A Max, 50/60Hz (For AC version models) 0.52A Max, 62W Max (For HVDC version models) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Rated Supply Voltage | DC version: redundant 24-120 VDC AC version: redundant 100-240 VAC HV version: redundant 120-380 VDC |
| Time Synchronization | Network Time |
| Additional Interfaces | RHG9528-410GSFP-BC/SB-XX support hardware-assisted BC/TC also on 4x1G or 4x10G SFP uplink slots. 1PPS square pulse issued from a 1PPS output BNC(F) |
| Dimension (W x H x D) | 440 x 44 x 340 mm (not including screws and rack-mount kit) |
| Operating Temperature | -40°C~75°C (-40°F~158°F) |
| RHG9628-410GSFP-SB-AC | 1P1RHG9628000KG |
| RHG9628-410GSFP-SB-DC | 1P1RHG9628000GG |
| RHG9628-410GSFP-SB-HV | 1P1RHG9628000IG |
| PTP Mode (all versions) | Layer-2: Multicast, E2E/P2P, two-steps Layer-3 (IPv4):Multicast,Unicast,Unicast Neg. (E2E/P2P) |
| Precision Time Protocol | Std Version: IEEE1588v1 BC (SW) IEEE1588v2 BC (SW) IEEE1588v2 TC (HW)-ns accuracy PTP (-SB) Version: IEEE1588v2 BC (HW)-ns accuracy IEEE1588v2 TC (HW)-ns accuracy Synchronous Ethernet |
| Ambient Relative Humidity | 5%~95%, 55°C (Non-condensing) |
| Switching Fabric Capacity | 128 Gbps |
| Layer-3 Switching Protocols | Routing: static routing, RIP v1/v2, OSPFv2, Multicast: IGMPv1/v2/v3, DVMRP, PIM-DM, PIM-SM, PIM-SSM Routing Redundancy: VRRP (Virtual Router Redundancy Protool) |
| Reverse Polarity Protection | Yes |
| Supported Profiles (-SB version) | C37.238 -2017 Power Profile IEC/ IEEE61850-9-3 Power Profile(2016) |
| Brand | ATOP |
| Model | RHG9628 - ATOP |
| Main Category | Atop |
