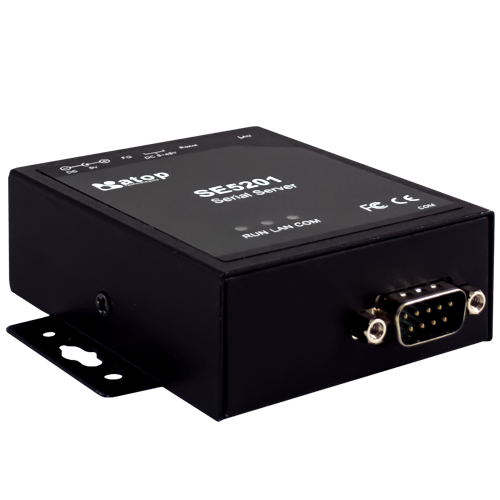

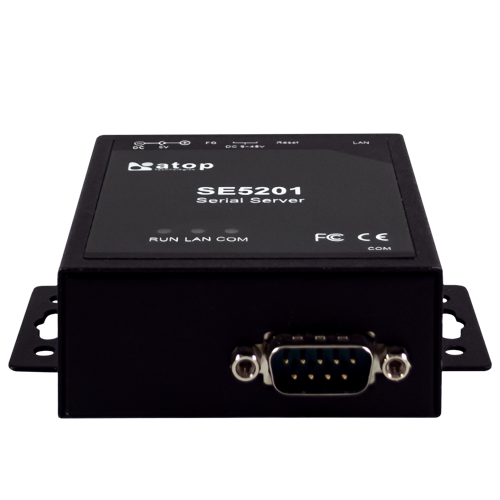

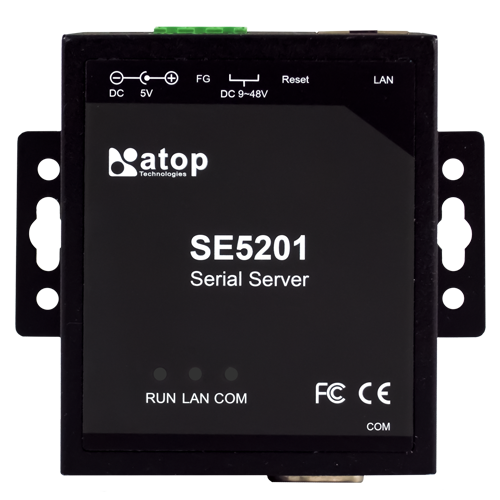

SE5201 - ATOP
In Stock (100 items)
44 views
€0,00
VAT Included
Product Summary
Compact Industrial Field-Mount Serial Device Server
1 x software-selectable RS-232/485/422 port1 x 10/100Mbps RJ45 Fast Ethernet portSupports TCP server/client, UDP, Virtual COM and Tunneling modesCon...
Product Description
Compact Industrial Field-Mount Serial Device Server
- 1 x software-selectable RS-232/485/422 port
- 1 x 10/100Mbps RJ45 Fast Ethernet port
- Supports TCP server/client, UDP, Virtual COM and Tunneling modes
- Configuration via Web Server page, Telnet Console, and Windows Utility
- Upgradable firmware via Ethernet from a remote-PC
- Rugged metal casing; Industrial EMC protection
- Redundant dual DC power inputs for non-stop operation
- Optional DIN-Rail mounting
The ATOP SE5201 model is designed for industrial durability, ensuring reliable performance in harsh working conditions. With an extensive operating temperature range of -40°C to +70°C, this device operates seamlessly in various climatic conditions found in Turkey. Its IP30 protection class safeguards the device against external factors, ensuring long-term use. Additionally, the optional DIN-Rail mounting simplifies installation processes, while the redundant power inputs guarantee uninterrupted operation. These features make the ATOP SE5201 an ideal solution for industrial applications in Turkey, suitable for automation systems and data collection applications alike.
Technical Specifications
| EMC | FCC Part 15, Subpart B, Class A, EN 55032, EN61000-6-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN61000-6-2 |
| Drop | MIL-STD-810F Method 516.5 |
| MTBF | 25.29 years according to MIL-HDBK-217F, 25 degrees C |
| Mode | RS-232/RS-485(2 and 4 wire)/RS-422, software selectable |
| v0.4 | Datasheet EN |
| v0.5 | Datasheet EN |
| v0.6 | Datasheet EN |
| v0.7 | Datasheet EN |
| v0.8 | Datasheet EN |
| v0.9 | Datasheet EN |
| v1.0 | SE5201_MB5201_LVD |
| v1.1 | SE5201-SE5201C Series Hardware Installation Guide |
| v1.2 | SE52XX User Manual |
| v1.4 | SE52XX User Manual |
| DK-25 | 30200000000022G |
| Ports | 1 |
| REACH | Yes |
| Shock | MIL-STD-810F Method 516.5 |
| Speed | IEEE 802.3 10BaseT IEEE 802.3u 100BaseT(X) |
| v1.03 | SE52XX Firmware |
| v1.08 | SE52XX Firmware |
| v1.10 | SE52XX Firmware |
| v1.13 | SE52XX Firmware |
| v1.14 | SE52XX Firmware |
| v1.17 | SE52XX Firmware |
| v5.20 | Management Utility for Windows |
| v5.50 | Management Utility for Windows |
| v5.60 | Management Utility for Windows |
| Parity | None, Odd, Even, Space, Mark |
| RoHS 2 | Yes |
| Safety | EN 60950-1 / EN62368-1 |
| Weight | 185g |
| Warranty | 5 Years |
| Baud Rate | 1200~230,400 bps |
| Connector | 3-Pin 5.08mm Lockable Terminal Block and DC Jack for redundancy |
| Data Bits | 7, 8 |
| Protocols | TCP, IPv4, UDP, DHCP Client, HTTP, HTTPS, Telnet, ARP, SNMPv1,v2c,v3 |
| SE5201-DB | 1P1SE520100001G |
| SE5201-TB | 1P1SE520100002G |
| Stop Bits | 1, 2 |
| Vibration | MIL-STD-810F Method 514.5 C-1 & C-2 |
| Protection | IEC/EN60529 - IP30 |
| VirtualCOM | Windows/Linux redirection software |
| Flow Control | None, Xon/Xoff, RTS/CTS (RS-232 only) |
| Installation | Wall mount, DIN-Rail (optional) |
| Reset Button | Yes |
| Configuration | Atop Management Utility, Web UI, Telnet, CLI |
| IEC 61000-4-2 | Electrostatic Discharge |
| IEC 61000-4-3 | Radiated Susceptibility |
| IEC 61000-4-4 | EFT |
| IEC 61000-4-5 | Surge |
| IEC 61000-4-6 | Conducted Susceptibility |
| IEC 61000-4-8 | PFMF |
| Input Voltage | 3-Pin 5.08mm Lockable Terminal Block: 9-30VDC; DC Jack 5VDC |
| ADP-DB9(F)-TB5 | 59906231G |
| Auto MDI/MDI-X | Present |
| IEC 61000-4-11 | DIP |
| Connector ports | RJ45 x 1 |
| Auto-negotiation | Present |
| Link Modes - UDP | Up to 4 Ranges IP |
| Power Redundancy | Yes |
| ADP-DB9(M)-DB9(F) | 59901411G |
| Power Consumption | <1.5W @9VDC |
| UN315-1212 (US-Y) | 50500151120003G |
| UV305-0510(US-DC) | 50500051500003G |
| UNE315-1212 (EU-Y) | 50500151120013G |
| UVE305-0510(UK-DC) | 50500051500023G |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| UVE305-0510 (EU-DC) | 50500051500013G |
| Dimension (W x H x D) | 65mm x 78mm x 28mm (without wall-mount part) SE5201-TB: 88.5 x 78.3 x 27.8mm (with wall-mount part) SE5201-DB: 88.5 x 84 x 27.8mm (with wall-mount part and DB9 connector) |
| Operating Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
| Link Modes - TCP Client | Single destination or VirtualCOM |
| Link Modes - TCP Server | 4 Connections; VirtualCOM or reverse Telnet |
| Ambient Relative Humidity | 5%~95%, (Non-condensing) |
| Reverse Polarity Protection | Yes |
| Brand | ATOP |
| Model | SE5201 - ATOP |
| Main Category | Atop |
