SS100 - ATOP
In Stock (100 items)
48 views
€0,00
VAT Included
Product Summary

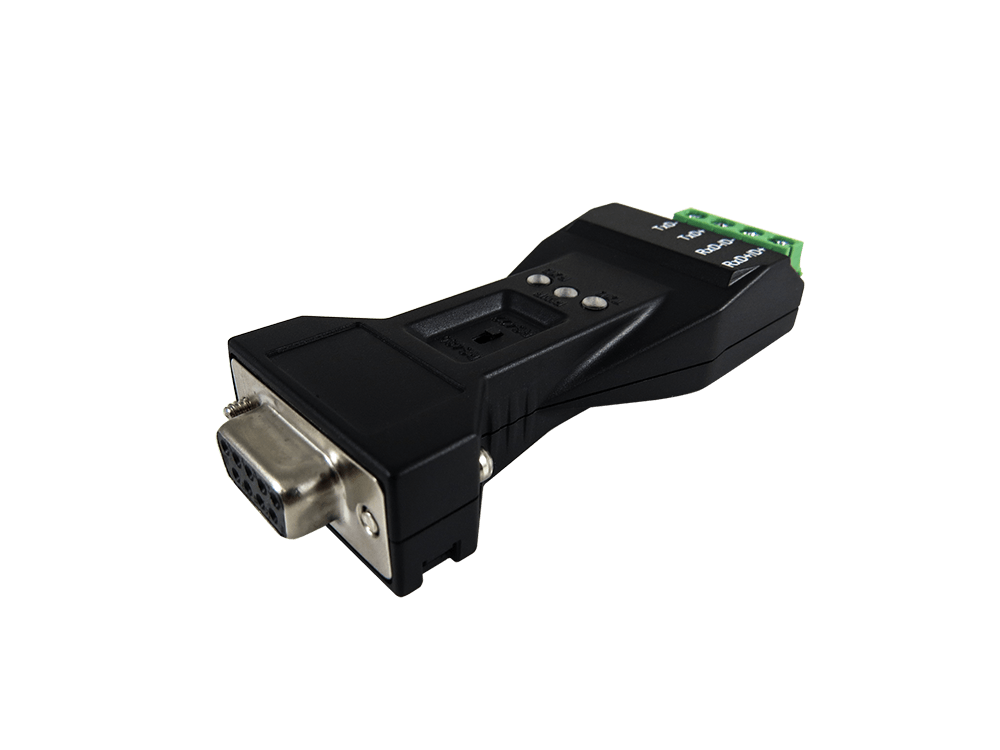

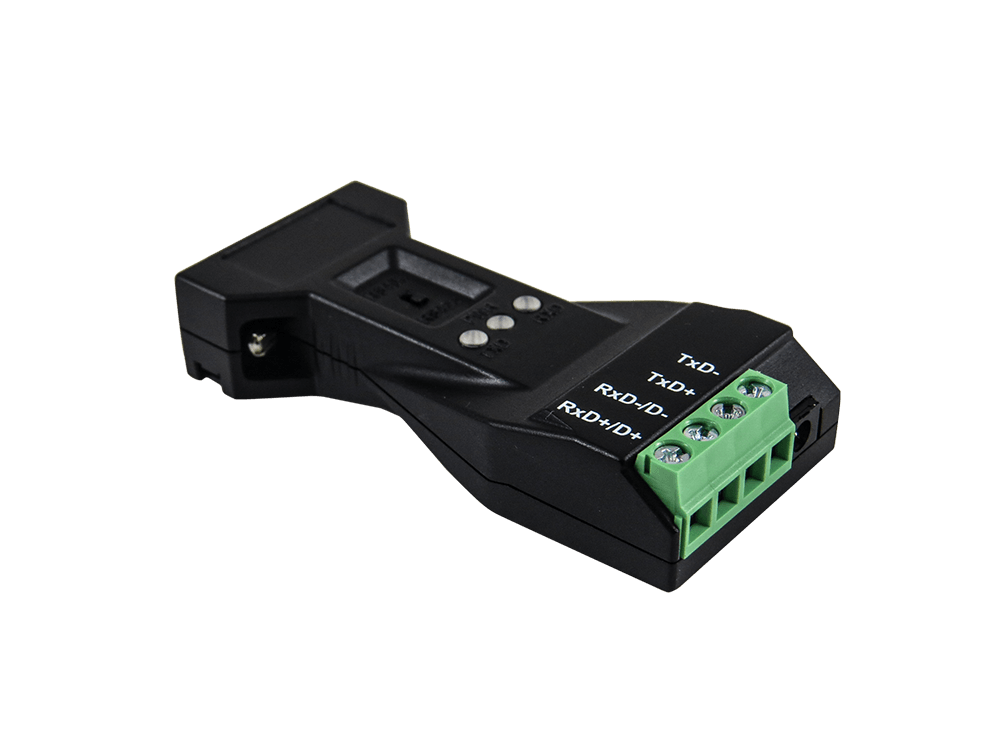

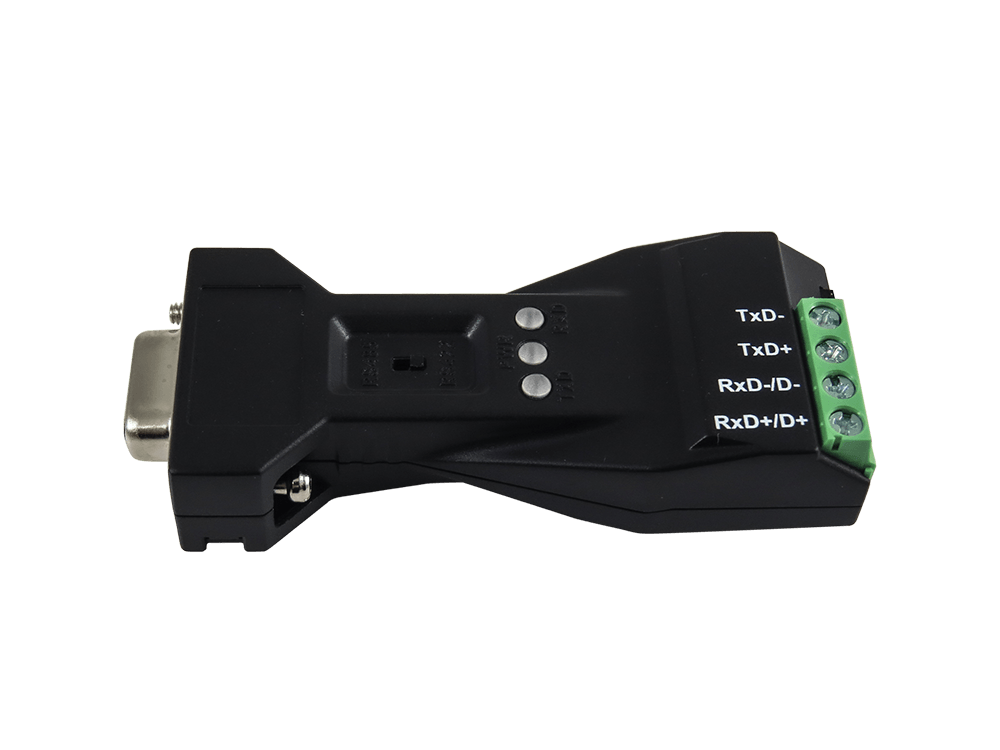

Compact plug-on RS-232 to RS-485/422 media converter
Maximum Communication Speed: 500KbpsIndustrial Grade Temperature: -40~85°CESD Protection (IEC 61000-4-2: ESD level 3 protection)External power not...
Product Description
Compact plug-on RS-232 to RS-485/422 media converter
- Maximum Communication Speed: 500Kbps
- Industrial Grade Temperature: -40~85°C
- ESD Protection (IEC 61000-4-2: ESD level 3 protection)
- External power not required (When RTS/DTR signal line is enabled)
- Compact size
- Hardware-based Auto Toggling
- RS422/RS485 mode selectable by external switch
- Built-in 120Ω termination resistors, selected by external switch
- 3kV isolation
- LED port power indicator
The ATOP SS100 model is a robust media converter designed for industrial applications. With an extensive operating temperature range of -40°C to +85°C, it ensures reliable performance in harsh environments. The IP30 protection class and DIN-Rail mounting make installation and use straightforward. Moreover, its redundant power input guarantees uninterrupted operation, enhancing the reliability of industrial systems. The SS100 is an excellent choice for various industrial applications in Turkey, as it offers durability and advanced features that ensure long-lasting, seamless data transmission.
Technical Specifications
| EMC | EN55032/24, EN61000-6-4, EN61000-6-2, EN61000-3-2, EN61000-3-3 |
| EMI | FCC Part 15B Class A |
| LEDs | Power, Tx, Rx |
| MTBF | 25.29 years |
| Mode | RS422 : Point to point Mode, Multi-Drop Mode RS485: Echo Mode, Non-Echo Mode |
| RoHS | Yes |
| v0.1 | Datasheet EN |
| v0.2 | Datasheet EN |
| v0.3 | Datasheet EN |
| v1.0 | SS100 Certification FCC |
| v1.1 | SS100 Hardware Installation Guide |
| v1.2 | SS100 Hardware Installation Guide |
| Power | Power supply via RS232 port (RTS, DTR), by TB or DC Jack |
| SS100 | 1P1SS100000001G |
| Speed | 1200bps ~ 500Kbps |
| Parity | None, even, odd, space, mark |
| Weight | 21 g |
| Housing | Plastic |
| SS100-J | 1P1SS100000004G |
| Warranty | 5 years |
| Connector | RS232: DB9 female RS422/485: Terminal block 6P (DC-Jack would be 4P) |
| Data bits | 5, 6, 7, 8 |
| Dimension | 33.8 x 76.4 x 17.5 mm |
| Stop bits | 1, 2 |
| Power input | 5 VDC |
| SS100-SiS-R | 1P1SS100000002G |
| Data control | Auto toggling |
| IEC 61000-4-2 | ESD |
| IEC 61000-4-3 | RS |
| IEC 61000-4-4 | EFT |
| IEC 61000-4-5 | Surge |
| IEC 61000-4-6 | CS |
| IEC 61000-4-8 | PFMF |
| IEC 61000-4-11 | DIP |
| Maximum Distance | 1.2Km. @115.2Kbps, 24AWG twisted pair cable |
| Power consumption | Non-ISO 115mW Max, ISO 220mW Max |
| UV305-0510(US-DC) | 50500051500003G |
| UVE305-0510(UK-DC) | 50500051500023G |
| Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| UVE305-0510 (EU-DC) | 50500051500013G |
| Termination Resistor | 120Ω, selectable via dip switch |
| Operating Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Ambient Relative Humidity | 5 to 95%, non-condensing |
| Brand | ATOP |
| Model | SS100 - ATOP |
| Main Category | Atop |
