Product Summary
Industrial M2M Cellular Protocol Gateway
Supports Modbus TCP/RTU/ASCII, DNP3, IEC61850, IEC60870-5-101/104, and Ethernet/Serial in client/server master/slave modes.Optional Full-License version for si...
Product Description

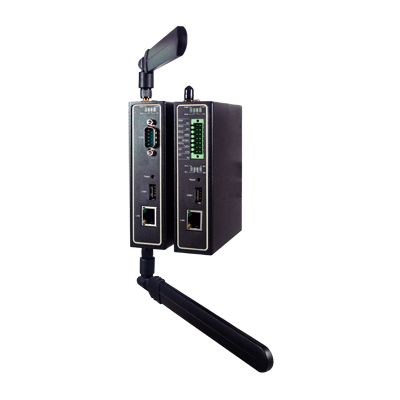

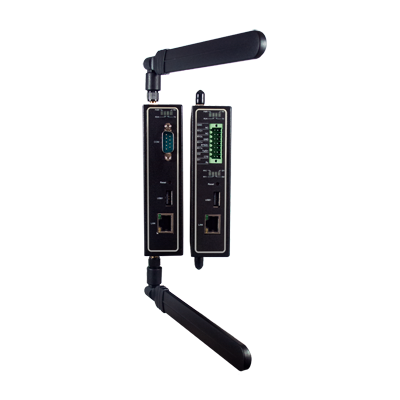

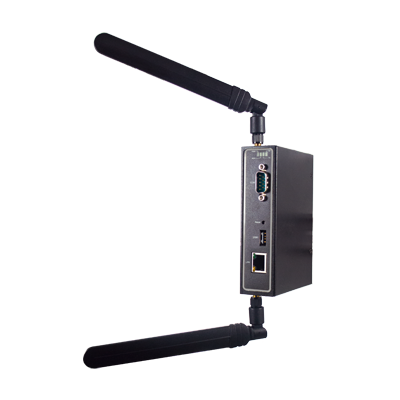

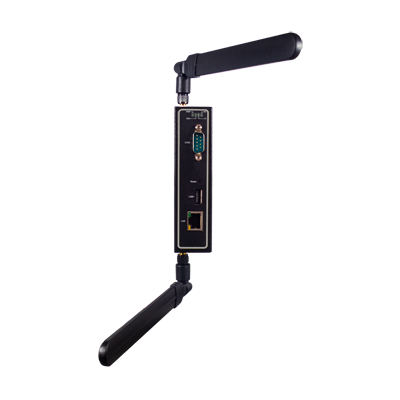

Industrial M2M Cellular Protocol Gateway
- Supports Modbus TCP/RTU/ASCII, DNP3, IEC61850, IEC60870-5-101/104, and Ethernet/Serial in client/server master/slave modes.
- Optional Full-License version for simultaneous transformation of multiple protocols
- 4G Cellular Protocol Gateway with extensive LTE Band support, including: - EU Model: 2100/1800/850/2600/900/800 MHz (B1/B3/B5/B7/B8/B20) - US Model: 1900/1700/850/700/600 MHz (B2/B4/B5/B12/B13/B14/B66/B71)
- Industrial-grade hardware for operating in harsh environments
- 1 x 10/100/1000Mbps Ethernet port
- 1 x RS-232/485 port – baud rate up to 921.6 Kbps
- 2 x High speed USB 2.0 ports
- Configuration via SMS, Web Browser and Windows Utility
- VPN over PPTP, IPSec or OpenVPN for secure communications
The ATOP PG5901B Series is a robust M2M cellular protocol gateway designed for industrial applications. With a wide operating temperature range of -40°C to +75°C, it ensures reliable performance even in harsh outdoor conditions. The IP30 protection class guards against dust and water, while the DIN-Rail mounting allows for easy installation. The device features redundant power input, providing uninterrupted operation and enhanced security for critical applications. Specifically designed to meet the demands of industrial processes in Turkey, the PG5901B supports common industrial communication standards such as Modbus, DNP3, and IEC protocols, ensuring high efficiency in data transmission. With these capabilities, the ATOP PG5901B is an excellent solution for industrial automation systems.
Technical Specifications
| FL | Allows a model to run single or multiple protocol(s) in both front-end to SCADA and back-end to IED sides |
| EMC | FCC Part 15, Subpart B, Class A EN301489-19, EN301489-52, EN301908-1, EN303413, EN 55024, EN 55032, EN61000-6-4, EN 61000-3-2, EN 61000-3-3, EN61000-6-2 |
| Drop | MIL-STD-810G Method 516.7 |
| MTBF | 20.88 years according to MIL-HDBK-217F (Model average) |
| Mode | 1 port RS-232/485 (2-wire) software selectable |
| Port | 1 |
| RoHS | Yes |
| v1.0 | SE-MB-PG5901B Certifications UL |
| v1.3 | eNode Designer User Manual Modbus |
| v1.4 | Getting started with Atop PG and eNode Designer |
| v1.5 | eNode-Designer-User-Manual-103-Atop |
| v1.6 | eNode-Designer-User-Manual-IEC61850-Atop |
| v1.8 | Getting started with Atop PG and eNode Designer |
| v2.0 | eNode designer - Caution: PG59xx v0.66 and the older version should use eNode v1.31 |
| v2.3 | Datasheet EN |
| Shock | MIL-STD-810G Method 516.7 |
| Speed | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) |
| v1.00 | PG59XX Full-License |
| v1.31 | eNode designer - Support PG59xx v0.66 and the older version |
| v5.20 | Management Utility for Windows |
| v5.60 | Management Utility for Windows |
| Parity | None, Odd, Even |
| RoHS 2 | Yes |
| Safety | CB (IEC/EN62368-1 & IEC/EN60950-1) |
| Weight | 400g |
| Housing | IP30 protection, SPCC metal housing |
| Network | NAT |
| Security | VPN through IPsec tunneling (max 10 tunnels), OpenVPN, and PPTP on cellular or LAN |
| Standard | WCDMA/ DC-HSPA+/ LTE |
| Warranty | 5 Years |
| 01SS-04EC | IEC 60870-5-101 Serial Slave to IEC 60870-5-104 Ethernet Client |
| 01SS-50EC | IEC 60870-5-101 Serial Slave to IEC 61850 Client |
| 01SS-DNEC | IEC 60870-5-101 Serial Slave to DNP3 Ethernet Client |
| 01SS-MBEC | IEC 60870-5-101 Serial Slave to Modbus Ethernet Client |
| 04ES-01SM | IEC 60870-5-104 Ethernet Server to IEC 60870-5-101 Serial Master |
| 04ES-03SM | IEC 60870-5-104 Ethernet Server to IEC 60870-5-103 Serial Master |
| 04ES-50EC | IEC 60870-5-104 Ethernet Server to IEC 61850 Ethernet Client |
| 04ES-DNEC | IEC 60870-5-104 Ethernet Server to DNP3 Ethernet Client |
| 04ES-DNSM | IEC 60870-5-104 Ethernet Server to DNP3 Serial Master |
| 04ES-MBEC | IEC 60870-5-104 Ethernet Server to Modbus Ethernet Client |
| 04ES-MBSM | IEC 60870-5-104 Ethernet Server to Modbus Serial Master |
| 50ES-01SM | IEC 61850 Ethernet Server to IEC 60870-5-101 Serial Master |
| 50ES-03SM | IEC 61850 Ethernet Server to IEC 60870-5-103 Serial Master |
| 50ES-04EC | IEC 61850 Ethernet Server to IEC 60870-5-104 Ethernet Client |
| 50ES-DNEC | IEC 61850 Ethernet Server to DNP3 Ethernet Client |
| 50ES-DNSM | IEC 61850 Ethernet Server to DNP3 Serial Master |
| 50ES-MBEC | IEC 61850 Ethernet Server to Modbus Ethernet Client |
| 50ES-MBSM | IEC 61850 Ethernet Server to Modbus Serial Master |
| Baud Rate | 1,200~921,600 bps |
| Connector | 3-Pin 5.08mm Lockable Terminal Block |
| DNES-01SM | DNP3 Ethernet Server to IEC 60870-5-101 Serial Master |
| DNES-03SM | DNP3 Ethernet Server to IEC 60870-5-103 Serial Master |
| DNES-04EC | DNP3 Ethernet Server to IEC 60870-5-104 Ethernet Client |
| DNES-50EC | DNP3 Ethernet Server to IEC 61850 Ethernet Client |
| DNES-DNSM | DNP3 Ethernet Server to DNP3 Serial Master |
| DNES-MBEC | DNP3 Ethernet Server to Modbus Ethernet Client |
| DNES-MBSM | DNP3 Ethernet Server to Modbus Serial Master |
| DNSS-04EC | DNP3 Serial Slave to IEC 60870-5-104 Ethernet Client |
| DNSS-50EC | DNP3 Serial Slave to IEC 61850 Ethernet Client |
| DNSS-DNEC | DNP3 Serial Slave to DNP3 Ethernet Client |
| DNSS-MBEC | DNP3 Serial Slave to Modbus Ethernet Client |
| Data Bits | 7, 8 |
| MBES-01SM | Modbus Ethernet Server to IEC 60870-5-101 Serial Master |
| MBES-03SM | Modbus Ethernet Server to IEC 60870-5-103 Serial Master |
| MBES-04EC | Modbus Ethernet Server to IEC 60870-5-104 Ethernet Client |
| MBES-50EC | Modbus Ethernet Server to IEC 61850 Ethernet Client |
| MBES-DNEC | Modbus Ethernet Server to DNP3 Ethernet Client |
| MBES-DNSM | Modbus Ethernet Server to DNP3 Serial Master |
| MBSS-04EC | Modbus Serial Slave to IEC 60870-5-104 Ethernet Client |
| MBSS-50EC | Modbus Serial Slave to IEC 61850 Client |
| MBSS-DNEC | Modbus Serial Slave to DNP3 Ethernet Client |
| Protocols | ARP, IPv4, ICMP, TCP, UDP, DHCP Client, NTP Client, SNMPv1/v2c/v3, HTTP, HTTPS, RFC2217, RSTP, and SMTP/TLS |
| Stop Bits | 1, 2 |
| USB Speed | USB 2.0 |
| Vibration | MIL-STD-810G Method 514.7 |
| Band Options | EU version: - FDD LTE: 2100/1800/850/2600/900/800MHz(B1/B3/B5/B7/B8/B20) - TDD LTE: 2600/2300/2500MHz(B38/B40/B41) - WCDMA: 2100/850/900MHz (B1/B5/B8) |
| Installation | DIN-Rail , Wall mount (optional kit) |
| Reset Button | Yes |
| IEC 61000-4-2 | ESD |
| IEC 61000-4-3 | RS |
| IEC 61000-4-4 | EFT |
| IEC 61000-4-5 | Surge |
| IEC 61000-4-6 | CS |
| IEC 61000-4-8 | PFMF |
| Input Voltage | 9 - 48 VDC |
| PG5901B-4G-EU | Ind. Cellular Protocol Gateway with 1 Serial port, DB9, 4G, EU |
| PG5901B-4G-US | Ind. Cellular Protocol Gateway with 1 Serial port, DB9, 4G, US |
| USB Connector | USB A Type *2 |
| WMK-315-Black | 70100000000050G |
| ADP-DB9(F)-TB5 | 59906231G |
| IEC 61000-4-11 | DIP |
| Connector ports | 1x 10/100/1000BASE-TX RJ-45 |
| PG5901B-4G-B-EU | Ind. Cellular Protocol Gateway with 1 Serial port, DB9,4G , Internal Battery, EU |
| PG5901B-4G-B-US | Ind. Cellular Protocol Gateway with 1 Serial port, DB9,4G, Internal battery, US |
| PG5901B-IO-4G-EU | Ind. Cellular Protocol Gateway with 1 Serial port, TB14, 4G, 2 DI, 2 DO, EU |
| PG5901B-IO-4G-US | Ind. Cellular Protocol Gateway with 1 Serial port, TB14, 4G, 2 DI, 2 DO, US |
| Power Redundancy | USB DC 5V Power Input |
| Power Consumption | 0.65A@12 VDC (Approx. 7.8W) |
| PG5901B-IO-4G-B-EU | Ind. Cellular Protocol Gateway with 1 Serial port,TB14,4G,2DI,2DO,Pwr Bank, EU |
| PG5901B-IO-4G-B-US | Ind. Cellular Protocol Gateway with 1 Serial port, TB14,4G,2DI,2DO,Pwr Bank, US |
| Additional features | Remote SMS monitoring |
| Digital Inputs (DI) | 2 channels photo coupler isolated digital input |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Digital Outputs (DO) | 2 channels digital output. N.O.( 2A@24VDC) |
| PG5901B-IO-4G-GPS-EU | Ind. Cellular Protocol Gateway with 1 Serial port, TB14, 4G, 2 DI, 2 DO, GPS, EU |
| PG5901B-IO-4G-GPS-US | Ind. Cellular Protocol Gateway with 1 Serial port, TB14, 4G, 2 DI, 2 DO, GPS, US |
| Dimension (W x H x D) | 32mm x 122mm x 92mm |
| Maximum 4G throughput | EU version: - LTE-FDD Max 150Mbps (DOWNLINK), Max 50Mbps (UPLINK) - LTE-TDD Max 130Mbps (DOWNLINK), Max 30Mbps (UPLINK) - DC-HSPA+ Max 42Mbps (DOWNLINK), Max 5.76Mbps(UPLINK) - WCDMA Max 384Kbps(DOWNLINK), Max 384Kbps(UPLINK) |
| Operating Temperature | -40°C~70°C (-40°F~158°F) |
| UN315-1212 (US-Y) LV6 | 50500151120003G |
| PG5901B-IO-4G-GPS-B-EU | Ind. Cellular Protocol Gateway with 1 Serial port,TB14,4G,2DI,2DO,GPS,Pw Bank,EU |
| PG5901B-IO-4G-GPS-B-US | Ind. Cellular Protocol Gateway with 1 Serial port, TB14,4G,2DI,2DO,GPS,Pwr Bank,US |
| UNE315-1212 (EU-Y) LV6 | 50500151120013G |
| Ambient Relative Humidity | 5% to 95% (non-condensing) |
| Reverse Polarity Protection | Yes |
| Brand | ATOP |
| Model | PG5901B Series - ATOP |
| Main Category | Atop |
