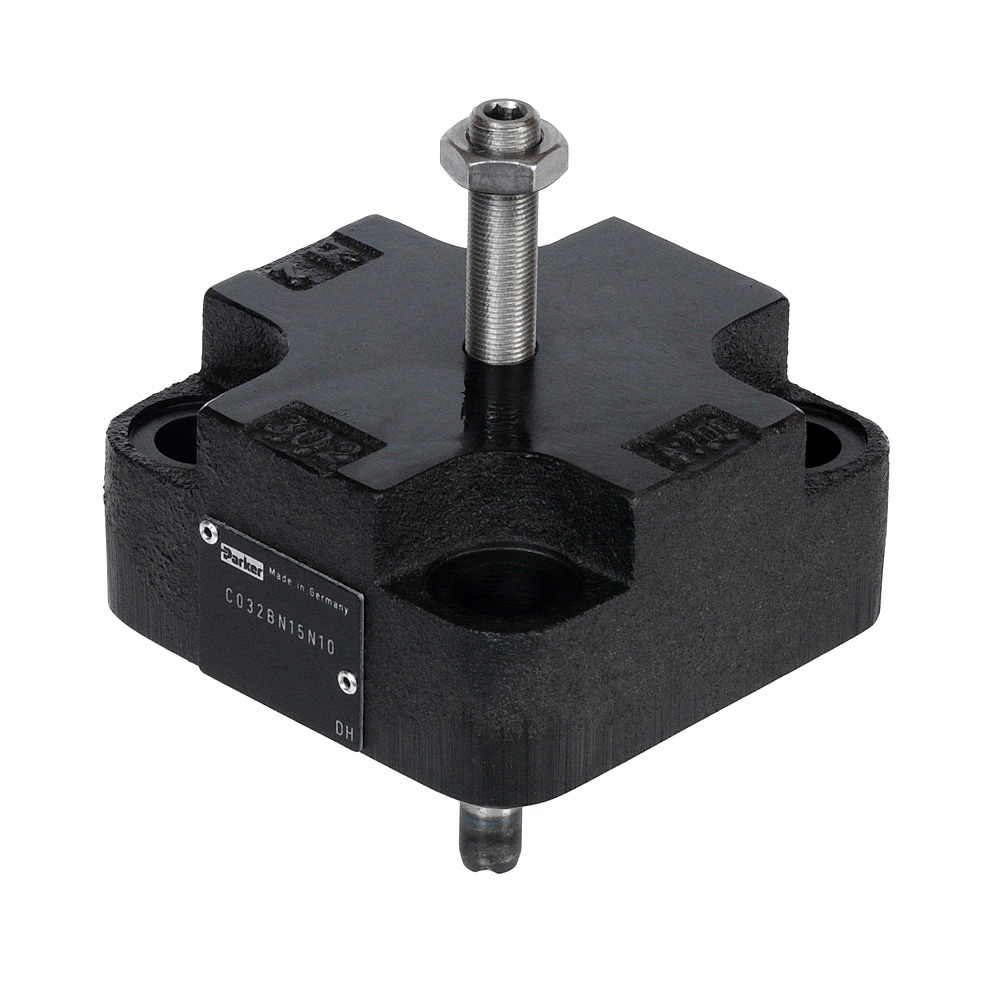

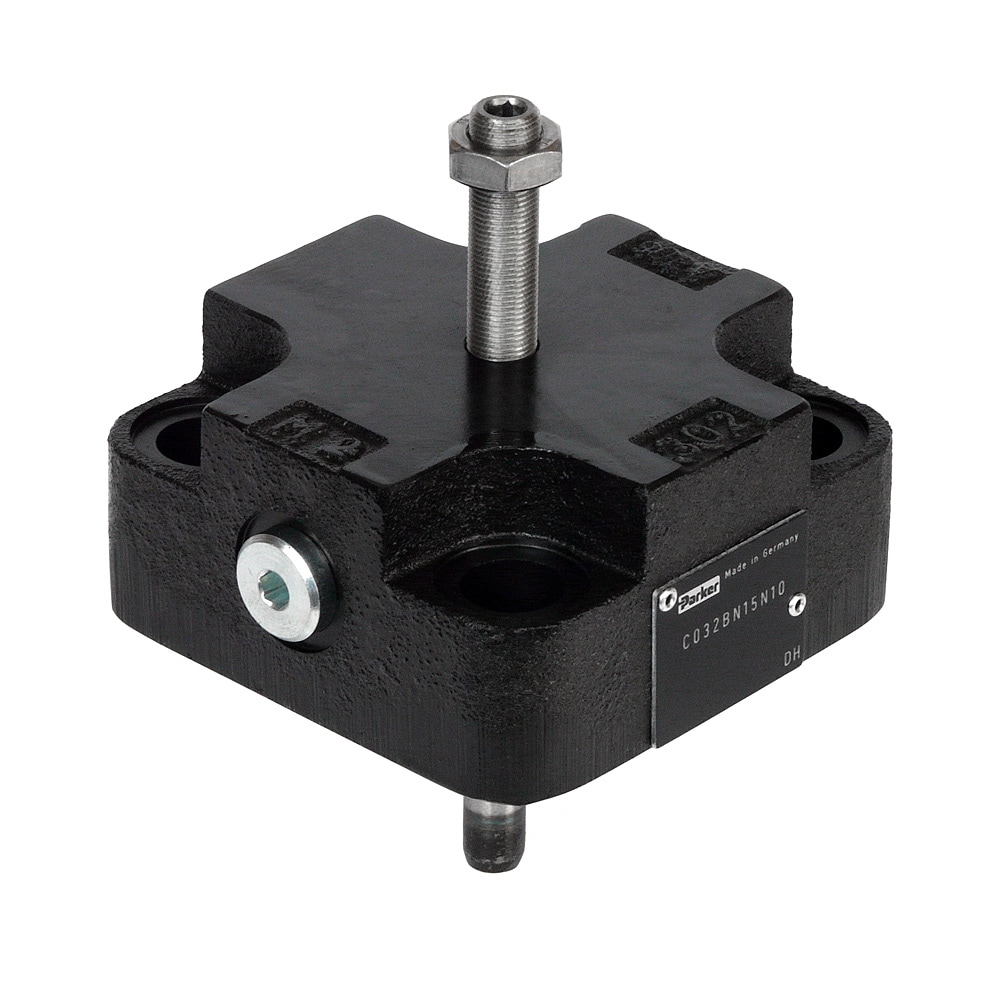

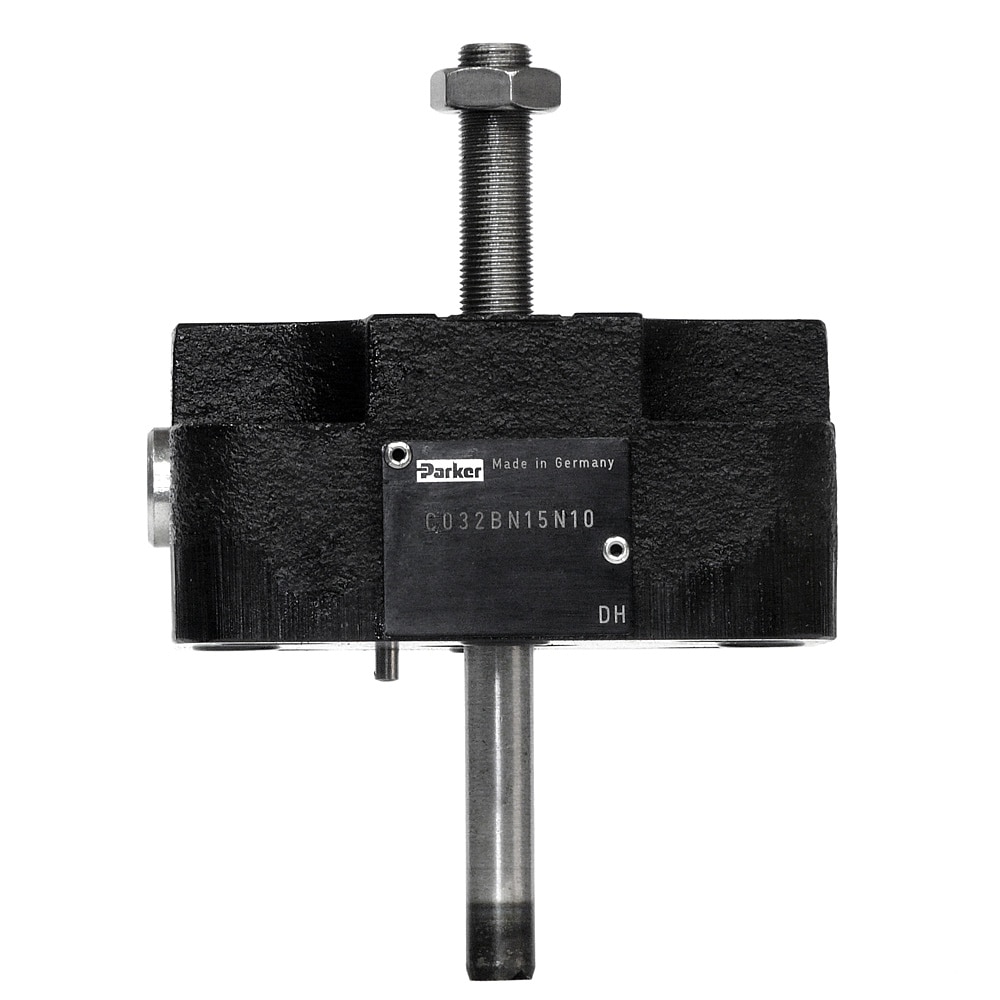

Covers for 2-Way Slip-In Cartridge Valves - Series C*B / C*H - C032BN99N
SKU:
C032BN99N
In Stock (15 items)
4 views
€0,00
VAT Included
Product Summary
Parker's cover with stroke limiter series C*B and C*H are universally applicable for compact manifold block installation and available in many different sizes.
Product Description
Parker's cover with stroke limiter series C*B and C*H are universally applicable for compact manifold block installation and available in many different sizes.
The cover with X-connection and stroke limiter series C*B and the cover with stroke limiter and DC mounting pattern series C*H for 2-way slip-in cartridge valves are universally applicable and ensure a reliable operation.
2-way slip-in cartridge valves are hydraulically controlled seat valves that are designed for compact block installation. Slip-in cartridge, cover and pilot system are components of Parker's modular DIN cartridge system which permits single and combined functions.
Markets:
• Industrial
• Molding
• Oil & Gas
Features/Benefits:
• Compact, proven design that represents our long-term experience in hydraulics - increases reliability
• Comprehensive range - allow maximum flexibility for single and combined functions
• 6 different sizes from NG16 to NG63 - suitable for almost every application
• Short delivery time - no warehousing necessary
Applications:
• Suitable for general hydraulic applications
• General presses
• Die cast
• Injection molding
2-way slip-in cartridge valves are hydraulically controlled seat valves that are designed for compact block installation. Slip-in cartridge, cover and pilot system are components of Parker's modular DIN cartridge system which permits single and combined functions.
Markets:
• Industrial
• Molding
• Oil & Gas
Features/Benefits:
• Compact, proven design that represents our long-term experience in hydraulics - increases reliability
• Comprehensive range - allow maximum flexibility for single and combined functions
• 6 different sizes from NG16 to NG63 - suitable for almost every application
• Short delivery time - no warehousing necessary
Applications:
• Suitable for general hydraulic applications
• General presses
• Die cast
• Injection molding
Note: C*H for 2-way slip-in cartridge valves is not longer available from Parker, please refer to the recommended products for a replacement.
Parker's C*B and C*H series shock limiting covers offer a reliable solution for industrial automation and hydraulic systems. Designed for two-way slip-in cartridge valves, these covers provide universal compatibility for compact manifold block mounting. Made from NBR material, these covers demonstrate durability against temperatures as low as -20 °C, making them an ideal choice for challenging operating conditions.
Parker is recognized worldwide for its high-quality products that meet industrial standards. The C032BN99N model can be utilized across various application areas, particularly in the automotive, machinery manufacturing, and construction sectors, delivering safe and effective performance. These covers play a critical role in enhancing the efficiency of your system and preventing potential failures. By selecting these high-quality shock limiting covers from Parker, you can ensure the long-lasting and reliable operation of your systems.
Technical Specifications
| Cover | With X-connection and stroke limiter |
| Weight | 2.9 kg |
| Function | 2-Way |
| Flow Rate | n/a |
| Body Material | Cast Iron |
| Configuration | Cover with Mounting Pattern for Pilot Valve Assembly |
| Mounting Type | Slip-in Cartridge |
| Seal Material | NBR |
| Actuation Type | Hydraulic Pressure |
| For Fluid Type | Hydraulic Oil According to DIN 51524 |
| Operation Type | n/a |
| Orifice 1 Size | Open |
| Orifice 2 Size | na |
| Orifice 3 Size | na |
| Orifice 4 Size | na |
| Product Series | Seat Valve |
| Adjustment Type | Screw/spindle |
| Port Connection | NG32 |
| Maximum Flow Rate | n/a |
| Maximum Operating Pressure | 350 bar (depending on pilot valve) |
| Maximum Operating Temperature | 60 °C |
| Minimum Operating Temperature | -20 °C |
| Brand | Parker |
| Model | Covers for 2-Way Slip-In Cartridge Valves - Series C*B / C*H - C032BN99N |
| SKU | C032BN99N |
| Main Category | Parker |
