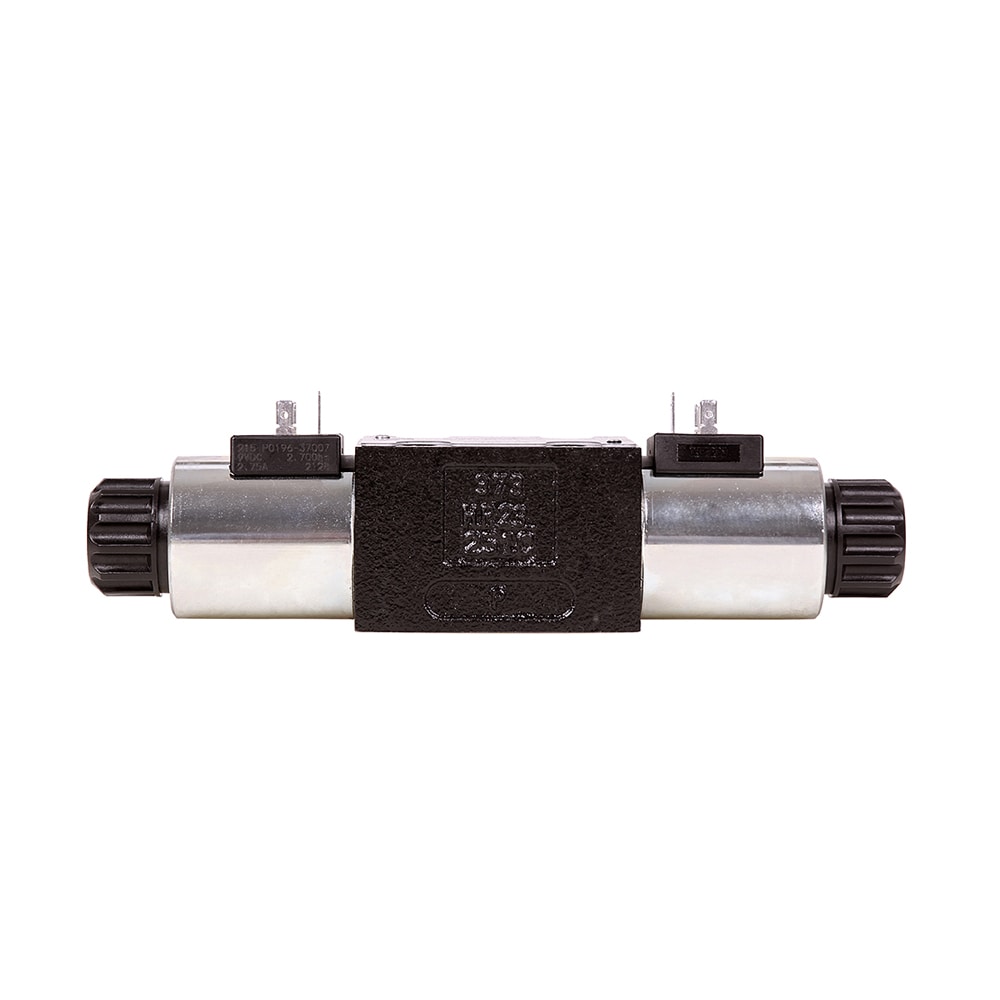

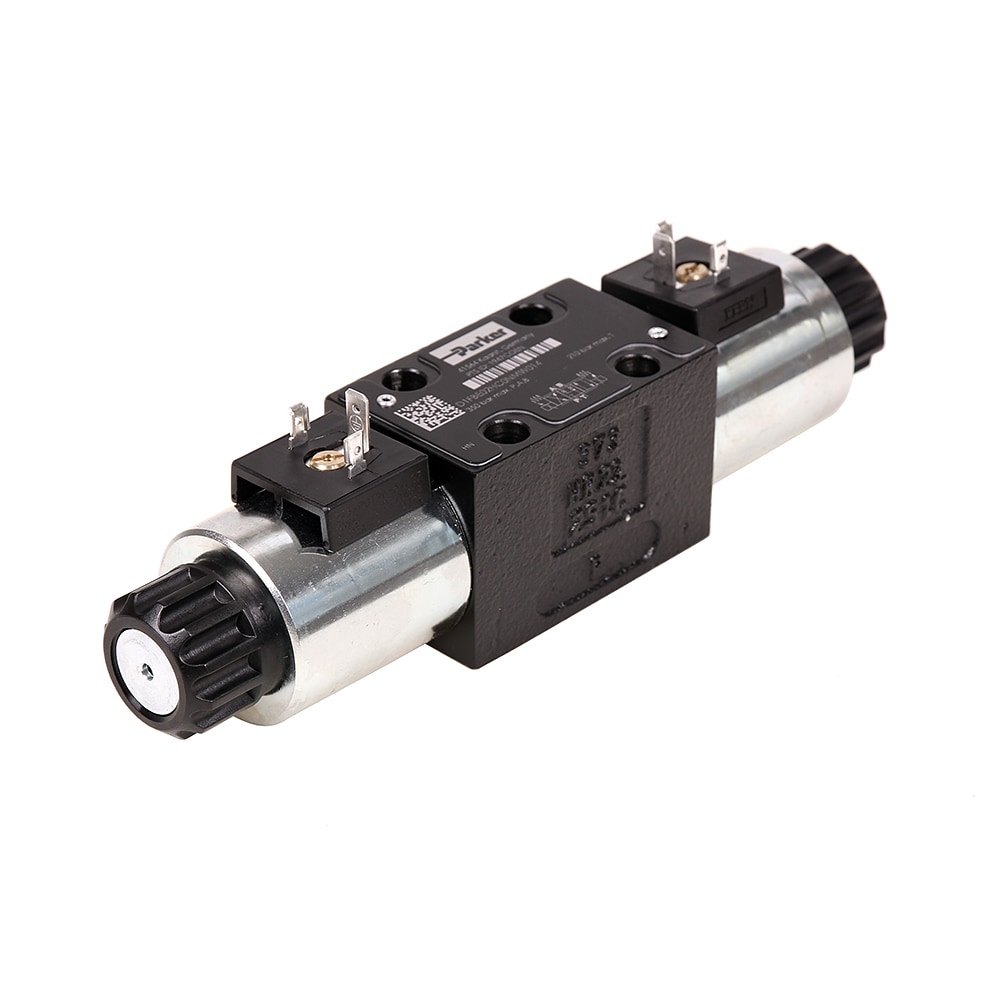

Direct Operated Proportional Directional Control Valve - Series D1FB / D3FB - D1FBE02HC0NMW0
VAT Included
Product Summary
Product Description
The direct operated valves D1FB (NG06) and D3FB (NG10) are universally applicable, provide high repeatability and low hysteresis for an improved process accuracy.
D1FB and D3FB represent Parker's experience in proportional DC valve technology. They are sutiable for use in applications which require a speed control. Both can be ordered with spool/sleeve design (D*FB*0) for maximum precision as well as spool/body design (D*FB*3) for high nominal flow. The parameters can be saved, changed and duplicated in combination with the digital power amplifier PWD00A-400.
The D1FB*EE series with explosion proof solenoids is based on the standard D1FB series. The specific solenoid design allows the usage in hazardous environments. The explosion proof class is Ex e mb II T4 Gb for use in zone 1 and 2 (conform to ATEX). Additionally the solenoids have IECEx conformity.
Markets:
• Industrial
• Machine tools
• Rubber & tire processing
Features/Benefits:
• Spool/sleeve and spool/body design - provides versatile applications, for maximum precision or high nominal flow
• Manual override - allows to actuate the valve without current
• Low hysteresis - ensures high repeatability and thus improved process and product accuracy
• High level of dynamics and flows - optimized process speed
• Short delivery time - no storage necessary
• D1FB*EE only: optional coil to permit ambient temperature up to +60 °C, modification XG371
Applications:
• Suitable for various hydraulic applications
• Machine tool
• Tire presses
Technical Specifications
| Weight | 2.2 kg |
| Function | 3-way |
| Flow Rate | 20 L/MIN |
| Leak Rate | < 50 ml/min |
| Hysteresis | < 4 % |
| Spool Code | E02H |
| Spool Type | Overlap |
| Spool Design | Spool/sleeve |
| Body Material | Cast Iron |
| Mounting Type | Subplate |
| Seal Material | NBR |
| Actuation Type | Proportional, Solenoid |
| For Fluid Type | Hydraulic Oil According to DIN 51524 ... 535 |
| Operation Type | Direct |
| Product Series | Proportional DC Valve |
| Spool Position | Operated in position a or b |
| Port Connection | NG06 / CETOP 03 |
| Solenoid Option | 9 V / 2.7 A |
| Electronics Type | External |
| Maximum Flow Rate | n/a |
| Mounting Position | Unrestricted |
| Solenoid Connection | Connector as per EN 175301-803 |
| Pressure Differential | 5 bar |
| Filter Efficiency Rating | ISO 4406; 18/16/13 |
| Ingress Protection Rating | IP65 in accordance with EN 60529 |
| Maximum Fluid Temperature | 60 °C |
| Minimum Fluid Temperature | -25 °C |
| Maximum Operating Pressure | 350 bar |
| Maximum Ambient Temperature | 60 °C |
| Maximum Kinematic Viscosity | 400 cSt |
| Minimum Ambient Temperature | -20 °C |
| Minimum Kinematic Viscosity | 20 cSt |
| Maximum Operating Temperature | 60 °C |
| Minimum Operating Temperature | -20 °C |
| Brand | Parker |
| Model | Direct Operated Proportional Directional Control Valve - Series D1FB / D3FB - D1FBE02HC0NMW0 |
| SKU | D1FBE02HC0NMW0 |
| Main Category | Parker |
