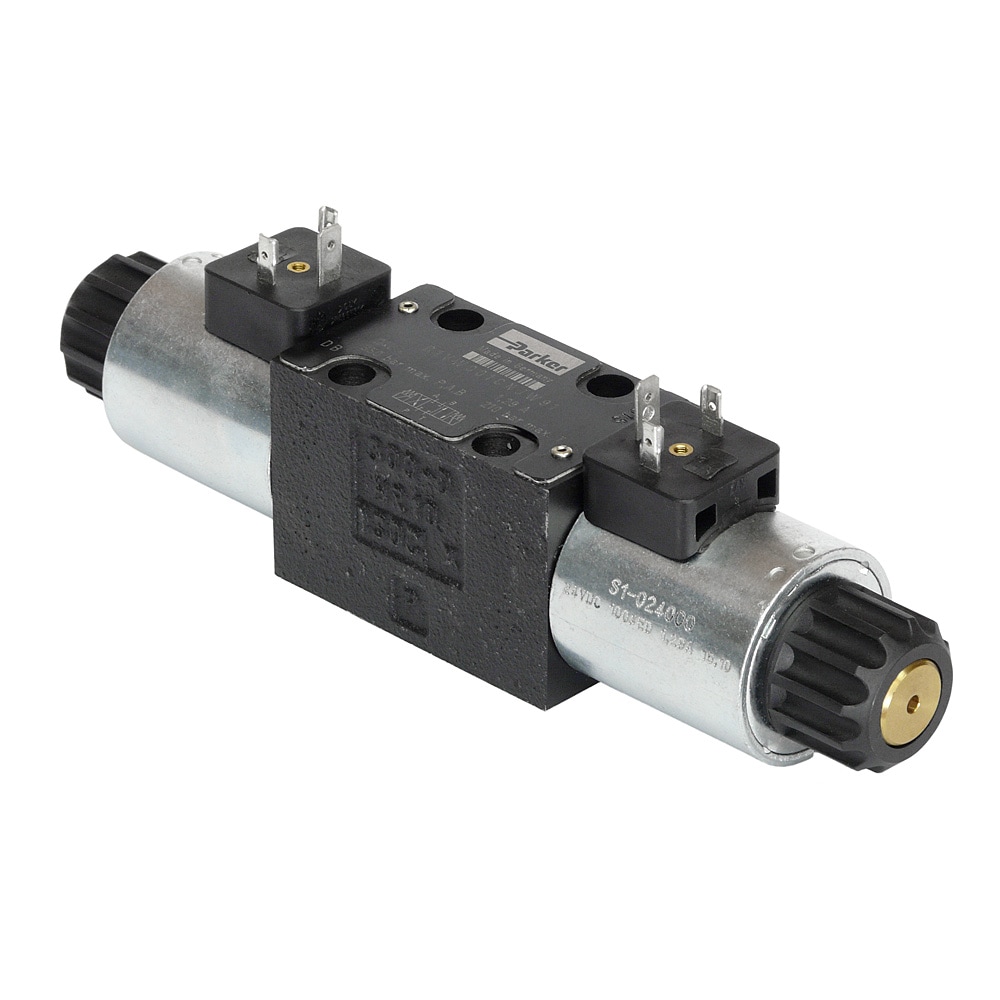

Directional Control Valve - Series D1VW / D1VW*EE - D1VW001CNYW
SKU:
D1VW001CNYW
In Stock (15 items)
142 views
€0,00
VAT Included
Product Summary
The D1VW in NG06 (CETOP 03) is an on/off valve which provides high functional limits in combination with a very low, energy-saving pressure drop. It is optionally available with soft shift option or a...
Product Description
The D1VW in NG06 (CETOP 03) is an on/off valve which provides high functional limits in combination with a very low, energy-saving pressure drop. It is optionally available with soft shift option or as explosion proof version according to ATEX and IECEx.
The directional control valve series D1VW in NG06 (CETOP 03 / NFPA D03) provides high functional limits up to 80 l/min in combination with a very low, energy-saving pressure drop due to optimized flow passages. The maximum pressure is 350 bar.
A wide variety of spools and options allows to design an unlimited number of hydraulic circuits. The D1VW is available with a soft shift option for smooth operation. An additional orifice in the solenoid anchor dampens the shifting time.
The D1VW*EE with explosion proof solenoids is based on the standard D1VW series. It is not only ATEX certified (explosion proof class is Ex e mb II T4 Gb for use in zone 1 and 2) but also equipped with IECEx compliant solenoids which are certified in accordance with IECEx standard for equipment class 2 G. All explosion proof solenoids are DC design. The valves for AC operate with integrated rectifier.
Markets:
• Industrial
Features/Benefits:
• Compact, proven design that represents our long-term experience in hydraulics
• Wide range of spools - fits all hydraulic systems
• Shortest lead time - no warehousing necessary
• Optional soft shift option - for smooth operation
• Optional manual override
• Optional ex proof version
Applications:
• Suitable for general hydraulic applications
A wide variety of spools and options allows to design an unlimited number of hydraulic circuits. The D1VW is available with a soft shift option for smooth operation. An additional orifice in the solenoid anchor dampens the shifting time.
The D1VW*EE with explosion proof solenoids is based on the standard D1VW series. It is not only ATEX certified (explosion proof class is Ex e mb II T4 Gb for use in zone 1 and 2) but also equipped with IECEx compliant solenoids which are certified in accordance with IECEx standard for equipment class 2 G. All explosion proof solenoids are DC design. The valves for AC operate with integrated rectifier.
Markets:
• Industrial
Features/Benefits:
• Compact, proven design that represents our long-term experience in hydraulics
• Wide range of spools - fits all hydraulic systems
• Shortest lead time - no warehousing necessary
• Optional soft shift option - for smooth operation
• Optional manual override
• Optional ex proof version
Applications:
• Suitable for general hydraulic applications
The Parker D1VW Series Directional Control Valve is a reliable and high-performance solution for industrial applications. Designed in accordance with the NG06 (CETOP 03) standard, this valve offers low energy consumption while maintaining high functionality. The low pressure drop inherent in the D1VW model contributes to energy savings, making it an ideal choice for various applications. Additionally, the optional soft transition feature enhances operational comfort. The D1VW also stands out with its explosion-proof versions compliant with ATEX and IECEx standards, providing safe usage in hazardous environments. Constructed from NBR material, this valve operates effectively within a wide temperature range down to -25 °C. It is particularly favored in hydraulic systems, the automotive industry, and machine automation, making it a versatile addition to any industrial setup.
Technical Specifications
| Weight | 2.1 kg |
| Marking | Standard |
| Function | 3-Way |
| Spool Code | 001 |
| Orifice Size | na |
| Body Material | Cast Iron |
| Input Voltage | 110/120 VAC, 50/60 Hz |
| Mounting Type | Subplate |
| Seal Material | NBR |
| Actuation Type | Solenoid |
| For Fluid Type | Hydraulic Oil According to DIN 51524 |
| Operation Type | Direct |
| Product Series | Directional Control Valve |
| Spool Position | 3 positions, spring offset in position 0, operated in position a or b |
| Connection Type | Connector as per EN 175301-803 |
| Port Connection | NG06 / CETOP 03 |
| Solenoid Option | Standard |
| Maximum Flow Rate | 80 L/min |
| Mounting Position | Unrestricted, Preferably Horizontal |
| Maximum Operating Pressure | 350 bar |
| Maximum Operating Temperature | 60 °C |
| Minimum Operating Temperature | -25 °C |
| Brand | Parker |
| Model | Directional Control Valve - Series D1VW / D1VW*EE - D1VW001CNYW |
| SKU | D1VW001CNYW |
| Main Category | Parker |
