Hydraulic Valves

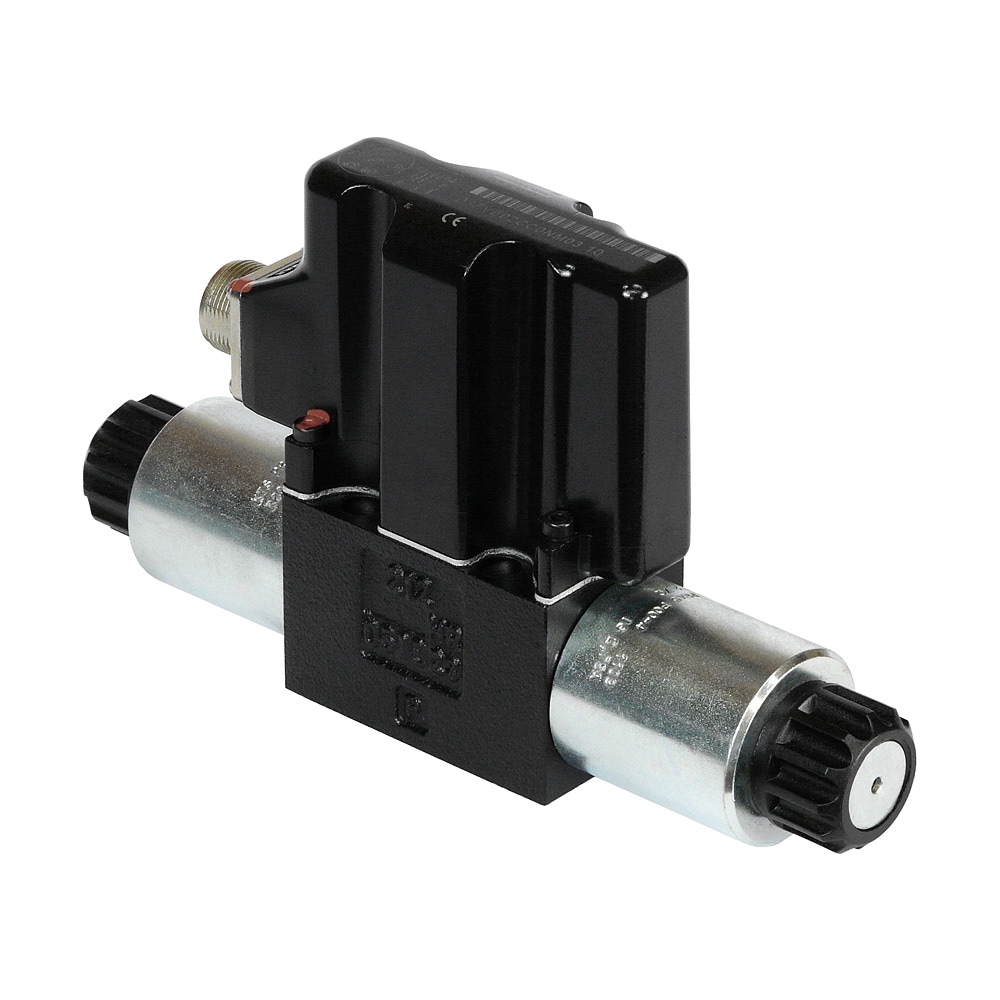

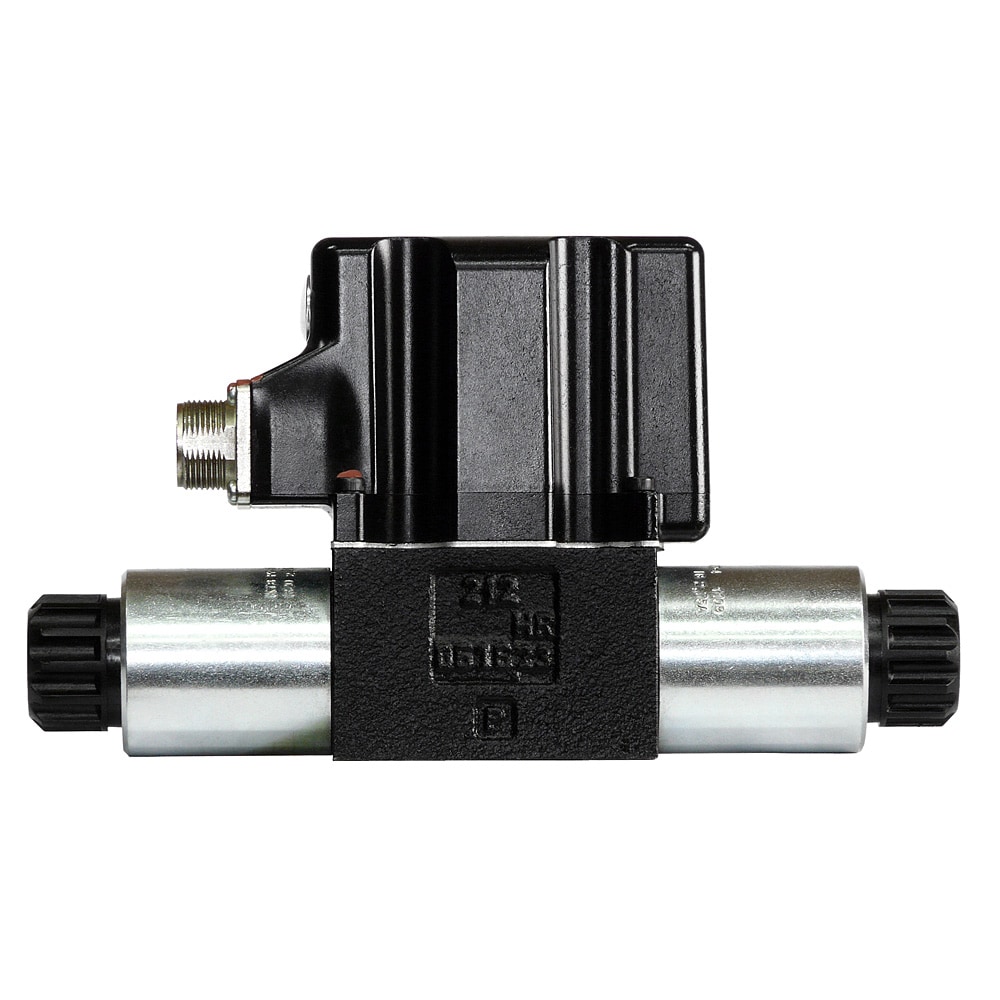

Proportional Pressure Reducing Valve with Onboard Electronics - Series D1FV OBE
Proportional Pressure Reducing Valve with Onboard Electronics - Series D1FV OBE - D1FVE02CC0NM03
SKU:
D1FVE02CC0NM03
In Stock (15 items)
144 views
€0,00
VAT Included
Product Summary
The durable proportional pressure reducing valve D1FV OBE in NG06 (CETOP 03) features a very good pressure control behaviour. The digital onboard electronics is situated in a robust metal housing and...
Product Description
The durable proportional pressure reducing valve D1FV OBE in NG06 (CETOP 03) features a very good pressure control behaviour. The digital onboard electronics is situated in a robust metal housing and provides a wide range of available commands.
he robust proportional pressure reducing valve series D1FV with onboard electronics in size NG06 / CETOP 03 is perfectly suitable for precise pilot controls and therefore optimized process accuracy due to its excellent pressure control behaviour.
Markets
• Industrial
Features/Benefits:
• Robust, proven design that represents our long-term experience in hydraulics
• Outstanding pressure behaviour - ideal for pilot controls
• Low hysteresis - ensures high repeatability and thus improved process and product accuracy
• Wide range of available commands - universally applicable
• Short delivery time - no warehousing necessary
• Manual override - allows to actuate the valve without current
• Barometric feedback
• Pressure stages 25 bar and 45 bar
Applications:
• Suitable for general hydraulic applications
Technical specifications:
The D1FV OBE controls the pressure in the A- or B-ports using the barometric feedback principle. The digital onboard electronics is situated in a robust metal housing which allows the usage under rough environmental conditions. The nominal values are factory set. The cable for connection to a serial RS232 interface is available as accessory. The value parameters can be edited with the common ProPxD software.
Markets
• Industrial
Features/Benefits:
• Robust, proven design that represents our long-term experience in hydraulics
• Outstanding pressure behaviour - ideal for pilot controls
• Low hysteresis - ensures high repeatability and thus improved process and product accuracy
• Wide range of available commands - universally applicable
• Short delivery time - no warehousing necessary
• Manual override - allows to actuate the valve without current
• Barometric feedback
• Pressure stages 25 bar and 45 bar
Applications:
• Suitable for general hydraulic applications
Technical specifications:
The D1FV OBE controls the pressure in the A- or B-ports using the barometric feedback principle. The digital onboard electronics is situated in a robust metal housing which allows the usage under rough environmental conditions. The nominal values are factory set. The cable for connection to a serial RS232 interface is available as accessory. The value parameters can be edited with the common ProPxD software.
The Parker D1FV OBE proportional pressure reducing valve is designed to provide excellent pressure control in industrial applications. Manufactured in accordance with NG06 (CETOP 03) standards, this valve features a robust metal housing containing digital onboard electronics, offering a broad command range. With an effective operating temperature range from -25 °C, the D1FV OBE utilizes NBR material for durability and reliability. Its IP65 protection class ensures resistance to water and dust, making it suitable for challenging industrial environments. Commonly used in sectors such as automotive, mining, and manufacturing, this valve is an ideal choice for enhancing system efficiency and reliability. For those seeking a reliable solution with the quality of the Parker brand, the D1FV OBE stands out with its performance and durability.
Technical Specifications
| Weight | 2.9 kg |
| Function | 3-way |
| Hysteresis | < 4 % |
| Signal Input | 0 - ±10 V |
| Body Material | Cast Iron |
| Mounting Type | Subplate |
| Seal Material | NBR |
| Actuation Type | Proportional, Solenoid |
| For Fluid Type | Hydraulic Oil According to DIN 51524...535 |
| Operation Type | Direct |
| Product Series | Proportional DC Valve |
| Spool Position | Operated in position a or b |
| Port Connection | NG06 / CETOP 03 |
| Maximum Flow Rate | 10 L/min |
| Mounting Position | Unrestricted |
| Solenoid Connection | 6 + PE |
| Pressure Control Range | 25 |
| Filter Efficiency Rating | ISO 4406; 18/16/13 |
| Ingress Protection Rating | IP65 in accordance with EN 60529 |
| Maximum Fluid Temperature | 60 °C |
| Minimum Fluid Temperature | -25 °C |
| Maximum Operating Pressure | 350 bar |
| Maximum Ambient Temperature | 60 °C |
| Maximum Kinematic Viscosity | 400 cSt |
| Minimum Ambient Temperature | -20 °C |
| Minimum Kinematic Viscosity | 20 cSt |
| Maximum Operating Temperature | 60 °C |
| Minimum Operating Temperature | -25 °C |
| Brand | Parker |
| Model | Proportional Pressure Reducing Valve with Onboard Electronics - Series D1FV OBE - D1FVE02CC0NM03 |
| SKU | D1FVE02CC0NM03 |
| Main Category | Parker |
