Fortress Safety
Fortress Safety
ATM-100A1-A
In Stock (100 items)
60 views
€0,00
VAT Included
Product Summary

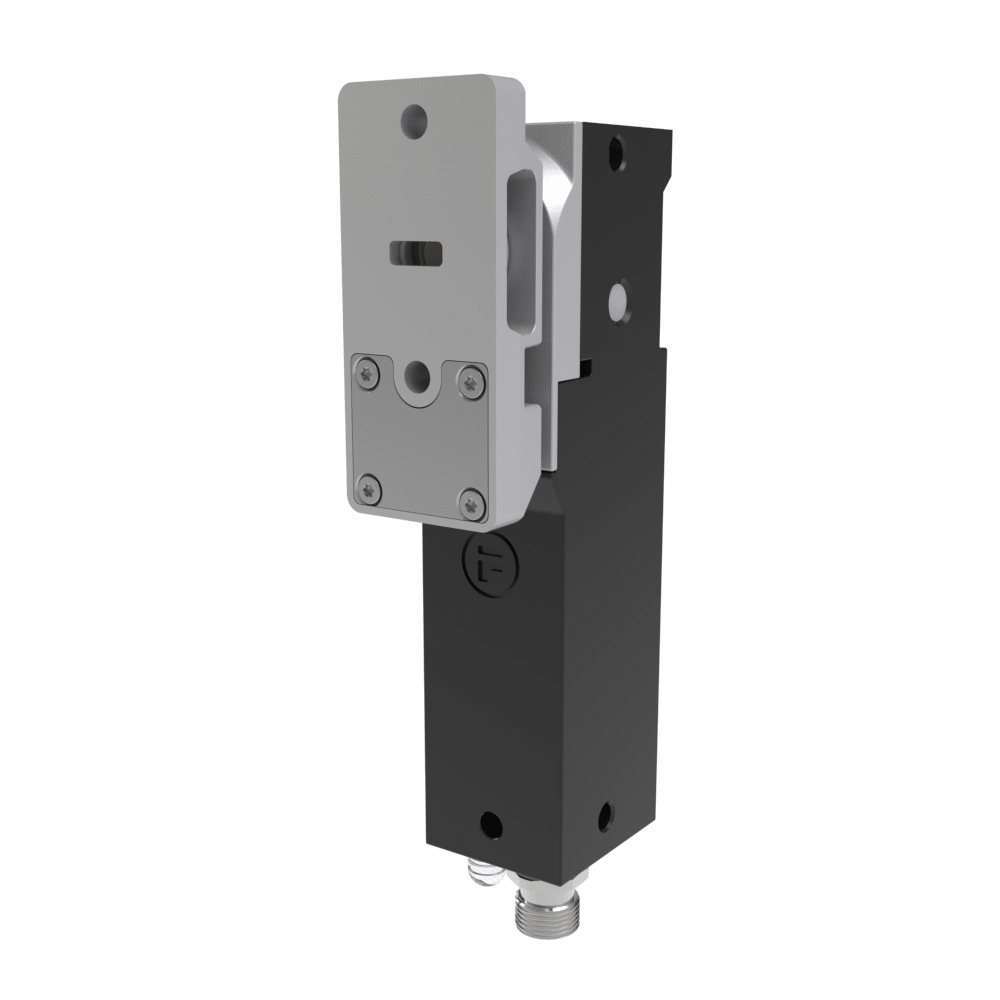

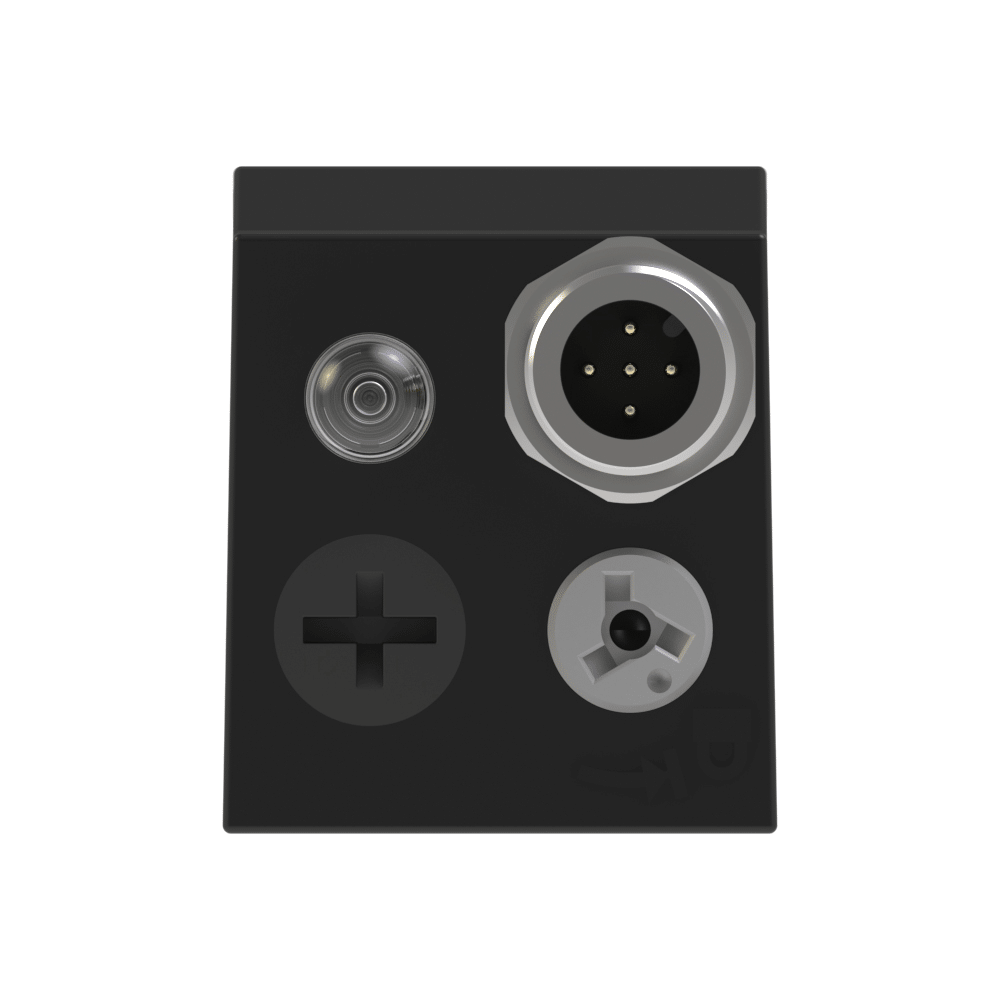

Compact interlock with guard locking (power-to-unlock), 1 x 5 pin M12 connector
Product Description
Compact interlock with guard locking (power-to-unlock), 1 x 5 pin M12 connector
The Fortress Safety ATM-100A1-A model is an excellent solution in the field of industrial safety. Its compact design allows for easy installation even in tight spaces. This safety interlock is equipped with a power-to-unlock feature and connects via a 1 x 5 pin M12 connector. With a high protection class of IP65 and IP67, it is resistant to dust and water, while its temperature range of -20°C to +55°C ensures reliable performance even in harsh industrial conditions.
The ATM-100A1-A complies fully with safety standards, enhancing the security of your operations. It is suitable for various applications such as production lines, automation systems, and heavy machinery. By choosing Fortress Safety, you can make your industrial processes safer while also increasing productivity. This product is an ideal choice for elevating safety standards in your workplace and ensuring the well-being of your employees.
Technical Specifications
| PFH | 4.16×10-9 |
| Monitor | 200mA Limit |
| Features | Power-to-Unlock |
| Vibration | Tested in accordance with GS-ET-19 and BS 60947-5-2 |
| Environment | Indoor |
| Part Number | ATM-100A1-A |
| Safety Inputs | 3.5mA Draw Each |
| Safety Outputs | 50mA Limit Each |
| Solenoid Drive | 3.5mA Draw |
| Maximum Altitude | 2000m |
| Voltage Drop, Ud | <3.5V |
| Off-State Current | <0.5mA |
| Ingress Protection | IP65, IP67 |
| Ambient Temperature | -20°C * to +55°C (-4°F to +131°F) |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring. |
| Applicable Standards | 60947-5-2, BS 62061, IEC 61508, ISO 13849, ISO 14119 |
| Overvoltage Category | Type 2 |
| Safety Response Time | <200ms |
| Operating Voltage, Ue | 24V DC (+/- 10%) |
| To Meet UL Requirements | The device must be connected to a Limited Voltage/Current Circuit A 4A fuse must be fitted to the device power supply |
| Rated Operating Currents | 400mA |
| Maximum Relative Humidity | 50% at 70°C |
| Category (ISO 13849-1:2015) | Up to Cat.4 |
| Minimum Operational Current | 100mA |
| Rated Insulation Voltage, Ui | 60V |
| SIL (according to IEC 62061) | Up to SIL CL3 |
| Brand | Fortress Safety |
| Model | ATM-100A1-A |
| Main Category | Fortress Safety |
