Product Summary

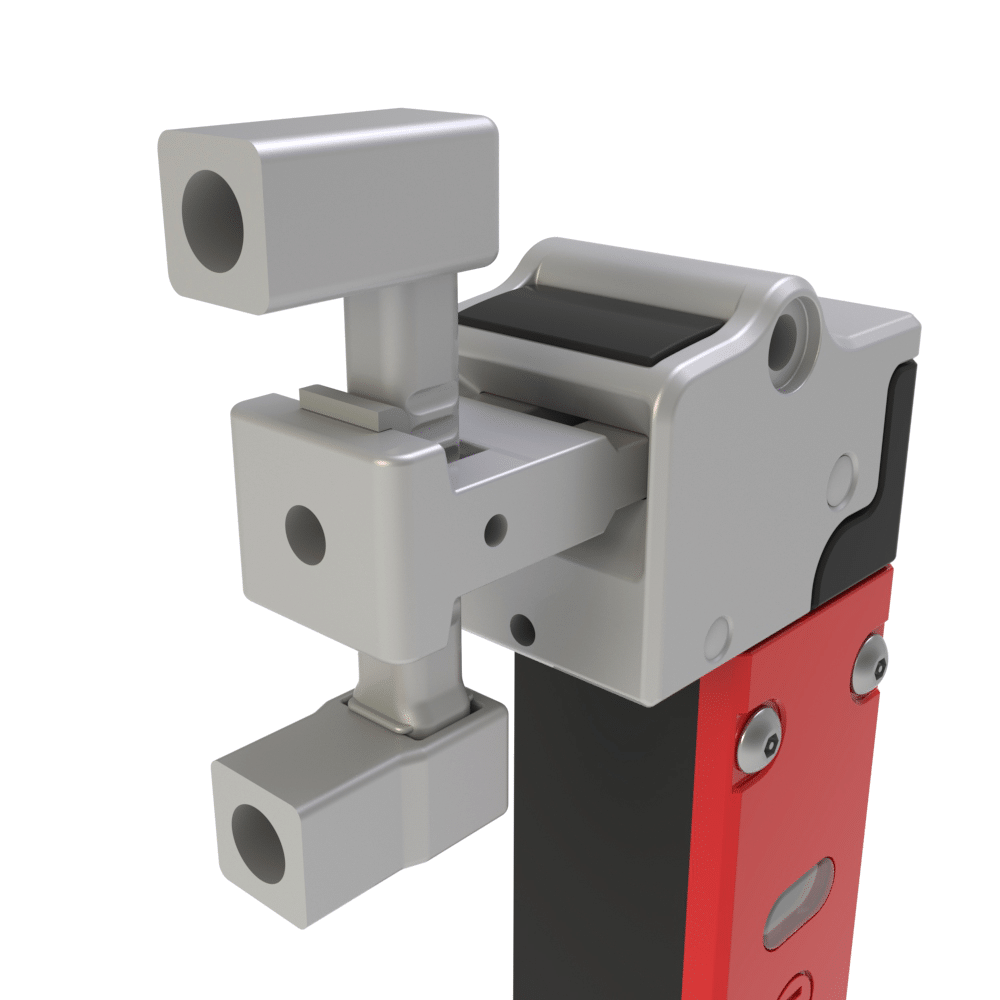

An interlock without locking, featuring an AT tongue and an AT head.
Product Description
An interlock without locking, featuring an AT tongue and an AT head.
The Fortress Safety TA2T6ST401 model offers an excellent solution in the field of industrial safety. This interlock is designed without a locking feature, equipped with an AT tongue and an AT head. Its robust and durable construction is made of zinc alloy, complying with the BSEN12844 standard. With a voltage capacity of 2500V AC, this product meets the high safety standards by achieving a Performance Level (PL) of e. The IP67 protection class provides superior defense against dust and water, making it suitable for use in harsh industrial environments. The TA2T6ST401 model is particularly preferred in machine safety and automation systems. This quality product from Fortress Safety plays a significant role in enhancing safety and ensuring the efficiency of your operations.
Technical Specifications
| DC | Position Monitoring |
| λd | 10% |
| B10d | 5000000 |
| Materials | Stainless Steel to BS3146 |
| Cable Size | 28 – 24 AWG |
| Environment | Indoor, Outdoor |
| Part Number | TA2-T6-ST401 |

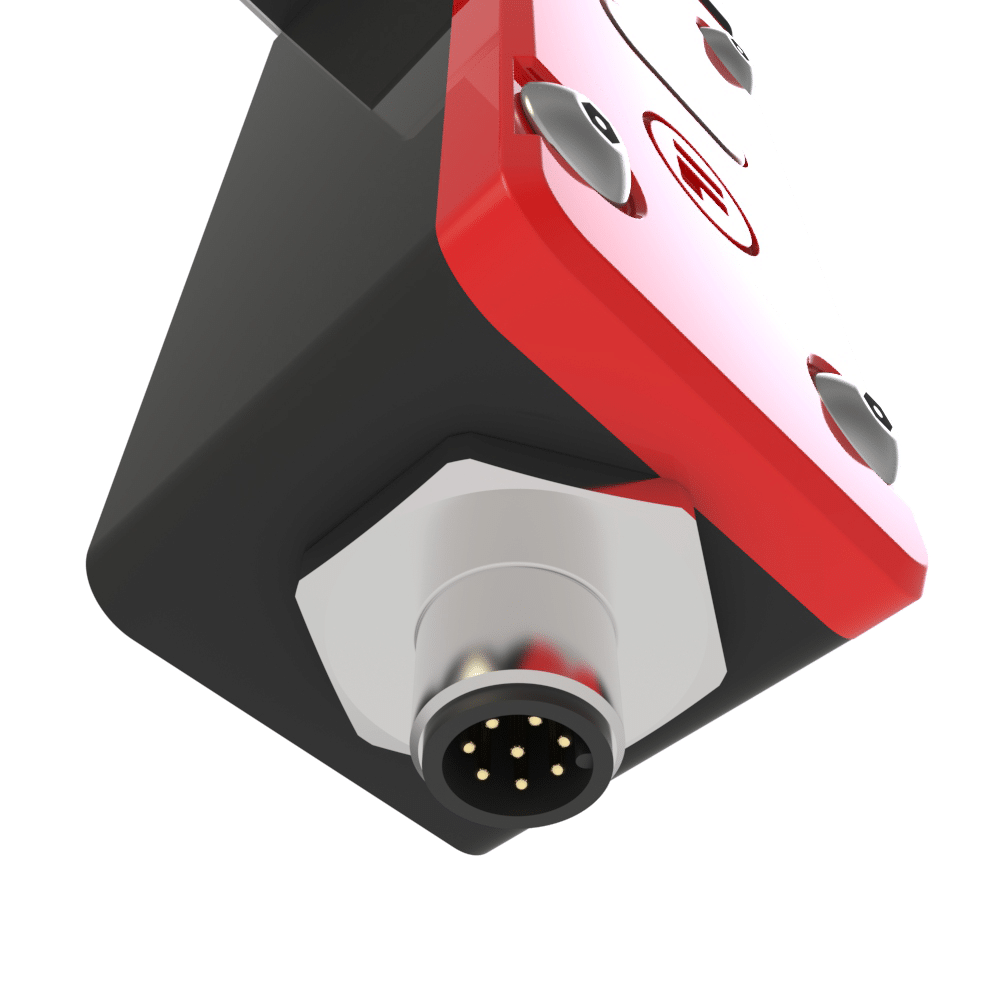

| Connector Type | Spring Activated Vibration Proof Block |
| Paint Finishes | Gloss Powder Coat on Passivated Base Material |
| Control Voltage | 24V ac/dc, 110V ac, 230V ac |
| Mechanical Life | 1,000,000 Switching Cycles |
| Operating Force | 5N |
| Retention Force | 10,000N(locked) |
| Housing Materials | Zinc Alloy to BSEN12844 |
| Performance Level | PLe |
| Ingress Protection | IP67 |
| Insulating Voltage | 2500V AC |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring |
| Utilisation Category | AC 15 or DC 13 |
| Insulating Resistance | 20M Ohm |
| Maximum Switch Current | 3A |
| Minimum Switch Current | 1mA at 5VDC |
| Brand | Fortress Safety |
| Model | TA2T6ST401 |
| Main Category | Fortress Safety |
