Fortress Safety
Fortress Safety
MA2M6ST401
In Stock (100 items)
59 views
€0,00
VAT Included
Product Summary

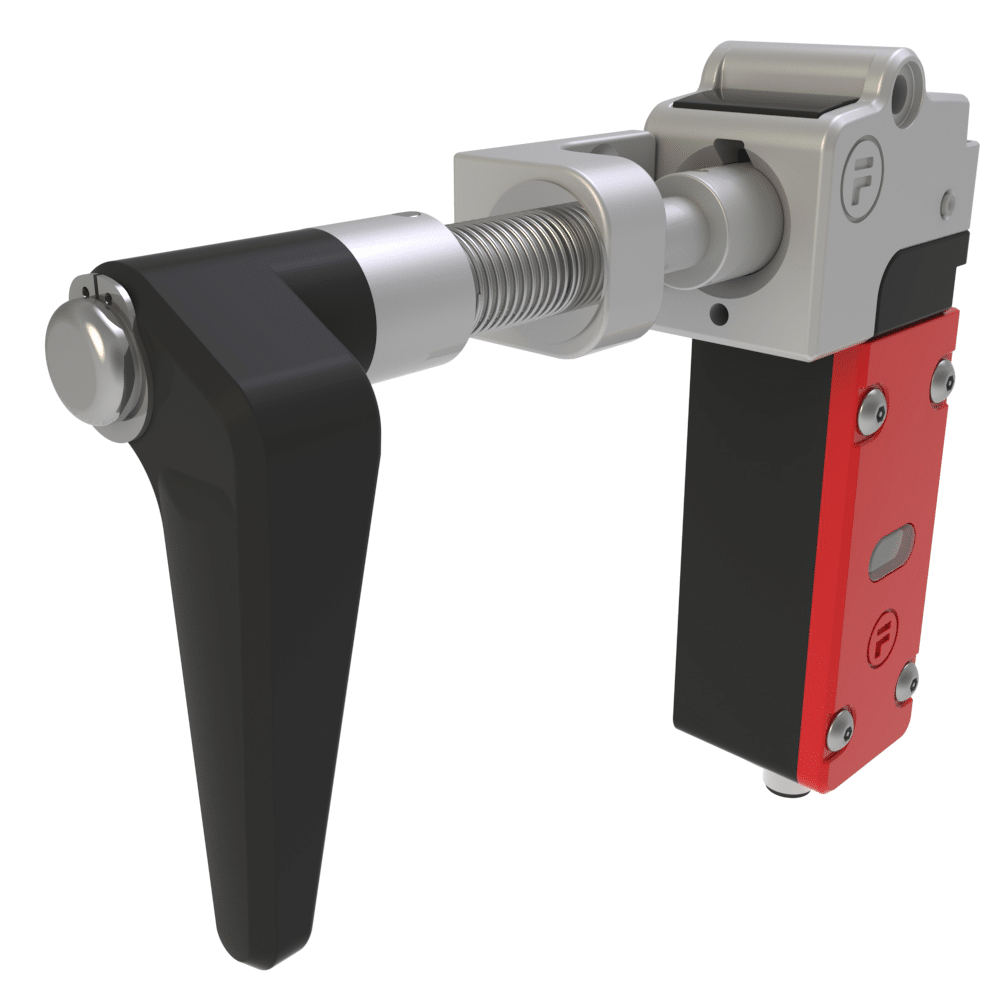

An interlock without locking, featuring an AM rotary insertion handle and AM rotary insertion head.
Product Description
An interlock without locking, featuring an AM rotary insertion handle and AM rotary insertion head.
The Fortress Safety MA2M6ST401 model is a pioneering solution in the field of industrial safety. This interlock mechanism offers a user-friendly experience with its lock-free design. The AM rotary insertion handle and AM rotary insertion head features facilitate the device's use while ensuring compliance with high safety standards. With a voltage capacity of 2500V AC, this product provides robust performance, and its IP67 protection class offers superior resistance against dust and moisture. The zinc alloy body, constructed in accordance with BSEN12844 and BS3146 standards, ensures durability and longevity. The Fortress Safety MA2M6ST401 is ideal for enhancing safety in automation, machine safety, and industrial facilities. With its strong construction and high-performance level (PLe), it is an excellent choice to meet your safety requirements.
Technical Specifications
| DC | Position Monitoring |
| λd | 10% |
| B10d | 5000000 |
| Cable Size | 28 – 24 AWG |
| Environment | Indoor, Outdoor |
| Part Number | MA2-M6-ST401 |
| Connector Type | Spring Activated Vibration Proof Block |
| Paint Finishes | Gloss Powder Coat on Passivated Base Material |
| Control Voltage | 24V ac/dc, 110V ac, 230V ac |
| Mechanical Life | 1,000,000 Switching Cycles |
| Operating Force | 0.5Nm |
| Retention Force | 10,000N(locked) |
| Housing Materials | Zinc Alloy to BSEN12844 Stainless Steel to BS3146 |
| Performance Level | PLe |
| Ingress Protection | IP67 |
| Insulating Voltage | 2500V AC |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring |
| Utilisation Category | AC 15 or DC 13 |
| Insulating Resistance | 20M Ohm |
| Maximum Switch Current | 3A |
| Minimum Switch Current | 1mA at 5VDC |
| Brand | Fortress Safety |
| Model | MA2M6ST401 |
| Main Category | Fortress Safety |
