C6SKL63ST401
In Stock (100 items)
58 views
€0,00
VAT Included
Product Summary

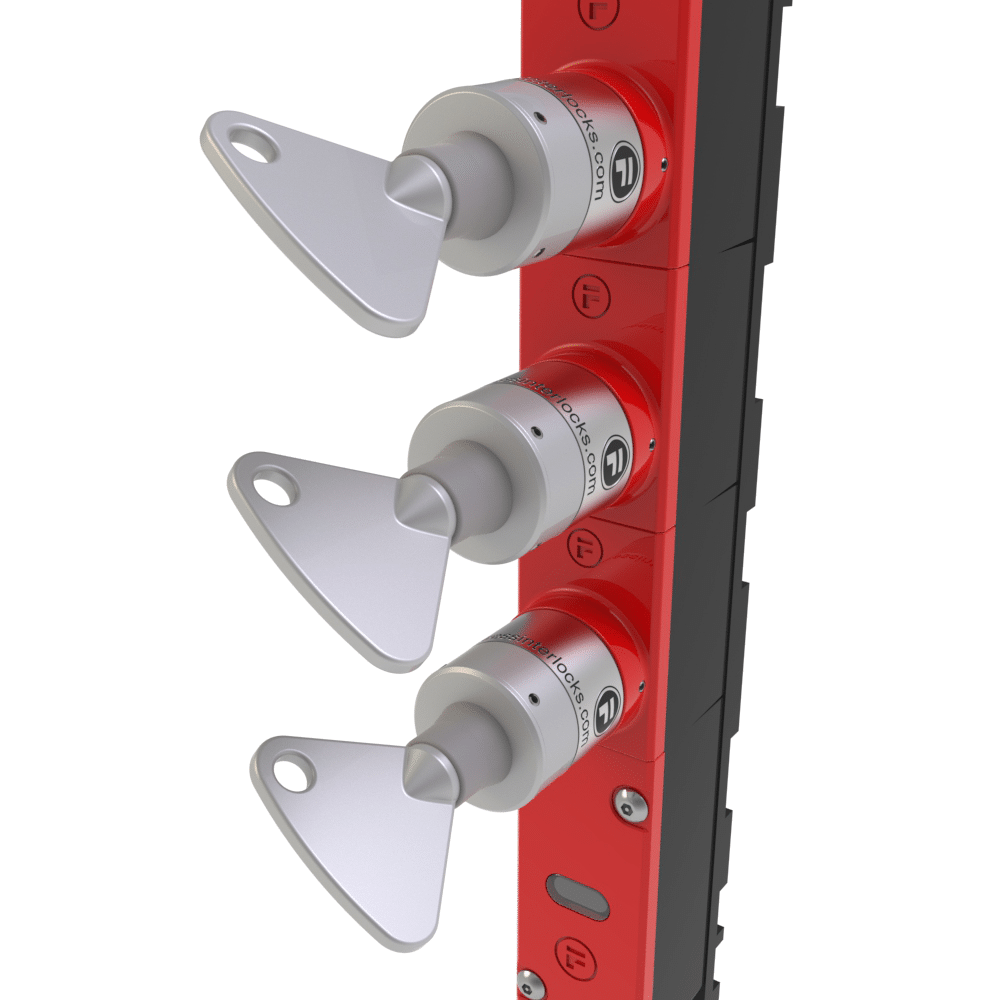

An interlock without locking, featuring a cap to terminate assembly without heads and a personnel key adaptor with three masterable keys and no dust cover.
Product Description
An interlock without locking, featuring a cap to terminate assembly without heads and a personnel key adaptor with three masterable keys and no dust cover.
The Fortress Safety C6SKL63ST401 model is an innovative interlock system that offers a reliable solution for industrial safety. Designed without a locking mechanism, it features a unique cap for headless assembly termination, ensuring ease of installation. Additionally, the personnel key adaptor comes with three master keys, providing maximum security for your operations. Made entirely of stainless steel, this product stands out for its durability and long-lasting performance.
The C6SKL63ST401 meets high performance standards with a voltage capacity of 2500V AC and achieves a safety performance level of PLe. With an IP67 protection class, it offers superior resistance against dust and water, making it ideal for harsh industrial environments. Reflecting the quality of the Fortress Safety brand, this product is an excellent choice for enhancing safety in automotive, machinery, and manufacturing sectors. Choose the Fortress Safety C6SKL63ST401 to improve your industrial safety and sec...
Technical Specifications
| DC | Position Monitoring |
| λd | 10% |
| B10d | 5000000 |
| Features | Personnel Key |
| Materials | Stainless Steel to BS3146 |
| Cable Size | 28 – 24 AWG |
| Environment | Indoor, Outdoor |
| Part Number | C6-SKL63-ST401 |
| Connector Type | Spring Activated Vibration Proof Block |
| Paint Finishes | Gloss Powder Coat on Passivated Base Material |
| Control Voltage | 24V ac/dc, 110V ac, 230V ac |
| Mechanical Life | 1,000,000 Switching Cycles |
| Housing Materials | Zinc Alloy to BSEN12844 |
| Performance Level | PLe |
| Ingress Protection | IP67 |
| Insulating Voltage | 2500V AC |
| Internal Materials | All Stainless Steel |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring |
| Utilisation Category | AC 15 or DC 13 |
| Insulating Resistance | 20M Ohm |
| Maximum Switch Current | 3A |
| Minimum Switch Current | 1mA at 5VDC |
| Brand | Fortress Safety |
| Model | C6SKL63ST401 |
| Main Category | Fortress Safety |
