ATM-100A1-A-ER1
Out of Stock
348 views
€0,00
VAT Included
Product Summary
Compact interlock with guard locking (power-to-unlock), 1 x 5 pin connector, with escape release
Product Description
Compact interlock with guard locking (power-to-unlock), 1 x 5 pin connector, with escape release

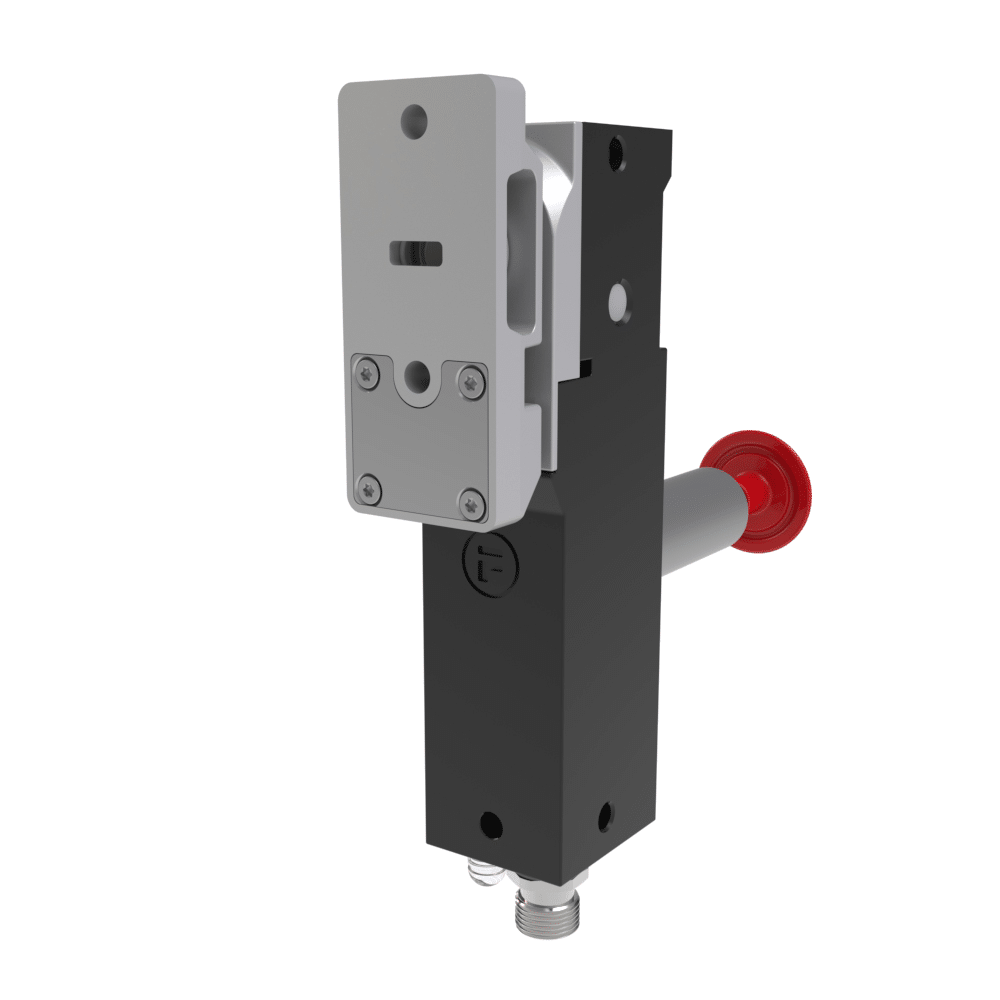

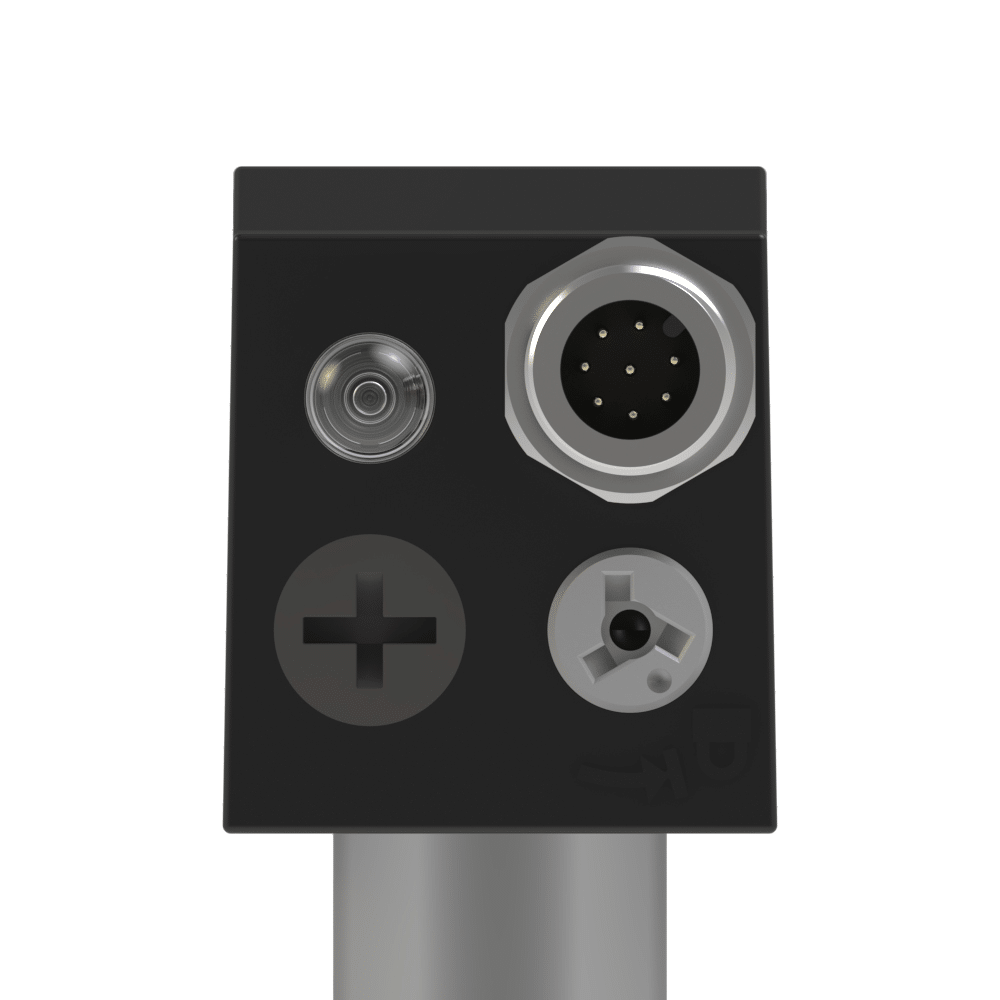

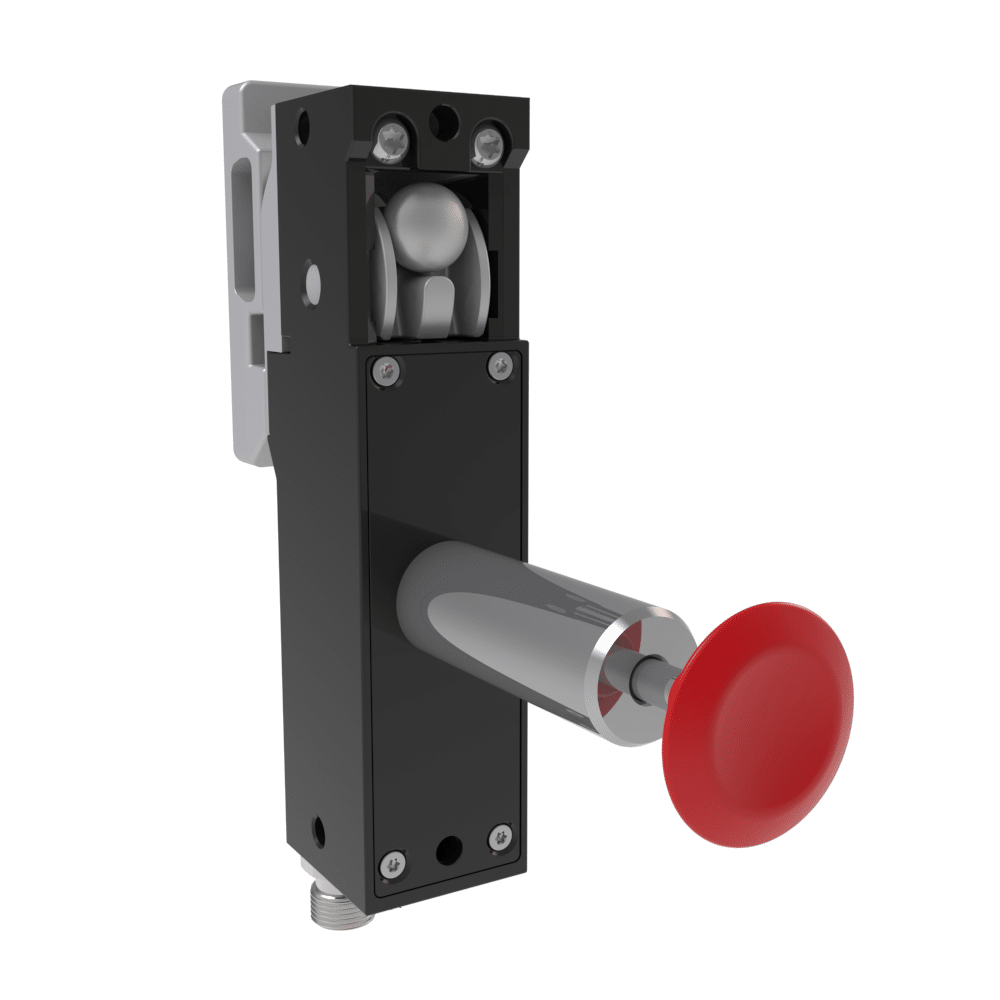

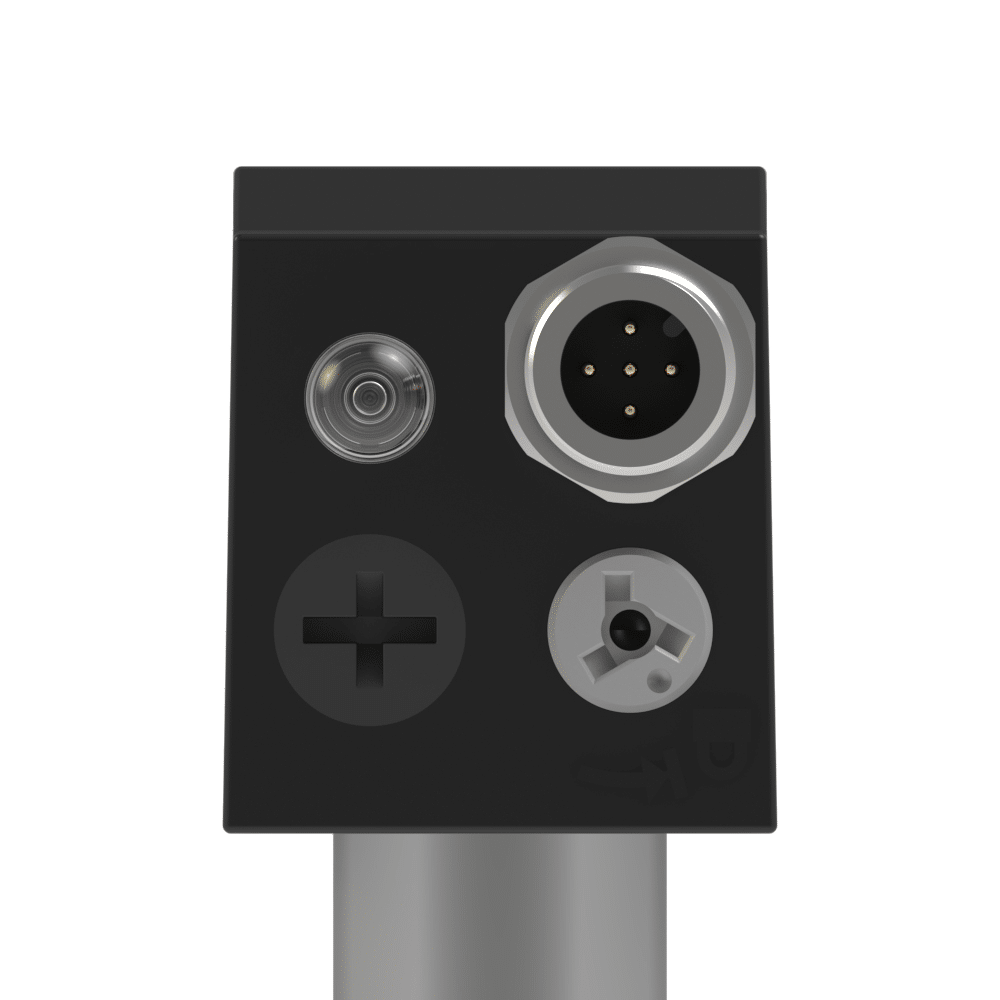

Compact interlock with RFID coded actuator. Guard locking function (power-to-unlock) recommended for most machine guarding applications and ideal for machines with run-down times, auxiliary release, LED indicator, escape release, and 1 x 5 pin M12 connector.Also available with:1 x 8 pin M12 connector – ATM-100A3-A-ER12 x 5 pin M12 connectors – ATM-100A4-A-ER1
The Fortress Safety ATM-100A1-A-ER1 model is an excellent solution for industrial safety applications. With its compact design, this interlock system provides a high level of security thanks to its power-to-unlock guard locking feature. The product is equipped with a 1 x 5 pin connector for easy installation and includes an escape release mechanism for quick emergency exits.
With an IP65 and IP67 protection class, the ATM-100A1-A-ER1 is built to withstand harsh industrial conditions. Its wide temperature range of -20°C to +55°C allows for reliable use in various working environments. This safety product from Fortress Safety stands out for its compliance with international safety standards. It is a top choice for industrial facilities, automation systems, and machine safety, maximizing the protection for both users and equipment.
This product combines safety and performance, making it an indispensable component in industrial applications.
Technical Specifications
| PFH | 4.16×10-9 |
| Monitor | 200mA Limit |
| Features | Escape Release, Power-to-Unlock |
| Vibration | Tested in accordance with GS-ET-19 and BS 60947-5-2 |
| Environment | Indoor |
| Part Number | ATM-100A1-A-ER1 |
| Safety Inputs | 3.5mA Draw Each |
| Safety Outputs | 50mA Limit Each |
| Solenoid Drive | 3.5mA Draw |
| Maximum Altitude | 2000m |
| Voltage Drop, Ud | <3.5V |
| Off-State Current | <0.5mA |
| Ingress Protection | IP65, IP67 |
| Ambient Temperature | -20°C * to +55°C (-4°F to +131°F) |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring. |
| Applicable Standards | 60947-5-2, BS 62061, IEC 61508, ISO 13849, ISO 14119 |
| Overvoltage Category | Type 2 |
| Safety Response Time | <200ms |
| Operating Voltage, Ue | 24V DC (+/- 10%) |
| To Meet UL Requirements | The device must be connected to a Limited Voltage/Current Circuit A 4A fuse must be fitted to the device power supply |
| Rated Operating Currents | 400mA |
| Maximum Relative Humidity | 50% at 70°C |
| Category (ISO 13849-1:2015) | Up to Cat.4 |
| Minimum Operational Current | 100mA |
| Rated Insulation Voltage, Ui | 60V |
| SIL (according to IEC 62061) | Up to SIL CL3 |
| Brand | Fortress Safety |
| Model | ATM-100A1-A-ER1 |
| Main Category | Fortress Safety |
