ATM-100A2-A
In Stock (100 items)
61 views
€0,00
VAT Included
Product Summary

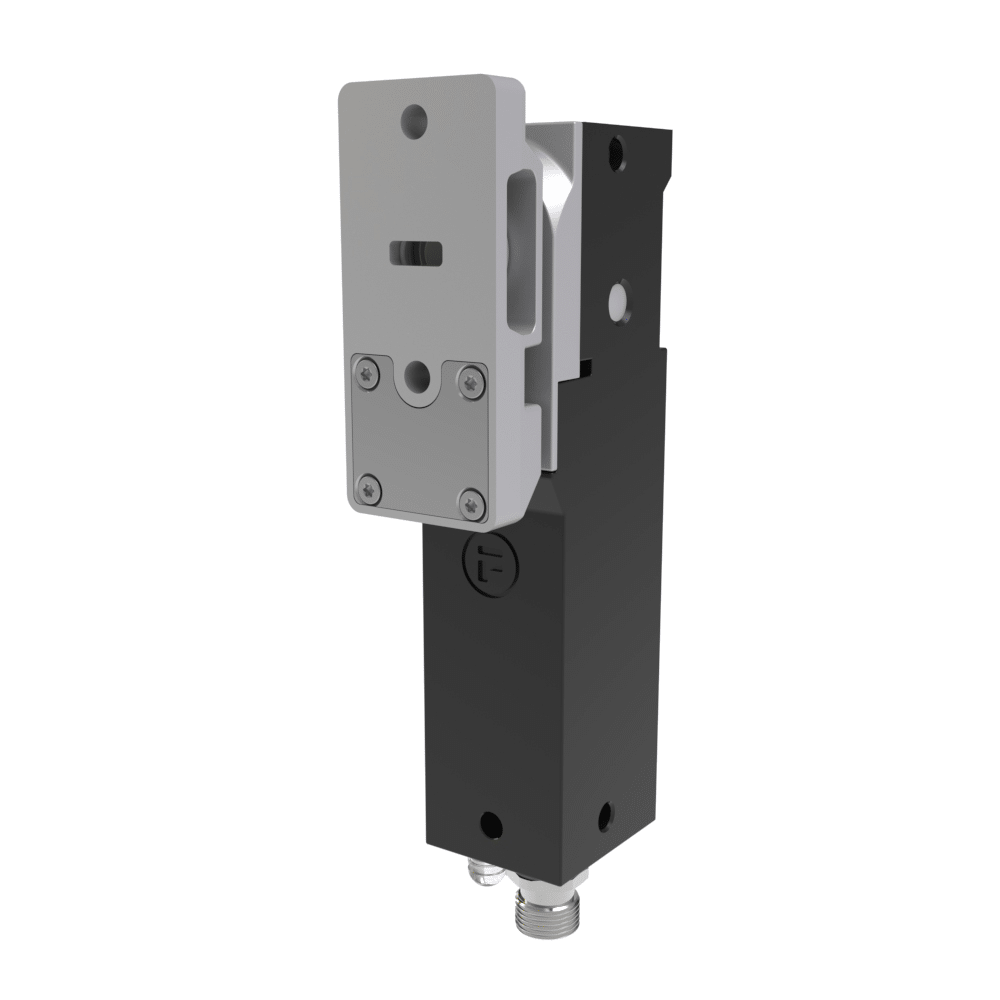

Compact interlock with guard locking (power-to-unlock), 2 x 5 pin M12 connectors in daisy-chain configuration
Product Description
Compact interlock with guard locking (power-to-unlock), 2 x 5 pin M12 connectors in daisy-chain configuration
The Fortress Safety ATM-100A2-A model is a compact interlock system designed for industrial safety applications. Featuring a power-to-unlock guard locking mechanism, this product meets high safety standards, ensuring the highest level of protection in any working environment. With a voltage rating of 60V and an IP65, IP67 protection class, the ATM-100A2-A offers exceptional performance even in harsh industrial conditions. Its temperature range of -20°C to +55°C allows it to function securely in a variety of environments.

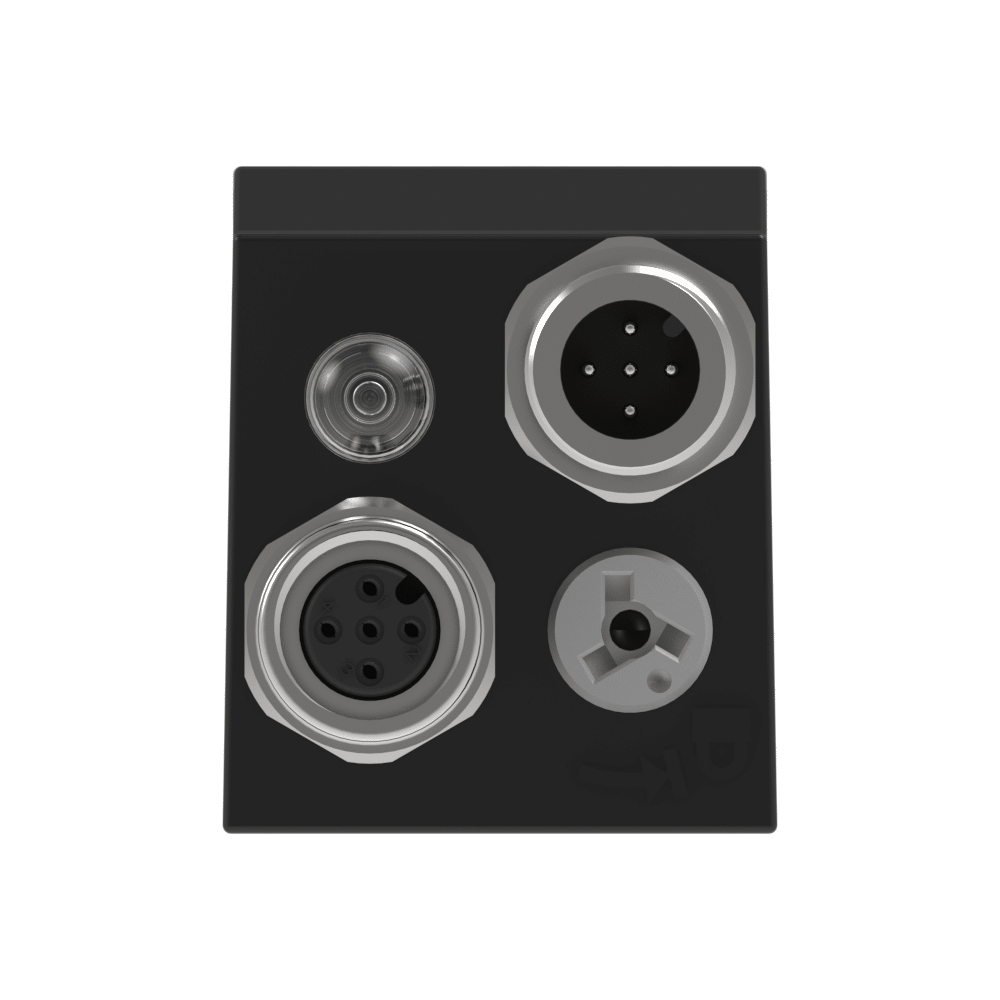

Equipped with two 5-pin M12 connectors for daisy-chain configuration, this model simplifies system integration, enhancing safety on production lines and preventing potential accidents. Fortress Safety is a globally recognized name in industrial security, and the ATM-100A2-A exemplifies this reliability. Ideal for industrial automation and safety systems, this product is the perfect solution to ensure the security of your operations.
Technical Specifications
| PFH | 4.16×10-9 |
| Monitor | 200mA Limit |
| Features | Power-to-Unlock |
| Vibration | Tested in accordance with GS-ET-19 and BS 60947-5-2 |
| Environment | Indoor |
| Part Number | ATM-100A2-A |
| Safety Inputs | 3.5mA Draw Each |
| Safety Outputs | 50mA Limit Each |
| Solenoid Drive | 3.5mA Draw |
| Maximum Altitude | 2000m |
| Voltage Drop, Ud | <3.5V |
| Off-State Current | <0.5mA |
| Ingress Protection | IP65, IP67 |
| Ambient Temperature | -20°C * to +55°C (-4°F to +131°F) |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring. |
| Applicable Standards | 60947-5-2, BS 62061, IEC 61508, ISO 13849, ISO 14119 |
| Overvoltage Category | Type 2 |
| Safety Response Time | <200ms |
| Operating Voltage, Ue | 24V DC (+/- 10%) |
| To Meet UL Requirements | The device must be connected to a Limited Voltage/Current Circuit A 4A fuse must be fitted to the device power supply |
| Rated Operating Currents | 400mA |
| Maximum Relative Humidity | 50% at 70°C |
| Category (ISO 13849-1:2015) | Up to Cat.4 |
| Minimum Operational Current | 100mA |
| Rated Insulation Voltage, Ui | 60V |
| SIL (according to IEC 62061) | Up to SIL CL3 |
| Brand | Fortress Safety |
| Model | ATM-100A2-A |
| Main Category | Fortress Safety |
