ATM-100A2-A-ER1
In Stock (100 items)
53 views
€0,00
VAT Included
Product Summary

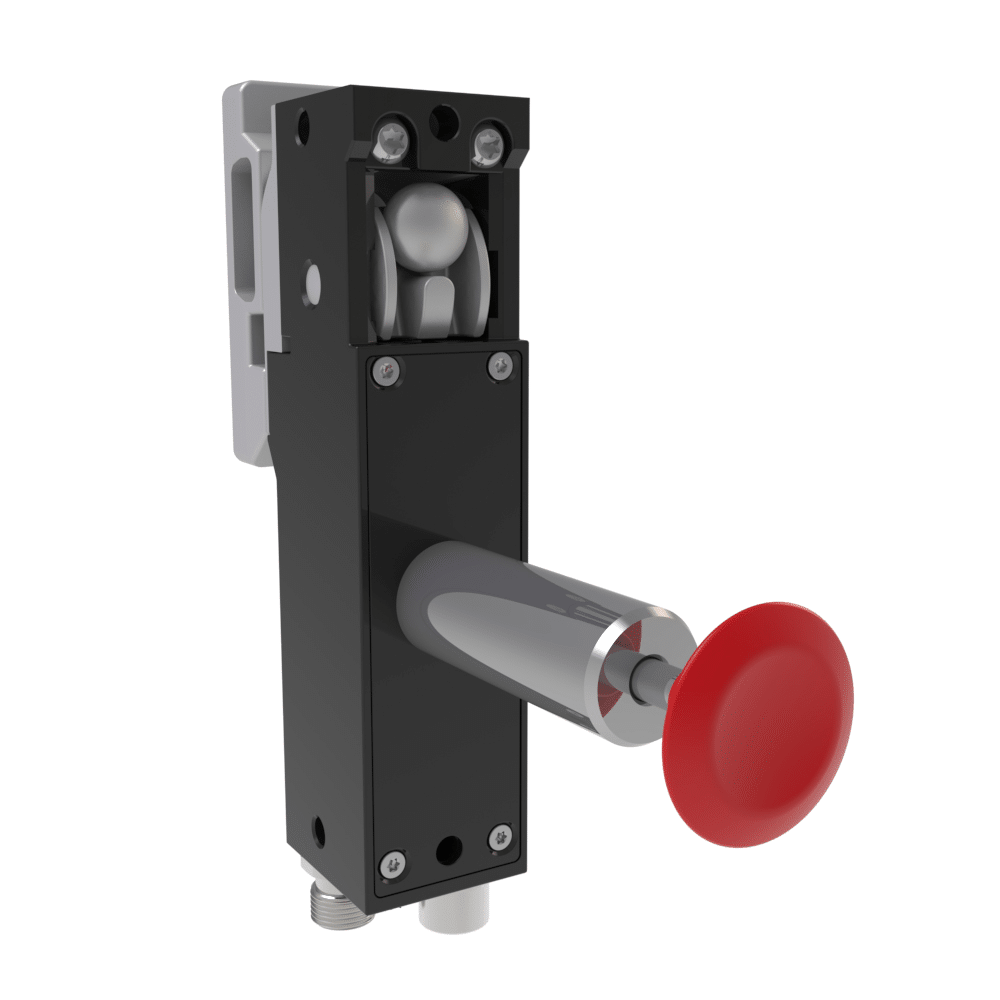

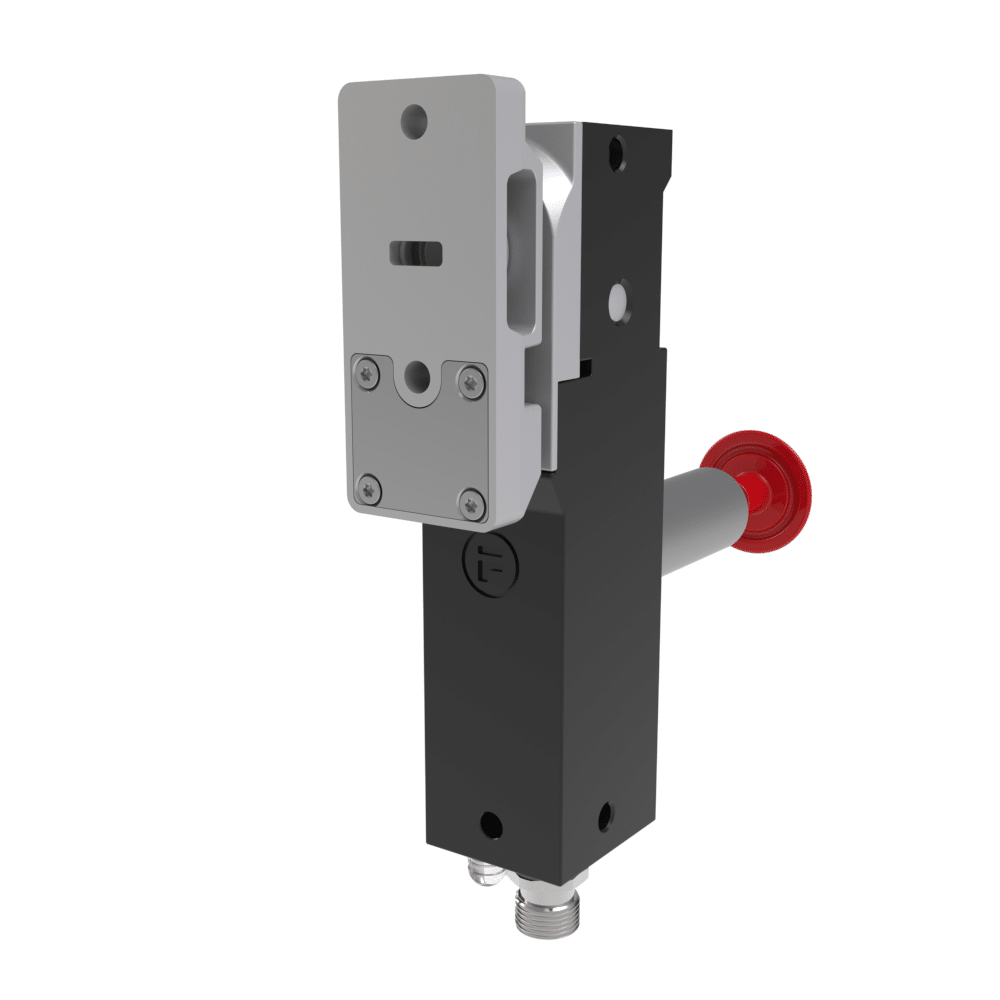

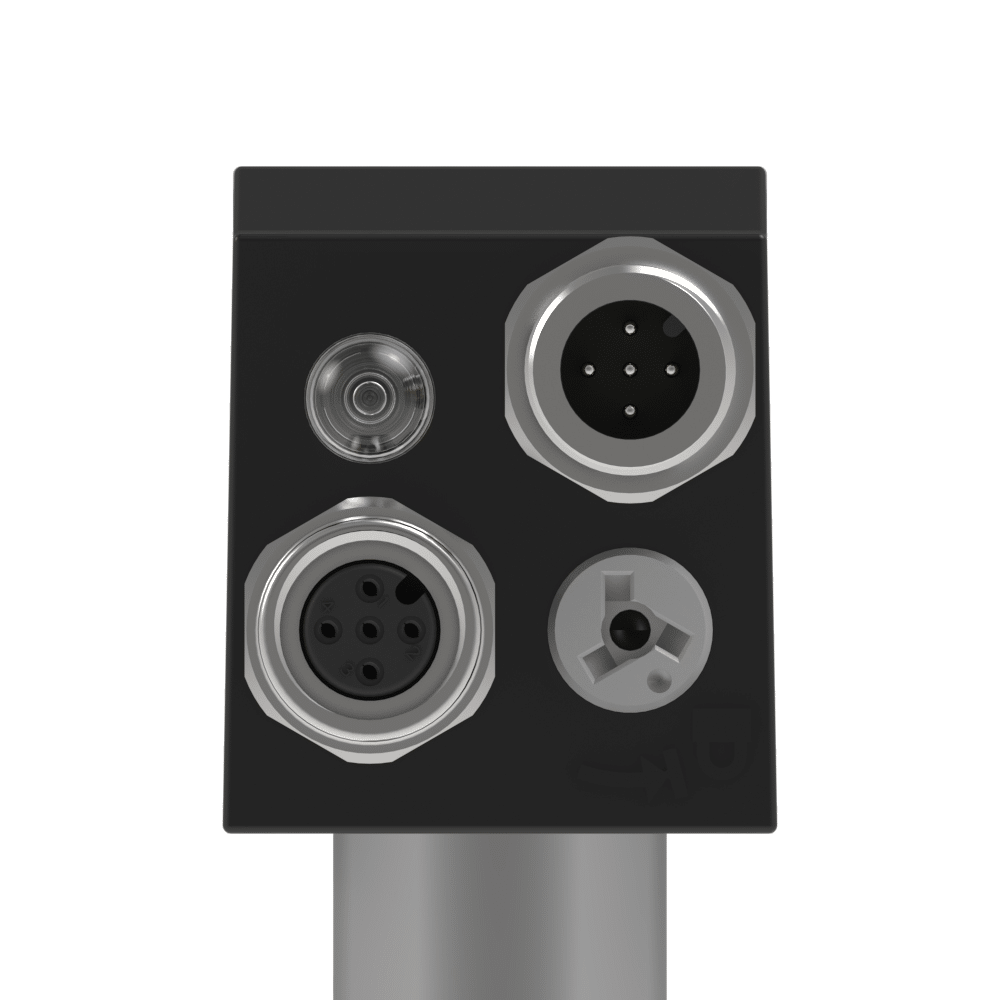

Compact interlock with guard locking (power-to-unlock), 2 x 5 pin M12 connectors in daisy-chain configuration, with escape release
Product Description
Compact interlock with guard locking (power-to-unlock), 2 x 5 pin M12 connectors in daisy-chain configuration, with escape release
The Fortress Safety ATM-100A2-A-ER1 model offers an excellent solution in the field of industrial safety. Its compact design allows for easy installation even in tight spaces. Equipped with a safety lock, this interlock provides maximum security with its power-to-unlock feature. Operating at 60V, this product boasts IP65 and IP67 protection classes, ensuring durability against water and dust, making it reliable even in harsh working conditions. With a temperature range of -20°C to +55°C, it offers a wide application area. The 2 x 5 pin M12 connectors allow for daisy-chain connectivity, providing flexibility during installation. It is an ideal choice to enhance safety and efficiency in industrial automation systems. Experience the quality of Fortress Safety and take your security to the next level!
Technical Specifications
| PFH | 4.16×10-9 |
| Monitor | 200mA Limit |
| Features | Escape Release, Power-to-Unlock |
| Vibration | Tested in accordance with GS-ET-19 and BS 60947-5-2 |
| Environment | Indoor |
| Part Number | ATM-100A2-A-ER1 |
| Safety Inputs | 3.5mA Draw Each |
| Safety Outputs | 50mA Limit Each |
| Solenoid Drive | 3.5mA Draw |
| Maximum Altitude | 2000m |
| Voltage Drop, Ud | <3.5V |
| Off-State Current | <0.5mA |
| Ingress Protection | IP65, IP67 |
| Ambient Temperature | -20°C * to +55°C (-4°F to +131°F) |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring. |
| Applicable Standards | 60947-5-2, BS 62061, IEC 61508, ISO 13849, ISO 14119 |
| Overvoltage Category | Type 2 |
| Safety Response Time | <200ms |
| Operating Voltage, Ue | 24V DC (+/- 10%) |
| To Meet UL Requirements | The device must be connected to a Limited Voltage/Current Circuit A 4A fuse must be fitted to the device power supply |
| Rated Operating Currents | 400mA |
| Maximum Relative Humidity | 50% at 70°C |
| Category (ISO 13849-1:2015) | Up to Cat.4 |
| Minimum Operational Current | 100mA |
| Rated Insulation Voltage, Ui | 60V |
| SIL (according to IEC 62061) | Up to SIL CL3 |
| Brand | Fortress Safety |
| Model | ATM-100A2-A-ER1 |
| Main Category | Fortress Safety |
