Fortress Safety
Fortress Safety
ATM-110A1-A
In Stock (100 items)
54 views
€0,00
VAT Included
Product Summary

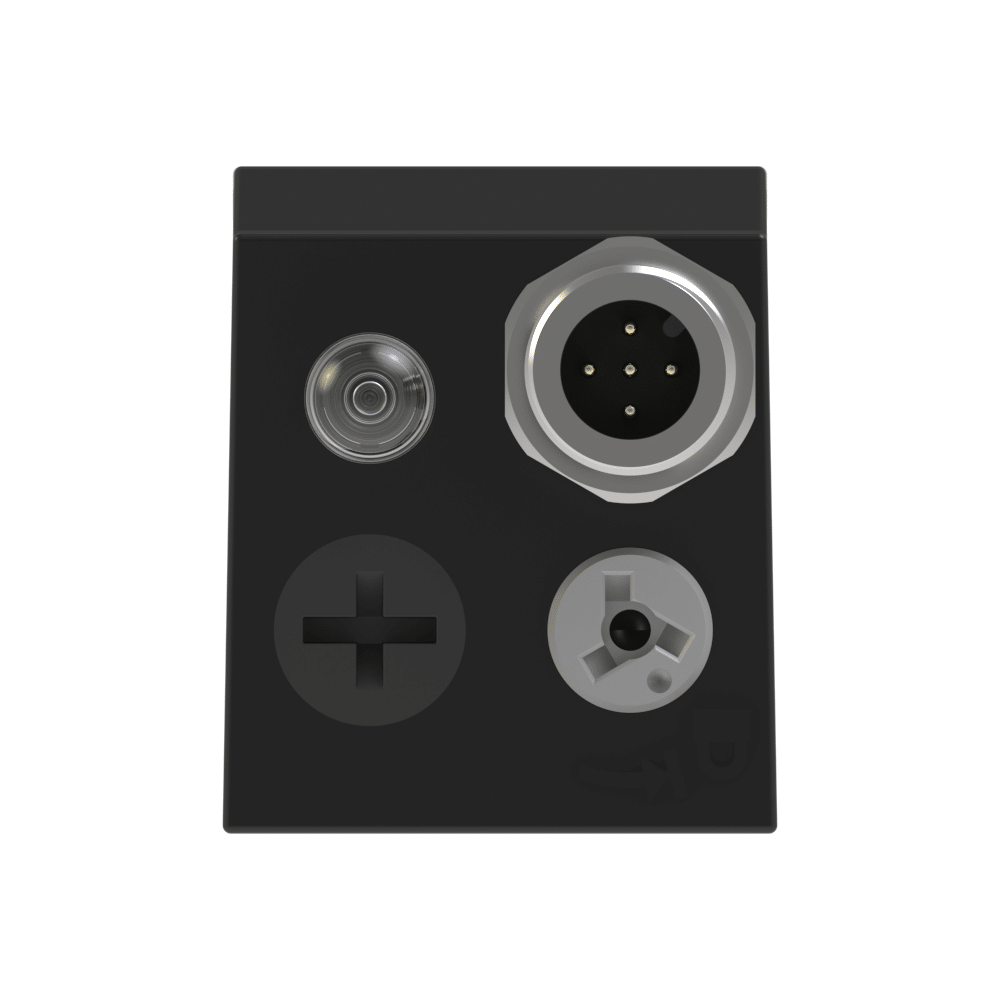

Compact interlock with locking for the protection of process (power-to-unlock), 1 x 5 pin M12 connector
Product Description
Compact interlock with locking for the protection of process (power-to-unlock), 1 x 5 pin M12 connector

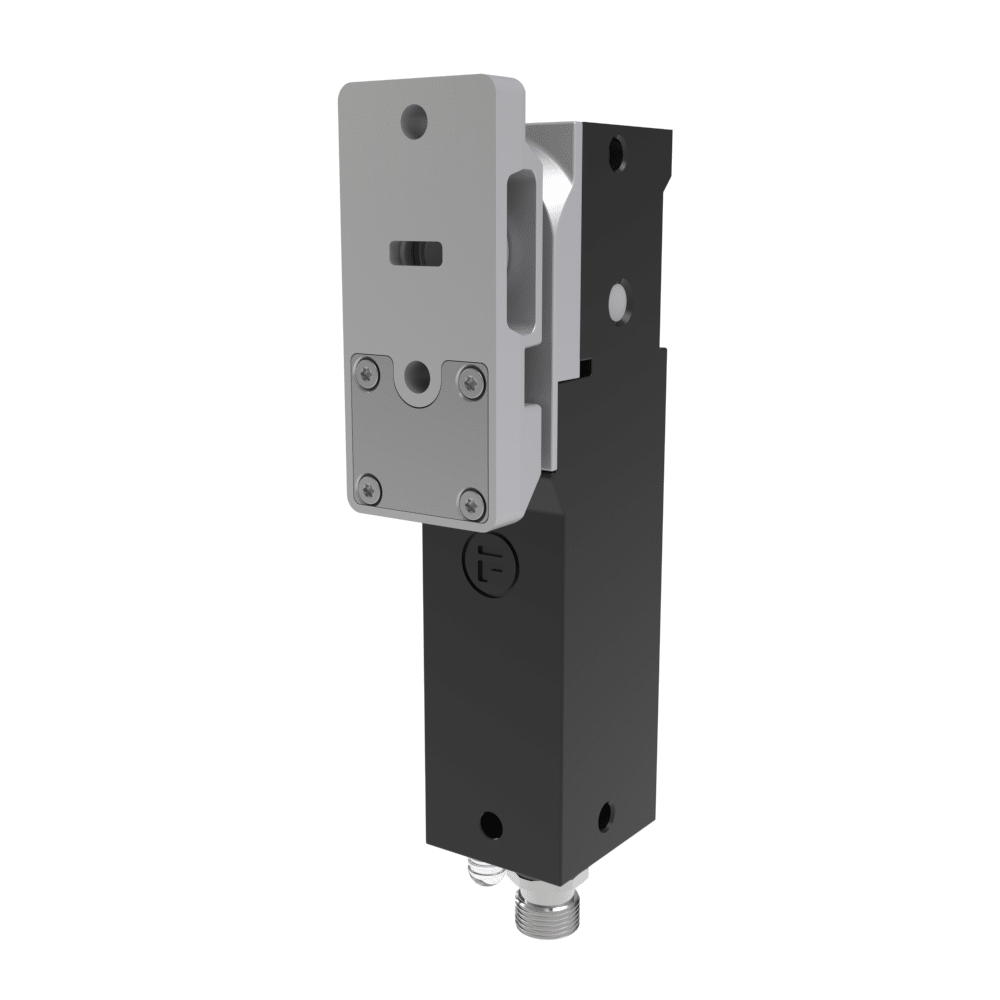

The Fortress Safety ATM-110A1-A model is a compact interlock system designed to ensure the safety of industrial processes. With its power-to-unlock feature, it prevents machine operation in hazardous situations, enhancing workplace safety. The product offers easy connectivity with a 1 x 5 pin M12 connector.
With an IP65 and IP67 protection class rating, this interlock is resistant to dust and water, making it ideal for various industrial environments. The wide temperature range of -20°C to +55°C (-4°F to +131°F) ensures reliable performance even in extreme conditions. It is particularly suitable for use in manufacturing plants, automation systems, and hazardous areas.
Designed to meet safety standards, the ATM-110A1-A minimizes workplace hazards and enhances employee protection. Elevate your industrial safety with the quality of Fortress Safety.
Technical Specifications
| PFH | 4.16×10-9 |
| Monitor | 200mA Limit |
| Features | Power-to-Unlock |
| Vibration | Tested in accordance with GS-ET-19 and BS 60947-5-2 |
| Environment | Indoor |
| Part Number | ATM-110A1-A |
| Safety Inputs | 3.5mA Draw Each |
| Safety Outputs | 50mA Limit Each |
| Solenoid Drive | 3.5mA Draw |
| Maximum Altitude | 2000m |
| Voltage Drop, Ud | <3.5V |
| Off-State Current | <0.5mA |
| Ingress Protection | IP65, IP67 |
| Ambient Temperature | -20°C * to +55°C (-4°F to +131°F) |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring. |
| Applicable Standards | 60947-5-2, BS 62061, IEC 61508, ISO 13849, ISO 14119 |
| Overvoltage Category | Type 2 |
| Safety Response Time | <200ms |
| Operating Voltage, Ue | 24V DC (+/- 10%) |
| To Meet UL Requirements | The device must be connected to a Limited Voltage/Current Circuit A 4A fuse must be fitted to the device power supply |
| Rated Operating Currents | 400mA |
| Maximum Relative Humidity | 50% at 70°C |
| Category (ISO 13849-1:2015) | Up to Cat.4 |
| Minimum Operational Current | 100mA |
| Rated Insulation Voltage, Ui | 60V |
| SIL (according to IEC 62061) | Up to SIL CL3 |
| Brand | Fortress Safety |
| Model | ATM-110A1-A |
| Main Category | Fortress Safety |
