ATM-110A2-A
In Stock (100 items)
57 views
€0,00
VAT Included
Product Summary

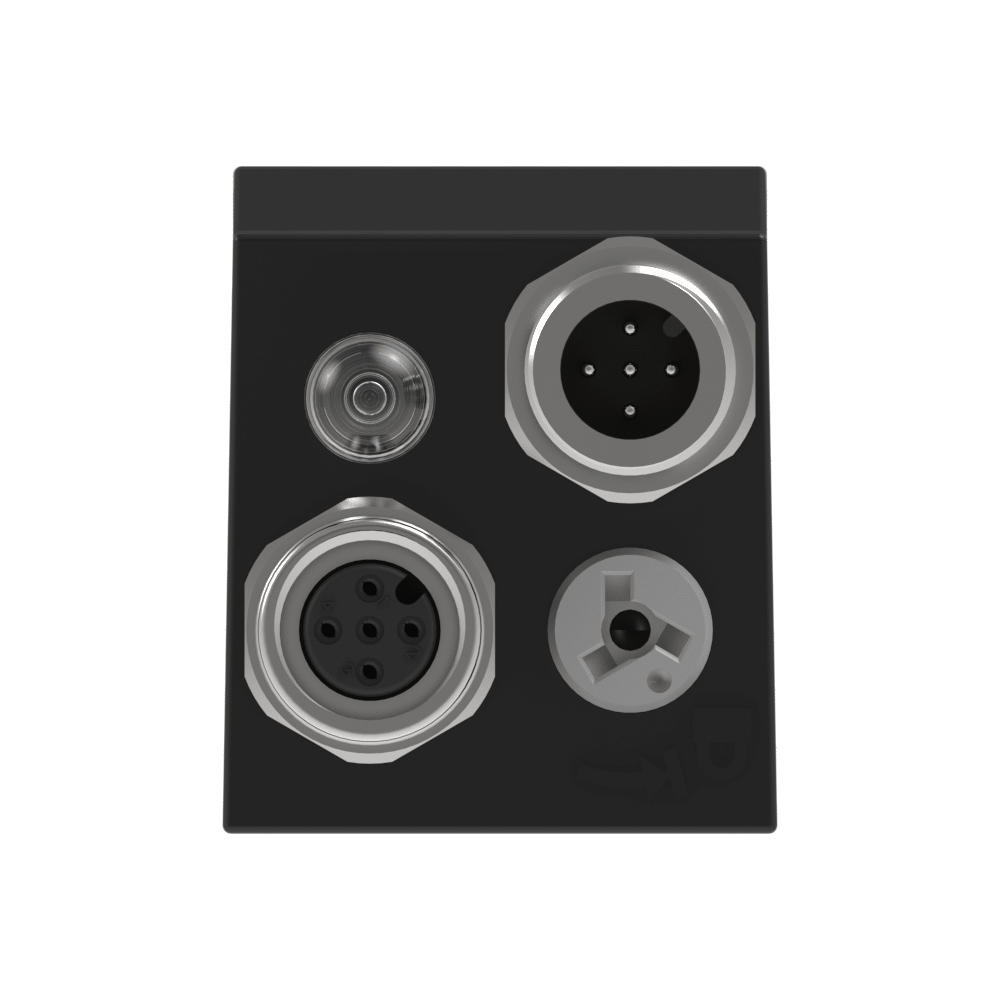

Compact interlock with locking for the protection of process (power-to-unlock), 2 x 5 pin M12 connectors in daisy-chain configuration
Product Description
Compact interlock with locking for the protection of process (power-to-unlock), 2 x 5 pin M12 connectors in daisy-chain configuration

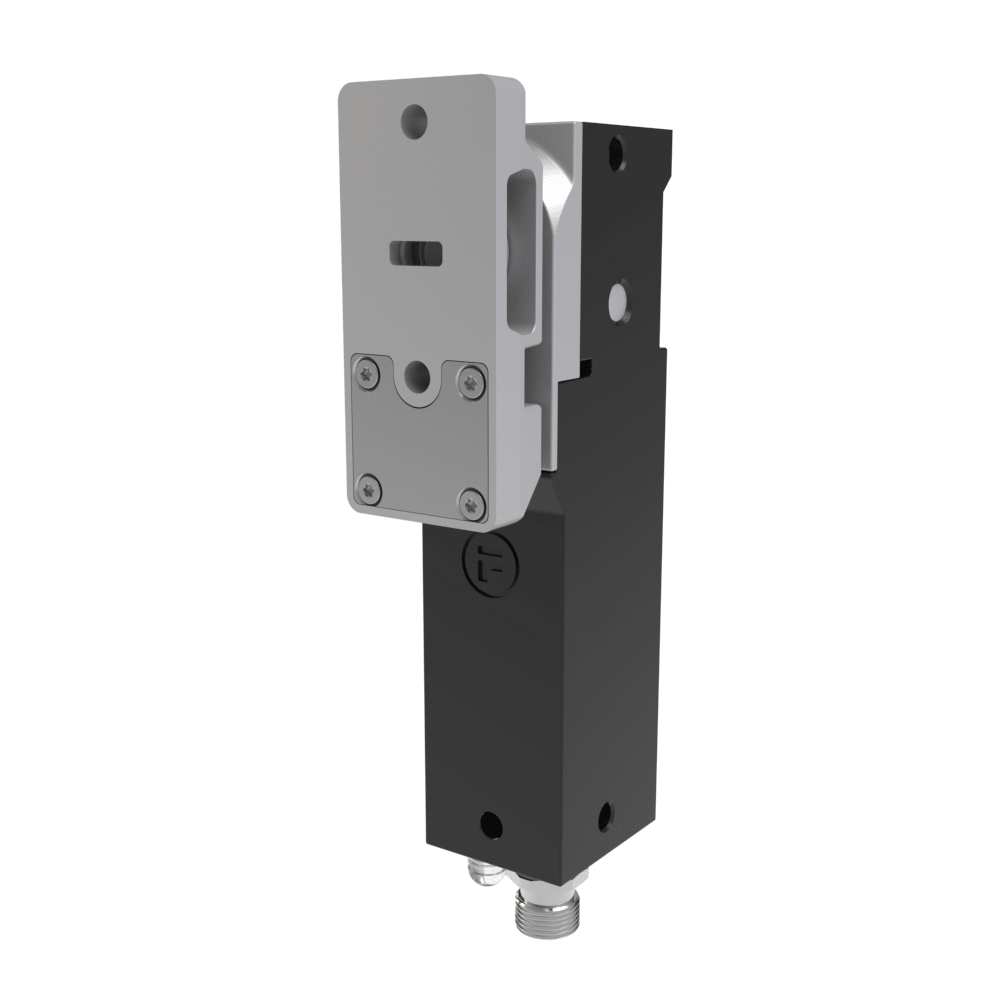

The ATM-110A2-A model from Fortress Safety is a compact interlock system that offers high standards in industrial safety. This product features a power-to-unlock mechanism that ensures the protection of your processes while allowing for easy installation with its 2 x 5 pin M12 connectors in a daisy-chain configuration. With an IP65 and IP67 protection class, it provides dust and water resistance, ensuring reliable performance even in harsh working conditions. The wide temperature range of -20°C to +55°C makes the ATM-110A2-A suitable for various industrial environments. This product is especially ideal for enhancing safety in critical processes such as automotive, food, and pharmaceutical industries. Reflecting Fortress Safety's commitment to quality and engineering excellence, this interlock is designed to meet safety standards and is an excellent solution for increasing workplace safety.
Technical Specifications
| PFH | 4.16×10-9 |
| Monitor | 200mA Limit |
| Features | Power-to-Unlock |
| Vibration | Tested in accordance with GS-ET-19 and BS 60947-5-2 |
| Environment | Indoor |
| Part Number | ATM-110A2-A |
| Safety Inputs | 3.5mA Draw Each |
| Safety Outputs | 50mA Limit Each |
| Solenoid Drive | 3.5mA Draw |
| Maximum Altitude | 2000m |
| Voltage Drop, Ud | <3.5V |
| Off-State Current | <0.5mA |
| Ingress Protection | IP65, IP67 |
| Ambient Temperature | -20°C * to +55°C (-4°F to +131°F) |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring. |
| Applicable Standards | 60947-5-2, BS 62061, IEC 61508, ISO 13849, ISO 14119 |
| Overvoltage Category | Type 2 |
| Safety Response Time | <200ms |
| Operating Voltage, Ue | 24V DC (+/- 10%) |
| To Meet UL Requirements | The device must be connected to a Limited Voltage/Current Circuit A 4A fuse must be fitted to the device power supply |
| Rated Operating Currents | 400mA |
| Maximum Relative Humidity | 50% at 70°C |
| Category (ISO 13849-1:2015) | Up to Cat.4 |
| Minimum Operational Current | 100mA |
| Rated Insulation Voltage, Ui | 60V |
| SIL (according to IEC 62061) | Up to SIL CL3 |
| Brand | Fortress Safety |
| Model | ATM-110A2-A |
| Main Category | Fortress Safety |
