ATM-610A1-A
In Stock (100 items)
55 views
€0,00
VAT Included
Product Summary

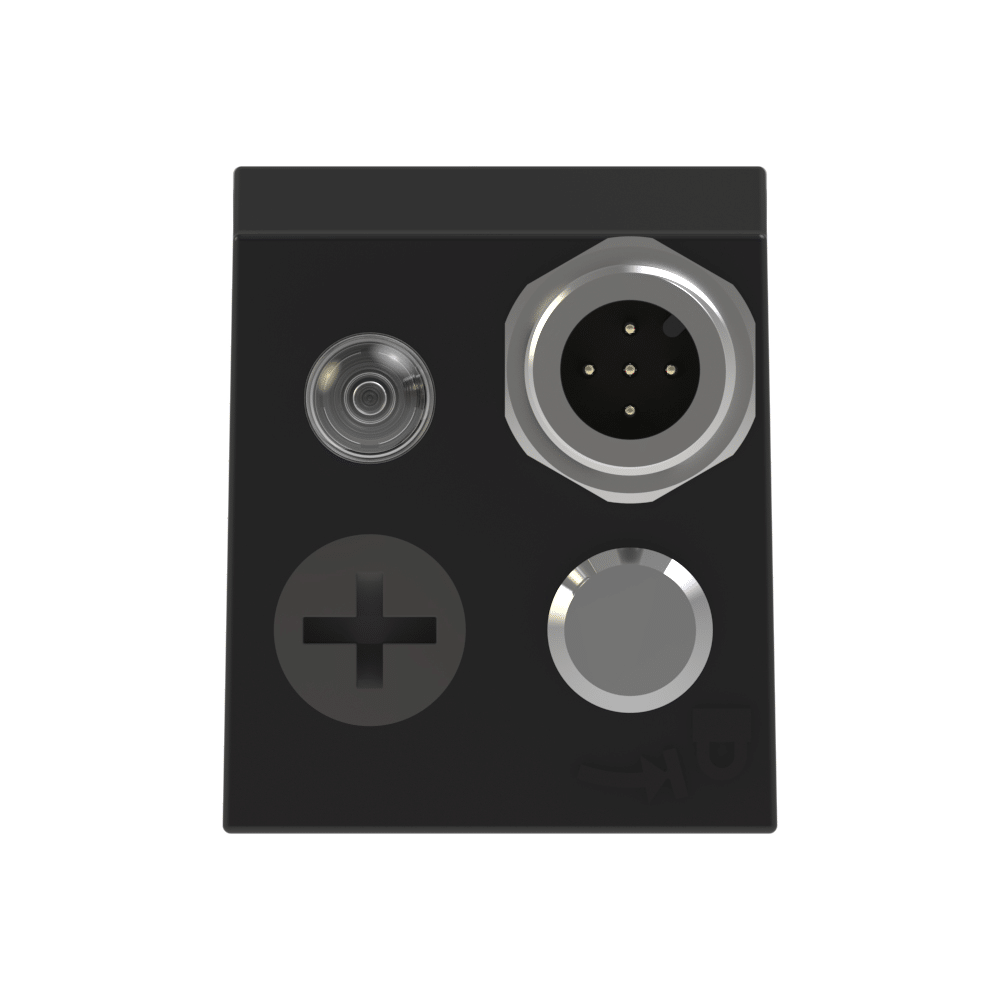

Compact interlock with locking for the protection of process (power-to-lock), 1 x 5 pin M12 connector
Product Description
Compact interlock with locking for the protection of process (power-to-lock), 1 x 5 pin M12 connector
The ATM-610A1-A model by Fortress Safety is a compact interlock system designed to enhance the safety of industrial processes. With its power-to-lock feature, this device ensures that machinery can be safely halted, providing a secure working environment. It offers easy integration with a 1 x 5 pin M12 connector.
This product excels in harsh industrial environments, boasting IP65 and IP67 protection ratings. Its operational temperature range of -20°C to +55°C allows for versatile applications across various sectors. Engineered to meet safety standards in automotive, engineering, and manufacturing industries, it guarantees reliable performance.
The ATM-610A1-A model from Fortress Safety is an excellent choice for businesses seeking robust industrial safety solutions. Its durable and long-lasting construction not only enhances workplace safety but also supports your operational efficiency. Make the right choice for a secure working environment!
Technical Specifications
| PFH | 4.16×10-9 |
| Monitor | 200mA Limit |
| Features | Power-to-Lock |
| Vibration | Tested in accordance with GS-ET-19 and BS 60947-5-2 |
| Environment | Indoor |
| Part Number | ATM-610A1-A |
| Safety Inputs | 3.5mA Draw Each |
| Safety Outputs | 50mA Limit Each |
| Solenoid Drive | 3.5mA Draw |
| Maximum Altitude | 2000m |
| Voltage Drop, Ud | <3.5V |
| Off-State Current | <0.5mA |
| Ingress Protection | IP65, IP67 |
| Ambient Temperature | -20°C * to +55°C (-4°F to +131°F) |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring. |
| Applicable Standards | 60947-5-2, BS 62061, IEC 61508, ISO 13849, ISO 14119 |
| Overvoltage Category | Type 2 |
| Safety Response Time | <200ms |
| Operating Voltage, Ue | 24V DC (+/- 10%) |
| To Meet UL Requirements | The device must be connected to a Limited Voltage/Current Circuit A 4A fuse must be fitted to the device power supply |
| Rated Operating Currents | 400mA |
| Maximum Relative Humidity | 50% at 70°C |
| Category (ISO 13849-1:2015) | Up to Cat.4 |
| Minimum Operational Current | 100mA |
| Rated Insulation Voltage, Ui | 60V |
| SIL (according to IEC 62061) | Up to SIL CL3 |
| Brand | Fortress Safety |
| Model | ATM-610A1-A |
| Main Category | Fortress Safety |
