Fortress Safety
Fortress Safety
BMSR1-1-0-CLSN-Z-A-02022-006-022
In Stock (100 items)
38 views
€0,00
VAT Included
Product Summary
The bolt module features a bolt that either shoots (extends) or retracts (withdraws) upon rotation of the key. Often used to indirectly interlock common electrical switchgear items such as circuit bre...
Product Description

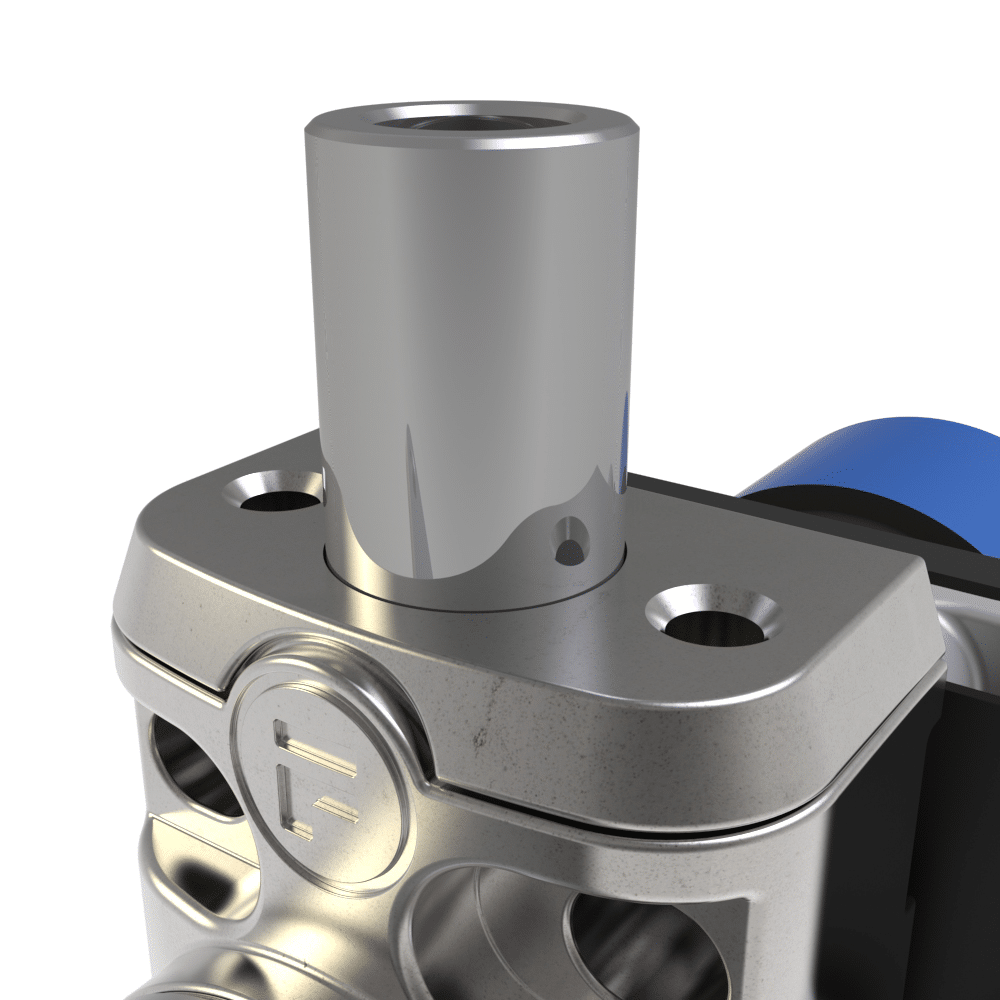

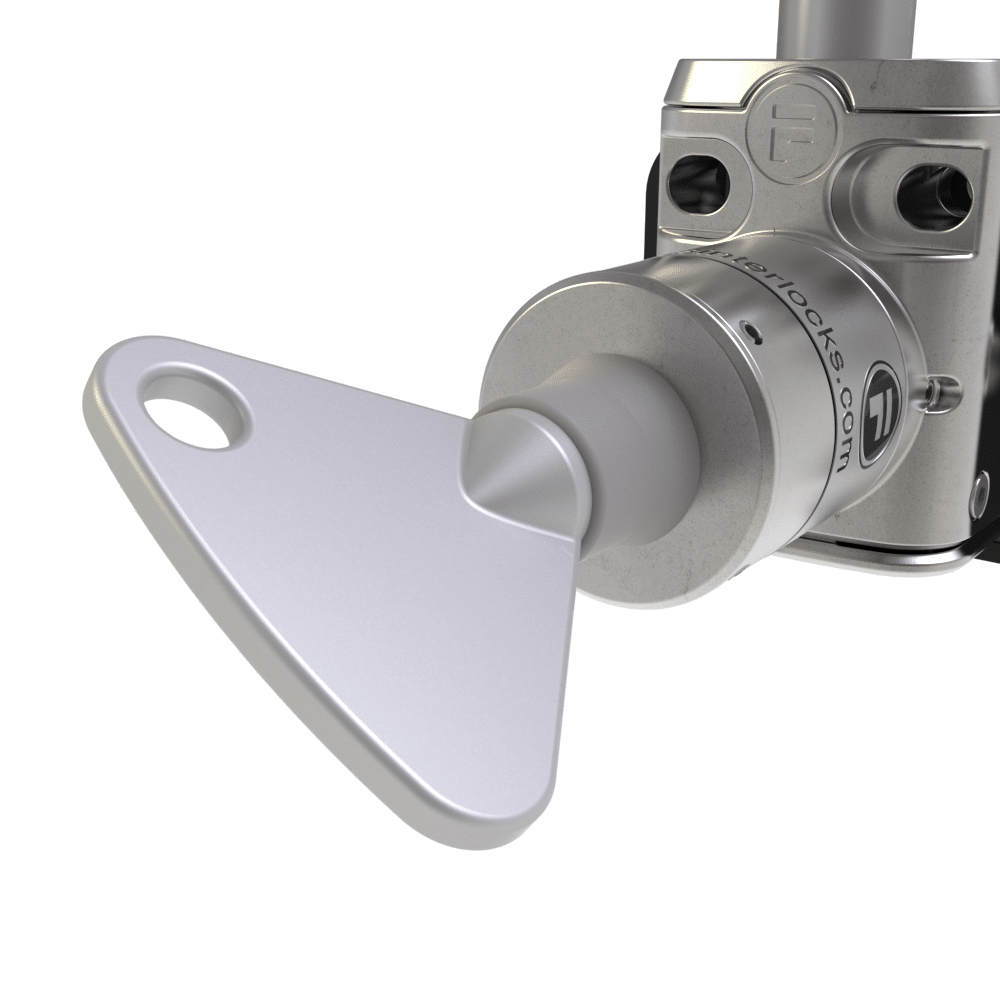

The bolt module features a bolt that either shoots (extends) or retracts (withdraws) upon rotation of the key. Often used to indirectly interlock common electrical switchgear items such as circuit breakers and earth switches.

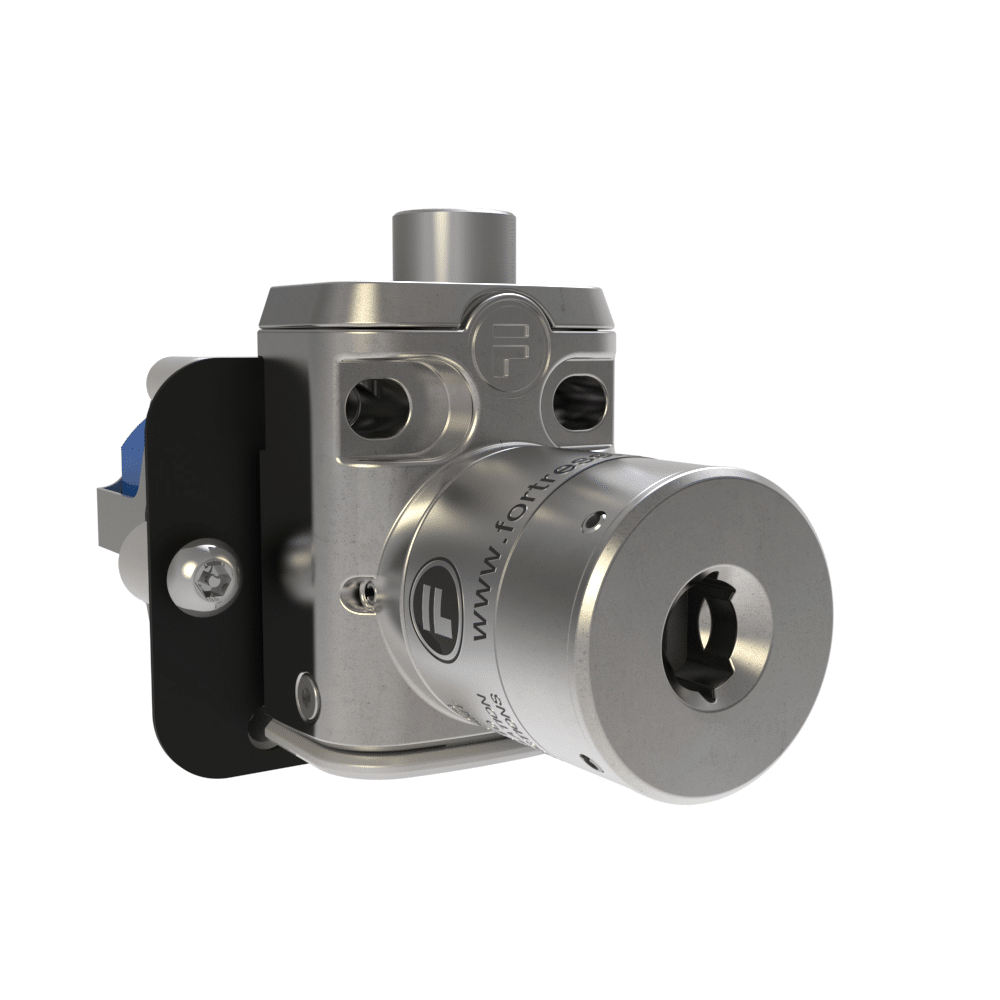

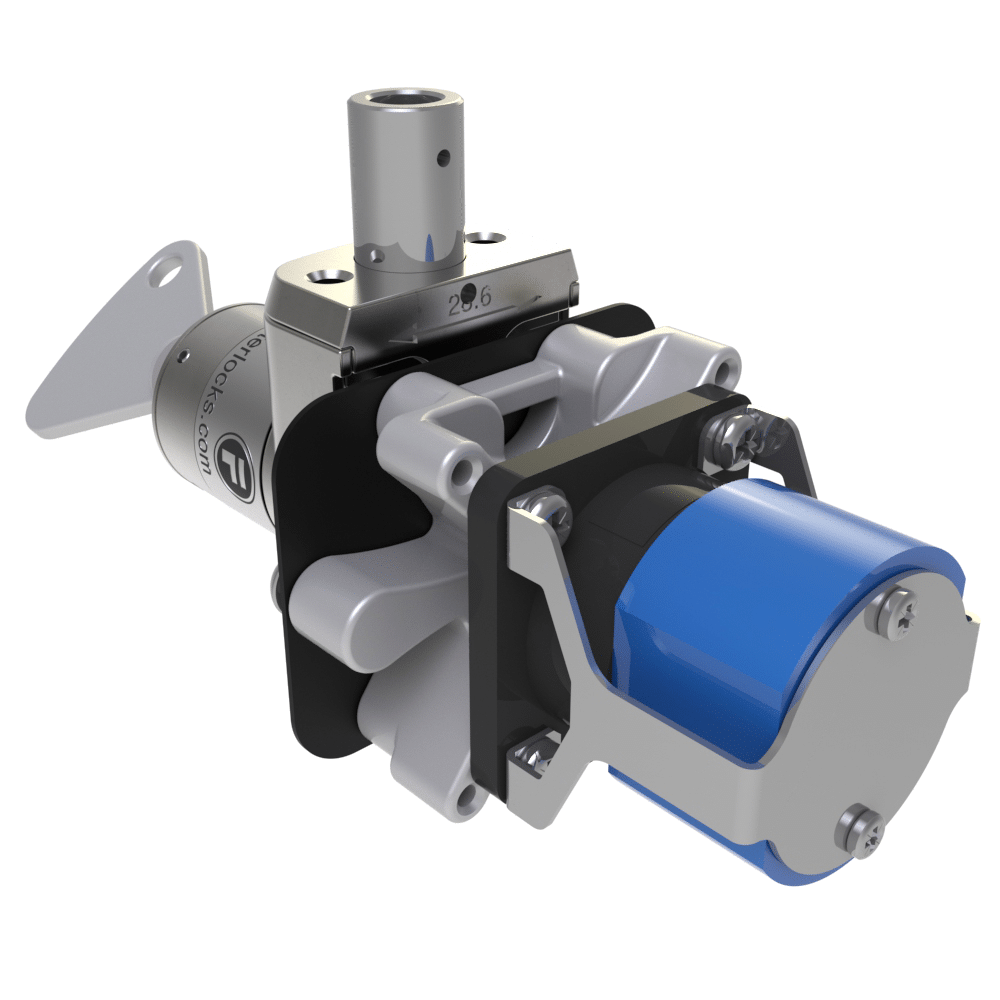

The BMSR1-1-0-CLSN-Z-A-02022-006-022 bolt module from Fortress Safety is a high-performance solution in the field of industrial safety. This module features a bolt that extends or retracts upon turning the key, providing an indirect interlocking mechanism for common electrical equipment such as circuit breakers and earth switches.
Manufactured from full stainless steel to S316 standards, this module boasts an IP67 protection class, ensuring exceptional durability against external factors. Certified with CE marking for all applicable directives, it guarantees compliance with safety standards. Additionally, it can withstand open air conditions at 55°C for 24 hours, with peaks up to 60°C, and remains reliable in enclosed spaces at 35°C for the same duration. Fortress Safety prioritizes your security, making this product an excellent choice for various industrial applications.
Technical Specifications
| Key | Stainless steel to S316 (purchased separately) |
| Bolt | All stainless steel components |
| Category | Cat. 4, PLe (EN / ISO 13849-1) and SIL3 (EN/IEC 62061) |
| Internals | Full stainless steel |
| Standards | ISO EN14119:2013 EN13849-1:2008 EN13849-2:2012 EN62061:2005 |
| Environment | Indoor |
| Part Number | BMSR1-1-0-CLSN-Z-A-02022-006-022 |
| Max Side Load | 10KN (Depending on fixings used) |
| Certifications | CE marked for all applicable directives |
| Lock Mechanism | Full stainless steel to S316 (selected separately) |
| Electrical Life | 100,000 |
| Mechanical Life | Lock & Bolt: 1,000,000 operations Switch: 1,500,000 operations |
| Housing Materials | Full stainless steel to S316 |
| Ingress Protection | IP67 |
| Ambient Temperature | Open to the air at 55°C during 24 hours with peaks up to 60°C Enclosed at 35°C during 24 hours with peaks up to 40°C |
| Minimum Operating Current | 5mA at 20v (Switch) |
| Functional Safety Data - B10d | 5,000,000 |
| Brand | Fortress Safety |
| Model | BMSR1-1-0-CLSN-Z-A-02022-006-022 |
| Main Category | Fortress Safety |
