Fortress Safety
Fortress Safety
EN2T6EKL2ST401
In Stock (100 items)
55 views
€0,00
VAT Included
Product Summary

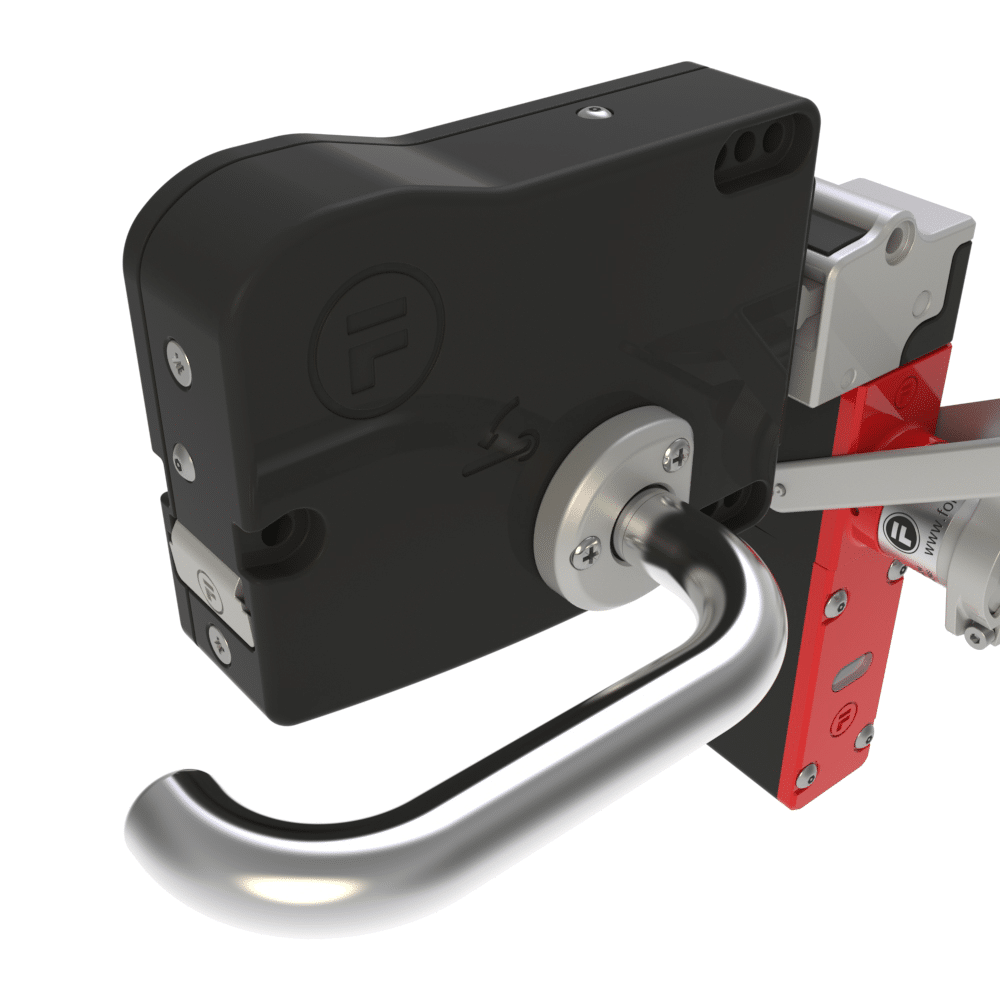

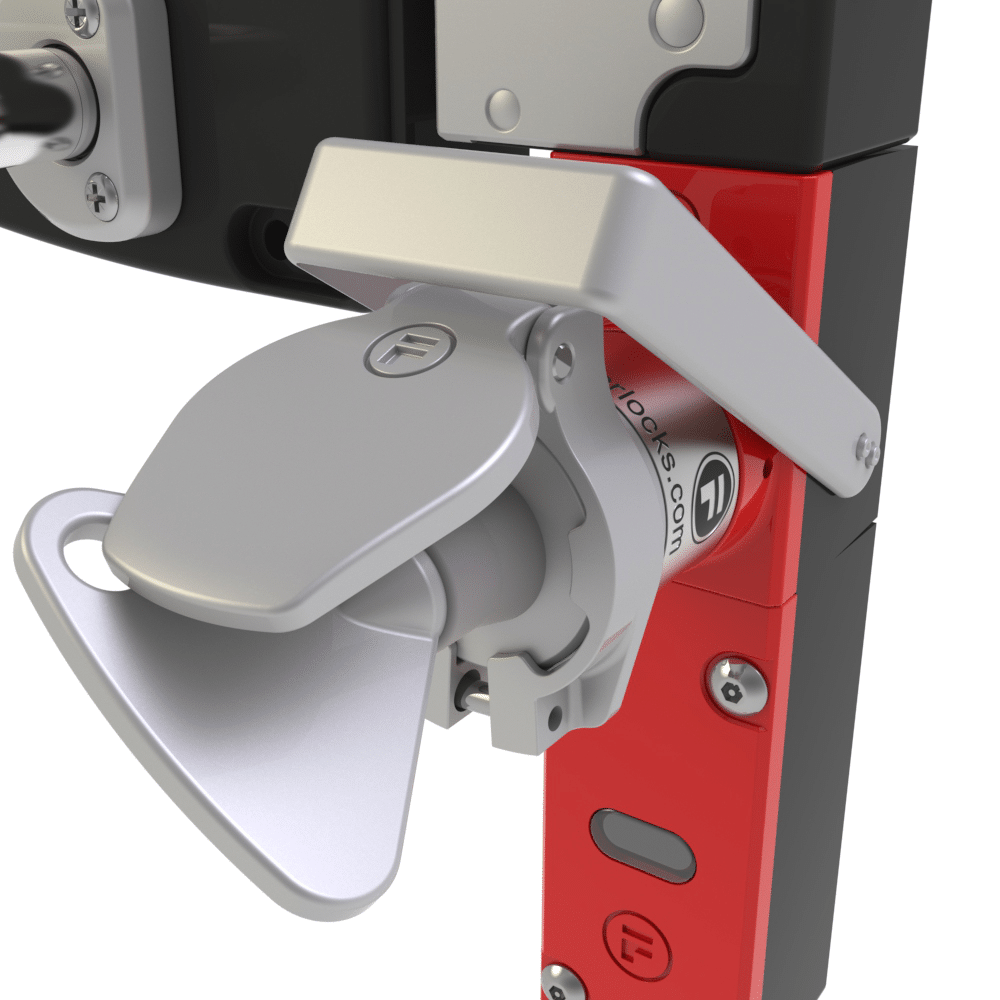

An interlock without locking, featuring a proHandle, an AT head, and an extracted key adaptor with a standard lock and dustcover.
Product Description
An interlock without locking, featuring a proHandle, an AT head, and an extracted key adaptor with a standard lock and dustcover.
The Fortress Safety EN2T6EKL2ST401 model is an exceptional solution in industrial safety. This interlock, designed without a locking feature, comes equipped with a proHandle, an AT head, and an extracted key adaptor featuring a standard lock and dust cover. With a voltage capacity of 2500V AC, this product offers high performance, boasting a PLe performance level and an IP67 protection class, ensuring reliable protection even in harsh conditions.
This product is widely used in automation systems, machine safety, and industrial facilities. Its durable all stainless steel construction provides longevity and reliability. The EN2T6EKL2ST401 model maximizes user safety and operator protection while enhancing the reliability of businesses. Fortress Safety's product guarantees your safety by fully complying with industrial standards.
Technical Specifications
| DC | Position Monitoring |
| λd | 10% |
| B10d | 5000000 |
| Cable Size | 28 – 24 AWG |
| Environment | Indoor, Outdoor |
| Part Number | EN2-T6-EKL2-ST401 |

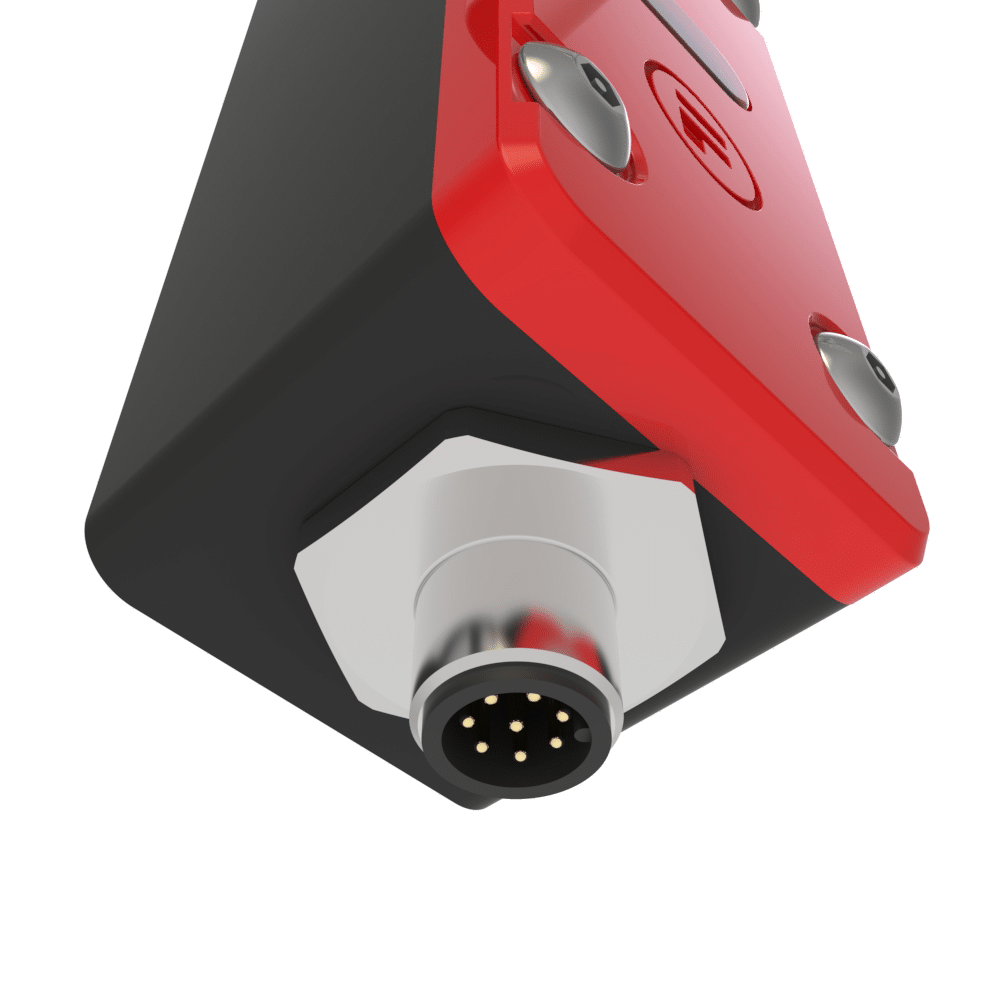

| Connector Type | Spring Activated Vibration Proof Block |
| Paint Finishes | Gloss Powder Coat on Passivated Base Material |
| Control Voltage | 24V ac/dc, 110V ac, 230V ac |
| Mechanical Life | 1,000,000 Switching Cycles |
| Retention Force | 10,000N(locked) |
| Housing Materials | Zinc Alloy to BSEN12844 |
| Performance Level | PLe |
| Ingress Protection | IP67 |
| Insulating Voltage | 2500V AC |
| Internal Materials | All Stainless Steel |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring |
| Utilisation Category | AC 15 or DC 13 |
| Insulating Resistance | 20M Ohm |
| Maximum Switch Current | 3A |
| Minimum Switch Current | 1mA at 5VDC |
| Brand | Fortress Safety |
| Model | EN2T6EKL2ST401 |
| Main Category | Fortress Safety |
