Fortress Safety
Fortress Safety
EH2T6ST402T03700D300
In Stock (100 items)
50 views
€0,00
VAT Included
Product Summary

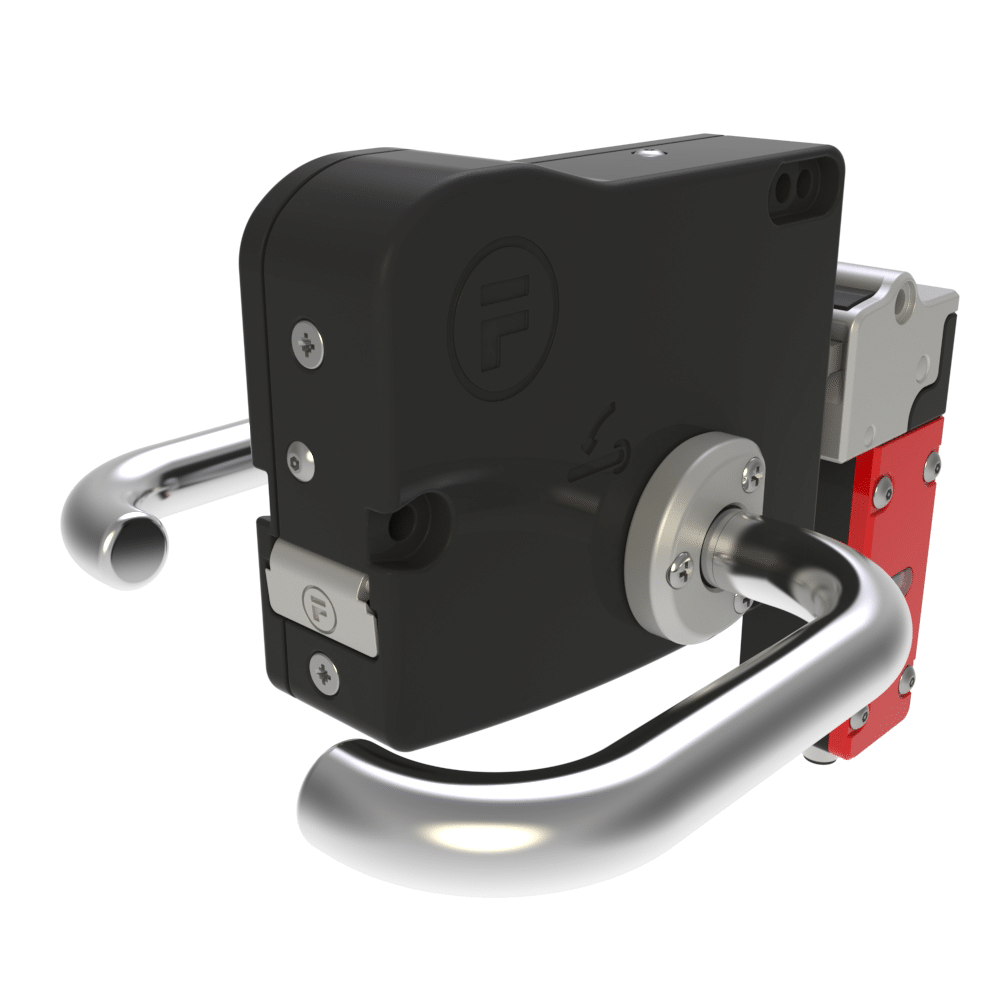

An interlock without locking, featuring a proHandle, an AT head, and a specific part reference.
Product Description
An interlock without locking, featuring a proHandle, an AT head, and a specific part reference.
The Fortress Safety EH2T6ST402T03700D300 model is a high-quality interlock system designed to enhance your industrial safety. With a voltage capacity of 2500V AC, this product offers robust performance while being constructed from zinc alloy, ensuring exceptional durability. Featuring a performance level of PLe, this interlock provides a reliable solution that meets safety standards and boasts an IP67 protection class, making it resistant to dust and water. The proHandle and AT head design facilitate easy usage, making this model ideal for improving safety in industrial automation systems. Developed specifically to safeguard operators working in hazardous areas, this product from Fortress Safety is ready to enhance the safety of your workplace with its reliability and technical superiority. Choose this product to secure your operations effectively.
Technical Specifications
| DC | Position Monitoring |
| λd | 10% |
| B10d | 5000000 |
| Cable Size | 28 – 24 AWG |
| Environment | Indoor, Outdoor |
| Part Number | EH2-T6-ST402-T03700D300 |
| Connector Type | Spring Activated Vibration Proof Block |
| Paint Finishes | Gloss Powder Coat on Passivated Base Material |
| Control Voltage | 24V ac/dc, 110V ac, 230V ac |
| Mechanical Life | 1,000,000 Switching Cycles |
| Retention Force | 10,000N(locked) |
| Housing Materials | Zinc Alloy to BSEN12844 |
| Performance Level | PLe |
| Ingress Protection | IP67 |
| Insulating Voltage | 2500V AC |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring |
| Utilisation Category | AC 15 or DC 13 |
| Insulating Resistance | 20M Ohm |
| Maximum Switch Current | 3A |
| Minimum Switch Current | 1mA at 5VDC |
| Brand | Fortress Safety |
| Model | EH2T6ST402T03700D300 |
| Main Category | Fortress Safety |
