Fortress Safety
Fortress Safety
EH2T7R3EKR7SKR71SR411T411D7D700
In Stock (100 items)
42 views
€0,00
VAT Included
Product Summary

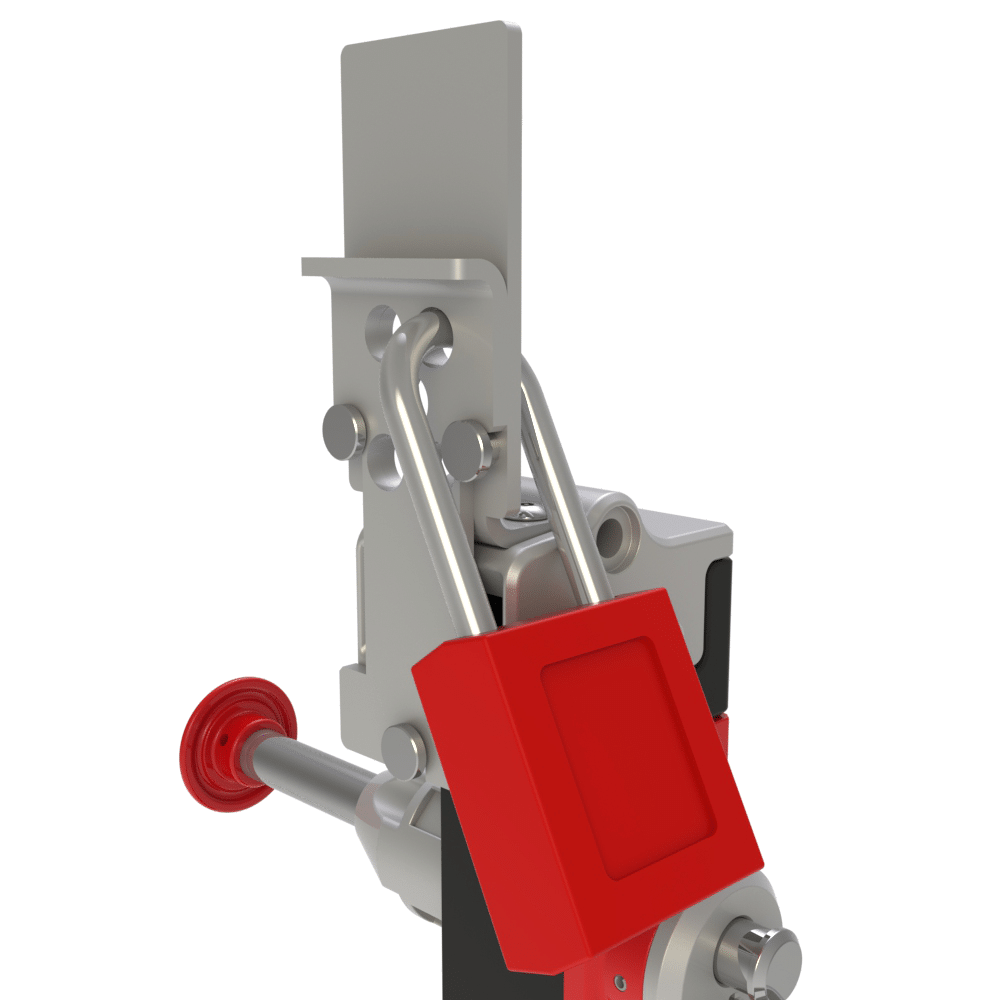

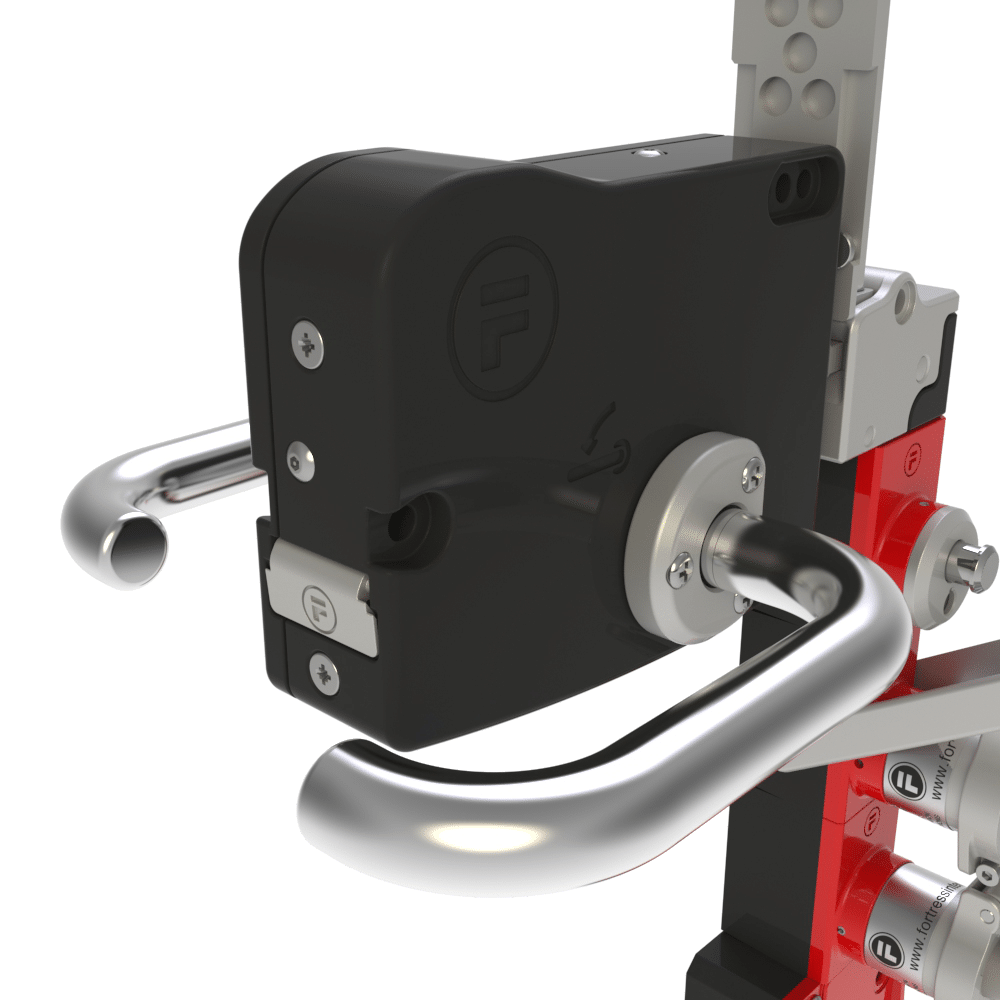

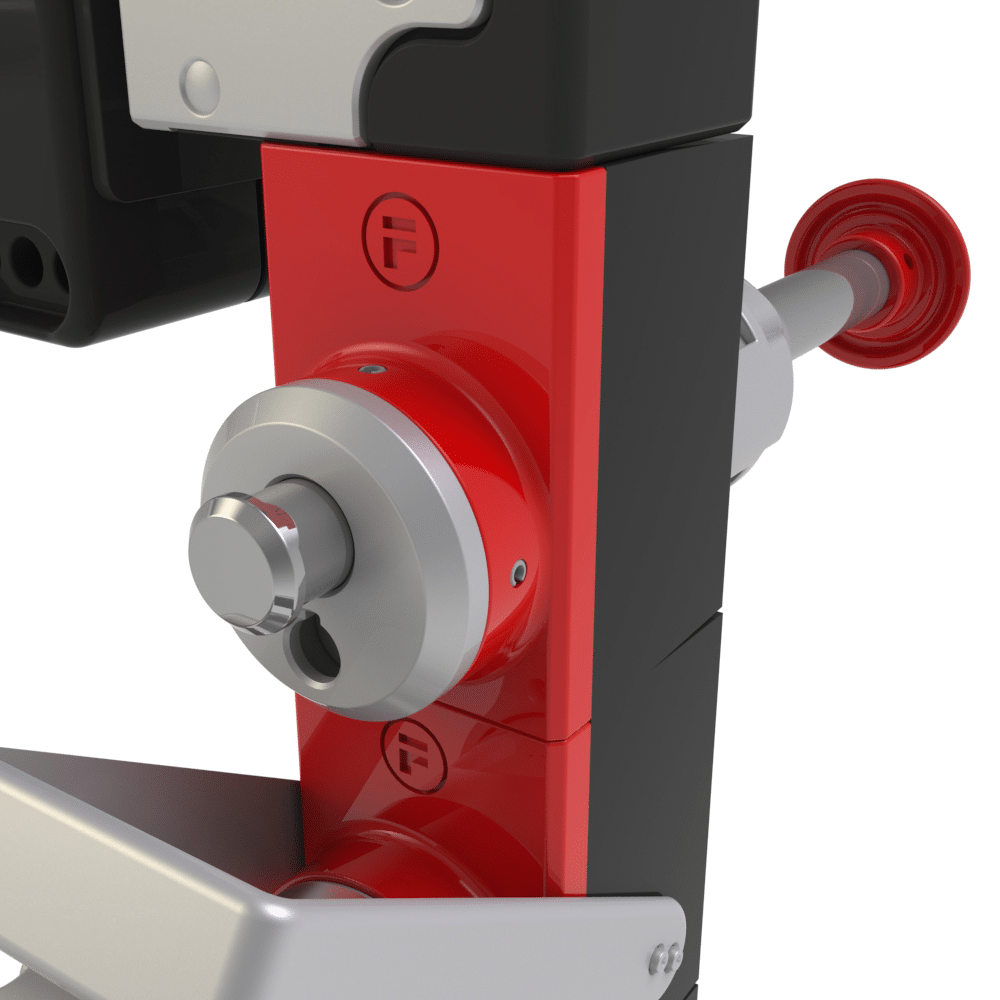

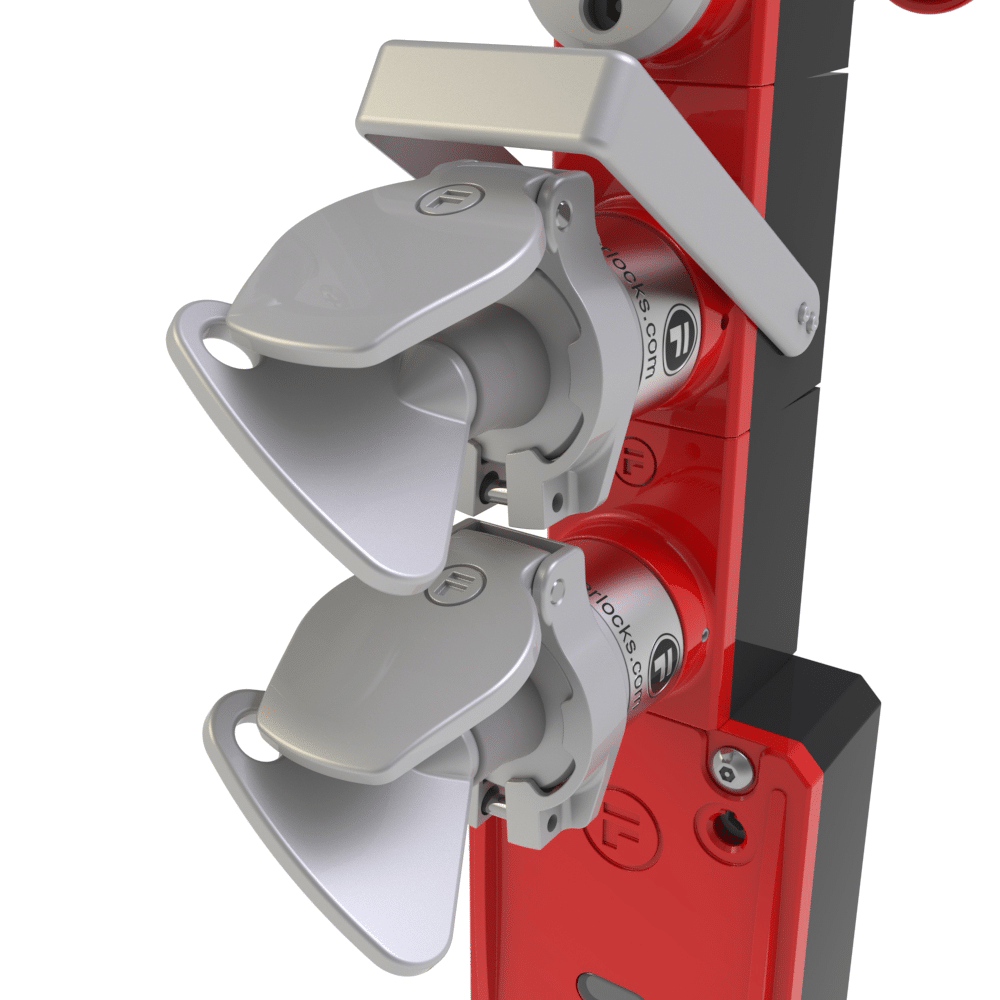

A solenoid-controlled interlock with Power-to-Unlock, auxiliary release, and monitored safety circuits. Includes a proHandle, push escape release with key reset, and trapped key adaptors.
Product Description
A solenoid-controlled interlock with Power-to-Unlock, auxiliary release, and monitored safety circuits. Includes a proHandle, push escape release with key reset, and trapped key adaptors.
The Fortress Safety EH2T7R3EKR7SKR71SR411T411D7D700 model is a solenoid-controlled interlock that offers top-level protection in industrial safety applications. Equipped with Power-to-Unlock functionality, auxiliary release, and monitored safety circuits, this device ensures a high level of operational security. Made entirely from stainless steel, it is designed to withstand harsh working conditions and provides maximum protection against dust and water with an IP67 protection class rating. Achieving a Performance Level of PLe, it adheres to stringent safety standards, ensuring user safety is prioritized. With features like the proHandle, key reset, and trapped key adaptors, the EH2T7R3EKR7SKR71SR411T411D7D700 enhances ease of use while boosting safety. As a product of Fortress Safety, it is the perfect solution for ensuring security in your industrial facilities. Its advanced design and technical specifications make it an excellent choice for any industrial application.
Technical Specifications
| DC | Position Monitoring |
| λd | 10% |
| B10d | 5000000 |
| Features | Escape Release, Personnel Key, Power-to-Unlock |
| Cable Size | 28 – 24 AWG |
| Environment | Indoor, Outdoor |
| Part Number | EH2-T7-R3-EKR7-SKR71-SR411-T411D7D700 |
| Paint Finishes | Gloss Powder Coat on Passivated Base Material |
| Control Voltage | 24V ac/dc, 110V ac, 230V ac |
| Mechanical Life | 1,000,000 Operating Cycles |
| Retention Force | 10,000N(locked) |
| Actuator Contact | 2NC 1NO |
| Solenoid Voltage | 24V ac/dc, 110V ac, 230V ac |
| Housing Materials | Die-cast Zinc Alloy |
| Performance Level | PLe |
| Solenoid Contacts | 2NC 1NO |
| Ingress Protection | IP67 |
| Internal Materials | All Stainless Steel |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring |
| Switches Conformance | DIN VDE 0060 Part 206 & IEC 947-5-1 |
| Maximum Switch Current | 3A |
| Minimum Switch Current | 1mA at 5VDC |
| Solenoid Voltage Tolerance | 90% to 110% of nominal |
| Solenoid Rating (Duty Cycle) | 100% |
| Brand | Fortress Safety |
| Model | EH2T7R3EKR7SKR71SR411T411D7D700 |
| Main Category | Fortress Safety |
