Fortress Safety
Fortress Safety
EI2A6EKR6AKR61ST401
In Stock (100 items)
54 views
€0,00
VAT Included
Product Summary

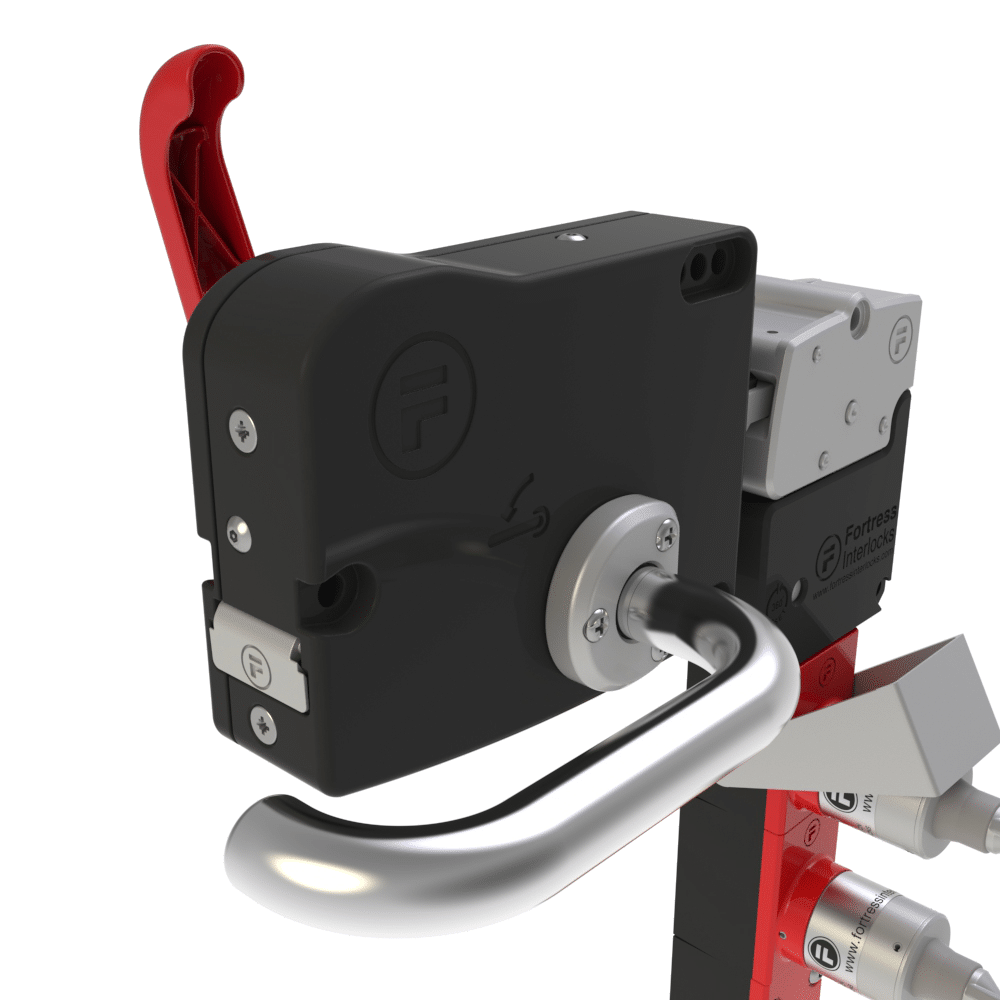

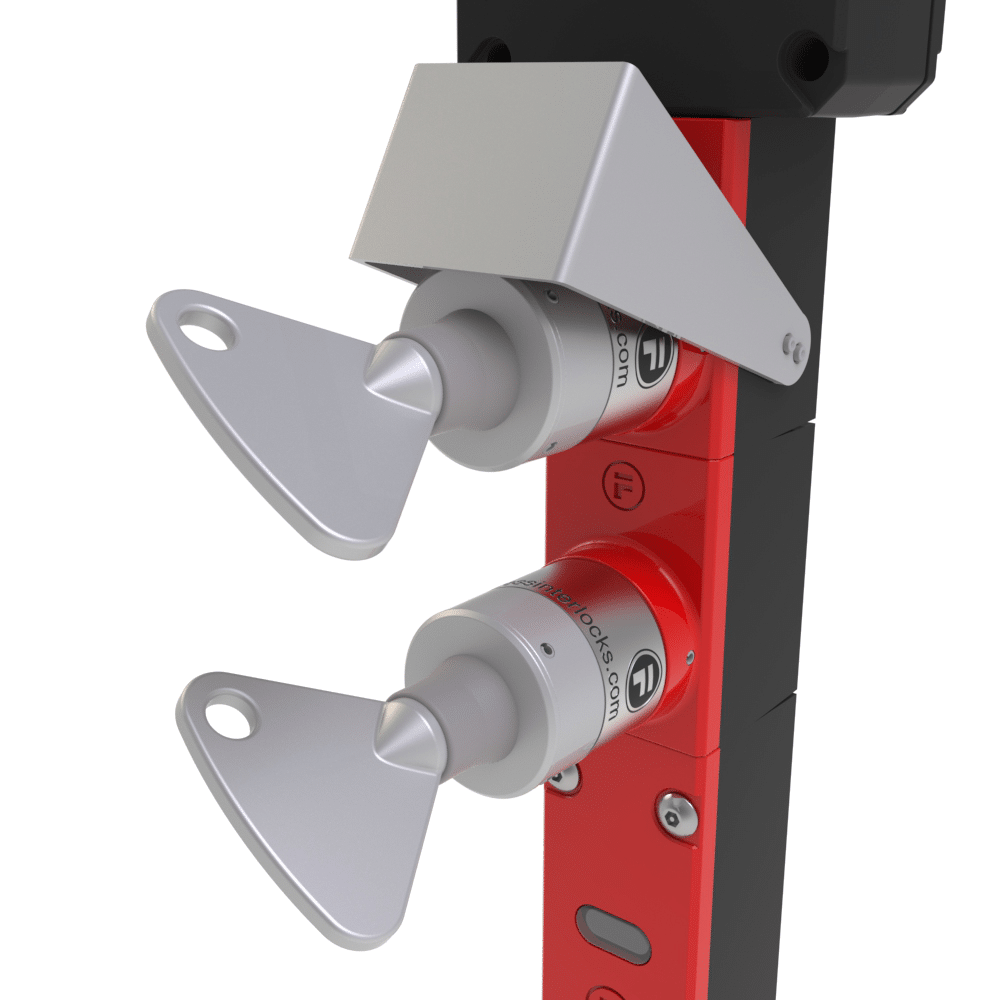

An interlock without locking, featuring an escape release, an extracted key adaptor and an access key adaptor with masterable locks.
Product Description
An interlock without locking, featuring an escape release, an extracted key adaptor and an access key adaptor with masterable locks.
The Fortress Safety EI2A6EKR6AKR61ST401 is a high-quality industrial safety interlock designed to enhance security in workplaces. This innovative product offers safe access without locking and provides a quick escape release in emergencies. With a voltage rating of 2500V AC, the EI2A6EKR6AKR61ST401 is crafted entirely from stainless steel, ensuring durability in challenging industrial conditions. Its performance level is classified as PLe, while its IP67 protection class guarantees resistance to dust and water. These attributes make it ideal for applications in machine safety, automotive, and manufacturing sectors. Fortress Safety is a recognized name in security, and this model takes user safety to the highest level, making it a reliable choice for those prioritizing safety in their operations.
Technical Specifications
| DC | Position Monitoring |
| λd | 10% |
| B10d | 5000000 |
| Features | Escape Release |
| Cable Size | 28 – 24 AWG |
| Environment | Indoor, Outdoor |
| Part Number | EI2-A6-EKR6-AKR61-ST401 |
| Connector Type | Spring Activated Vibration Proof Block |
| Paint Finishes | Gloss Powder Coat on Passivated Base Material |
| Control Voltage | 24V ac/dc, 110V ac, 230V ac |
| Mechanical Life | 1,000,000 Operating Cycles |
| Operating Force | 5NM |
| Retention Force | 10,000N(locked) |
| Housing Materials | Zinc Alloy to BSEN12844 |
| Performance Level | PLe |
| Ingress Protection | IP67 |
| Insulating Voltage | 2500V AC |
| Internal Materials | All Stainless Steel |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring |
| Utilisation Category | AC 15 or DC 13 |
| Insulating Resistance | 20M Ohm |
| Maximum Switch Current | 3A |
| Minimum Switch Current | 1mA at 5VDC |
| Brand | Fortress Safety |
| Model | EI2A6EKR6AKR61ST401 |
| Main Category | Fortress Safety |
